OEM Wrapped Bronze Bushing Bearing for Forest Machinery

Bronze Sleeve Bushings

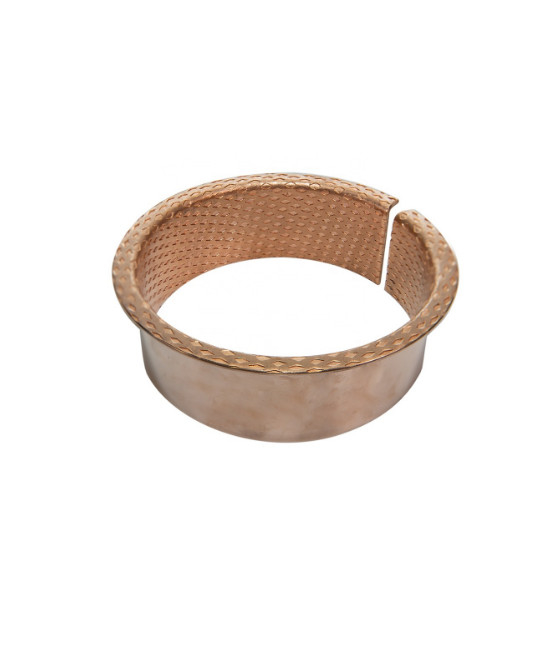

Wrapped Phosphor Bronze Bearings, specifically those made of CuSn8 and CuSn6.5, are high-performance bearing components that offer exceptional durability and reliability. Phosphor bronze, a copper-based alloy with added phosphorus, exhibits excellent corrosion resistance, high strength, and good formability. The wrapping construction further enhances the bearing's load-bearing capacity and wear resistance.

CuSn8 bearings, with a higher tin content, possess greater strength and hardness, making them suitable for heavy-duty applications. On the other hand, CuSn6.5 bearings, with a slightly lower tin content, offer a good balance between strength and ductility, suitable for a wider range of operating conditions.

Both CuSn8 and CuSn6.5 Wrapped Phosphor Bronze Bearings are known for their self-lubricating properties, eliminating the need for frequent lubrication and maintenance. They are commonly used in automotive, marine, and industrial applications where high performance and reliability are crucial.

Tin Phosphor Bronze Bushings material cusn8&cusn6 gleitlager,get a free quote.It is based on high density copper alloy of special formula. The alloy surface is rolled to diamond or global oil grooves. It has high density, good load capacity and wear-resistant. The product is applied to lifting machinery, construction machinery and mining machinery, etc.

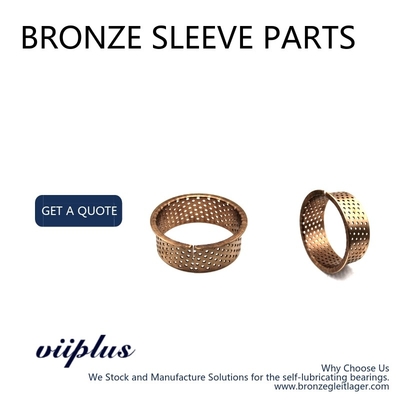

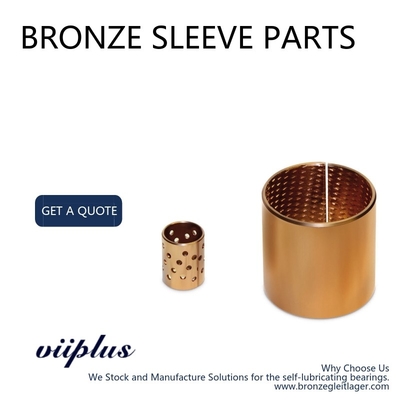

Rolled bronze bearings with lubrication pockets.

Features

- High load capacity
- Works well in dirty environments
- Wide temperature range
- Easy to assemble
- Grease pockets like lubrication tanks

Technical Details

Specific load capacity static< 120 [N/mm2]

Specific load capacity dynamic< 40 [N/mm2]

Sliding speed≤ 2.5 [m/s]

Friction value0.05 [µ] to 0.12 [µ] depending on lubrication

Temperature strain- 40 [°C] to + 250 [°C]

Max. PV-value2.8 [N/mm² x m/s]

The percentage of contact area on the ID is > 75%

The listed values in the material properties are valid for optimal operating conditions. By changing the conditions of application, e.g. an increase in the sliding speed or strain, these values could shift.

Range Of Application

Areas of use for example
Forestry and construction machinery, agricultural machinery, cranes, forklifts, lifting equipment, etc.
Shapes and shapes
Cylindrical plain bearings, flanged bearings, pressure washers, sliding plates.

• Agriculture machinery, truck cranes & construction machinery, suitable for impact loads

Aerial work platform, while you are still "heard of" it, many industries have become increasingly dependent on it.Below, we will take you to the key application areas of the high-altitude operation platform:

Construction Machinery

There is a lot of height work in construction, and the traditional high-altitude work tools such as scaffolding, derrick, portals, etc., have the problems of poor safety, large amount of building materials and long time consumption. Excellent safety guarantee and excellent work efficiency: The aerial work platform is an ideal replacement for Scaffolding, which has accelerated the process of construction mechanization and significantly reduced the labor of lifting in the construction process.

Pipe Installation Bronze Grease

Pipelines, especially fire fighting pipelines, play a vital role in the reliability of fire water and the ability of buildings to withstand fires. When installing fire pipes, many internal air operations are performed, and there are also many operating points and complex operations. space.

Supermarket and Warehouse Logistics

With the development of modern supermarkets, warehouses and logistics centers, multi-tiered stacking and warehousing of goods is increasingly inseparable from the use of the self-propelled aerial work platform. They are small in size, lightweight, stable up and down, safe and reliable. It can complete the lift operation at a higher height in a smaller space, and is the ability to move under the state of climb.Moreover, the intelligent control system enables all operations to be completed independently by one person, which greatly improves the efficiency of warehousing and logistics work and reduces the labor intensity of operators.

Discover More

In addition to the above three applications, the platform is also used in all walks of life, such as cleaning and maintaining building walls; Manufacture and maintenance of large equipment; Transportation from major transportation centers and so on.The platform also faces a variety of problems: abnormal noise in the operating process, wear of the joints, hug ......
Faced with the above problem, Viiplus Slef Lubricating Bushing can be a "game" to solve.
