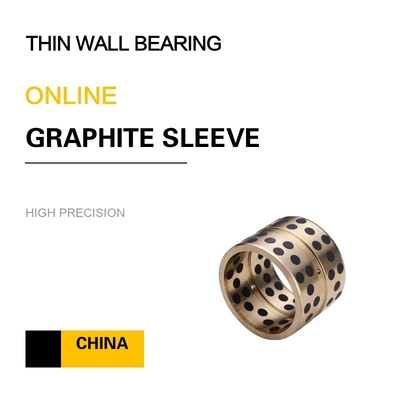

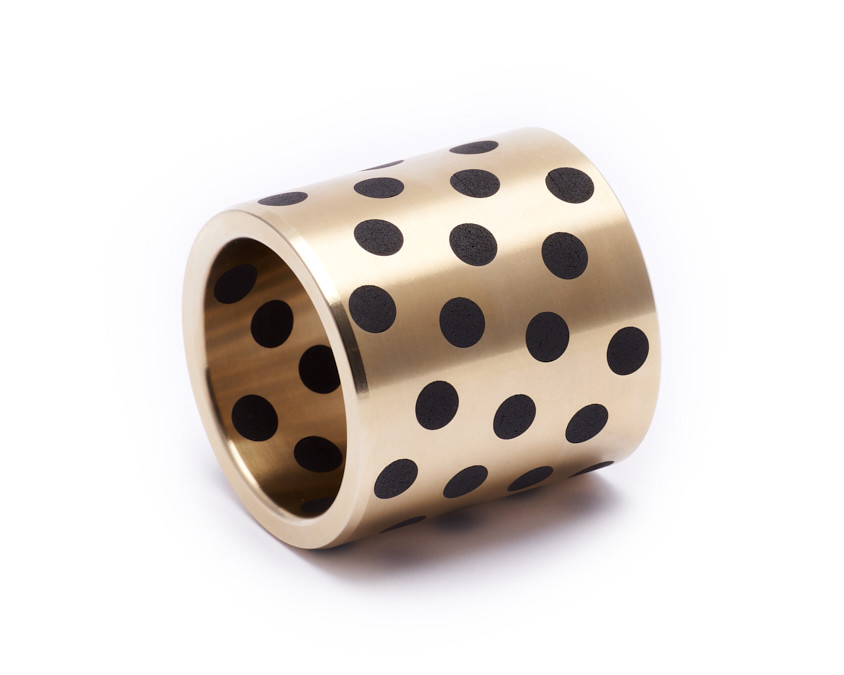

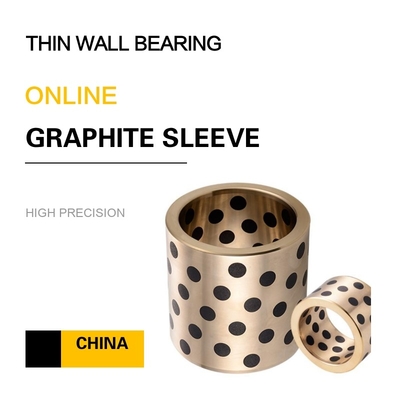

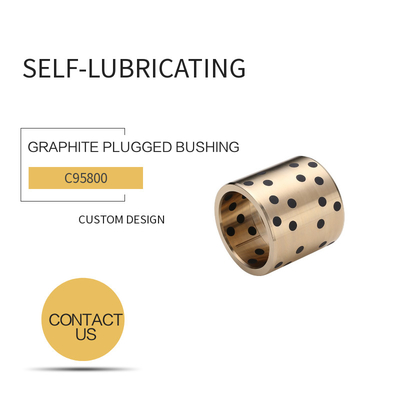

C95800 Bronze Oilless Bushes With Graphite CuAl10Ni5Fe5

Place of Origin gleitlagerbuchsen china
Brand Name VIIPLUS
Certification ISO 9001
Model Number bronze bushing
Minimum Order Quantity Standard Size Bushing No Minimum Order Quantity
Price Bushings High Quality Price Ratio B2B
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 4 - 12 BUSINESS DAYS
Payment Terms T/T, Western Union
Supply Ability bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material C95800 Bronze CuAl10Ni5Fe5 Bushing Bushing Size Inch Size, Metric Size
Feature High Tensile, Oil Free, OEM Production Application Mould Parts, PRESS DIE BEARING
Type Sleeve Design Custom Designs
Surface Treatment Oiled,embed Graphite Lubrication Graphite Self Lubricating
Get A Better Quote Tiffany@viiplus.com Get A Better Quote Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing
Gleitalger A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

bronze plain bearing

,

graphite plugged bronze bushings

Leave a Message
Product Description

Oil-Free Bronze Bushes Oil Impregnated Bronze Bush Lubricating Bronze Bearings



Oilless Bushes With Graphite - Select, configure, order



Maintenance free bearing and oilless bushes, bronze with solid lubricant



We are offer oilless guide bushing self lubricating oiles bushing and other high quality bearings, such as graphite steel bearing, bronze bushings, graphite plugged bushing.



Maintenance free flanged bush, thin walled, bronze with solid lubricant Highly wear- and dirt-resistent, insertable at high temperature.



Self-Lubricating Graphite Plugged Bronze Sleeve Bushings Now Available Online





In response to the growing demand for the graphite plug bushings product line, we are pleased to announce that the entire line of standard size graphite plug bushings is available for purchase online at bronzegleitlager.com.

Hundreds of industry-standard sleeve bushings are listed in standard metric and inch sizes. These products are inventoried for fast shipping.



C95800 Alloy, C958 Nickel Aluminum Bronze


An aluminum bronze bushing is the highest strength standard copper-based alloy cast bearings. We supply C95400 and C95500 CuAl10Ni5Fe4 material in standard sizes of bronze bearings & bronze bushes.



C95800 Bronze Bushings EN1982 CC333G/BS1400 AB2



The China Most Reliable Bronze Bearing Company, Choose the bearing style, sleeve bearing, flange bushing, thrust washer, plate. PRESS DIE BEARING the characteristics of forging die and bearing assembly is discussed in detail.







C95800 Bronze based components EN1982 CC333G/BS1400 AB2



Cu Sn Pb Zn Fe Ni Sb P S Al Mn Si
79.00 min N/A 0.03 N/A 3.50-4.50 4.00-5.00 N/A N/A N/A 8.50-9.50 0.80-1.50 0.1





Tensile Strength (min) Yield Strength (at .5% extention under load min) Elongation (in 2in. or 50mm min, %) Brinell Hardness (min) Remarks
Ksi MPa Ksi MPa
85 586 35 241 18 160

 Gleitlagerbuchsen



Other bronze bushings CuZn25Al5Mn4Fe3 CuSn5Pb5Zn5 CuAl10Ni5Fe5 CuSn12 CuZn25Al5 material



Professional purchasing each bronze bearing, thin wall bushing, stainless steel bearings, non-standard bearings, and refractory type bearings. A thin-wall embedded self-lubricating bearing comprises a plate; blind holes filled with a solid lubricant are evenly distributed on the working plane of the plate.

Main products: stainless steel bushing, bronze graphite bushing, thin bearings, drawing bearings.

The thin wall bearing realizes the extremely thin bearing section, also realizes the miniaturization, the lightweight product. The variety of products extends its range of USES...

The bronze Bearing from china factory is commonly used in applications requiring a reliable bronze bearing with the added benefit of self-lubrication. The bronze sleeve Bearing self lubricates without oil. For extreme operation conditions, graphite outperforms oil as a bearing lubricating medium.



VIIPLUS's graphing capability can solve any high or low-temperature bearing problem. As well as applications in other hostile environments. graphite bronze Bearings provide a mechanical lubrication system with graphite. They are oil-less and self-lubricating… designed for long life without downtime.





Material CuZn25Al5 CuSn5Pb5Zn5 CuAl10Ni5Fe5 CuSn12 CuZn32Al5Ni3
Density 8 8.9 7.8 8.9 8
HB hardness >210 >70 >150 >95 >280
Tensile strength N/mm2 >750 >200 >600 >260 >540
Yield strength N/mm2 >450 >90 >260 >150 >450
Elongation % >12 >15 >10 >8 >0.3
Coefficient of
linear expansion
1.9x10-5/°C 1.8x10-5/°C 1.6x10-5/°C 1.8x10-5/°C 1.8x10-5/°C
Max. temp. -40~+300 -40~+400 -40~+400 -40~+400 -40~+150
Max. load N/mm2 100 60 50 70 150
Max. speed (Dry) m/min 15 10 20 10 15
Max. PV
N/mm2*m/min (Lubrication)
200 60 60 80 200
Compression deformation
300N/mm2
<0.01mm <0.05mm <0.04mm <0.05mm <0.005mm



All of our bronze graphite Bearings are made from quality cast bronze. These bearings are machined and plugged with a graphite-based solid lubricant. Bronze Sliding Bearings can be manufactured from a number of bronze alloys to specifically meet your application needs.

What is an oil-free bushing and what are its features?
The liner body is saturated with lubricating oil and can be "used without oil supply" or "can reduce the number of oil supply" sliding bearing.



Oil-free bushing features include:


1. Low maintenance frequency;
2. Compared with ball-type linear bearing, the oil-free bushing is suitable for low-speed heavy-duty applications;
3. It can be used under high and low-temperature conditions;
4, compared with the linear bearing, the liner thickness is thin, saving space;
5. Can be used for both straight and rotary motion.

What kinds of materials are there for oil-free bushing? What are their specialties?
VIIPLUS has 5 oil-free liners, copper alloy, bronze casting, dry casting, resin casting.
Copper alloy (metal), excellent resistance to high temperature, chemicals, and impact, suitable for heavy and low-speed operation.
Bronze casting (metal), excellent sintering resistance, small operation, suitable for low load, and high-speed operation.
Dry-type (composite layer), high-temperature resistance, suitable for heavy load, low-speed operation, thin-wall compact.





Oilless Bushes Feature



Bronze bushings clogged with graphite are all self-lubricating and maintenance-free.

These bushings are made of continuously cast bronze and sealed with fixed lubricating plugs.

A bushing and its mating surface should always be separated by a film of lubricant.

Bronze bushings clogged with graphite do not require additional lubrication



Oilless Bushes Application



The uses for sockets clogged with graphite are practically unlimited. From hard to maintenance applications to high temperature environments to high load applications, bronze bushings clogged with graphite have excellent durability and wear resistance.



Such applications include: Steel Mills, Furnace dragouts, Drying Equipment, Roasters, Heat Exchangers, Press dies, Assembly lines, Machine tools, Chain Conveyors, Off shore structures, Deck cranes,Winches, Hatch covers, Rudder arms, Hoisting equipment, Tire & Paper Mills, Toggle link bearings for injection mold machinery, Mixers, Grinders, Pulverizers, Construction machinery, Mining rigs, Arm link bearings, Power shovels, and more.







bearing application
