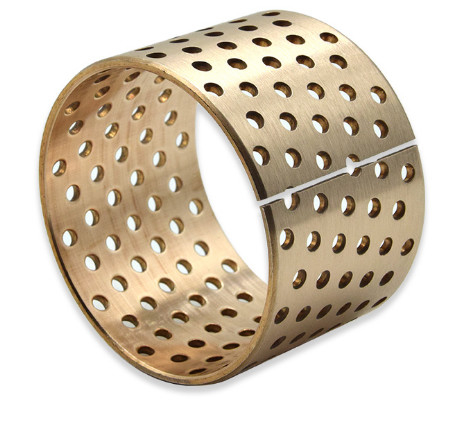

CuSn8 & CuSn6 Material Wrapped Bronze Sliding Bearing With Filled Lubrication Pockets

The CuSn8 and CuSn6 Wrapped Bronze Sliding Bearings with Filled Lubrication Pockets are high-performance components designed to optimize the efficiency and reliability of sliding applications. These bearings are constructed from CuSn8 and CuSn6 bronze alloys, which are known for their exceptional wear resistance, corrosion resistance, and mechanical strength.

The wrapped design of these bearings not only provides a secure and stable fit but also facilitates easy installation and replacement. The bronze material, with its inherent ductility and toughness, ensures durability and long-lasting performance even under high loads and speeds.

The key feature of these bearings is the incorporation of filled lubrication pockets. These pockets are designed to retain lubrication oil or grease, creating a continuous lubricating film that significantly reduces friction and wear. This self-lubricating capability extends the bearing's lifespan and enhances the overall performance of the mechanical system.

CuSn8, with its higher tin content, offers superior strength and hardness, making it ideal for applications that require high load-bearing capacity. On the other hand, CuSn6, with its balanced mechanical properties, is suitable for a wide range of sliding applications that demand both strength and ductility.

In summary, the CuSn8 & CuSn6 Material Wrapped Bronze Sliding Bearings with Filled Lubrication Pockets are an excellent choice for reducing friction and wear in sliding applications. Their precision engineering, high-quality materials, and innovative design ensure reliable and efficient operation, making them a valuable addition to any mechanical system.

Bronze Wrapped Bearing,Wrapped Bronze Bushing

Bronze bearing, chain pin bushing, copper base self-lubricating bronze rolling bearing bushing

The bronze bearing  is wrapped with a bronze strip. This type of bronze bearing consists of a specific formulation with a high specific weight and its surface can be provided with spherical or diamond-shaped depressions or oil grooves, depending on the customer's requirements. It is high load capacity and long life. It is cheaper and more compact than conventional cast bronze bushings. Wrapped bronze bushings are often used in lifting machines, construction machines, automobiles, trucks, machine tools, mineral equipment, etc.

Wrapped bronze bearing 090/092 size chart bronze wrapped bushing flange size self-lubricatin...

The bronze bushing is a type of self-lubricating bearing. This type of bearing includes bronze bearing 090, bronze bushing 091, bronze bearing 092 with oil bore and bearing. Cylindrical bushings, flanged bearings and strips are available.

These bearings are wrapped from a cold-formed homogenous bronze (CuSn8), which can achieve exceptional material properties. According to various lubrication conditions, we can provide diamond shaped lubrication indents (grease) and incorporate holes (oil), these designs can rapidly build up a lubrication film at the start of the movement and thereafter reduce the running friction.

Gleitlagerbuchsen,Wrapped Bronze Sliding Bearing, High Quality-Factory Price

VIIPLUS specialized in research and development, production and sale of self-lubricating bearings. The main products are metallic polymer composite bearings, bimetallic composite bearings, bronze coated bearings, self-lubricating monometallic bearings and other bearings.

VIIPLUS is a professional manufacturer of plain bearings and wear plates and has grown rapidly to a point where it is now possible to supply all types of plain bearings. Standard catalog sizes, special sizes and designs can be produced at competitive prices and according to high quality standards. VIIPLUS serves both the national and international markets. VIIPLUS intends to remain at the forefront of this market.

090/092 Flange Wrapped Bronze Bearing,Bronze Sleeve Bushing

The bronze bushing 090 is a standard object of our company. Bearings of this type are made of specially developed high-density bronze alloy.

The bronze bushing 090 is widely used in hoisting machines, construction machines, cars, tractors, trucks, machine tools and some mineral engines.

Material: CuSn8P0.3

Physical and Mechanical Properties

The 092 bronze bushing is a special wrapped bronze bearing with oil holes. This type of self-lubricating bearing is made of specially formulated high density bronze alloy.

Suitable for medium load, low speed conditions, such as on the transport machine, the lifting machine, the winch, the alignment machine etc.

Material: CuSn8P0.3

Physical and Mechanical Properties

Availability

Standard cylindrical bushings, flanged bushes are available.
Special designs are produced based on your design.

Bronze Flange Sleeve Bushing,Metric Sizes – Pre-Lubricating Bearings Model

Reliable & safe producer and supplier for bronze sleeve bushings

CuSn8 Material Wrapped Bronze Sliding Bearing

CUSN8 Bushings is a tin bronze containing iron and manganese, which is of high strength and heat resistant. It has stable mechanical properties at high temperature (400℃), good friction reduction, good corrosion resistance in atmosphere, fresh water and sea water, good pressure processing under thermal state, heat treatment and strengthening, welding, not easy to fiber welding, and good machinability.

MATERIALS Support material CuSn8 (DIN 17662) or CuSn6 Lubrication pockets filled with solid lubricant

SLIDE BEARINGS

CuSn8 Bronze Chemical composition:
Cu: allowance;
Tin Sn: 7.00 ~ 9.00;
Zinc and zinc: 3.0 or less;
Lead Pb: 0.5 ~ 3.00;
Ni Ni: 1.5;
Aluminum Al, 0.01;
Iron Fe: 0.2;
Si Si: 0.01 or less;
S: sulfur 0.10;
Material: 1.0 or less

CuSn6 Material Wrapped Bronze Sliding Bearing

CuSn6 Bushing is phosphor bronze with high strength, elasticity, abrasion resistance and diamagnetization, good pressure workability in hot and cold state, high flame resistance to electric spark, weldability and fiber welding, good workability, corrosion resistance in atmosphere and fresh water.

Material name: CuSn6 tin-phosphorous bronze
Standard :(GB/T 2059-2000)

CuSn6 tin phosphor bronze characteristics and application scope:
Phosphor bronze, high strength, elasticity, abrasion resistance and diamagnetization, good pressure workability in hot and cold state, good flame resistance to electric spark, weldability and fiber weldability, good workability, corrosion resistance in atmosphere and fresh water.
Except for spring and wear-resisting parts, it is mainly used for making wear-resisting copper mesh in paper industry and working parts with unit load <981Mpa and circumferential speed <3m/s

CuSn6 Bushings chemical composition

Sn: 5.5 to 7.0
P: 0.01 to 0.35
Zinc: 0.30
Ni: 0.30
Fe: 0.1
Pb: 0.05
Al: 0.002
Material: 0.1
Cu: allowance

VIIPLUS made to order from china offers a variety of different bronze alloys bushingsin combination with know-how and a high level of service. Different factors determines bushings type choice of alloy. Environment for use, load capacity and cost are some of them.

TOLERANCE DETAILS

Housing ØH7Bushing inner-Ø after mountingH9Shaft tolerancef7 to h8

CuSn8 & CuSn6 Lubrication pockets tin bronze bushing is a maintenance-free composite sliding bearing with solid lubricant pockets, but primary lubrication is necessary. Therefore an aging resistant lithium stiffened grease should be used.
