| Brand Name: | REPLACE BRAND Metal-Polymer Bearings BEARINGS () |
| Model Number: | BUSHING TYPE FLANGED PLAIN SLEEVE |
| MOQ: | NEGOTIABLE |
| Price: | Competitively Priced vs, Provides Lubricating Bush |
| Payment Terms: | TT IN ADVANCE WESTERN UNION |
| Supply Ability: | Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings |

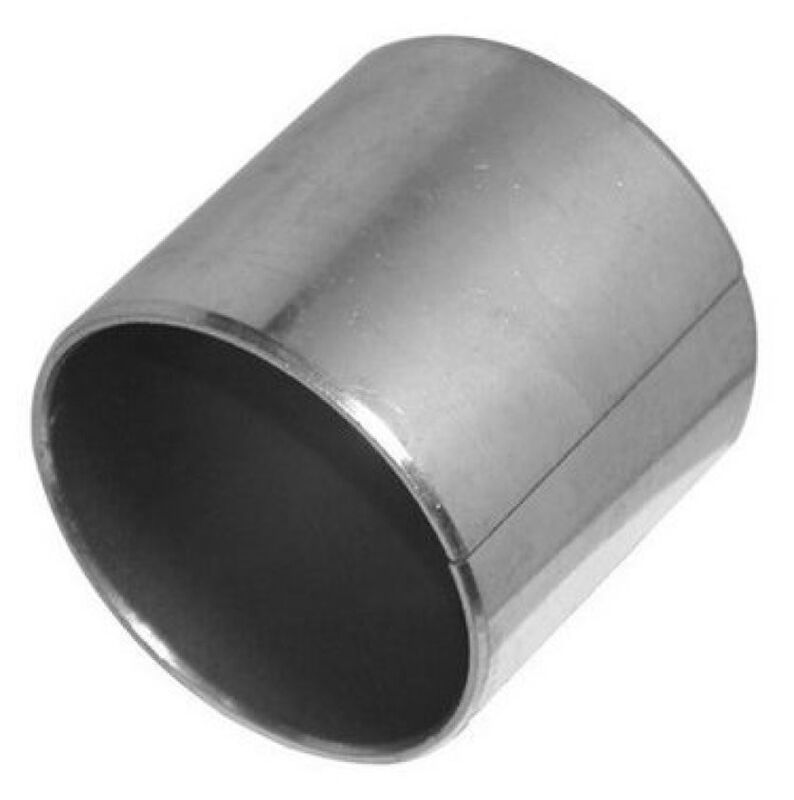

Home parts for wheelchairs, specifically the wheel bearings, are crucial components that ensure smooth and reliable operation. These bearings are often made from high-quality materials such as bronze, which provides excellent durability and wear resistance. Bronze bushings, commonly used in medical equipment, are also a key part of ensuring precision and longevity in these critical applications. By utilizing these precision-engineered parts, wheelchairs and other medical equipment can offer a safer and more comfortable experience for users.
Our lined wrapped bearings have been developed for high duty, oil lubricate applications.
Such applications include, but are not limited to:
Wheelchairs & Accessories - Medical Equipment
Our VIIPLUS range of lined wrapped bearings is suitable for dry running, low friction, low wear applications. These wrapped bearings have excellent sliding characteristics forming a transfer film that can protect the mating metal surface.
We are able to offer lined wrapped bearings in metric plain, imperial plain, metric flanged, metric washers, imperial washers, metric strip and imperial strip.
Special sizes can be produced to customer requirements.
-Wheelchair Bearings
-Medical Equipment Bushings
-Home and Fitness Equipment Bushings
VSB-10 Metal-Polymer Anti-Friction Plain Bearings
ROLLED DRY SLIDING BEARINGS ()
Steel + Bronze Powder + /Fibre
Wrapped Lined (maintenance-free), self lubricated plain or flanged bearings, thrust washer and strip, Carbon steel shell with sintered bronze layer filled with Oilless bush bushing
VSB-10 Self-Lubricating Multilayer Composite Bushing
1.Bushing material suitable for lubricated applications
2.self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
3.Anti-friction bearing suitable for linear, oscillating and rotating movements
Material is designed to operate without supplemental lubrication and will perform excellent when lubrication is present. Low friction, low wear rate, good sliding characteristics and very low absorption are a few of the features of this material. VSB-10 bushings will support rotary, linear and oscillating motion.
Carbon Steel + Copper Powder + ( + Pb + Filler)
· Metal-Polymer Composite Self-lubricating Bushing Material
· Steel Back + Porous Bronze Sinter +
· + Lead
OPERATING PERFORMANCE | |
Dry | Very Good |
Oil lubricated | Good |
Grease lubricated | Fair |
Water lubricated | Fair |
Process fluid lubricated | Fair |
| Max. load | Static | 250N/mm2 |
| Dynamic | 140N/mm2 | |
| Max. speed | Dry | 2m/s |
| Lubrication | >2m/s | |
| Max. PV (Dry) | Short-time | 3.6N/mm2*·m/s |
| Continuous | 1.8N/mm2*·m/s | |
| Temp. | -195℃~+280℃ | |
| Friction coefficient | 0.03~0.20 | |
| Thermal conductivity | 42W (m·k)-1 | |
| Coefficient of thermal expansion | 11*10-6k-1 | |
|
|

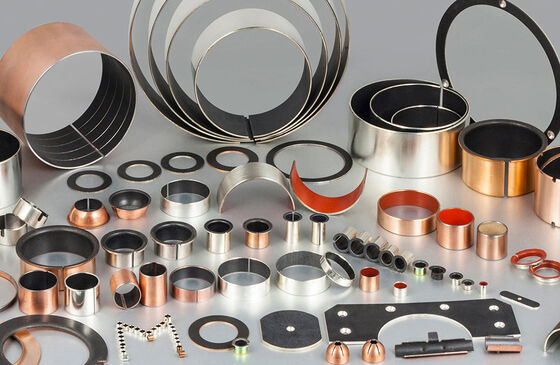

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates
Plain bearings are available as bushes, collar bushes, washers, strips or special designs.
Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping or deep drawing, customized bushing designs
Outer Packaging: Hard carton; Wooden case ; Wood pallet.
Bushing, Bearing, Line Bearing, Coated Bushing, POM Bush, POM Bearing
Product Description:Customized Steel All kinds of Self-lubricating Bushings
VIIPLUS Provide all types of electronic samples for customers,Metal-Polymer Composite Bearings Catalog!
video
