Steel-Backed Lined Sleeve MS+, BEARING
Place of Origin | Composite plain cylindrical bushings manufacturer |
---|---|
Brand Name | VIIPLUS BUSHINGS SUPPLIER |
Certification | ISO 3547 DIN 1494 Assembly Standard Tolerance |
Model Number | Ski Lifts Guild Bearings |
Minimum Order Quantity | 100 Piece/Pieces |
Price | $0.05 - $1.00 / Pieces |
Packaging Details | Packaging: Export carton; Wooden case ; Wood pallet. |
Delivery Time | 7~15 work days |
Payment Terms | TT in advance,Western Union |
Supply Ability | Special Customized Lubricating Bushings Manufacturing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMeterial | Carton Steel , Bronze , | Plating | Tin Or Copper |
---|---|---|---|
Characteristic | Low-maintenance And Maintenance-free Plain Bearings | Type | Bushes, Collar Bushes, Washers, Strips Or Special Designs |
Size | Standard Size Available | Application | Cranes Towing Equipment Tail Lifts Aerial Platforms Waste Management Equipment Tarpaulin Systems Special Purpose Vehicles Scissor Lift Platforms |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
High Light | Self Lubricating Bronze POM Bushing, Metal Polymer Bushings | POM BUSH | Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ... |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
Highlight | oil impregnated brass sleeve bearing,flanged plain bearing |

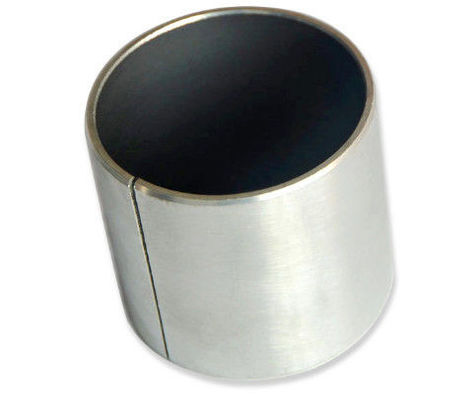

The Steel-Backed Lined Sleeve, commonly known as MS+ or Bearing, is a unique composite material bearing solution that offers exceptional performance in various industrial applications. This type of bearing combines the strength and durability of steel with the non-stick, low-friction properties of polytetrafluoroethylene ().
The MS+ design features a steel backing plate that provides structural support and rigidity. The lining is bonded to the steel plate, creating a smooth, lubricated surface that reduces friction and wear. This combination results in a bearing that can withstand high loads, resist wear, and maintain stable performance over extended periods of time.
Bearings, as another common name for this type of product, are often used in applications where high temperatures, chemicals, or other harsh conditions are present. The lining is resistant to these elements, ensuring that the bearing can continue to function reliably in challenging environments.
The Steel-Backed Lined Sleeve MS+, D BEARING is an excellent choice for a wide range of industrial applications, including rotating machinery, pumps, compressors, and more. Its unique combination of materials and design makes it a dependable solution for reducing friction, extending equipment life, and improving overall system performance.
Steel-Backed Lined Sleeve MS+, BEARING
Sliding Bearing & Bushings for Cranes Towing Equipment Tail Lifts Aerial Platforms Waste Management Equipment Tarpaulin Systems Special Purpose Vehicles Scissor Lift Platforms
MS+, BEARING
Viiplus China Sliding Plain Bushings Guild Bearings are typically used in high loads applications, like valves, hydro power equipment, lifting equipment, hydraulic pumps and many other applications.
Metal-Polymer Bearings SLIDING bearings MADE ORDER FROM CHINA are used extensively by manufacturers due to the material’s ability to maintain low friction under heavy loads.
The diverse range of high performance composite materials manufactured by VIIPLUS CHINA offers the engineer a wide array of SLIDING BEARINGS solutions to improve wear resistance, withstand extreme temperatures, resist high impacts and survive in harsh, corrosive environments.
Self lubricating bearings are found in traditional ski lifts, and in chair-lift connection systems.Ski lifts are bidirectional.
cable railways, ski-lifts bushings Made in China
Self lubricating flange bearing with sliding layer.
Characteristics
Self lubricating & operate without external lubrication.
Free from stick slip, giving easy movement & operation.
High wear resistance giving long life.
Large operating temperature range -200oC to +300oC.
Corrosion resistant & can be used with aggressive liquids such as sea waterGasoline, Acids, Detergent Solutions, Hydraulic Oils, Ammonium Hydroxide, Oils
High strength, capable of carrying high loads.
Good dimensional stability & capacity to be formed to close tolerances
Slinding bearings have a metal backing and a composite self lubricating liner, which gives the combination of high strength, excellent chemical resistance and a low coefficient of friction.
Customized Metal-Polymer Bearings is a type of composite oilless bearing, it has a common structure, consisting of a Steel / Bronze / Stainless Steel backing bonded to a porous bronze sinter layer and overlaid with the bearing material.
The excellent low friction and high wear resistance performance of metal-polymer bearings make them ideal for hundreds of applications in numerous and diverse industries around the world.
Metal-Polymer Bearings take advantage of the out-standing dry bearing properties of and combines them with strength, stability and good wear resistance, excellent heat conductivity and low thermal expansion.
It's also called bearing, and lined dry sliding bearing, oil free bushes.
Key Benefits:
Increased Bearing Life
Large Application Range
Reduced Maintenance
Significantly Reduced Downtime
Improved Performance
Customized Innovative Solutions
Proven Performance Over Decades
Excellent Chemical Resistance
Worldwide Distribution
– Maintenance-free (self-lubricating)
– Low coefficient of friction
– Universal bearing
– Long lifespan
VIIPLUS Sliding bearings are supplied with a range of metal backings. These include stainless steel 316 AND 304, carbon steel, and bronze. VIIPLUS SLIDING bearings are supplied as coiled bearings, thrust washers, and solid cylindrical bearings.
Component Design If design services, drawings and fitting instructions are required, VIIPLUS CHINA works with customers in developing the most suitable SELF-LUBRICATING solution to their particular problem.
Sliding bearings consist either of a fabric with strengthening fibers applied to a metal backing or our innovative fabric-free design with special low friction coating.
WEAR PARTS & BEARINGS
Bearing Development
1. Development of bearing products
Bearing is the bearing shaft parts, known as the "mechanical joint", is an indispensable part of modern mechanical equipment.The main function of the bearing is to support the rotating shaft or other moving body, guide the rotational movement or movement and bear the load transmitted by the shaft or the parts on the shaft.
The modern industrial bearing industry arose from the late 19th century to the early 20th century.Since the 1950s, with the rapid development of high and new technologies such as aerospace, nuclear energy industry, electronic computers, optical and electromagnetic instruments, precision machinery and so on, the world bearing industry has entered a period of comprehensive innovation, with rapid development of manufacturing technology, and increasingly mature varieties, bearing precision, performance and life.
2. Classification of bearing products
There are many types of bearing products, according to the different structure and working principle, can be divided into "rolling bearing" and "sliding bearing" two categories.The rolling bearing refers to the bearing that contains the rolling body for rolling motion between the parts. The sliding bearing is the bearing that does not use the rolling body and only works under the sliding friction.
The rolling bearing has the advantages of small friction coefficient, high transmission efficiency and good mechanical properties.Rolling bearings have been standardized, serialized and generalized, suitable for mass production and supply, promoting the overall development of the bearing industry.
Sliding bearing has the advantages of small volume, high bearing capacity, little vibration, little noise and more structural changes.Therefore, the sliding bearing has obvious advantages over the rolling bearing in the occasions with large load bearing, compact structure and impact load.The advantages of the variable structure of sliding bearing also enable it to be applied to various mechanical parts of different shapes.
According to the different lubricating materials and lubricating ways, the sliding bearings can be further divided into "self-lubricating bearings" and "general sliding bearings".Traditional sliding bearings need to add lubricating oil, grease and other lubricating materials before or during the work process, so as to form a fluid or semi-fluid film on the friction interface and play an effective role of lubrication, known as "general sliding bearings".Such as thick - wall bearing, thin - wall bearing, etc., belong to the general sliding bearing.Self-lubricating bearing is a new type of sliding bearing products, this kind of products use self-lubricating material as a lubricant or pre-filled with lubricant sealed up, can be used for a long time, work process without adding lubricant.Among them, the bearings made of solid self-lubricating materials as lubricants are also known as "oil-free bearings" because they do not need to add oil, grease and other traditional lubricants.At present, the main raw materials used for making self-lubricating bearings in the world are copper, steel and other metal materials and non-metal materials, such as polymer products (), graphite.
3. Development of self - lubricating bearings
The manufacture of self - lubricating bearings originated in England.In the 1950s, (polytetrafluoroethylene) began to be tested as a bearing material in the UK, and the sintering process of copper powder also got a breakthrough.In 1956, the world's first self-lubricating bearing with as lining and steel plate as support was put on the market.In the late 1960s, self - lubricating bearings began to enter the aerospace and other cutting-edge technology applications.Since the 1970s, British self-lubricating bearing manufacturers have licensed the technology to French, German, Japanese and American companies, which promoted the rapid development of the world's self-lubricating bearing industry. Self-lubricating bearings have gradually entered all mechanical manufacturing fields.
4. Classification of self - lubricating bearing products
With the development of the self-lubricating bearing industry, the production technology and materials of self-lubricating bearing are constantly innovated, and the types of products are gradually enriched.According to the different product structure and manufacturing materials, the self-lubricating bearings are divided into laminated class, single-layer class and other three categories, which are divided into several subcategories.The details are as follows:
"Multilayer type" self-lubricating bearing products are composed of two or more different types of bearing materials, in which the liner material plays the role of self-lubrication, the substrate plays the role of support, and other materials play the role of connection and transition.The lubricating effect of "laminated" product is good, and its bearing capacity is determined by the compressive strength of the surface material.According to the types of substrate and lining materials, it can be divided into metal substrate and metal lining layer cladding, metal substrate and non-metal lining layer cladding, and non-metal substrate and non-metal lining layer cladding.
"Single layer type" self-lubricating bearing products are made of a type of bearing materials, products rely on the bearing materials contained in the self-lubricating materials such as graphite, molybdenum disulphide, polytetrafluoroethylene, lead and so on to lubricate, according to the type of bearing materials, can be divided into metal class and non-metal class.Non - metallic single - layer self - lubricating bearings mainly include integral non - metallic bearings, non - metallic rolling bearings.Metal class single - layer bearings mainly include solid - inlaid products and oil - bearing products."Solid inlaid" self-lubricating bearings are pre-processed with holes or grooves on the metal substrate in a certain arrangement, and then solid lubricant is embedded in them.In the working process, due to the action of friction heat or ambient temperature, the solid lubricant is slightly prominent on the sliding surface, and forms a transfer film on the metal substrate and dual surface through friction, thus playing the role of friction reduction and wear resistance."Oil-bearing" self-lubricating bearing is a porous material made of metal powder pressed and sintered by powder metallurgy process and then filled with lubricating oil in the pores.Due to the action of friction heat or ambient temperature, the lubricating oil precipitates out from the bearing and forms a lubricating film on the metal substrate and dual surface, thus playing the role of friction reduction and wear resistance.
5.Characteristics of self - lubricating bearing products
Self-lubricating bearings are suitable for places where refueling is impossible or difficult.Due to the special requirements of production process, automobile manufacturing, machinery industrial enterprise of some of the key equipment to run under extreme conditions, because of the large heavy equipment, high temperature, dust or acidic corrosion factors such as gas in the air, it is difficult to add lubricating oil for the equipment, so the rolling bearing or general sliding bearing friction and wear, easy to have the bearing bite or bite dead, cause parts wear and damage, lead to equipment shutdown.In order to produce continuous operation, in addition to the original design requires the installation of a number of equipment wheel repair, but also a large number of maintenance personnel, spare parts and energy consumption.Therefore, automobile manufacturing, engineering machinery, mold industry and other enterprises have the demand for special lubricating materials under complex working conditions.Oil-free can greatly simplify the bearing design and structure, reduce the cost and save the design time. It can use the bearing without maintenance or less maintenance, and also avoid the risk caused by insufficient oil supply.Through the research of self-lubricating bearing composite materials and self-lubricating bearing, the publisher has achieved innovative breakthrough in the material formulation and preparation process, which can solve the lubrication problem under special working conditions for customers.
Since the self-lubricating bearing does not need oil supply device, no oil can be added in the working process, so it can save a lot of installation and operation costs, improve mechanical performance, improve service life and reliability.Oil-free treatment does not require waste oil recovery and is also beneficial to environmental protection.The hardness requirement of self - lubricated bearing for grinding shaft is low, which reduces the processing difficulty of related parts.Self-lubricating composite bearing structure, the surface can be electroplated a variety of metals, can be used in corrosive medium.In addition, since no oil lubrication does not exist grease volatilization problem, self-lubricating bearings can be used in high temperature and high pressure environment.
The performance comparison between the self-lubricating bearing and the general bearing is as follows:
Features comparison | Sliding bearing | Rolling bearing | |
Self-lubricating bearing | Plain bearing | ||
bearing | high | high | low |
speed |
Low or medium speed |
Low or medium speed |
Can be high, medium speed movement |
The friction factor | small | big | A small |
Noise | There is almost no noise during the exercise | There is almost no noise during the exercise | Noise is produced when you move |
lubrication | With or without lubrication | Need lubrication | Need lubrication |
seal | Seal or not | eed to seal | eed to seal |
The corrosion resistance | good | good | bad |
Impact resistance | good | good | bad |
interchangeability | It can be interchangeable with rolling bearing if the conditions of use permit | It can be interchangeable with rolling bearing if the conditions of use permit | It can be interchangeable with sliding bearing if the conditions of use permit |
movement way | A straight line, turn, swing, or combination of motion | A straight line, turn, swing, or combination of motion |
A single mode of motion in a straight line, turn, or swing
|
The requirement of shaft | The hardness requirement for the shaft is not high | The hardness requirement for the shaft is not high | Higher hardness of the shaft is required and heat treatment of the shaft is required |
Non-standard size customization | flexible | flexible | Trouble and high cost |
Bearing without oil maintenance, wear resistance, heat resistance and other characteristics greatly expand the range of application of the product, a lot of ordinary bearings can not be qualified for the field can use self-lubricating bearings, so the self-lubricating bearings than ordinary bearings have a broader space for development.
6.Application of self - lubricating bearing products
Self-lubricating bearings have been widely used in various industrial fields. The following table shows some typical application areas of self-lubricating bearings:
Application industry | Typical application range |
Automobile manufacturing | Steering system: gearbox, differential, clutch, balance bridge, lifting lug, etc. |
Engineering machinery |
Engine: connecting rod bushing, throttle body, tensioning wheel, turbocharger, fuel injection pump, idler wheel, oil pump, rocker arm bushing, starting motor, etc.Steering system: suspension shock absorber, steering machine, steering resistance pump, steering shock absorber, etc. Braking system: pedal assembly, brake shoes, etc. Body: door hinges, trunk hinges, wipers, etc Crankshaft sleeve, guide wheel shaft sleeve, towing wheel, oil cylinder, operating mechanism, gear oil pump, driving wheel, passive wheel, rotary table, grab joint, industrial robot arm and other parts;Lifting machinery, handling machinery, stacking machine and other joint parts;Hydraulic cylinder, crane operating rod, transmission parts, etc.Plastic machinery and other parts |
Mould manufacturing | Die guide, oblique, positioning, guide rail and other parts, tire mold |
Hydraulic equipment | Gear pump, plunger pump, vane pump, metering pump, fire pump, compressor, submersible pump, etc.Oil cylinder, cylinder, ball valve, butterfly valve, valve control mechanism |
Light industry | Food machinery, medicine machinery, plastic machinery and other parts that need to drive |
Construction engineering | Buildings, factories and other buildings of the shock absorption, anti-seismic facilities, bridge anti-swelling facilities, cable and other construction facilities |
Home and office automation equipment | Joints and reciprocating parts of machines such as fax machines, duplicating machines, shredders, scanners and printers;Fitness equipment, doors and Windows open and hinge parts;Washing machines, air conditioners, refrigerators, microwave ovens, sewing machines, etc |
energy | Generator, electric motor, wind power system, dam sluice system, etc |
Aerospace and rail transit and other high-tech facilities | Rocket launcher, suit for oxygen bar, aircraft parts, magnetic levitation by flow, high-speed rail car shuttle, lever of satellite antenna, solar panels and torsional spring hinge mechanism, satellite attitude control with gravity balance beam expansion mechanism, shutter temperature-controlled bearings, self-lubricating bearings, infrared camera optical instrument drive mechanism, the liquid oxygen pump sliding bearing |
