Introduction
In industrial machinery, the right components can make the difference between seamless operation and costly downtime. At VIIPLUS, we specialize in precision-engineered bronze bearings and bushes designed to deliver unmatched durability, efficiency, and reliability. Our Diamond Phosphor Bronze Bushes (CW453K CuSn8) and Wrapped Bronze Bearings are engineered to thrive in the most demanding environments, from heavy machinery to automotive systems. Discover how these advanced components can elevate your operations.

Why Choose VIIPLUS Bronze Bearings?

1. Premium Material: CW453K CuSn8 Phosphor Bronze Alloy

The backbone of our Diamond Phosphor Bronze Bushes is the CW453K CuSn8 alloy, a high-grade phosphor bronze known for its exceptional properties:

• Superior Strength & Fatigue Resistance: Withstands extreme loads and repetitive stress.

• Corrosion Resistance: Ideal for harsh, moisture-rich, or chemically exposed environments.

• Self-Lubricating Design: Integrated oil grooves and diamond patterns ensure consistent lubrication, reducing friction even at low speeds.

• Wear Resistance: Engineered for longevity under high-pressure conditions.

2. Precision-Engineered Lubrication System

Our Diamond Phosphor Bronze Bushes feature optimized oil grooves and holes that:

• Distribute lubricant evenly across surfaces.

• Form a protective film at startup, minimizing initial friction.

• Sustain smooth operation in high-load, low-speed applications (e.g., construction machinery, hydraulic systems).

The diamond-patterned surface enhances oil retention, ensuring components stay lubricated longer and reducing maintenance needs.

Wrapped Bronze Bearings: Compact, Cost-Effective, and Resilient

For applications requiring compact, economical solutions without sacrificing performance, VIIPLUS offers Wrapped Bronze Bearings with:

• CuSn8P or CuSn6.5 Alloy: Cold-formed for enhanced density and structural integrity.

• Custom Lubrication Options: Diamond-shaped notches for grease or perforations for oil, tailored to your needs.

• Space-Saving Design: Replaces bulky traditional bushings while offering superior resilience.

Key Advantages of Wrapped Bronze Bearings

• Long Service Life: Reduced wear thanks to self-lubricating oil pockets.

• Impurity Resistance: Performs reliably in debris-filled environments.

• High Load Capacity: Stable under impact, vibration, and shock loads.

• Low Maintenance: Minimal lubrication intervals and heat dissipation.

• Metric Sizes Available: Standardized sleeves and flanges for easy integration.

Applications Across Industries

VIIPLUS bronze components are trusted in sectors where failure is not an option:

• Construction & Heavy Machinery: Excavators, cranes, and lifting systems.

• Automotive: Trucks, tractors, and engine assemblies.

• Industrial Manufacturing: Machine tools, conveyor systems, and hydraulic pivots.

• Marine & Energy: Corrosion-resistant performance in offshore and power generation equipment.

•

VIIPLUS vs. Traditional Bronze Bushings

Technical Specifications

• Materials: CW453K CuSn8 (Phosphor Bronze), CuSn8P, CuSn6.5.

• Lubrication Options: Oil holes, grease notches, or custom patterns.

• Load Capacity: Optimized for high static/dynamic loads.

• Standards: Metric sleeves (ISO) and flanges.

Why Partner with VIIPLUS?

• Custom Solutions: Tailor lubrication patterns, sizes, and alloys to your needs.

• Quality Assurance: Precision manufacturing for tight tolerances and alignment.

• Global Expertise: Trusted by industries worldwide for over [X] years.

Conclusion: Elevate Your Machinery with VIIPLUS
In high-stakes industrial environments, every component matters. VIIPLUS Diamond Phosphor Bronze Bushes and Wrapped Bronze Bearings combine cutting-edge materials, intelligent lubrication design, and proven durability to keep your operations running smoothly. Whether you’re upgrading heavy machinery or optimizing automotive systems, our components deliver longer service life, reduced downtime, and lower total cost of ownership.

Contact VIIPLUS today to request a custom quote or learn how our bronze bearings can solve your toughest engineering challenges.

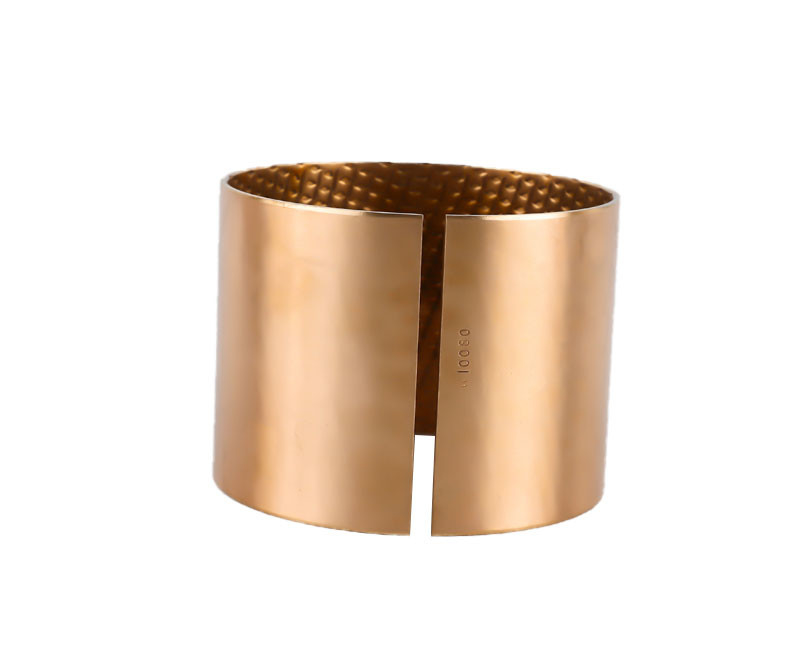

wrapped bronze bearings


Diamond-shaped lubrication pockets in the sliding surface of an bronze washer

Diamond Shaped CW453K CuSn8 Phosphor Bronze Bushes & Washer Indentations Or Oil Grooves Holes

CUSN8/CUSN6 090 Series thrust washer biggest feature is the thin-walled structure, does not occupy a large installation space.thrust washer material specially formulated high-density copper alloy strip. Compared with the traditional casting of copper, with high density, no gas shrinkage, carrying capacity, but also wear resistance, fatigue and other advantages. thrust washer manufactured using advanced tooling, can be processed into a variety of engineering conditions apply oil hole, oil pit, sump friction surface strip, so that the sleeve can store a lot of grease in use, to extend the refueling interval, effective increased service life.
CW453K | CuSn8P | Phosphor Bronze Sleeve Bushings with oil holes Made in China is manufactured using Copper Alloy proprietary process technology to achieve a very high tensile strength and coupled with good fatigue properties enable it to be used in high load, high impact Bushing bearing applications where good wear characteristics are essential. CuSn8 wrapped bronze bush & washer, diamond oil pockets, ISO3547 standardThe alloy can also hold its own in aggressive corrosion environments.The bronze bushing material alloy also meets NFL 14-703 CuSn8, DIN 17662/17672 W Nr 2.1030 and JIS H 3270.


If you need help in selecting the best bronze bushes for your particular application,Click here to go to our Bushing (Plain/Sleeve Bearing catalog) contains detailed specifications assembly size rolled bronze bearings with lubricat...Areas of use Heavy load bushings and sliding bearings, sliding plates,plain bearings

The 090 & 092 made in china sliding bearings are rolled from a bronze Cusn8 or Cusn6.5 Material strip with a high specific density. There are diamond-shaped or round lubricant grooves on the inner surface, incorporated as per the client's requirements.


Rolled Bronze Washer| CuSn8 or CuSn6.5



They also serve as safety areas that capture debris that may find its way into the bushings and shaft during operation.
Perforated bronze products are available as sleeves, flanges and plates and are produced in inch and metric sizes. Typical applications include material handling, hydraulic cylinders, lifting equipment and agricultural machinery.
Cylindrical bushing,flanged bearing ,wahser ,sliding plate and strip are available.Bronze bushing is a kind of wrapped self lubricating bearing. This type bearing including 090 bronze bearing, 092 bronze bearing with oil hole. We are leading Manufacturers of Bimetal Bearing, Bronze Bearing, Sliding Bearing,Sleeve Bush Bearing, Linear Bearing.

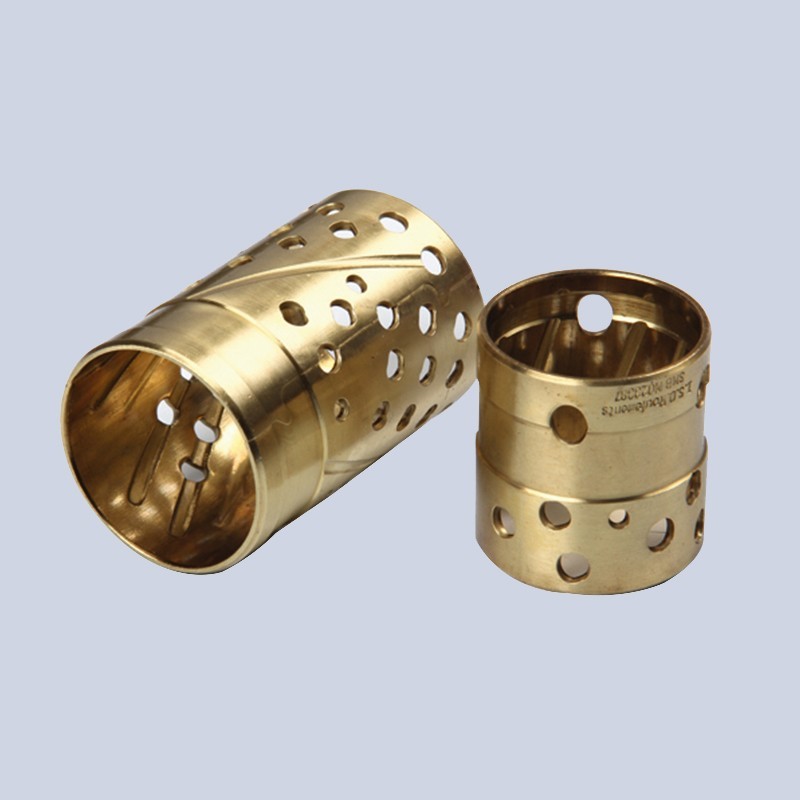

Bronze Wrapped Bearing with holoes (092 CYLINDRICAL BUSHES )

Bronze Bushes and Oil Pockets 090 & 092 BRONZE BUSHES

CuSn8 and CuSn6.5 Wrapped Bronze Bearing Diamond Or Ball Shape Oil Sockets

Rolled Bronze Perforated Bushings Oil Perforations/Holes  SIZE 090 and 092 Bronze Wrapped Bushing Washer
