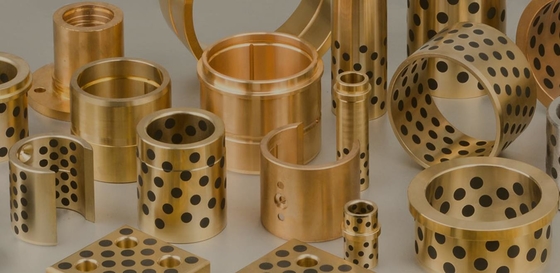

The copper-based standard self-lubricating bushing is a crucial component for plastic molds and press die sliding plates. These bushings are specifically designed to provide smooth and reliable sliding motion between the mold halves or the press die and the sliding plate.

The copper-based material offers excellent wear resistance and ductility, ensuring that the bushing can withstand the repeated impacts and frictional forces encountered during the molding or pressing process. Additionally, the self-lubricating property of the bushing reduces the need for external lubricants, further enhancing its performance and durability.

The standard size and specifications of these bushings allow for easy integration into various mold and press die designs. However, they can also be customized to meet specific application requirements, ensuring that they provide the optimal fit and performance for each individual application.

In summary, the copper-based standard self-lubricating bushing is an essential component for plastic molds and press die sliding plates, providing smooth and reliable sliding motion, excellent wear resistance, and self-lubricating properties.

Graphite Plugged Bushings

Injection molding machine Bronze Bushings, die-casting machine collar brass Sleeve Bushes C86300

VIIPLUS FORM CHINA Has been committed to new product research AND development, material performance, improved Bronze Sleeve And Flanged Bushing series solid inlaid self-lubricating axle SLEEVE with high strength, wear resistance, free maintenance AND other characteristics,

Special Sliding Bearing Spherical plain bearings Customer size design Plain bearings with special grooves
Solid bronze bearings Good in severe and contaminated conditions
Solid bronze bearings are highly suited to demanding applications in challenging environments. This makes the solid bronze bearings ideal for a wide variety of applications.

Plain bearings with recesses
Plain bearings with non-standard tolerances

The VIIPLUS in the field of Sliding Plate Bearings technology,VIIPLUS FROM CHINA supplies
a range of products that has gained an excellent reputation for reliability and performance

Excellent wear resistanceHeavy load Copper-based Standard Components for Plastic Mould & Press Die Sliding Plate

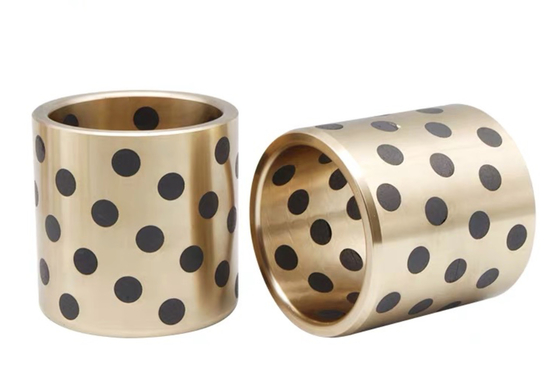

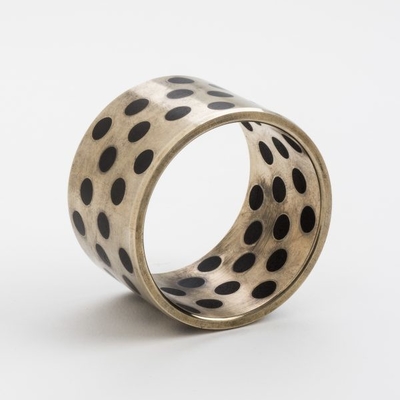

Cast Bronze Bearing with Graphite Plugs

Product advantages

Low friction.

Maintenance-free.

High loads and low speeds.
Range of operating temperatures.
Excellent wear resistance in applications where oil film formation is difficult such as reciprocating, intermittent or oscillating motions under


Special bronze bearing for injection molding machine



• Die Setting Components
• Die Guide Related Parts
• Ejector Related Parts
• Loose Core Related Parts
• Slide Core Related Parts
• Slide Plate

Typical Applications

Self-Lubricating Bearings Are Typically Used In The Following Application:
General industrial machinery and heavy industrial facilities.
Material:BRONZE+GRAPHITE

VSB-50 material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...
