Hydraulic Metal Polymer Composite Material Cylindrical Bushes

Place of Origin Plain Bearing Material
Brand Name China Plain-Bearing
Certification DIN 1494/ISO 3547
Model Number Wrapped composite sliding bearing
Minimum Order Quantity 500 Piece/Pieces
Price flat strip material inch sizes Manufacturers,Factory Price
Packaging Details Shipment Bushing Packing: Cartons per Wooden Case or Pallet.
Delivery Time 15~20 Days
Payment Terms TT IN ADVANCE
Supply Ability 1000000 Piece/Pieces per Month Plain-Bearing Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Carton Steel , Bronze , PTFE STRIPS Plating Tin Or Copper
Type Sheet Customized Available As Per Drawing
Special Use High-strength Steel Plate Features Wear,Dry,Low Resistance
Port ShangHai Application Hydraulic Special Sliding
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

du strip

,

plain sleeve bearing strips

Leave a Message
Product Description

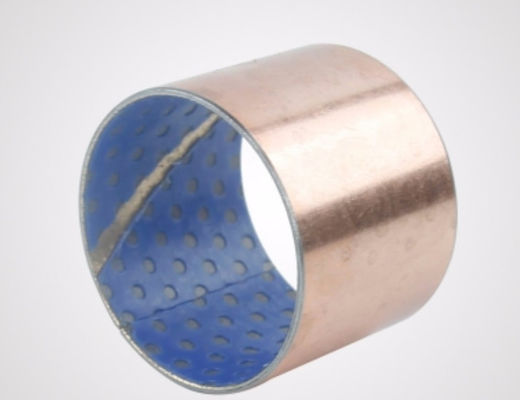

Hydraulic Metal Polymer Composite Material Cylindrical Bushes are precision-manufactured components designed to handle the rigorous demands of hydraulic systems. These bushes feature a cylindrical shape and are constructed using a metal polymer composite material that offers exceptional performance and durability.

The metal polymer composite material combines the strength and rigidity of metal with the lubrication and wear resistance properties of polymer. This unique combination results in bushes that are able to withstand high pressures and temperatures while maintaining a smooth and reliable sliding surface.

The cylindrical design of these bushes allows for easy installation and integration into hydraulic cylinders, pumps, valves, and other critical components. Their precision manufacturing ensures a tight fit and minimal leakage, which is crucial for maintaining the efficiency and performance of hydraulic systems.

The metal polymer composite material also provides superior corrosion resistance, ensuring that the bushes can withstand harsh environments and chemicals without degrading. This makes them suitable for use in a wide range of industrial applications, including mining, construction, and manufacturing.

In summary, Hydraulic Metal Polymer Composite Material Cylindrical Bushes are precision-engineered components that offer exceptional performance, durability, and corrosion resistance. They are ideal for use in hydraulic systems where reliability and efficiency are paramount.

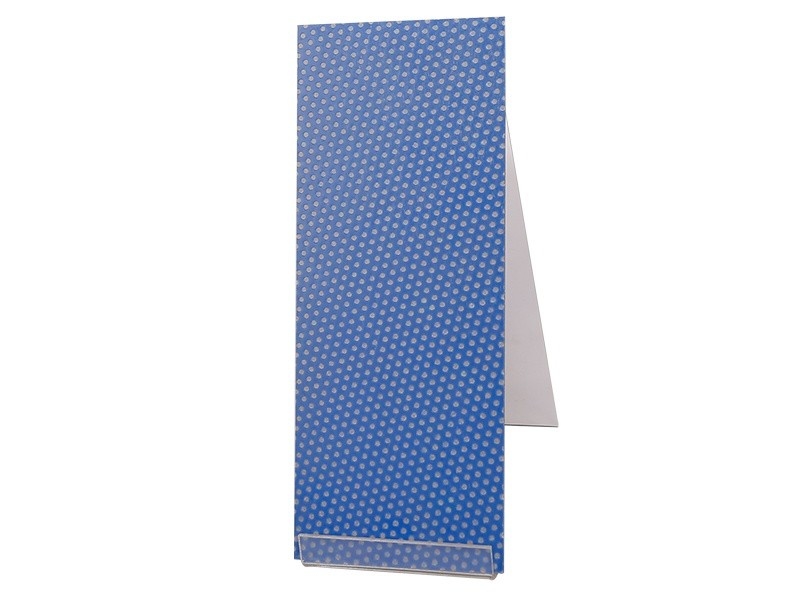

Bushings plate & strip, bronze and POM lined, marginally lubricated, size on request



Sintered POM and Bronze Powder on Steel Backing
POM + SIntered Bronze Powder + Steel Backing + Copper / Ting-plating



Features


POM BLUE bearings are suitable for rotating and oscillating movement, less maintenance requirements due to the long re-lubrication intervals, lower wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling, good damping behaviours, good resistance to shock loads.



Hydraulic Plain Bearing Strips Metal Polymer Composite Material Cylindrical Bushes







Hydraulic Metal Polymer Composite Material Cylindrical Bushes













































































Main product categories of the company:


1. Hydraulic components: various standard and non-standard cylinder sleeve production, production of various hydraulic pumps, hydraulic valves and auxiliary sliding bearing products.
2. Hydraulic system: design, manufacture, installation and debugging of various large, medium and small hydraulic bearing accessories for customers.
3. Hydraulic machinery sliding bearing and special purpose equipment self-lubricating bearing



Boundary lubrication lead-free materi Strip Hydraulic Bearing Metal-polymer-composite material cylindrical bushes


Products



• hydraulic system bearings

• hydraulic cylinder sliding bearings

• cylinder sleeve

• hydraulic pump shaft sleeve

• hydraulic valve sliding bearings

• custom bearings for hydraulic accessories

• pneumatic components self-lubricating bearings



Parameters



SF-2 boundary lubrication lead-free material, which has the advantages of low friction coefficient, good wear resistance and long service life. Since the product does not contain lead, the product can be used in places with high environmental protection requirements such as food machinery.



Maximum load pressure: 70N/mm2

Friction coefficient: 0.04~0.20

Applicable temperature: -40 ° C ~ 130 ° C


self lubricating bronze bushing



Metal polymer composite Bushings sizes



Product Name
 POM Bushing
Material
Carbon steel + Sintered copper powder + POM
Technology
Sintering - Wrapped-Drilling
Load Capacity
Static load 250N/mm2 ; Dynamic load 140N/mm2
Surface Treatment
Tin Plating, Copper Plating
Advantage
POM High intensity, Oil holes can be refuelled
Friction Coefficient
Grease lubrication 2.8N/mm2·m/s

Application
Metallurgical machinery-Mine machinery-Water conervancy machinery-
Construction machinery-Farm machinery-Motor vechicles
Working Temperature
-40 ~ +130 Degree celsius
