The process of re-babbitting bearings and bushes with bimetallic strip CuPb24Sn4 is a crucial step in maintaining and enhancing the performance of industrial machinery. This bimetallic strip, composed of copper, lead, and tin in a specific ratio (CuPb24Sn4), offers exceptional wear resistance and self-lubricating properties.

The re-babbitting process involves removing the worn-out bearing or bush material and replacing it with the new bimetallic strip. This strip is carefully applied to the bearing or bush surface, ensuring a snug and secure fit. The unique combination of metals in the strip ensures that it adheres well to the substrate and forms a durable and reliable layer.

The CuPb24Sn4 bimetallic strip is chosen for its superior tribological properties. The lead content in the strip provides excellent lubricity, reducing friction and wear. The copper and tin components enhance the strip's strength and corrosion resistance, ensuring a long service life.

The re-babbitted bearings and bushes, with their new CuPb24Sn4 bimetallic strip coating, offer several advantages. They exhibit reduced friction and wear, leading to smoother and more efficient operation. The self-lubricating properties of the strip eliminate the need for frequent lubrication, reducing maintenance costs. Additionally, the enhanced durability of the bearings and bushes results in fewer replacements and downtime, improving overall equipment reliability.

In summary, re-babbitting bearings and bushes with CuPb24Sn4 bimetallic strip is an effective way to restore and enhance the performance of industrial machinery. It improves wear resistance, reduces friction, and extends the service life of bearings and bushes, contributing to the overall efficiency and reliability of the equipment.

Engine Bearings, Bushing, and Thusrt Washers bearings -  Bearing Parts & Supplies, maintenance-free, made of bimetal bushes Plain Bearing Flange Bushes Bimetallic Strip Cupb24sn4 Jf720 Bronze Lead Steel,

FEATURED SERVICES
Re-Babbitting Of Bearings

MORE
Steam Turbine Labyrinth Seals

MORE
Shaft Rebuilding/Manufacturing

MORE
Thrust Pads

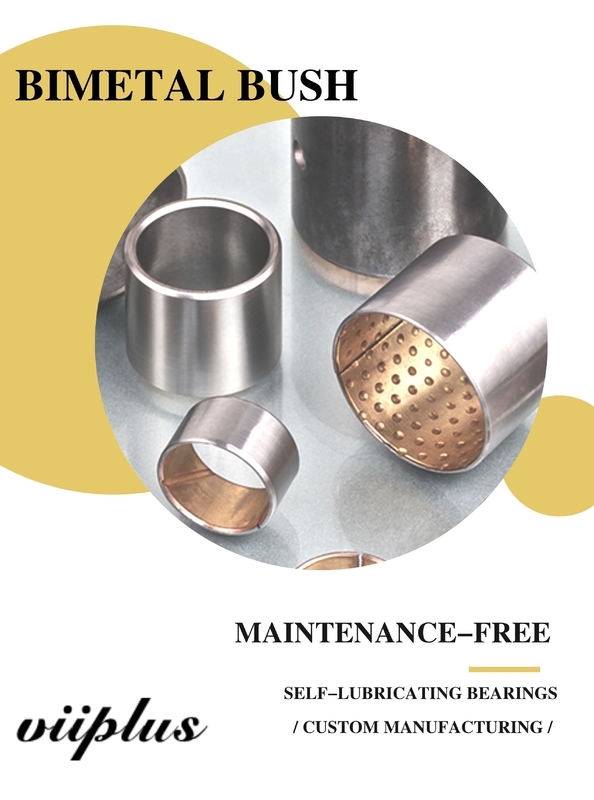

MADE IN CHINA bi-metal bearings 720 CuPb24Sn4,JF Bimetal Bearing JF-800 JF-720 JF-700 CuPbSn10 CuPb24Sn4 CuPb30 Steel Lead Bronze Alloys Bi-metal Bush to high-quality low-carbon steel substrate, the surface of the sintered copper-lead alloy as the face, according to conditions and can be processed using all types of sump hole or oil hole in the surface of the alloy layer. The product is suitable for high load low speed of the rocking motion, rotary motion, with a low coefficient of friction, wear resistance, long life, good anti-seizure properties and other characteristics.Straight Bushings, flange bearing, gaskets, sliders, etc., can also be very customized according to the drawings.

Application Features

1. The product has a high resistance to fatigue strength and load-bearing capacity;
2. Can a long maintenance-free operation, stable operation;
3. The product wall copper-lead alloys provide good wear resistance, combined with tank, hole, oil hole and other processing can greatly improve the life and reduce costs;

VIIPLUS SLDING BEARINGS brand of boundary lubrication bearing, grease lubrication bearing because of its own structural features, have very good foreign embeddedness, can be used IN the occasion of dust, maintenance more difficult.All kinds of products are widely used in tractor, combine harvester, bundling machine, cotton picker, etc.

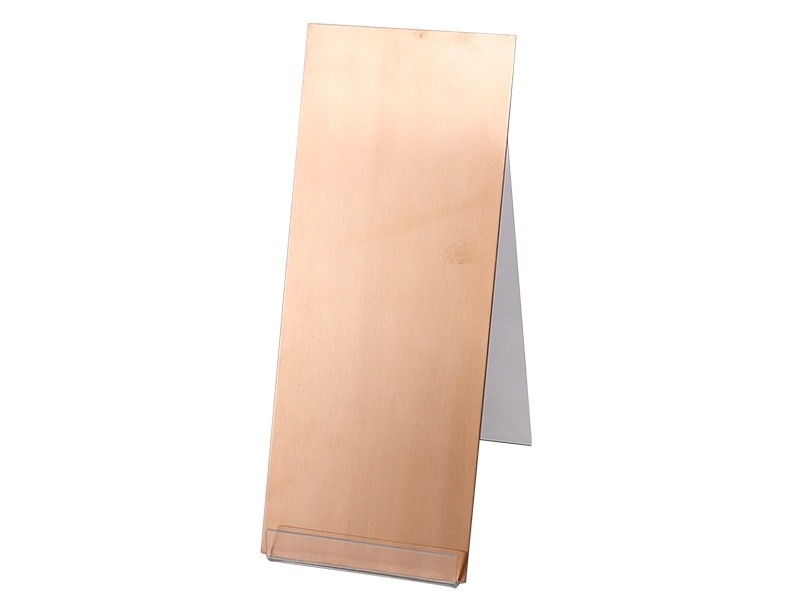

Plain Bearing Strips | Bimetal Strips CuPb30 JF700 Bimetallic material or Bronze Strip

Wrapped Steel Self Lubricating Bearings Oilless Sliding Series

Bimetal bushing Application

Bimetal Bushings Installing Method

1. To keep the bushing, housing dean before installing.
2. The outside surface can be covered with a little grease or oil during installing, which help the process.And please not too much.
3. The bushing should be pushed into housing slowly with mandrel (oil push machine is recommended), it is for hidden to hammer
the part directly.
4. We need your instructions if the housing wall is thin or made from soft metal in order not to destroy it.
5. In order to simply the installment and keep the working layer, we recommend that the shaft should own chamfer and
HRC45/RZZ-3. Gr plating layer is allowed.
6. Grease and Oil are recommended in order to shorten the mending.

Checking Method

1. OD, checked by ring gauge with GO/NO GO
2. ID, checked by plug gauge with GO/NO GO. The common wrapped bushing satisfy tolerance H9.
3. The size of ring gauge & plug gauge are in comply with DIN1494 part 1.

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates
Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping or deep drawing, customized bushing designs
