Oil Grooves For Bimetal Bushings Custom Steel Bronze Bushes Alloy Bimetal Strip

Place of Origin Plain Bearing Material
Brand Name China Plain-Bearing
Certification DIN 1494/ISO 3547
Model Number Wrapped composite sliding bearing
Minimum Order Quantity 500 Piece/Pieces
Price flat strip material inch sizes Manufacturers,Factory Price
Packaging Details Shipment Bushing Packing: Cartons per Wooden Case or Pallet.
Delivery Time 15~20 Days
Payment Terms TT IN ADVANCE
Supply Ability 1000000 Piece/Pieces per Month Plain-Bearing Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Dry, Harden, Wear, Low Resistance, Maintenance Free Meterial Bimetal Plate,CuSn6.5P,copper,bronze,steel
Surface Treatment Cooper Plating, Tin Plating Type Plain Bearing,bimetal Strip,Sleeve, Flanged, Plates
Special Use High-strength Steel Plate Application Bushing Printing And Dyeing Machines, And Machines Used In The Ocean Industry, Etc.
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

du strip

,

plain sleeve bearing strips

Leave a Message
Product Description

When it comes to ensuring smooth and reliable operation of rotating machinery, the role of bushings cannot be overstated. Among the various types of bushings available, bimetal bushings with steel bronze alloy and customized oil grooves are a popular choice for applications requiring high durability and performance.

Bimetal bushings are constructed from two different metal layers bonded tog, often steel and a bronze alloy. This combination offers unique advantages, including the strength and hardness of steel along with the excellent wear resistance and lubricity of the bronze alloy. The result is a bushing that can withstand heavy loads, resist wear, and maintain its performance over extended periods of operation.

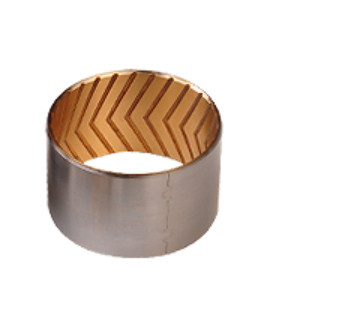

One of the key features of bimetal bushings is the inclusion of oil grooves. These grooves are precision-cut into the bushing's surface and serve as channels for lubricant to flow. As the rotating machinery operates, the lubricant is drawn into the oil grooves and distributed evenly across the bushing's contact surfaces. This helps reduce friction, wear, and heat generation, further enhancing the bushing's performance and durability.

The ability to customize the oil grooves in bimetal bushings is a significant advantage. By adjusting the groove design, depth, and spacing, the bushing can be tailored to meet the specific requirements of the application. This ensures that the bushing will provide the optimal level of lubrication and wear resistance for the given operating conditions.

In summary, bimetal bushings with steel bronze alloy and customized oil grooves are an excellent choice for applications requiring high-performance bushings. The combination of the bimetal construction and precision-cut oil grooves provides superior strength, wear resistance, and lubricity, ensuring smooth and reliable operation of rotating machinery.

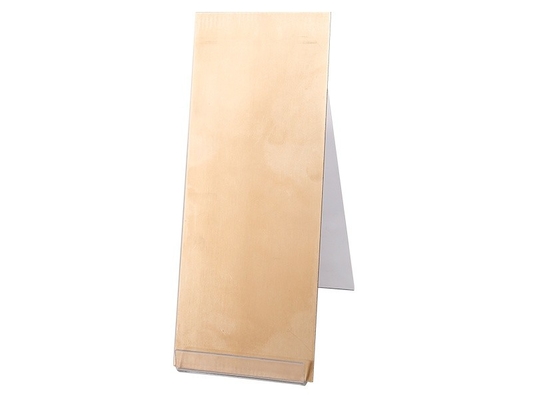

Custom Steel Bronze Alloy Plain bearing Bimetal Strip Bi-metal plate & Bimetal strip



Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping or deep drawing, customized bushing designs.

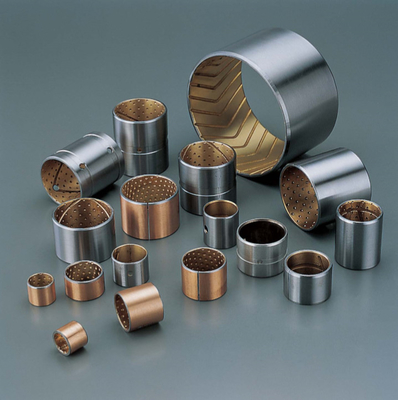

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates

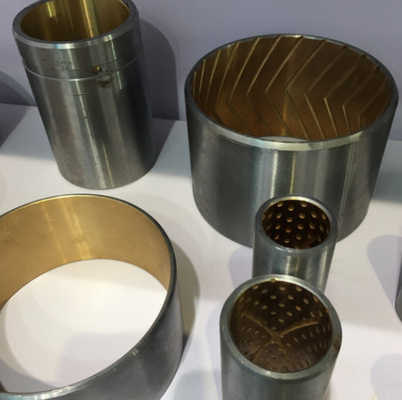

Types of Oil Grooves for bimetal bushings & Initial pre-lubrication at assembly is required.



Oil Grooves For Bimetal Bushings Custom Steel Bronze Bushes Alloy Bimetal Strip 0

CuSn6.5P Plain Bearing Strips Bimetallic Material Or Bronze Lead - Free Series

Bimetal bush is a cost saving self lubricating bearing for rotary or Translatory movement between mechanical parts.. This type sliding bearing including engine bearing, con rod bushing truck roller bearing and other type oilless bearing.We are leading Manufacturers of Bimetal Bearing, Bronze Bearing, Sliding Bearing,Bush Bearing, Linear Bearing in CHINA.



Bimetal Strips & Bearings - Bearings for Connecting Rods Bimetal bushing bimetal plate strip flanged



Bimetal bushing,Composite steel bronze CuSn6.5P JF bimetal plate strip-Oilless Slide bearings Manufacturer

The detailed information JF series material, also known as bimetallic material or copper lead steel belt, is a steel and copper alloy product with low carbon steel plate or steel coil as the matrix material and surface sintered copper alloy. Different copper alloy materials are suitable for different working conditions. According to the different grades of surface copper alloy, it can be divided into high lead series, lead-containing series and lead-free series.


Technical Data



Bi-metal bronze bushing



Material type



CuPb10Sn10
JIS-LBC3/SAE-797

CuPb24Sn4
JIS-LBC6/SAE-799

CuPb30
JIS-KJ3/SAE-48

Alloy Hardness



HB70-100

HB45-70

HB30-45

Load Limit ( N/ mm2)



150

120

130

Tensile Strength ( N/mm2)



150

200

150

Speed Limit V max ( m/s )



5

15

10

PV Limit (N/mm2 * m/s )

Grease

2.8

2.5

2.8



Oil

10

8

10

Friction Coefficient (Oil)



0_06 〜0_14

0_08 〜0_16

0_06 〜0_16



For all the global industry Provide high-quality self-lubricating products Wrapped Steel Self Lubricating Bearings Oilless Sliding Series Guide Pin And Guide Bushing, Bimetal Bearing Copper Bush



Parameters



JF series materials, also known as bimetallic materials or copper lead steel strips, are made of low carbon steel or steel coil as the base material, and the surface is sintered with copper alloy steel and copper alloy products. Different copper alloy materials are suitable for different working conditions. The surface copper alloy grades can be divided into high lead series, lead series and lead-free series.

The CuPb10Sn10 materials in the above table are tested by the Wuhan Institute of Materials Protection, Ministry of Machinery Industry. The measured fatigue strength of the Low Friction Bushing.vandere11 sapphire bearing fatigue tester in the UK is greater than 125Mpa.



Bimetal Bushing Application


Bimetal Bushings are widely used in various parts of automobile industries such as engines, transmission cases, vehicle chassis, steering knuckle, trunnion shaft, leaf spring, motorcycle clutches, wear plating of gear pumps,as well ashoisting machines, etc.
It is backed with high quality low carbon steel with bronze alloy sintered on its surface. To effectively decrease abrasion, its alloy surface can be machined with ball shaped oil pockets for easier oil storage. When necessary, an anti-corrosion coating can be plated on the steel back. It can be applied to conditions of mediate load with mediate or high running velocity and conditions with enormous impact load. Such as internal combustion engine bearing,connecting rod bearing, rock arm bearing, slide plate of oil gear pump and etc.
