C863 & 954 Bronze Oil Grooves Graphite Plugged Bushings Plate for Agricultural Machinery

Place of Origin	Graphite Bearings Manufacturers
Brand Name	,MISUMI，DAIDO，SELF LUBE，,FIBRO STANDARD REPLACEMENT BEARING
Certification	DIN 1850/ISO 4379， UNITED STATES UNS STANDARD,C86300
Model Number	solid bushing, bronze with lubricant plugs embedded Maintenance-free
Minimum Order Quantity	NEGOTIABLE
Price	Price Graphite Bushing Parts, (SAE 660) Leaded Tin Bronze Bearings,863 (SAE 430B) 862 (SAE 430A)Manganese Bronze
Packaging Details	BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS
Delivery Time	FAST DELIVERY
Payment Terms	TT IN ADVANCE
Supply Ability	Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Marerial	Bronze Graphite Bushing	Size	Inch Size Bushings
Standard Size	C86300,C86200	Type	PLUGGED CAST BRONZE
Application	Agricultural Machinery	Standard	ASTM/ JIS/ ASME/ AISI/ EN/ BS
Bearing Bushing Factory Price	Tiffany@viiplus.com	Self-lubricating Bearing Bushing Manufacturer	Https://www.viiplus.com/
Item	Bronze Grafitado	Graphite Plugged Bushings	Purchase Oilless Bush #500 Spherical Bearing (SPS) From China, Factory Automation & Metal Molding Parts, Industrial Tools And Consumables.
Bush Bearings Manufacturers Suppliers Exporters	Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Highlight	graphite impregnated bronze bushings , graphite filled bronze bushes

Leave a Message

Product Description

When it comes to agricultural machinery, reliable and durable bushings are crucial for smooth and efficient operation. Our C863 and C954 bronze oil groove graphite plugged bushings are specifically designed to meet the demands of agricultural applications.

These bushings are crafted from high-quality bronze alloys, which exhibit excellent wear resistance and mechanical strength. The incorporation of graphite plugs and oil grooves within the bushings ensures efficient lubrication and reduced friction, ensuring a longer service life and optimal performance.

The precision-machined plates of our bushings fit perfectly into agricultural machinery, providing a secure and stable connection. Wh you need bushings for rotating shafts, pivot points, or other critical components, our C863 and C954 bronze oil groove graphite plugged bushings are the perfect choice.

Our commitment to quality and reliability is unwavering. We adhere to strict manufacturing standards and employ rigorous quality control measures to ensure that each bushing meets the highest performance standards.

If you're looking for a reliable and durable bushing solution for your agricultural machinery, look no further than our C863 and C954 bronze oil groove graphite plugged bushings. Contact us today to learn more about how our bushings can enhance the performance and durability of your agricultural equipment.

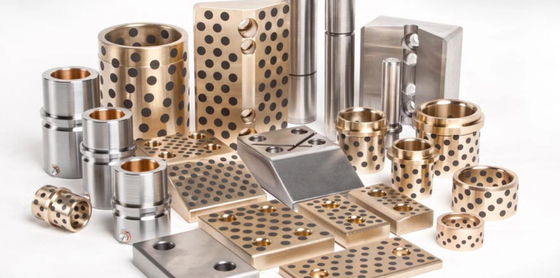

Graphite Plugged Bushings

bronzegleitlager.com, a leading supplier of quality bronze bearings, has one of the world's largest inventories of bronze bearings in a wide variety of inch and metric sizes.

Centrifugal Casting C86300 Bronze Sleeve Plain Bushing with Oil Groove Custom Size Bearing Bush C95400 Aluminum Bronze Bushings (C954) - Per ASTM B505

Customized non-standard wear-resistant brass bushing bushing processing figure eight oil groove to customize shaft flange copper bushing,Agricultural machinery china bronze bushing with oil groove.

We are specialists in cutting lubrication grooves in virtually any pattern for bronze bushings.Cast Bronze Bushings Grooved Made in China C86300 Manganese Bronze and C95400 ALUMINUM BRONZE BUSHINGS.Our common groove patterns available are figure eight, double figure eight, loop, double loop, circular, wick or straight.

We are committed to provide high-quality copper material and self-lubricating products in order to satisfy the needs and progress of the time.

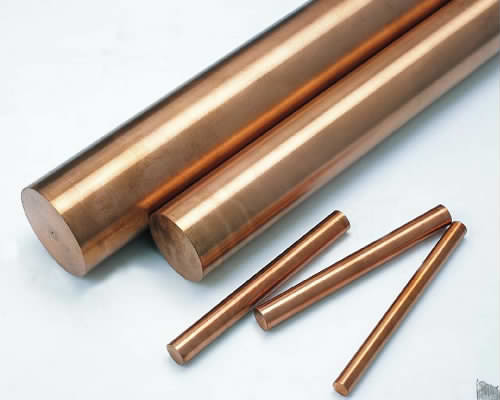

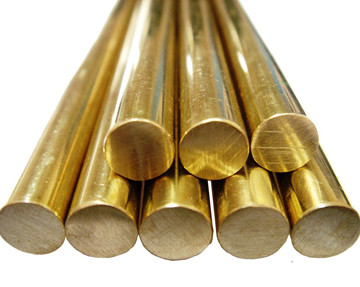

Material

Tin bronze (C83600/C93200/CuSn12);
Aluminum Bronze (C95400)

Aluminum Bronze Bearings
Aluminum bronze alloys are used for their combination of high strength and excellent corrosion and wear resistance. C95400 aluminum bronze is a popular cast aluminum bronze with high-strength properties and excellent resistance to wear and corrosion. Although this alloy is supplied in the cast condition, it can be heat-treated to enhance its mechanical properties for more demanding applications.

C95400 Aluminum Bronze Graphite Plugged Bushings Plate Cuai10fe High Durability

C86300 Manganese Bronze Plate Now Available Online SAE 430B Bronze Graphite Bushings

Engineered for a Longer More Reliable Service Life

C95400 Aluminum Bronze Bushings application for High strength bearings, bushings, gears, worms, wear plates, valve seats and guides.

Aluminum Bronze Bronze Bushings-- C95400

Metric Cylindrical Bushes Size:

Maintenance free bearing and guide bushes, bronze with solid lubricant

ITEM NO	Equivalent Code	Inner Ø d	Outer Ø D	Length L
JDB081208	SOB 8-12-8	8	12	8
JDB061012	SOB 6-10-12	6	10	12
JDB081210	SOB 8-12-10	8	12	10
JDB081212	SOB 8-12-12	8	12	12
JDB081215	SOB 8-12-15	8	12	15
JDB101408	SOB 10-14-8	10	14	8
JDB101410	SOB 10-14-10	10	14	10
JDB101412	SOB 10-14-12	10	14	12
JDB101415	SOB 10-14-15	10	14	15
JDB101420	SOB 10-14-20	10	14	20
JDB101510	SOB 10-15-10	10	15	10
JDB121808	SOB 12-18-8	12	18	8
JDB121810	SOB 12-18-10	12	18	10
JDB121812	SOB 12-18-12	12	18	12
JDB121815	SOB 12-18-15	12	18	15
JDB121816	SOB 12-18-16	12	18	16
JDB121819	SOB 12-18-19	12	18	19
JDB121820	SOB 12-18-20	12	18	20
JDB121825	SOB 12-18-25	12	18	25
JDB121830	SOB 12-18-30	12	18	30
JDB131910	SOB 13-19-10	13	19	10



Metric Cylindrical Bushes

Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO	Equivalent Code	Inner Ø d	Outer Ø D	Length L
JDB131912	SOB 13-19-12	13	19	12
JDB131915	SOB 13-19-15	13	19	15
JDB131916	SOB 13-19-16	13	19	16
JDB131920	SOB 13-19-20	13	19	20
JDB131925	SOB 13-19-25	13	19	25
JDB142010	SOB 14-20-10	14	20	10
JDB142012	SOB 14-20-12	14	20	12
JDB142015	SOB 14-20-15	14	20	15
JDB142020	SOB 14-20-20	14	20	20
JDB142025	SOB 14-20-25	14	20	25
JDB142030	SOB 14-20-30	14	20	30
JDB152110	SOB 15-21-10	15	21	10
JDB152112	SOB 15-21-12	15	21	12
JDB152115	SOB 15-21-15	15	21	15
JDB152116	SOB 15-21-16	15	21	16
JDB152120	SOB 15-21-20	15	21	20
JDB152125	SOB 15-21-25	15	21	25
JDB152130	SOB 15-21-30	15	21	30
JDB162210	SOB 16-22-10	16	22	10
JDB162212	SOB 16-22-12	16	22	12
JDB162215	SOB 16-22-15	16	22	15
JDB162216	SOB 16-22-16	16	22	16
JDB162219	SOB 16-22-19	16	22	19
JDB162220	SOB 16-22-20	16	22	20
JDB162225	SOB 16-22-25	16	22	25
JDB162230	SOB 16-22-30	16	22	30
JDB162235	SOB 16-22-35	16	22	35
JDB162240	SOB 16-22-40	16	22	40
JDB172315	SOB 17-23-15	17	23	15
JDB182410	SOB 18-24-10	18	24	10
JDB182412	SOB 18-24-12	18	24	12
JDB182415	SOB 18-24-15	18	24	15
JDB182416	SOB 18-24-16	18	24	16
JDB182420	SOB 18-24-20	18	24	20
JDB182425	SOB 18-24-25	18	24	25
JDB182430	SOB 18-24-30	18	24	30
JDB182435	SOB 18-24-35	18	24	35
JDB182440	SOB 18-24-40	18	24	40
JDB192615	SOB 19-26-15	19	26	15
JDB192620	SOB 19-26-20	19	26	20
JDB202810	SOB 20-28-10	20	28	10
JDB202812	SOB 20-28-12	20	28	12
JDB202815	SOB 20-28-15	20	28	15
JDB202816	SOB 20-28-16	20	28	16
JDB202819	SOB 20-28-19	20	28	19
JDB202820	SOB 20-28-20	20	28	20


Metric Cylindrical Bushes

Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO	Equivalent Code	Inner Ø d	Outer Ø D	Length L
JDB202825	SOB 20-28-25	20	28	25
JDB202830	SOB 20-28-30	20	28	30
JDB202835	SOB 20-28-35	20	28	35
JDB202840	SOB 20-28-40	20	28	40
JDB202850	SOB 20-28-50	20	28	50
JDB203010	SOB 20-30-10	20	30	10
JDB203012	SOB 20-30-12	20	30	12
JDB203015	SOB 20-30-15	20	30	15
JDB203016	SOB 20-30-16	20	30	16
JDB203020	SOB 20-30-20	20	30	20
JDB203025	SOB 20-30-25	20	30	25
JDB203030	SOB 20-30-30	20	30	30
JDB203035	SOB 20-30-35	20	30	35
JDB203040	SOB 20-30-40	20	30	40
JDB203070	SOB 20-30-70	20	30	70
JDB223212	SOB 22-32-12	22	32	12
JDB223215	SOB 22-32-15	22	32	15
JDB223220	SOB 22-32-20	22	32	20
JDB223225	SOB 22-32-25	22	32	25
JDB253312	SOB 25-33-12	25	33	12
JDB253315	SOB 25-33-15	25	33	15
JDB253316	SOB 25-33-16	25	33	16
JDB253320	SOB 25-33-20	25	33	20
JDB253325	SOB 25-33-25	25	33	25
JDB253330	SOB 25-33-30	25	33	30
JDB253335	SOB 25-33-35	25	33	35
JDB253340	SOB 25-33-40	25	33	40
JDB253350	SOB 25-33-50	25	33	50
JDB253360	SOB 25-33-60	25	33	60
JDB253512	SOB 25-35-12	25	35	12
JDB253515	SOB 25-35-15	25	35	15
JDB253516	SOB 25-35-16	25	35	16
JDB253520	SOB 25-35-20	25	35	20
JDB253525	SOB 25-35-25	25	35	25
JDB253530	SOB 25-35-30	25	35	30
JDB253535	SOB 25-35-35	25	35	35
JDB253540	SOB 25-35-40	25	35	40
JDB253550	SOB 25-35-50	25	35	50
JDB283820	SOB 28-38-20	28	38	20
JDB283825	SOB 28-38-25	28	38	25
JDB283830	SOB 28-38-30	28	38	30
JDB283840	SOB 28-38-40	28	38	40
JDB303812	SOB 30-38-12	30	38	12
JDB303815	SOB 30-38-15	30	38	15
JDB303820	SOB 30-38-20	30	38	20
JDB303825	SOB 30-38-25	30	38	25


Metric Cylindrical Bushes

Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO	Equivalent Code	Inner Ø d	Outer Ø D	Length L
JDB303830	SOB 30-38-30	30	38	30
JDB303835	SOB 30-38-35	30	38	35
JDB303840	SOB 30-38-40	30	38	40
JDB303850	SOB 30-38-50	30	38	50
JDB303860	SOB 30-38-60	30	38	60
JDB304012	SOB 30-40-12	30	40	12
JDB304015	SOB 30-40-15	30	40	15
JDB304020	SOB 30-40-20	30	40	20
JDB304025	SOB 30-40-25	30	40	25
JDB304030	SOB 30-40-30	30	40	30
JDB304035	SOB 30-40-35	30	40	35
JDB304040	SOB 30-40-40	30	40	40
JDB304050	SOB 30-40-50	30	40	50
JDB304060	SOB 30-40-60	30	40	60
JDB3,154030	SOB 31,5-40-30	3,15	40	30
JDB3,154040	SOB 31,5-40-40	3,15	40	40
JDB324215	SOB 32-42-15	32	42	15
JDB324220	SOB 32-42-20	32	42	20
JDB324230	SOB 32-42-30	32	42	30
JDB324240	SOB 32-42-40	32	42	40
JDB354420	SOB 35-44-20	35	44	20
JDB354425	SOB 35-44-25	35	44	25
JDB354430	SOB 35-44-30	35	44	30
JDB354435	SOB 35-44-35	35	44	35
JDB354440	SOB 35-44-40	35	44	40
JDB354450	SOB 35-44-50	35	44	50
JDB354460	SOB 35-44-60	35	44	60
JDB354515	SOB 35-45-15	35	45	15
JDB354520	SOB 35-45-20	35	45	20
JDB354525	SOB 35-45-25	35	45	25
JDB354530	SOB 35-45-30	35	45	30
JDB354535	SOB 35-45-35	35	45	35
JDB354540	SOB 35-45-40	35	45	40
JDB354550	SOB 35-45-50	35	45	50
JDB354560	SOB 35-45-60	35	45	60
JDB384830	SOB 38-48-30	38	48	30
JDB384840	SOB 38-48-40	38	48	40
JDB405015	SOB 40-50-15	40	50	15
JDB405020	SOB 40-50-20	40	50	20
JDB405025	SOB 40-50-25	40	50	25
JDB405030	SOB 40-50-30	40	50	30
JDB405035	SOB 40-50-35	40	50	35
JDB405040	SOB 40-50-40	40	50	40
JDB405050	SOB 40-50-50	40	50	50
JDB405060	SOB 40-50-60	40	50	60
JDB405070	SOB 40-50-70	40	50	70


Metric Cylindrical Bushes

Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO	Equivalent Code	Inner Ø d	Outer Ø D	Length L
JDB405080	SOB 40-50-80	40	50	80
JDB405515	SOB 40-55-15	40	55	15
JDB405525	SOB 40-55-25	40	55	25
JDB405530	SOB 40-55-30	40	55	30
JDB405535	SOB 40-55-35	40	55	35
JDB405540	SOB 40-55-40	40	55	40
JDB405550	SOB 40-55-50	40	55	50
JDB405560	SOB 40-55-60	40	55	60
JDB455530	SOB 45-55-30	45	55	30
JDB455535	SOB 45-55-35	45	55	35
JDB455540	SOB 45-55-40	45	55	40
JDB455550	SOB 45-55-50	45	55	50
JDB455560	SOB 45-55-60	45	55	60
JDB455630	SOB 45-56-30	45	56	30
JDB455635	SOB 45-56-35	45	56	35
JDB455640	SOB 45-56-40	45	56	40
JDB455650	SOB 45-56-50	45	56	50
JDB455660	SOB 45-56-60	45	56	60
JDB456030	SOB 45-60-30	45	60	30
JDB456035	SOB 45-60-35	45	60	35
JDB456040	SOB 45-60-40	45	60	40
JDB456050	SOB 45-60-50	45	60	50
JDB456060	SOB 45-60-60	45	60	60
JDB456070	SOB 45-60-70	45	60	70
JDB456080	SOB 45-60-80	45	60	80
JDB506020	SOB 50-60-20	50	60	20
JDB506025	SOB 50-60-25	50	60	25
JDB506030	SOB 50-60-30	50	60	30
JDB506035	SOB 50-60-35	50	60	35
JDB506040	SOB 50-60-40	50	60	40
JDB506050	SOB 50-60-50	50	60	50
JDB506060	SOB 50-60-60	50	60	60
JDB506070	SOB 50-60-70	50	60	70
JDB506080	SOB 50-60-80	50	60	80
JDB506230	SOB 50-62-30	50	62	30
JDB506235	SOB 50-62-35	50	62	35
JDB506240	SOB 50-62-40	50	62	40
JDB506250	SOB 50-62-50	50	62	50
JDB506260	SOB 50-62-60	50	62	60
JDB506270	SOB 50-62-70	50	62	70
JDB506280	SOB 50-62-80	50	62	80
JDB506530	SOB 50-65-30	50	65	30
JDB506540	SOB 50-65-40	50	65	40
JDB506550	SOB 50-65-50	50	65	50
JDB506560	SOB 50-65-60	50	65	60
JDB506570	SOB 50-65-70	50	65	70


Metric Cylindrical Bushes

Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO	Equivalent Code	Inner Ø d	Outer Ø D	Length L
JDB506580	SOB 50-65-80	50	65	80
JDB5065100	SOB 50-65-100	50	65	100
JDB557030	SOB 55-70-30	55	70	30
JDB557035	SOB 55-70-35	55	70	35
JDB557040	SOB 55-70-40	55	70	40
JDB557050	SOB 55-70-50	55	70	50
JDB557060	SOB 55-70-60	55	70	60
JDB557070	SOB 55-70-70	55	70	70
JDB607430	SOB 60-74-30	60	74	30
JDB607435	SOB 60-74-35	60	74	35
JDB607440	SOB 60-74-40	60	74	40
JDB607450	SOB 60-74-50	60	74	50
JDB607460	SOB 60-74-60	60	74	60
JDB607470	SOB 60-74-70	60	74	70
JDB607480	SOB 60-74-80	60	74	80
JDB6074100	SOB 60-74-100	60	74	100
JDB607530	SOB 60-75-30	60	75	30
JDB607535	SOB 60-75-35	60	75	35
JDB607540	SOB 60-75-40	60	75	40
JDB607550	SOB 60-75-50	60	75	50
JDB607560	SOB 60-75-60	60	75	60
JDB607570	SOB 60-75-70	60	75	70
JDB607580	SOB 60-75-80	60	75	80
JDB6075100	SOB 60-75-100	60	75	100
JDB637560	SOB 63-75-60	63	75	60
JDB637570	SOB 63-75-70	63	75	70
JDB637580	SOB 63-75-80	63	75	80
JDB658040	SOB 65-80-40	65	80	40
JDB658050	SOB 65-80-50	65	80	50
JDB658060	SOB 65-80-60	65	80	60
JDB658070	SOB 65-80-70	65	80	70
JDB658080	SOB 65-80-80	65	80	80
JDB708530	SOB 70-85-30	70	85	30
JDB708535	SOB 70-85-35	70	85	35
JDB708540	SOB 70-85-40	70	85	40
JDB708550	SOB 70-85-50	70	85	50
JDB708560	SOB 70-85-60	70	85	60
JDB708570	SOB 70-85-70	70	85	70
JDB708580	SOB 70-85-80	70	85	80
JDB7085100	SOB 70-85-100	70	85	100
JDB709050	SOB 70-90-50	70	90	50
JDB709060	SOB 70-90-60	70	90	60
JDB709070	SOB 70-90-70	70	90	70
JDB709080	SOB 70-90-80	70	90	80
JDB7090100	SOB 70-90-100	70	90	100
JDB759050	SOB 75-90-50	75	90	50


Metric Cylindrical Bushes

Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO	Equivalent Code	Inner Ø d	Outer Ø D	Length L
JDB759060	SOB 75-90-60	75	90	60
JDB759070	SOB 75-90-70	75	90	70
JDB759080	SOB 75-90-80	75	90	80
JDB7590100	SOB 75-90-100	75	90	100
JDB759560	SOB 75-95-60	75	95	60
JDB759570	SOB 75-95-70	75	95	70
JDB759580	SOB 75-95-80	75	95	80
JDB7595100	SOB 75-95-100	75	95	100
JDB809620	SOB 80-96-20	80	96	20
JDB809640	SOB 80-96-40	80	96	40
JDB809650	SOB 80-96-50	80	96	50
JDB809660	SOB 80-96-60	80	96	60
JDB809670	SOB 80-96-70	80	96	70
JDB809680	SOB 80-96-80	80	96	80
JDB8096100	SOB 80-96-100	80	96	100
JDB8096120	SOB 80-96-120	80	96	120
JDB8010040	SOB 80-100-40	80	100	40
JDB8010050	SOB 80-100-50	80	100	50
JDB8010060	SOB 80-100-60	80	100	60
JDB8010070	SOB 80-100-70	80	100	70
JDB8010080	SOB 80-100-80	80	100	80
JDB80100100	SOB 80-100-100	80	100	100
JDB80100120	SOB 80-100-120	80	100	120
JDB80100140	SOB 80-100-140	80	100	140
JDB8510025	SOB 85-100-25	85	100	25
JDB8510060	SOB 85-100-60	85	100	60
JDB8510080	SOB 85-100-80	85	100	80
JDB9011030	SOB 90-110-30	90	110	30
JDB9011050	SOB 90-110-50	90	110	50
JDB9011060	SOB 90-110-60	90	110	60
JDB9011070	SOB 90-110-70	90	110	70
JDB9011080	SOB 90-110-80	90	110	80
JDB9011090	SOB 90-110-90	90	110	90
JDB90110100	SOB 90-110-100	90	110	100
JDB90110120	SOB 90-110-120	90	110	120
JDB100115100	SOB 100-115-100	100	115	100
JDB10012040	SOB 100-120-40	100	120	40
JDB10012050	SOB 100-120-50	100	120	50
JDB10012060	SOB 100-120-60	100	120	60
JDB10012070	SOB 100-120-70	100	120	70
JDB10012080	SOB 100-120-80	100	120	80
JDB10012090	SOB 100-120-90	100	120	90
JDB100120100	SOB 100-120-100	100	120	100
JDB100120120	SOB 100-120-120	100	120	120
JDB100120140	SOB 100-120-140	100	120	140
JDB11013050	SOB 110-130-50	110	130	50


Metric Cylindrical Bushes

Maintenance free bearing and guide bushes, bronze with solid lubricant
ITEM NO	Equivalent Code	Inner Ø d	Outer Ø D	Length L
JDB11013070	SOB 110-130-70	110	130	70
JDB11013080	SOB 110-130-80	110	130	80
JDB110130100	SOB 110-130-100	110	130	100
JDB110130120	SOB 110-130-120	110	130	120
JDB12014070	SOB 120-140-70	120	140	70
JDB12014080	SOB 120-140-80	120	140	80
JDB12014090	SOB 120-140-90	120	140	90
JDB120140100	SOB 120-140-100	120	140	100
JDB120140120	SOB 120-140-120	120	140	120
JDB120140140	SOB 120-140-140	120	140	140
JDB125145100	SOB 125-145-100	125	145	100
JDB125145120	SOB 125-145-120	125	145	120
JDB13015080	SOB 130-150-80	130	150	80
JDB130150100	SOB 130-150-100	130	150	100
JDB130150130	SOB 130-150-130	130	150	130
JDB140160100	SOB 140-160-100	140	160	100
JDB140160140	SOB 140-160-140	140	160	140
JDB150170100	SOB 150-170-100	150	170	100
JDB150170150	SOB 150-170-150	150	170	150
JDB16018080	SOB 160-180-80	160	180	80
JDB160180100	SOB 160-180-100	160	180	100
JDB160180150	SOB 160-180-150	160	180	150
JDB170190100	SOB 170-190-100	170	190	100
JDB170190150	SOB 170-190-150	170	190	150
JDB180200100	SOB 180-200-100	180	200	100
JDB180200150	SOB 180-200-150	180	200	150
JDB190210100	SOB 190-210-100	190	210	100
JDB190210150	SOB 190-210-150	190	210	150
JDB200230150	SOB 200-230-150	200	230	150
JDB200230200	SOB 200-230-200	200	230	200

Self-Lubricating Oil-Less Type Bushings

Aluminum bronze graphite bushings is the highest strength standard copper based alloy. VIIPLUS produces C95400, C95500 and C95900 in standard sizes of Bronze graphite Bushings. Aluminum in conjunction with iron and nickel in C95500 acts as a strengthener in these alloys bronze bushings. All of the aluminum bronzes bearings can be heat treated, further increasing tensile strengths.

Chemical Composition
Cu%	Fe%	Ni%1	Al%	Mn%
83.00	3.00-		10.00-
min	5.00	1.50	11.50	0.50

Material Technical Data

Related Specifications & Applications for Common Casting Copper Alloys
Alloy Description	American Spec.	American Spec.	German Spec.	British Spec.	Typical Material Applications
Alloy Description	UNS	SAE	alloy	alloy	Typical Material Applications
Cu85 Sn5 Zn5 Pb5 Leaded Gunmetal	C83600 ( CDA 836)	40	CuSn5ZnPb	LG2	Pump components, small gears, bearings, impellers, flanges, low pressure valves and fittings.
Cu83 Sn3 Zn8 Pb6 Leaded Gunmetal	C84400 (CDA 844)	-	CuSn2ZnPb	*LG1	Light duty bearings, general hardware, fixtures, low pressure valves and fittings.
Cu63 Al6 Fe3 Mn3 Zn25	C86300 (CDA 863)	430B	-	-	Heavy duty high strength alloy for gears, cams, slow speed heavy load bearings, screw down nuts.
Cu88 Sn8 Zn4 Tin Bronze	C90300 ( CDA 903)	620	-	-	Bearings, bushings, piston rings, valve components, seal rings, steam fittings and gears.
Cu88 Sn10 Zn2 Tin Bronze	C90500 ( CDA 905)	62	CuSn10Zn	*G1	Marine pumps, valves, bearings, bushings, piston rings, steam fittings and gears.
Cu89 Sn11 Tin Bronze	C90700 ( CDA 907)	65	CuSn12	*PB1	Heavy duty gears, high load bearings, bushings and worm wheels.
Cu88 Sn6 Zn4 Pb2 Leaded Tin Bronze	C92200 ( CDA 922)	622	-	LG3	Valves, fittings, Medium-pressure hydraulic and steam pressure parts for use up to 550 F (287 C)
Cu87 Sn11 Ni2 Leaded Tin Bronze	C92500 ( CDA 925)	640	CuSn12Ni	CT2	Gears, worm wheels - Good shock resistance, Automotive synchronizer rings.
Cu87 Sn11 Pb2 Leaded Tin Bronze	C92700 ( CDA 927)	63	CuSn12Pb	LB3	Heavy duty bearings, bushings, piston rings, valve components, steam fittings, gears.
Cu83 Sn7 Zn3 Pb7 Leaded Tin Bronze	C93200 ( CDA 932)	660	CuSn7ZnPb		General utility bearings, bushings and wear plates for medium speeds and pressures.
Cu85 Pb10 Sn5 High Leaded Tin Bronze	C93500 ( CDA 935)	66	-	LB4	high speed bearings, bushings, high speed light loading and light pressure parts.
Cu80 Pb10 Sn10 High Leaded Tin Bronze	C93700 ( CDA 937)	64	CuPb10Sn	LB2	Bearings for high speed and heavy pressures, pump parts, pressure tight castings.
Cu78 Pb15 Sn7 High Leaded Tin Bronze	C93800 ( CDA 938)	67	CuPb15Sn	LB1	Turbocharger bearings, bearings for general service and moderate pressures, railroad applications.
Cu87 AI10 Fe3 Aluminum Bronze	C95400 ( CDA 954)	-	CuAI10Fe	-	High strength bearings, bushings, gears, worms, wear plates, valve seats and guides.
Cu81 AI10 Ni5 Fe4 Ni Aluminum Bronze	C95500 ( CDA 955)	-	CuAI10Ni	-	High strength bearings, corrosion resistant parts, aircraft valve guides and seats.
Cu80 AI10 Ni6 Fe4 Ni Aluminum Bronze	C95800 ( CDA 958)	-	CuAl10Ni	AB2	Anti-fouling salt water corrosion resistant parts and general marine hardware.
Phosphor Bronze Grade	C54400		CuSn4	PB101

Phosphor Bronze Grade I	C54400	CuSn4	PB101
Phosphor Bronze Grade II	C51000	CuSn5	PB102
Phosphor Bronze Grade III	C51900	CuSn6	PB103
Phosphor Bronze	C52100	CuSn8	PB104

Plug graphiting is accomplished by drilling a rowed, staggered hole configuration through the bearing wall and pressing graphite into these holes and hard baking. The size and number of drilled holes and the number of rows is determined by the bearing length and diameter.

Inch Sleeves
Metric Sleeves
Metric Flanges
Metric Washers

Solid self-lubricating bearing with graphite plug insert | Graphite copper sleeve bushings

Graphite Plugged Bronze Bushings are all self-lubricating and maintenance free. These bushings are machined out of continuous cast bronze and plugged with solid lubricant plugs. A bushing and it's mating surface should always be seperated by a film of lubricant.Many of VIIPLUS’s components use graphite. Here is what you need to know about it. Graphite is ordinary carbon in a highly unusual form, a two-dimensional crystal. Think of it as a one-atom thick sheet. A piece of graphite is a stack-up of these sheets. A graphite pencil lead feels oily because these one-atom thick sheets are very slippery.

Wear Plates
Wear Strips
Bushings
Slide Assemblies
Guide Components

Self Lubricating Graphite Plugged Bronze Sleeve Bushing
Plug Graphite Sleeve Bushing

C95400 Aluminum Bronze Bushings & Plate

Inch Sized Bushings
Metric Sized Bushings

Bronze sleeve bearings flanged bronze bushings for sale

Applications

C95400 ALUMINUM

Bronze Bushings, high strength clamps, gears, valves, bearings, pawl, valve bodies, landing gear parts, worm gears,
machine parts, pressure blocks for the steel industry, bearing segments for the steel industry, valve seats,
valve guides, pickling hooks, spur gears, heavily loaded worm gears, pump parts.

We specialize in customized copper alloy products, including bearing, oilless bushing,wear plate, guide bushings, material and many other kinds.

If any interest, please send us your drawing and specification, we are honored to offer a quotation.

Tags:
