Butterfly Valves Cast Bronze Bushings , Oil Impregnated Bronze Bearings DN 100 Size

Place of Origin	China Manufacturer
Brand Name	Brand Cast Bronze Plain Sleeve Bearing
Certification	Bushing Standards Met: 83-7-7-3, ASTM B505, CDA 932, SAE 660
Model Number	Sleeve bearing type:
Minimum Order Quantity	50 Piece/Pieces (Min. Order)
Price	Negotiable
Packaging Details	Standard export packing, or as customer's requirement
Delivery Time	10-20 work days
Payment Terms	T/T, L/C
Supply Ability	Cast Bronze Customized Bearings Manufacturing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Features	High Precision	Material	BRONZE METAL POWDER
Type	Sleeve, Flange,ring,split,Bushings	Shipment	By Sea Or Air
Application	Metal Sintered Fan Bushing	Size	Customized
Bearing Bushing Factory Price	Tiffany@viiplus.com	Self-lubricating Bearing Bushing Manufacturer	Https://www.viiplus.com/
High Light	RG7 Cast Bronze Bushings, Premium Cast Bronze Bushings, Tin Bronze Bushings, 2.1090 CuSn7Zn4Pb7, Gunmetal Bronze Bushing	Cast Bronze Bushing	Plug Graphite Bushings – This Product Is A Cast Bronze Bushing That Has Been Milled And Plugged With Graphite Plugs. The Graphite Acts As The Lubrication. These Are Used In Applications Were The Properties Of The Oil Impregnated Bushing Would Not Suffice.
Bush Bearings Manufacturers Suppliers Exporters	Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light	cast bronze bearings , oil impregnated bronze bushings

Leave a Message

Product Description

Butterfly valves equipped with cast bronze bushings and oil-impregnated bronze bearings in the DN 100 size offer a reliable and efficient solution for various fluid control applications.

Cast bronze bushings provide superior strength, durability, and corrosion resistance, making them ideal for butterfly valves. The oil-impregnated bronze bearings further enhance the performance of the valve by reducing friction and wear, resulting in smoother operation and longer service life.

The DN 100 size is a common choice for butterfly valves, suitable for handling a wide range of fluid media in various industrial and commercial applications. The cast bronze bushings and oil-impregnated bronze bearings ensure that the valve operates smoothly and reliably, even under heavy loads and high-pressure conditions.

Overall, butterfly valves with cast bronze bushings and oil-impregnated bronze bearings in the DN 100 size are a dependable choice for fluid control systems, providing excellent performance and durability.

Butterfly valves bushings | Oil Impregnated Sintered Bronze Bearings DN 100 size

Cast Bronze Sleeve Bearing Standards

VIIPLUS cast bronze standards are general-purpose bearings that provide the best mix of functional properties, availability and economical cost. They offer excellent load carrying capabilities with good anti-frictional properties. They can perform over a broad range of temperatures (up to 450 F°) and can readily be modified with grease grooves, oil grooves or self-lubricating graphite plugs.

VIIPLUS manufactures the most complete line of standard stock-sized bronze sleeve bearings in the world. We produce and stock more than 1,000 different sizes of bronze bearings in inch and metric sizes.

All standard stock sizes are also available in other materials such as no-lead bronze, aluminum bronze, manganese bronze and cast iron. Special requests are welcomed with flexible stocking arrangements or just in time delivery schedules.

Characteristics

Sintered Bronze Bearings
Maintenance-free bearing for general engineering applications
Optimum performance under relatively light loads and high speeds
Produced by powder metallurgy process and therefore suitable for complex shapes

Availability

Bearing forms available in standard dimensions

Plain cylindrical bushes

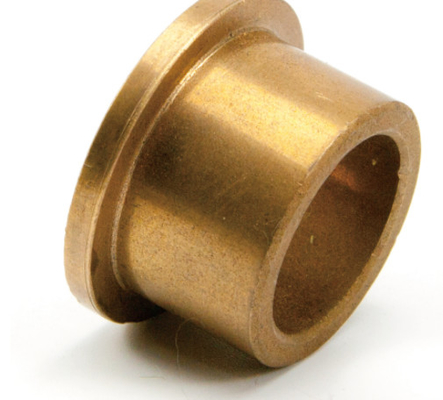

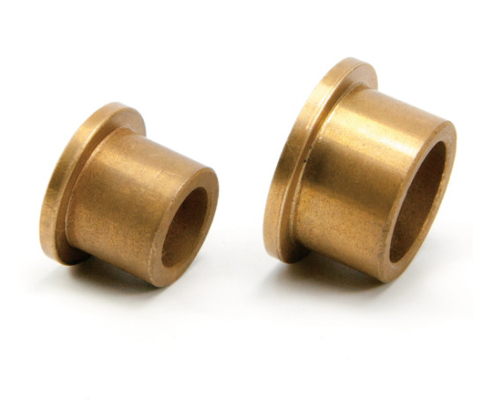

Plain flanged bushes

Bearing forms made to order: cylindrical bushes and flanged bushes with non-standard dimensions, spherical bearings, tubes and rod blanks, customized bearing designs

Description

SAE 841 Powdered Metal Bronze, Sleeve Bearing
Specifications SAE841 SLEEVE Bearing Oil Impregnated Bronze
Material Powdered Metal / Oil Impregnated Bronze
Material Standard SAE 841
Tolerances
Inner Diameter Tolerance +.000 -.001 in
Outside Diameter Tolerance+.000 -.001 in
Overall Length Tolerance .005 in
Chemical Composition- Copper (87-90%), Tin (8-9), Iron (1.0% Max) Carbon (0.1%), other elements less than 0.1%
MPIF: CT-1000-K26
ASTM: B438 Grade 1, Type 2 Class A
SAE 841 - Bronze Mil-B-5687 Type 1, Grade 1
Ideal for heavy loads at moderate speeds or light loads at high speeds - max Pv 50,000, P-Load 2,000, V-SFM-1,200
Self-lubricating - when in motion oil rises to the surface for lubrication and restores itself when at rest.
After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation.
Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10F to 220F.
RoHS, REACH, DFARS compliant

Advantages Of Powder Metallurgy Process

· Do not need or only very little machining

· High usage rate of material(more than 95%)

· Parts size consistency is good and stable. The precision can reach 0.01mm.

· The material composition can be adjusted according to the customers’requirement of the parts performance.

· Do the treatment on the surface of the parts according to customers’ requirement to improve the strength and hardness.

· Due to the die forming, we can customize the complex shape or special profiled parts which other machining can not do.

· Because suitable for mass production, the production efficiency is high and the cost is lower than machining.
