Graphite Impregnated Bronze Bushing | Oilless Bushes

Graphite Impregnated Bronze Bushing | Oilless Bushes
Graphite Impregnated Bronze Bushing | Oilless Bushes Graphite Impregnated Bronze Bushing | Oilless Bushes Graphite Impregnated Bronze Bushing | Oilless Bushes Graphite Impregnated Bronze Bushing | Oilless Bushes

Large Image :  Graphite Impregnated Bronze Bushing | Oilless Bushes

Product Details:
Place of Origin: Graphite Bearings Manufacturers
Brand Name: SANKYO,MISUMI,DAIDO,SELF LUBE,GGB,FIBRO STANDARD REPLACEMENT BEARING
Certification: DIN 1850/ISO 4379, UNITED STATES UNS STANDARD,C86300
Model Number: solid bushing, bronze with lubricant plugs embedded Maintenance-free
Payment & Shipping Terms:
Minimum Order Quantity: NEGOTIABLE
Price: Price Graphite Bushing Parts, (SAE 660) Leaded Tin Bronze Bearings,863 (SAE 430B) 862 (SAE 430A)Manganese Bronze
Packaging Details: BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS
Delivery Time: FAST DELIVERY
Payment Terms: TT IN ADVANCE
Supply Ability: Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers

Graphite Impregnated Bronze Bushing | Oilless Bushes

Description
Marerial: Bronze Graphite Bushing Size: Inch Size Bushings
Standard Size: C86300,C86200 Graphite Impregnated Bronze Bushings Type: PLUGGED CAST BRONZE
High Light:

graphite impregnated bronze bushings

,

graphite filled bronze bushes

C86200 Cast Bronze Bushings Casting Copper Alloy

Graphite Impregnated Bronze Bushings

Self-Lubricating Graphite Plugged Bronze Sleeve Bushings

Choose from our selection of graphite-impregnated bronze, including metric size bronze products in a wide range of material and sizes. In stock and ready to ship.


Special Cam Bushing Length Inch Sizes Graphite Plugged Bronze Bushings | C86200 SAE430A BRONZE PLATE

As CHINA MANUFACTURER in the field of CAST BRONZE SLEEVE BUSHING technology, VIIPLUS SLIDING BEARING PLUG GRAPHITE BUSHINGS supplies
a range of PLAIN BEARINGS products that have gained an excellent reputation for reliability and performance.
C86200 Manganese Bronze Bearings
CDA 862, High Strength Yellow Brass, ASTM B505, ASTM B271
C86200 (SAE430A), for gear, pillar, casing, shaft, and worm gear transmission

Datong Misumi Dme Bujes Bronze Bushing Motor Gearbox Sleeve Dual Mass Flywheel Repairing Self-Lubricating Bearing PTFE Peek Bushing Sankyo Sliding Bearing

Chemical composition


Type: Lead-Free Brass

Chemical Composition mass/%

Cu

Sn

Al

Fe

Mn

Ni

Pb

Si

P

Zn

60-66

0.2

3.0-4.9

2.0-4.0

2.5-5.0

1

0.2

_

_

_

Mechanical properties

Tensile strength Mpa(Min)

Yield strength MPa(Min)

Elongation %

Brinell hardness(HB)

621

310

18

180

graphite plugged bronze bushings

Note:

1,In Chemical Composition, Single values represent maximums.
2,Mechanical performance of hardness value is only for reference

Graphite Plugged Sleeve | 1 ID x 1.5 OD x 2 Length
INCH SIZES 1 IN ID x 1.5 IN OD x 2 IN



Performance


Graphite Plugged Cast Bronze Bushings can be utilized where heavy loads must be supported at low to medium speeds
The Plug Graphite Cast Bronze Bushing is able to withstand high temperatures up to 570 F
The self-lubricating feature allows bearings to be used where oiling is difficult, expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.
Self-lubrication with specially embedded solid lubricants reduces friction. Coefficient of Friction: 0.04 to 0.2 typical
VIIPLUS INTERNATIONAL has since established itself as a leading distributor of Bronze & Steel Bushings , Sintered Bearings Products, Self-lubricated bushings, and Wear plate, in the People's Republic of China. Our goal is to provide the quality bushing products at competitive prices to every industry and especially for the small and medium-sized enterprises.
Material: Cast Bronze and Solid Lubricant Plugs
manganese bronze


graphite plugged bronze bushings

Self Lubricated for Higher Temperatures and Heavier Loads

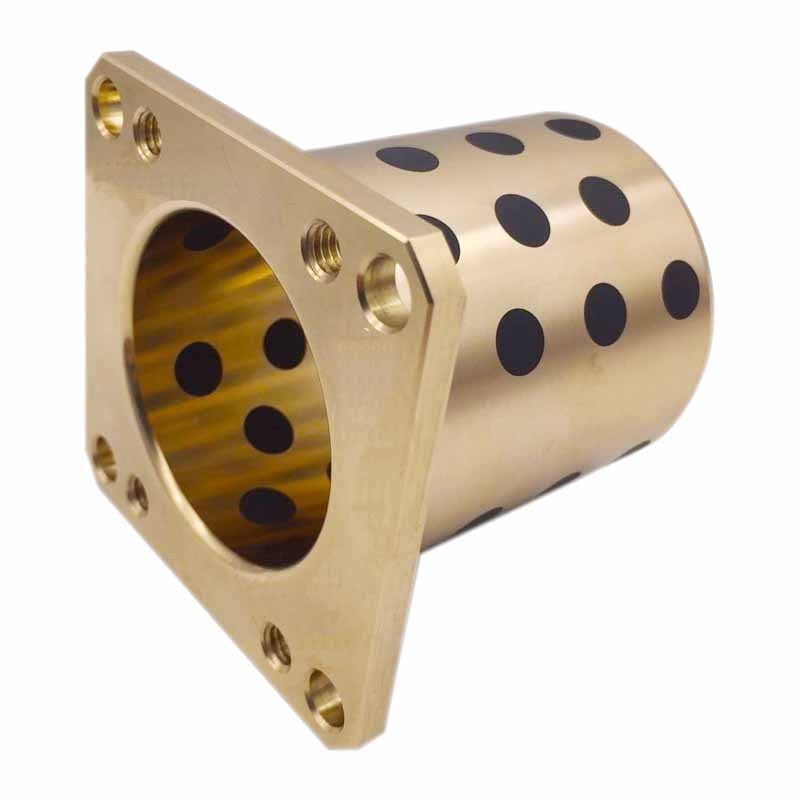

Solid self-lubricating bearing with graphite plug insert | Graphite copper sleeve bushings




  • Inch Sized Bushings

  • Metric Sized Bushings



Material


C86300 Manganese Bronze
C86300 Typical applications include slow speed heavy duty load bearings, gears, cams, and hydraulic cylinder parts. continuous cast manganese bronze is a high strength, non-heat-treatable copper alloy intended for use in applications requiring a good combination of outstanding wear characteristics and high bearing strength for heavy loads and slow speeds.





graphite plugged bronze bushings

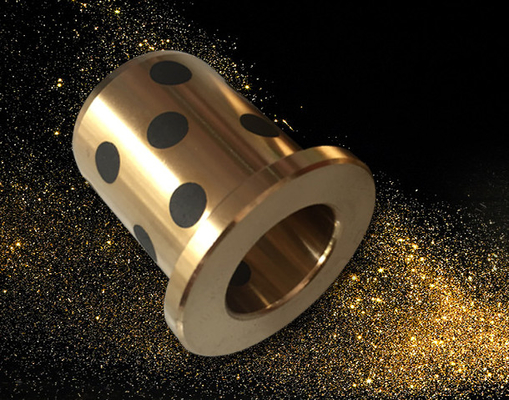

Bronze sleeve bearings flanged bronze bushings for sale

Graphite Impregnated Bronze Bushing | Oilless Bushes 3graphite plugged bronze bushings

C86300 Manganese Bronze Graphite Bushings

ELEMENT

CONTENT (%)

Copper, Cu

60.0-68.0

Lead, Pb

≤0.2

Tin, Sn

≤0.2

Zinc, Zn

22~28

Iron, Fe

2.0-4.0

Aluminum, Al

5.0-7.50

Manganese, Mn

2.5-5.0





C86200 Manganese Bronze Graphite Bushings

ELEMENT

CONTENT (%)

Copper, Cu

60.0-68.0

Lead, Pb

≤0.2

Tin, Sn

≤0.2

Zinc, Zn

22~28

Iron, Fe

2.0-4.0

Aluminum, Al

3.0-4.90

Manganese, Mn

2.5-5.0



Performance


Graphite Plugged Cast Bronze Bushings can be utilized where heavy loads must be supported at low to medium speeds

The Plug Graphite Cast Bronze Bushing is able to withstand high temperatures up to 570 F
The self-lubricating feature allows bearings to be used where oiling is difficult, expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.
Self lubrication with specially embedded solid lubricants reduces friction. Coefficient of Friction: 0.04 to 0.2




Technical Data



Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm

Applications
Bushings For Construction

Manganese Bronze Bearings
Manganese Bronze use area for Heavy duty high strength alloy for gears, cams, slow speed heavy load bearings & screw down nuts
Equipment, Boom Link Bushings for Power Shovels, Toggle Link & Guide Bushings for Injection Mold Machines, Steel Mill Equipment, Furnace Dragouts, Drying Equipment, Roasters, Press Dies, Assembly Lines, Hydro-Electric Structures, Winches, Hoisting Equipment, Tire and Paper Mill Machinery, and Many Other Industrial Applications.
