Self Lubricating Steel Split PTFE I.D Coated Bushing

Place of Origin Self Lubricating Bearings Manufacturers
Brand Name REPLACE BRAND GARLOCK BEARINGS (GGB)
Certification DIN 1494, ISO 3547 STANDARD BUSHING
Model Number BUSHING TYPE FLANGED PLAIN SLEEVE
Minimum Order Quantity NEGOTIABLE
Price Competitively Priced vs DU DX, Provides Lubricating Bush
Packaging Details WOOD PALLET ,WOODEN CASES,CARTON,BUSHINGS EXPORT STANDARD, CUSTOMER SPECIFIED REQUIREMENTS
Delivery Time 7-20 DAYS,STOCK SIZE BUSHING IMMEDIATE DELIVERY
Payment Terms TT IN ADVANCE WESTERN UNION
Supply Ability Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details

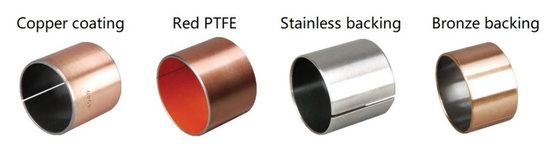

Meterial Low-Carbon Steel + Porous Bronze + PTFE Plating Tin Or Copper
Types FLANGE/SLEEVE/WASHER Application Printing, Weaving And Tobacco Producing Machines, Gymnastic Equipment, Shock Absorbers, Etc.
Production Feature Wrapped Port China Port ( Shanghai , Ningbo)
Application Plunger Pump Bushings Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light PTFE Coated Self Lubricating Plain Bearing, Teflon Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing
Characteristic Втулки скольжения (биметаллические подшипники скольжения) Dry Slide Bearing Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running.
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

sintered self lubricating bushes

,

self lubricating bronze bushings

Leave a Message
Product Description

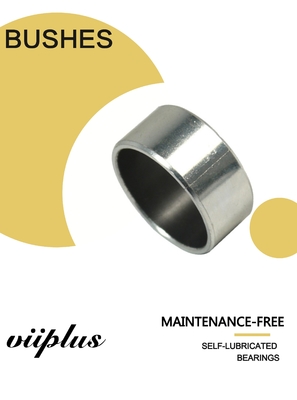

Self-lubricating steel split PTFE I.D coated bushing Inch size.

DIN 1494 STANDARD INCH BUSHING The slit bushing & split plain bearing for Chemical Machinery application


About Us At the Viiplus Companies, we self-lubricating bushings products — including pipe bushings, valves bushings, hydrants bushes, fittings, and bearings products — manufacture fire extinguishers bushings and equipment.
VIIPLUS is proud to offer premium bushings for customers around the world.

When it comes to bushing technology solutions, we’re the industry support.


Why Buy china?


VIIPLUS is your go-to source for high-quality domestic bushings that comply with the "Buy china" Requirements for all industry.
BUSHINGS " Made in china" ,Price is very important now.



For generations, the word “quality” has been synonymous with viiplus.
split plain bearing Widely used in manufacturing of precision machinery, chemical machinery and shipcomponents.



The application in the chemical machinery field of petroleum of split plain bearing is very extensive, mechanical spare bushings part which says to be indispensable.


We Focus Find a VIIPLUS Bushing Product


Your trusted provider of guaranteed chinese-made bushings products.

Choice in Bushings Material Selection



split plain bearing for Chemical Machinery application ,such as Chemical raw material conveying pump ,centrifugal pump,Gear pump, reciprocating pump ,Axial flow pump.Pipeline pump.), reflecting the positioning of the stirring mechanism of the kettle shaft sleeve bushings.



Plastic Plain Bearings
Contact Us



Viiplus is committed to serving your needs, including responding to your questions in a timely manner. Please complete the form below and we will be in touch with you regarding your inquiry.





du bushing size chart

du bushing size chart
  Di (mm) Do (mm) B (mm) bearing shaft The largest diameter (mm) Minimum diameter (mm) The maximum clearance (mm) The minimum clearance (mm)
0203DU 2 3.5 3 H6 h6 2.048 2 0.054 0
0205DU 2 3.5 5 H6 h6 2.048 2 0.054 0
0303DU 3 4.5 3 H6 h6 3.048 3 0.054 0
0305DU 3 4.5 5 H6 h6 3.048 3 0.054 0
0306DU 3 4.5 6 H6 h6 3.048 3 0.054 0
0403DU 4 5.5 3 H6 h6 4.048 4 0.056 0
0404DU 4 5.5 4 H6 h6 4.048 4 0.056 0
0406DU 4 5.5 6 H6 h6 4.048 4 0.056 0
0410DU 4 5.5 10 H6 h6 4.048 4 0.056 0
0505DU 5 7 5 H7 f7 5.055 4.99 0.077 0
0508DU 5 7 8 H7 f7 5.055 4.99 0.077 0
0510DU 5 7 10 H7 f7 5.055 4.99 0.077 0
0604DU 6 8 4 H7 f7 6.055 5.99 0.077 0
0606DU 6 8 6 H7 f7 6.055 5.99 0.077 0
0608DU 6 8 8 H7 f7 6.055 5.99 0.077 0
0610DU 6 8 10 H7 f7 6.055 5.99 0.077 0
0705DU 7 9 5 H7 f7 7.055 6.99 0.083 0.003
0710DU 7 9 10 H7 f7 7.055 6.99 0.083 0.003
0806DU 8 10 6 H7 f7 8.055 7.99 0.083 0.003
0808DU 8 10 8 H7 f7 8.055 7.99 0.083 0.003
0810DU 8 10 10 H7 f7 8.055 7.99 0.083 0.003
0812DU 8 10 12 H7 f7 8.055 7.99 0.083 0.003
1006DU 10 12 6 H7 f7 10.058 9.99 0.086 0.003
1008DU 10 12 8 H7 f7 10.058 9.99 0.086 0.003
1010DU 10 12 10 H7 f7 10.058 9.99 0.086 0.003
1012DU 10 12 12 H7 f7 10.058 9.99 0.086 0.003
1015DU 10 12 15 H7 f7 10.058 9.99 0.086 0.003
1020DU 10 12 20 H7 f7 10.058 9.99 0.086 0.003
1208DU 12 14 8 H7 f7 12.058 11.99 0.092 0.006
1210DU 12 14 10 H7 f7 12.058 11.99 0.092 0.006
1212DU 12 14 12 H7 f7 12.058 11.99 0.092 0.006
1215DU 12 14 15 H7 f7 12.058 11.99 0.092 0.006
1220DU 12 14 20 H7 f7 12.058 11.99 0.092 0.006
1225DU 12 14 25 H7 f7 12.058 11.99 0.092 0.006
1310DU 13 15 10 H7 f7 13.058 12.99 0.092 0.006
1320DU 13 15 20 H7 f7 13.058 12.99 0.092 0.006
1405DU 14 16 5 H7 f7 14.058 13.99 0.092 0.006
1410DU 14 16 10 H7 f7 14.058 13.99 0.092 0.006
1412DU 14 16 12 H7 f7 14.058 13.99 0.092 0.006
1415DU 14 16 15 H7 f7 14.058 13.99 0.092 0.006
1420DU 14 16 20 H7 f7 14.058 13.99 0.092 0.006
1425DU 14 16 25 H7 f7 14.058 13.99 0.092 0.006
1510DU 15 17 10 H7 f7 15.058 14.99 0.092 0.006
1512DU 15 17 12 H7 f7 15.058 14.99 0.092 0.006
1515DU 15 17 15 H7 f7 15.058 14.99 0.092 0.006
1520DU 15 17 20 H7 f7 15.058 14.99 0.092 0.006
1525DU 15 17 25 H7 f7 15.058 14.99 0.092 0.006
1610DU 16 18 10 H7 f7 16.058 15.99 0.092 0.006
1612DU 16 18 12 H7 f7 16.058 15.99 0.092 0.006
1615DU 16 18 15 H7 f7 16.058 15.99 0.092 0.006
1620DU 16 18 20 H7 f7 16.058 15.99 0.092 0.006
1625DU 16 18 25 H7 f7 16.058 15.99 0.092 0.006
1720DU 17 19 20 H7 f7 17.061 16.99 0.095 0.006
1810DU 18 20 10 H7 f7 18.061 17.99 0.095 0.006
1815DU 18 20 15 H7 f7 18.061 17.99 0.095 0.006
1820DU 18 20 20 H7 f7 18.061 17.99 0.095 0.006
1825DU 18 20 25 H7 f7 18.061 17.99 0.095 0.006
2010DU 20 23 10 H7 f7 20.071 19.99 0.112 0.01
2015DU 20 23 15 H7 f7 20.071 19.99 0.112 0.01
2020DU 20 23 20 H7 f7 20.071 19.99 0.112 0.01
2025DU 20 23 25 H7 f7 20.071 19.99 0.112 0.01
2030DU 20 23 30 H7 f7 20.071 19.99 0.112 0.01
2215DU 22 25 15 H7 f7 22.071 21.99 0.112 0.01
2220DU 22 25 20 H7 f7 22.071 21.99 0.112 0.01
2225DU 22 25 25 H7 f7 22.071 21.99 0.112 0.01
2230DU 22 25 30 H7 f7 22.071 21.99 0.112 0.01
2415DU 24 27 15 H7 f7 24.071 23.99 0.112 0.01
2420DU 24 27 20 H7 f7 24.071 23.99 0.112 0.01
2425DU 24 27 25 H7 f7 24.071 23.99 0.112 0.01
2430DU 24 27 30 H7 f7 24.071 23.99 0.112 0.01
2515DU 25 28 15 H7 f7 25.071 24.99 0.112 0.01
2520DU 25 28 20 H7 f7 25.071 24.99 0.112 0.01
2525DU 25 28 25 H7 f7 25.071 24.99 0.112 0.01
2530DU 25 28 30 H7 f7 25.071 24.99 0.112 0.01
2550DU 25 28 50 H7 f7 25.071 24.99 0.112 0.01
2815DU 28 32 15 H7 f7 28.085 27.99 0.126 0.01
2820DU 28 32 20 H7 f7 28.085 27.99 0.126 0.01
2825DU 28 32 25 H7 f7 28.085 27.99 0.126 0.01
2830DU 28 32 30 H7 f7 28.085 27.99 0.126 0.01
3010DU 30 34 10 H7 f7 30.085 29.99 0.126 0.01
3015DU 30 34 15 H7 f7 30.085 29.99 0.126 0.01
3020DU 30 34 20 H7 f7 30.085 29.99 0.126 0.01
3025DU 30 34 25 H7 f7 30.085 29.99 0.126 0.01
3030DU 30 34 30 H7 f7 30.085 29.99 0.126 0.01
3040DU 30 34 40 H7 f7 30.085 29.99 0.126 0.01
3220DU 32 36 20 H7 f7 32.085 31.99 0.135 0.015
3230DU 32 36 30 H7 f7 32.085 31.99 0.135 0.015
3240DU 32 36 40 H7 f7 32.085 31.99 0.135 0.015
3520DU 35 39 20 H7 f7 35.085 34.99 0.135 0.015
3530DU 35 39 30 H7 f7 35.085 34.99 0.135 0.015
3535DU 35 39 35 H7 f7 35.085 34.99 0.135 0.015
3540DU 35 39 40 H7 f7 35.085 34.99 0.135 0.015
3550DU 35 39 50 H7 f7 35.085 34.99 0.135 0.015
3720DU 37 41 20 H7 f7 37.085 36.99 0.135 0.015
4020DU 40 44 20 H7 f7 40.085 39.99 0.135 0.015
4030DU 40 44 30 H7 f7 40.085 39.99 0.135 0.015
4040DU 40 44 40 H7 f7 40.085 39.99 0.135 0.015
4050DU 40 44 50 H7 f7 40.085 39.99 0.135 0.015
4520DU 45 50 20 H7 f7 45.105 44.99 0.155 0.015
4530DU 45 50 30 H7 f7 45.105 44.99 0.155 0.015
4540DU 45 50 40 H7 f7 45.105 44.99 0.155 0.015
4545DU 45 50 45 H7 f7 45.105 44.99 0.155 0.015
4550DU 45 50 50 H7 f7 45.105 44.99 0.155 0.015
5020DU 50 55 20 H7 f7 50.11 49.99 0.16 0.015
5030DU 50 55 30 H7 f7 50.11 49.99 0.16 0.015
5040DU 50 55 40 H7 f7 50.11 49.99 0.16 0.015
5050DU 50 55 50 H7 f7 50.11 49.99 0.16 0.015
5060DU 50 55 60 H7 f7 50.11 49.99 0.16 0.015
5520DU 55 60 20 H7 f7 55.11 54.99 0.17 0.02
5525DU 55 60 25 H7 f7 55.11 54.99 0.17 0.02
5530DU 55 60 30 H7 f7 55.11 54.99 0.17 0.02
5540DU 55 60 40 H7 f7 55.11 54.99 0.17 0.02
5550DU 55 60 50 H7 f7 55.11 54.99 0.17 0.02
5555DU 55 60 55 H7 f7 55.11 54.99 0.17 0.02
5560DU 55 60 60 H7 f7 55.11 54.99 0.17 0.02
6020DU 60 65 20 H7 f7 60.11 59.99 0.17 0.02
6030DU 60 65 30 H7 f7 60.11 59.99 0.17 0.02
6040DU 60 65 40 H7 f7 60.11 59.99 0.17 0.02
6050DU 60 65 50 H7 f7 60.11 59.99 0.17 0.02
6060DU 60 65 60 H7 f7 60.11 59.99 0.17 0.02
6070DU 60 65 70 H7 f7 60.11 59.99 0.17 0.02
6530DU 65 70 30 H7 f7 65.11 64.99 0.17 0.02
6550DU 65 70 50 H7 f7 65.11 64.99 0.17 0.02
6570DU 65 70 70 H7 f7 65.11 64.99 0.17 0.02
7040DU 70 75 40 H7 f7 70.11 69.99 0.17 0.02
7050DU 70 75 50 H7 f7 70.11 69.99 0.17 0.02
7070DU 70 75 70 H7 f7 70.11 69.99 0.17 0.02
7560DU 75 80 60 H7 f7 75.11 74.99 0.17 0.02
7580DU 75 80 80 H7 f7 75.11 74.99 0.17 0.02
8040DU 80 85 40 H7 h8 80.155 80.02 0.201 0.02
8060DU 80 85 60 H7 h8 80.155 80.02 0.201 0.02
8080DU 80 85 80 H7 h8 80.155 80.02 0.201 0.02
80100DU 80 85 100 H7 h8 80.155 80.02 0.201 0.02
8530DU 85 90 30 H7 h8 85.155 85.02 0.209 0.02
8560DU 85 90 60 H7 h8 85.155 85.02 0.209 0.02
85100DU 85 90 100 H7 h8 85.155 85.02 0.209 0.02
9060DU 90 95 60 H7 h8 90.155 90.02 0.209 0.02
90100DU 90 95 100 H7 h8 90.155 90.02 0.209 0.02
9560DU 95 100 60 H7 h8 95.155 95.02 0.209 0.02
95100DU 95 100 100 H7 h8 95.155 95.02 0.209 0.02
10050DU 100 105 50 H7 h8 100.155 100.02 0.209 0.02
10060DU 100 105 60 H7 h8 100.155 100.02 0.209 0.02
100115DU 100 105 115 H7 h8 100.155 100.02 0.209 0.02
10560DU 105 110 60 H7 h8 105.155 105.02 0.209 0.02
105115DU 105 110 115 H7 h8 105.155 105.02 0.209 0.02
11060DU 110 115 60 H7 h8 110.155 110.02 0.209 0.02
110115DU 110 115 115 H7 h8 110.155 110.02 0.209 0.02
11550DU 115 120 50 H7 h8 115.155 115.02 0.209 0.02
11570DU 115 120 70 H7 h8 115.155 115.02 0.209 0.02
12050DU 120 125 50 H7 h8 120.21 120.07 0.264 0.07
12060DU 120 125 60 H7 h8 120.21 120.07 0.264 0.07
120100DU 120 125 100 H7 h8 120.21 120.07 0.264 0.07
125100DU 125 130 100 H7 h8 125.21 125.07 0.273 0.07
13060DU 130 135 60 H7 h8 130.21 130.07 0.273 0.07
130100DU 130 135 100 H7 h8 130.21 130.07 0.273 0.07
13560DU 135 140 60 H7 h8 135.21 135.07 0.273 0.07
13580DU 135 140 80 H7 h8 135.21 135.07 0.273 0.07
14060DU 140 145 60 H7 h8 140.21 140.07 0.273 0.07
140100DU 140 145 100 H7 h8 140.21 140.07 0.273 0.07
15060DU 150 155 60 H7 h8 150.21 150.07 0.273 0.07
15080DU 150 155 80 H7 h8 150.21 150.07 0.273 0.07
150100DU 150 155 100 H7 h8 150.21 150.07 0.273 0.07
16080DU 160 165 80 H7 h8 160.21 160.07 0.273 0.07
160100DU 160 165 100 H7 h8 160.21 160.07 0.273 0.07
180100DU 180 185 100 H7 h8 180.216 180.07 0.279 0.07
200100DU 200 205 100 H7 h8 200.216 200.07 0.288 0.07
210100DU 210 215 100 H7 h8 210.216 210.07 0.288 0.07
220100DU 220 225 100 H7 h8 220.216 220.07 0.288 0.07
250100DU 250 255 100 H7 h8 250.222 250.07 0.294 0.07
300100DU 300 305 100 H7 h8 300.222 300.07 0.303 0.07


Valve designs

Valves Bushes viiplus bushes: Industrial Bushings supplier in Pneumatic Valves
Provide stable gear pump bearing solutions for industrial production:
Whether it's a modification to an bushings product, a custom design for your application or specific industry need; VIIPLUS is ready to help you get the job done.

  • Butterfly valves bushings in metal

  • Butterfly valves bushings


Solutions





  •  Industry Bushings Solutions

  •  Customer Spotlight

  • Viiplus Design

Products


• Valves Bushings Fittings
• Professional fluid control valve bushings
• Safety & Production
• Bimetal Bushings

An Evolution in Air Valve Technology

Your Strategic China Sourcing Partner
Bushings -Logistics-Solutions (never late)
Quality Bushings and Components Metric Gears Bushings



Bronze Bushings Stock Products


Gears Bushings
Bearing Tools Hydraulic Pullers Bearings Hydraulics Bushings
Viiplus supplying custom gears bushings and gear bearings of the highest quality to the customer industry.


Markets Oil and Gas
VIIPLUS provides standard and custom bushings components and assemblies that are safe, dependable and cost effective.
Oil and gas off shore installations are small cities surrounded by endless ocean in all directions. Heavy machinery is pounding daily and the smell of diesel is always present. These installations are packed with complex equipment and systems. Drills Bushings, pump bushings and shakers are in constant operation and need to be 100% reliable. With so many mechanical processes going on, a malfunction can be extremely hazardous and costly.





Bearings & Bushings Maintenance




VIIPLIS offers a wide range of high-quality bushings for safe and efficient use in industrial applications. The sturdy and user-friendly design guarantees years of problem-free operation.Machine breakdowns are frequently caused by bearing damage. Unplanned downtime, as well as unnecessary repair work, can be significantly reduced by periodically checking bearing condition.

  •  For Bearings and Bearing Related Components (Standard and Custom)

  •  For Bearings, Services and Maintenance Equipment

  •

Typical Applications

Application Of Bushings

Bronze Bushings Widely Used In Pneumatic, Hydraulic, Fluid Control


Plain Bearings hydraulic system plunger pumpbushing gleitlager



Characteristics




Metal-Polymer Low Friction Plain Bearings
Steel + Bronze Powder + PTFE/Fibre(DP4)
Self Lubricating Bearings Low-Carbon Steel + Porous Bronze + Red PTFE


VSB-40 low friction bushings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
· Very good performance in lubricated applications
· Good performance in greased applications
· Suitable for linear, oscillating and rotating movements


Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surfaces, suitable for rotating and oscillating movement, high chemical resistance, low absorption of water and swelling. The VSV-40 improved the friction and much good wear resistance over the common CSB-10 range under lubricated operation.



Strusture






1. PTFE/Polymer fibres mixture thickness 0.01~0.03mm. Lead-free bearing layer provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm, provides max. thermal conductivity away from the bearing surface, also serves as a reservoir for the PTFE mixture.
3. Steel backing, provides high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance.



Technical Data




Structure & Composition

· Metal-Polymer Composite Bushing Material
· Steel back + Porous Bronze Sinter +
· PTFE + Fillers





MICROSECTION

Self Lubricating Steel Split PTFE I.D Coated Bushing 1

Sliding layer
PTFE + Fillers
Porous Bronze Sinter
Steel Backing




Tech. Data



Max. load

Static

250N/mm2

Max.speed

Dry running

0.08~0.20

Very low speed

140N/mm2

Hydrodynamicoperation

0.02~0.08

Rotatingoscillating

60N/mm2

Frictioncoefficient

Dry

2m/s



Hydrodynamic

>2m/s



Max. PVdryrunning)

Short-termoperation

3.6N/mm2*m/3

Thermal conductivity

42W(m*K)-1



Continuousoperation

1.8N/mm2*m/3



PV max. hydrodynamic

-195℃~+280℃

Coefficient of thermalexpansion

11*10-6*K-1



OPERATING PERFORMANCE

Dry

Good

Oil lubricated

Very Good

Grease lubricated

Good

Water lubricated

Fair

Process fluid lubricated

Good









self lubricating bronze bushing

Plastic Plain Bearings





Availability




Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers

Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes, half-bushings, stamped/deep drawn shapes, bearings with locating notches, lubricant holes and grooves, customized designs









Start Your
Projectwith An Application Engineer







DU Bushing, DU Bearing, Line Bearing, Ptfe Coated Bushing, DX Bush, DX Bearing, Self-Lubricating Bearing, Sliding Bearing, Bimetal Bush, Wrapped Bronze Bushing, Oiles Bush, Oiles Bearing, Cast Bronze Bearing, Oiles Wear Plate, Oiles Guide Rail, Pom Coated Bearing, Metal-Polymer Composite Bearing, Plain Bush, Supplier, Company








 self lubricating bronze bushing
