Product Details
Meterial Stainless Steel 316 Port Shanghai
Quality OEM Type Self Lubricating Bearings
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Valve Bushings Suppliers Self-lubricating, Metal-polymer Plain Bearing Metal-Polymer Anti-Friction Plain Bearings
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

oil impregnated bushings

,

ptfe sleeve bearing

Leave a Message
Product Description



COMPLETE BUSHINGS SOLUTIONS FOR INDUSTRIAL VALVE | VALVE BUSH & Sleeve Bearing



We offer a comprehensive range of bushings solutions tailored specifically for industrial valves. Our valve bushes and sleeves are made from high-quality steel bronze, a material known for its excellent wear resistance and corrosion protection.

The key feature of our bushings is the integration of self-lubricating bearings. These bearings are designed to provide smooth and friction-free operation, ensuring reliable performance and extended service life for your industrial valves.

Our steel bronze bushings and sleeves are precision-manufactured to fit various valve sizes and configurations. Wh you need bushings for gate valves, globe valves, or any other type of industrial valve, we have the right solution for you.

Our products are widely used in various industries, including oil and gas, power generation, chemicals, and water treatment. We understand the specific challenges and requirements of these industries and are committed to providing you with the best possible bushings solutions.

Our team of experts is always available to provide technical support and assistance. We can help you select the right bushings for your application, offer customized solutions, and ensure timely delivery of your orders.

Contact us today to learn more about our complete bushings solutions for industrial valves. We look forward to working with you to meet your specific needs and provide you with the best possible products and services.



VIIPLUS is a supplier some of the valves bushings and self lubricating bearings repair VALVE BUSH & Sleeve Bearing. We provide equipment to a variety of Process and Industrial Industries in china.

Stainless steel matrix, coated surface composition of high corrosion resistance, wear - resistant bearings.This material is especially suitable for strong acid, strong alkali, light load medium and low speed occasions, its wear-resisting performance is obviously better than the single shaft sleeve and graphite shaft sleeve.At present, the product has been widely used in chemical acid and alkali flow meters, pumps, valves and Marine industry in the corrosion resistant sliding parts

value bushing


Industries served include Alternative Fuels, Beverage & Food, Cement, Chemical, Cryogenics, Desalination, Textile, Transportation, Water/Wastewater Treatment and various OEM's.





VIIPLUS provides specialized engineering, design, manufacturing and support services for self lubricating bearings solutions. Our experienced team of engineers and skilled craftsmen consistently deliver superior VALVE BUSH & Sleeve Bearingproducts, meeting the customer requirements of alii kinds of industry. We strive to meet or exceed our customers schedule expectations by consistently delivering our bushings products and services on time.



Valve guide pumps for water copper bearing slide trailer torque arm bush | VSB-33

VIIPLUS Self-Lubricating Bearings Material provides high-end casting to our valve divisions including materials like (low temperature) carbon steel/ stainless steel/ Bushing POM Bushes and high bronze alloy steels bearings.All analyses regarding the mold and pattern designs are being performed in our own premises in order to guarantee a constant casting level and quality.







Wrapped Lined (maintenance-free), self lubricated plain bearings, thrust washer and strip, stainless steel shell with sintered bronze layer filled with VSB-33 Dry bearing 316+ Product Overview:Apply to the oil or fuel work harder parts,wear resistance,low coefficient of...





Sleeve Bearing Self Lubricating For Valve Guide Pump

Stainless Steel 316 Bearings +
Throttle valve composite self-lubricating butterfly valve bearing bushing | VSB-33



CHARACTERISTICS

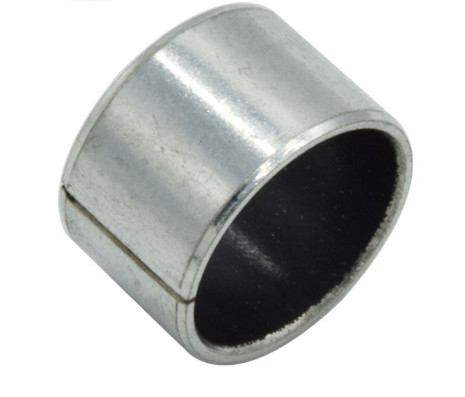

Complete Bushings Solutions For Industrial Valve | Valve Bush &  Sleeve Steel Bronze | Self-Lubricating Bearings 1

Wrapped Lined (maintenance-free), self lubricated plain bearings, thrust washer and strip, stainless steel shell with sintered bronze layer filled with

It is backed with stainless steel with porous bronze sintered on it and polymers imbedded into the bores of the bronze. The stainless steel back provides the bush with stronger mechanic strength and load capability. By combining the metals and the polymers tog, the VALVE BUSH & Sleeve Bearing products are endowed with the lower friction coefficient and good capacity of anti-abrasion and self-lubrication. Moreover, the stainless steel back can be effectively preventing chemical erosion. This series are widely applied in printing and dyeing machines, and machines used in the ocean industry, etc.



Stainless Steel Bronze Powder + Self Lubricating Bearings Multilayer Composite



This new material use the fibre fabric overlay on metal backings, the fabric have very high load capacity and much longer operating life compare with conventional 3-layer bushes. The metal can be carbon steel. stainless steel.

Stainless Steel 316 Sleeve Bushing Specification & Tolerance

Product Overview:Apply to the oil or fuel work harder parts,wear resistance,low coefficient of ftiction,long life:good overall performance.Apply to the oil or fuel work harder parts,wear resistance,low coefficient of friction,long life;good iverall perfotmance.

VSB-33 Plain Bearings and Sleeve Bearings


Stainless steel bearing is of oil resistant,acid resistant,alkali resistant and seawater resistant,more over,there is no lead in the surface layer and so is particularly fit for application in food machinery,alkali flow meters,pumps motion elements in pharmaceutical machines,printing machines chemical engineering machines and other ocean industry.The bushing is a triple layers composites one,the base material is stainless steel back and a film of heat resistant power filled being calendered onto the sintered spherical bronze interlayer.


Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, forming a transfer film can protect the mating metal surface, suitable for rotary and oscillating movement. Stainless steel backing provides improved corrosio...





STRUSTURE


TECHNICAL DATA


Max. load

Static

250N/mm2

Temp.

-195℃~+280℃

Dynamic

140N/mm2

Friction coefficient

0.03~0.20

Max. speed

Dry

2m/s

Thermal conductivity

42W (m·k)-1

Lubrication

>2m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Coefficient of thermal expansion

11*10-6k-1

Continuous

1.8N/mm2*·m/s



AVAILABILITY

Bearing forms available in standard dimensions


· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers


Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes.




TYPICAL APPLICATIONS



 Automotive applications, including power steering pumps, steering systems, shock absorbers, door hinges, windshield wipers, seat regulators, seat frames and battery valves; In a general industry has a wider range of applications, including gear pumps, vane pumps, plunger pumps, cylinders, cylinders, and including logistics machinery, packaging machinery, textile machinery, forest machinery and other parts of the movement; In addition, household appliances such as air conditioning, fitness equipment, washing machines, refrigerators are also widely used.



VSB is professional as one of the leading manufacturers and suppliers of VSB-33 stainless steel 316 bearings + in China. We are equipped with a professional factory which covers a great deal of qualified workers. Please feel free to buy VSB-33 stainless steel 316 bearings + made in China with us.


Plain bearings are available as bushes, collar bushes, washers, strips or special designs.



Packaging & Shipping
Packaging Details: Standard export packing, or as customers' requirement.

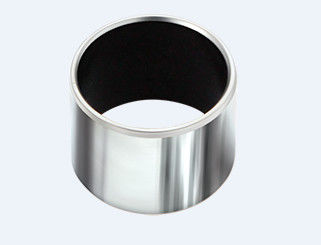

Complete Bushings Solutions For Industrial Valve | Valve Bush &  Sleeve Steel Bronze | Self-Lubricating Bearings 2


CUSTOMER SIZE



START YOUR
PROJECTWITH AN APPLICATION ENGINEER
