Free Maintenance Cast Bronze Bushing With 0.05-0.22 Friction Coefficient
| Place of Origin | China Manufacturer |
|---|---|
| Brand Name | Brand Cast Bronze Plain Sleeve Bearing |
| Certification | Bushing Standards Met: 83-7-7-3, ASTM B505, CDA 932, SAE 660 |
| Model Number | Sleeve bearing type: |
| Minimum Order Quantity | 50 Piece/Pieces (Min. Order) |
| Price | Negotiable |
| Packaging Details | Standard export packing, or as customer's requirement |
| Delivery Time | 10-20 work days |
| Payment Terms | T/T, L/C |
| Supply Ability | Cast Bronze Customized Bearings Manufacturing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Sintered Iron Bushing | Type | Sleeve, Flange,ring,split,Bushings |
|---|---|---|---|
| Shipment | By Sea Or Air | Application | Metal Sintered Fan Bushing |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | RG7 Cast Bronze Bushings, Premium Cast Bronze Bushings, Tin Bronze Bushings, 2.1090 CuSn7Zn4Pb7, Gunmetal Bronze Bushing | Cast Bronze Bushing | Plug Graphite Bushings – This Product Is A Cast Bronze Bushing That Has Been Milled And Plugged With Graphite Plugs. The Graphite Acts As The Lubrication. These Are Used In Applications Were The Properties Of The Oil Impregnated Bushing Would Not Suffice. |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| High Light | cast bronze bearings,oil impregnated bronze bushings |
||
Product Description
The free-maintenance cast bronze bushing is a highly efficient and durable component designed to operate with a friction coefficient ranging from 0.05 to 0.22. This low friction coefficient ensures smooth and reliable operation, reducing wear and tear on the bushing and extending its service life.
Constructed from cast bronze, the bushing is resistant to corrosion and abrasion, making it suitable for a wide range of industrial applications. Its robust design and durability allow it to handle heavy loads and high speeds with minimal maintenance requirements.
The friction coefficient of the bushing is a critical factor in determining its performance. A low friction coefficient results in less energy loss and improved efficiency, reducing the overall operating costs of the equipment. The cast bronze bushing maintains a consistent friction coefficient within the specified range, ensuring reliable and consistent performance over time.
Overall, the free-maintenance cast bronze bushing with a 0.05-0.22 friction coefficient is an excellent choice for industrial applications requiring smooth and reliable operation with minimal maintenance.
Cast bronze bushings Manufacturer supply free maintenance oil sintered iron bushing

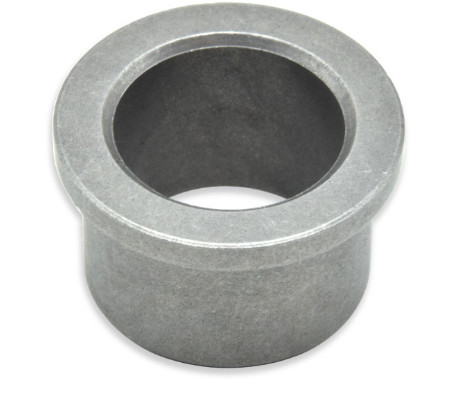

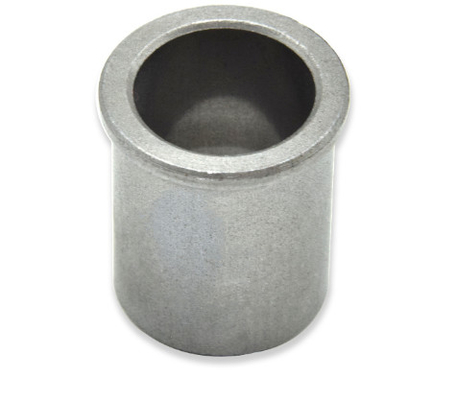

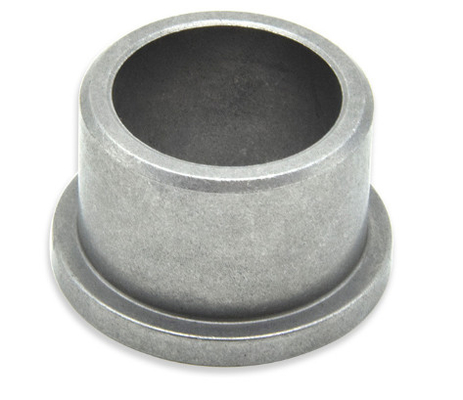

Custom metal powder flange oilless bearing small steel sintered bush
Iron-base powder metallurgy oil-bearing is a kind of iron-base powder metallurgy product, which is a kind of sliding bearing with iron powder as raw material, pressed by mould and sintered at high temperature.It has a fine, uniform distribution of pores, after the vacuum immersion of lubricating oil form oil state.Because of the role of oil, can prevent the emergence of the phenomenon of shaft bite.In the case of low load, can have and copper - based powder metallurgy similar wear resistance.
Engineered Products for the global industry
Product Description
Sinterbronze are manufactured by sintering pressed tin bronze powder. The manufacturing process includes calibration of tolerances and impregnation of oil in the bearings. This method generates a self-lubricating slidebearing with good mechanical properties. Sinterbronze bearings are an excellent universal bearing which is well suited for structures with high speeds and low to medium loads. A cost-effective plain or flanged bearing with long life and multipurpose use.
Technical Data
|
Product Name |
FU Metal Powder Sintered Bushing |
|
Meterial Details |
Fe, Cu9010, Cu663, (C, Sn, Zn) |
|
Max Density |
6.0 g/cm2~6.4 g/cm2 |
|
Load Capacity |
Static load 120N/mm2 ; Dynamic load 40N/mm2 |
|
Sliding Speed |
2.0m/s |
|
PV Value Limit |
2.8N/mm2·m/s |
|
Friction Coefficient |
0.05~0.22 |
|
General Tolerance |
ISO -2768 ; GB/T 1800.3-1995 |
|
Working Temperature |
-100~+200 Degrees Celsius |
|
Application |
Domestic electric, Electronic machine, Official business machines, Automobiles |
Packaging: Hard carton; Wooden case ; Wood pallet.
Shipping Term: By express; By air; By land; By sea.
| Material | sintered iron bushing | |||
| pretreatment of powder | Mixing | Adding lubricant | ||
| Powder preparation methods | Atomization Method | Reduction Method | ||
| Methods of formaing | Pressure Forming | |||
| Material of Moulds | Steel Mould | Hard Alloy Mould | ||
| Types of Moulds | Compression Mould | Finishing Mould | ||
| Sintering Methods | Solid phase sintering | |||
| Sintering Atmosphere | Cracked Ammonia | |||
| Sintering Temperature | 700-1100℃ | 1050-2000℃ | ||
| Compacting Methods | One-way Moulded | |||
| Aftertreatment | Vacuum Oil Filling | Finishing | ||
