Thermoplastic Polymer Plain Bearings & Sleeve Bearing | PTFE lined wrapped bearings
Place of Origin | Composite plain cylindrical bushings manufacturer |
---|---|
Brand Name | VIIPLUS BUSHINGS SUPPLIER |
Certification | ISO 3547 DIN 1494 Assembly Standard Tolerance |
Model Number | DU DX BUSHINGS |
Minimum Order Quantity | 1000 Piece/Pieces |
Price | $0.05 - $1.00 / Pieces |
Packaging Details | Packaging: Export carton; Wooden case ; Wood pallet. |
Delivery Time | 7~15 work days |
Payment Terms | TT in advance,Western Union |
Supply Ability | Special Customized Lubricating Bushings Manufacturing |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMeterial | Low-Carbon Steel + Porous Bronze + PTFE | Plating | Tin Or Copper |
---|---|---|---|
Types | FLANGE/SLEEVE/WASHER | Application | TREADMILL, SPINNING, MUSCLE TRAINING MACHINE |
Production Feature | Wrapped | Port | China Port ( Shanghai , Ningbo) |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
High Light | Self Lubricating Bronze POM Bushing, Metal Polymer Bushings | POM DX BUSH | Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ... |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
High Light | oil impregnated brass sleeve bearing,flanged plain bearing |
Thermoplastic Polymer Plain Bearings & Sleeve Bearing | PTFE lined wrapped bearings

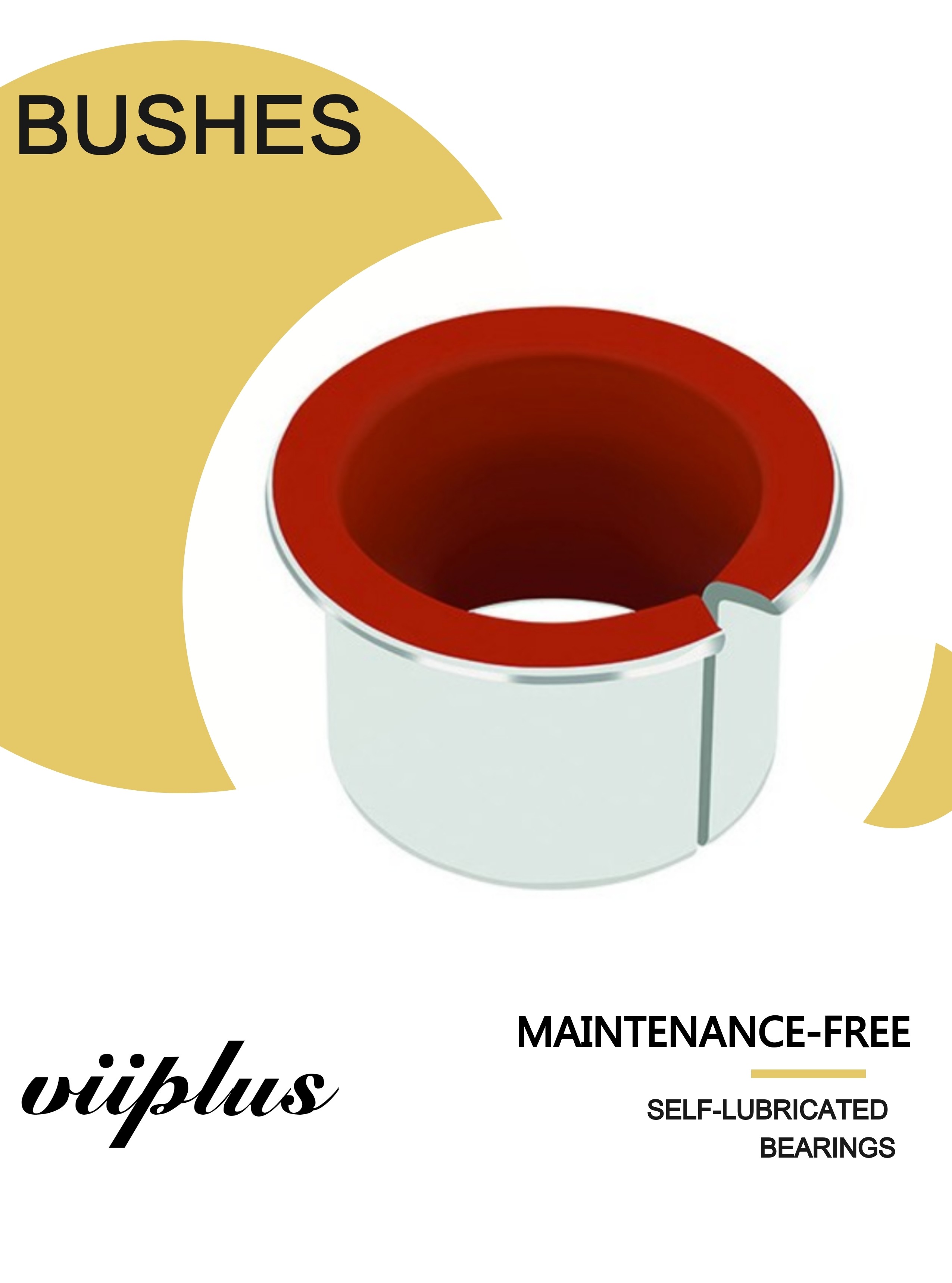

PTFE lined wrapped bearings
Carbon Steel self-lubricating bearings used high quality low-carbon steel plate as base, sintered porous bronze as its interlayer and the Compound of PTFE and Lead as its surface.
Our PTFE lined wrapped bearings have been developed for high duty, oil lubricate applications. Such applications include, but are not limited to:
-
Automotive suspension struts
-
Shock absorbers
-
Hydraulic cylinders
-
Gear pumps and motors
-
Axial and radial piston pumps and motors
Our VIIPLUS range of PTFE lined wrapped bearings is suitable for dry running, low friction, low wear applications. These wrapped bearings have excellent sliding characteristics forming a transfer film that can protect the mating metal surface.
We are able to offer PTFE lined wrapped bearings in metric plain, imperial plain, metric flanged, metric washers, imperial washers, metric strip and imperial strip. Special sizes can be produced to customer requirements,
PTFE bushing red plain bearings and sleeve bearings metal-polymer low friction boccole dp4 cylindrical red ptfe treadmill, spinning, muscle training machine
| VSB-40
Dependable quality Sintered parts for fitness equipment
Characteristics
Metal-Polymer Low Friction Plain Bearings
Steel + Bronze Powder + PTFE/Fibre(DP4)
Self Lubricating Bearings Low-Carbon Steel + Porous Bronze + Red PTFE
VSB-40 low friction bushings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
· Very good performance in lubricated applications
· Good performance in greased applications
· Suitable for linear, oscillating and rotating movements
Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surfaces, suitable for rotating and oscillating movement, high chemical resistance, low absorption of water and swelling. The VSV-40 improved the friction and much good wear resistance over the common CSB-10 range under lubricated operation.
Strusture
1. PTFE/Polymer fibres mixture thickness 0.01~0.03mm. Lead-free bearing layer provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm, provides max. thermal conductivity away from the bearing surface, also serves as a reservoir for the PTFE mixture.
3. Steel backing, provides high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance.
Technical Data
Structure & Composition
· Metal-Polymer Composite Bushing Material
· Steel back + Porous Bronze Sinter +
· PTFE + Fillers
OPERATING PERFORMANCE |
|
Dry |
Good |
Oil lubricated |
Very Good |
Grease lubricated |
Good |
Water lubricated |
Fair |
Process fluid lubricated |
Good |
Microsection
|
Sliding layer |
Bearing Properties
* Depending on operating conditions
Technical Data
Max. load |
Static |
250N/mm2 |
Dynamic |
140N/mm2 |
|
Max. speed |
Dry |
2m/s |
Lubrication |
>2m/s |
|
Max. PV (Dry) |
Short-time |
3.6N/mm2*·m/s |
Continuous |
1.8N/mm2*·m/s |
|
PV |
Hydrodynamic |
30N/mm2*·m/s |
Temp. |
-195℃~+280℃ |
|
Friction coefficient |
0.03~0.20 |
|
Thermal conductivity |
42W (m·k)-1 |
|
Coefficient of thermal expansion |
11*10-6k-1 |
Availability
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers
Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes, half-bushings, stamped/deep drawn shapes, bearings with locating notches, lubricant holes and grooves, customized designs
Typical Applications
VSB-40 is developed for high duty, oil lubricated, hydraulic applications...Automotivesuspensionstruts,absorbers guide bushing, hydraulic cylinders, gear pumps, motors, axial and radial piston pumps & motors.VSB-40 is designed mainly for using under lubricated conditions and it performs excellent wear resistance and low static/dynamic shockfriction coefficient.
START YOUR
PROJECTWITH AN APPLICATION ENGINEER
bushing catalog | Bushings Catalog (Plain Bearings Catalog)
du bushing size chart
Di [inch] | Do [inch] | Sfl (inch) | Sfl max. (inch) | Sfl min. (inch) | Dfl (inch) | Dfl max. (inch) | Dfl min. (inch) | B (inch) | DJ max. (inch) | DJ min. (inch) | DH max. (inch) | DH min. (inch) | Di,a max (inch) | Di,a min (inch) | |
06FDU04 | 3/8 | 15/32 | 0.043 | 0.047 | 0.039 | 0.6875 | 0.7075 | 0.6675 | 0.245 | 0.375 | 0.374 | 0.4691 | 0.4684 | 0.3779 | 0.3752 |
06FDU06 | 3/8 | 15/32 | 0.043 | 0.047 | 0.039 | 0.6875 | 0.7075 | 0.6675 | 0.37 | 0.375 | 0.374 | 0.4691 | 0.4684 | 0.3779 | 0.3752 |
06FDU08 | 3/8 | 15/32 | 0.043 | 0.047 | 0.039 | 0.6875 | 0.7075 | 0.6675 | 0.495 | 0.375 | 0.374 | 0.4691 | 0.4684 | 0.3779 | 0.3752 |
06FDU12 | 3/8 | 15/32 | 0.043 | 0.047 | 0.039 | 0.6875 | 0.7075 | 0.6675 | 0.745 | 0.375 | 0.374 | 0.4691 | 0.4684 | 0.3779 | 0.3752 |
08FDU04 | 1/2 | 19/32 | 0.043 | 0.047 | 0.039 | 0.8125 | 0.8325 | 0.7925 | 0.245 | 0.5 | 0.499 | 0.4691 | 0.5934 | 0.5029 | 0.5002 |
08FDU06 | 1/2 | 19/32 | 0.043 | 0.047 | 0.039 | 0.8125 | 0.8325 | 0.7925 | 0.37 | 0.5 | 0.499 | 0.4691 | 0.5934 | 0.5029 | 0.5002 |
08FDU08 | 1/2 | 19/32 | 0.043 | 0.047 | 0.039 | 0.8125 | 0.8325 | 0.7925 | 0.495 | 0.5 | 0.499 | 0.4691 | 0.5934 | 0.5029 | 0.5002 |
08FDU12 | 1/2 | 19/32 | 0.043 | 0.047 | 0.039 | 0.8125 | 0.8325 | 0.7925 | 0.745 | 0.5 | 0.499 | 0.4691 | 0.5934 | 0.5029 | 0.5002 |
10FDU06 | 5/8 | 23/32 | 0.043 | 0.047 | 0.039 | 0.93725 | 0.9575 | 0.917 | 0.37 | 0.625 | 0.624 | 0.7192 | 0.7184 | 0.628 | 0.6252 |
10FDU08 | 5/8 | 23/32 | 0.043 | 0.047 | 0.039 | 0.93725 | 0.9575 | 0.917 | 0.495 | 0.625 | 0.624 | 0.7192 | 0.7184 | 0.628 | 0.6252 |
10FDU10 | 5/8 | 23/32 | 0.043 | 0.047 | 0.039 | 0.93725 | 0.9575 | 0.917 | 0.62 | 0.625 | 0.624 | 0.7192 | 0.7184 | 0.628 | 0.6252 |
10FDU12 | 5/8 | 23/32 | 0.043 | 0.047 | 0.039 | 0.93725 | 0.9575 | 0.917 | 0.745 | 0.625 | 0.624 | 0.7192 | 0.7184 | 0.628 | 0.6252 |
12FDU06 | 3/4 | 7/8 | 0.059 | 0.063 | 0.055 | 1.25 | 1.27 | 1.23 | 0.37 | 0.75 | 0.7488 | 0.8755 | 0.8747 | 0.7534 | 0.7502 |
12FDU08 | 3/4 | 7/8 | 0.059 | 0.063 | 0.055 | 1.25 | 1.27 | 1.23 | 0.495 | 0.75 | 0.7488 | 0.8755 | 0.8747 | 0.7534 | 0.7502 |
12FDU12 | 3/4 | 7/8 | 0.059 | 0.063 | 0.055 | 1.25 | 1.27 | 1.23 | 0.745 | 0.75 | 0.7488 | 0.8755 | 0.8747 | 0.7534 | 0.7502 |
12FDU16 | 3/4 | 7/8 | 0.059 | 0.063 | 0.055 | 1.25 | 1.27 | 1.23 | 0.995 | 0.75 | 0.7488 | 0.8755 | 0.8747 | 0.7534 | 0.7502 |
14FDU08 | 7/8 | 1 | 0.059 | 0.063 | 0.055 | 1.25 | 1.27 | 1.23 | 0.495 | 0.875 | 0.8738 | 1.0005 | 0.9997 | 0.8784 | 0.8752 |
14FDU12 | 7/8 | 1 | 0.059 | 0.063 | 0.055 | 1.25 | 1.27 | 1.23 | 0.745 | 0.875 | 0.8738 | 1.0005 | 0.9997 | 0.8784 | 0.8752 |
14FDU16 | 7/8 | 1 | 0.059 | 0.063 | 0.055 | 1.25 | 1.27 | 1.23 | 0.995 | 0.875 | 0.8738 | 1.0005 | 0.9997 | 0.8784 | 0.8752 |
14FDU20 | 7/8 | 1 | 0.059 | 0.063 | 0.055 | 1.25 | 1.27 | 1.23 | 1.245 | 0.875 | 0.8738 | 1.0005 | 0.9997 | 0.8784 | 0.8752 |
16FDU08 | 1 | 1 1/8 | 0.059 | 0.063 | 0.055 | 1.375 | 1.395 | 1.355 | 0.495 | 1.0005 | 0.9988 | 1.1255 | 1.1247 | 1.0034 | 1.0002 |
16FDU12 | 1 | 1 1/8 | 0.059 | 0.063 | 0.055 | 1.375 | 1.395 | 1.355 | 0.745 | 1.0005 | 0.9988 | 1.1255 | 1.1247 | 1.0034 | 1.0002 |
16FDU16 | 1 | 1 1/8 | 0.059 | 0.063 | 0.055 | 1.375 | 1.395 | 1.355 | 0.995 | 1.0005 | 0.9988 | 1.1255 | 1.1247 | 1.0034 | 1.0002 |
16FDU20 | 1 | 1 1/8 | 0.059 | 0.063 | 0.055 | 1.375 | 1.395 | 1.355 | 1.245 | 1.0005 | 0.9988 | 1.1255 | 1.1247 | 1.0034 | 1.0002 |
20FDU16 | 1 1/4 | 1 13/32 | 0.074 | 0.078 | 0.07 | 1.75 | 1.78 | 1.72 | 0.995 | 1.25 | 1.2484 | 1.4068 | 1.4058 | 1.254 | 1.2502 |
20FDU20 | 1 1/4 | 1 13/32 | 0.074 | 0.078 | 0.07 | 1.75 | 1.78 | 1.72 | 1.245 | 1.25 | 1.2484 | 1.4068 | 1.4058 | 1.254 | 1.2502 |
20FDU24 | 1 1/4 | 1 13/32 | 0.074 | 0.078 | 0.07 | 1.75 | 1.78 | 1.72 | 1.495 | 1.25 | 1.2484 | 1.4068 | 1.4058 | 1.254 | 1.2502 |
24FDU16 | 1 1/2 | 1 21/32 | 0.074 | 0.078 | 0.07 | 2 | 2.03 | 1.97 | 0.995 | 1.5 | 1.4984 | 1.6568 | 1.6558 | 1.504 | 1.5002 |
24FDU24 | 1 1/2 | 1 21/32 | 0.074 | 0.078 | 0.07 | 2 | 2.03 | 1.97 | 1.495 | 1.5 | 1.4984 | 1.6568 | 1.6558 | 1.504 | 1.5002 |
24FDU32 | 1 1/2 | 1 21/32 | 0.074 | 0.078 | 0.07 | 2 | 2.03 | 1.97 | 1.995 | 1.5 | 1.4984 | 1.6568 | 1.6558 | 1.504 | 1.5002 |
28FDU16 | 1 3/4 | 1 15/16 | 0.09 | 0.094 | 0.086 | 2.375 | 2.405 | 2.345 | 0.995 | 1.75 | 1.7484 | 1.9381 | 1.9371 | 1.7548 | 1.7502 |
28FDU24 | 1 3/4 | 1 15/16 | 0.09 | 0.094 | 0.086 | 2.375 | 2.405 | 2.345 | 1.495 | 1.75 | 1.7484 | 1.9381 | 1.9371 | 1.7548 | 1.7502 |
28FDU32 | 1 3/4 | 1 15/16 | 0.09 | 0.094 | 0.086 | 2.375 | 2.405 | 2.345 | 1.995 | 1.75 | 1.7484 | 1.9381 | 1.9371 | 1.7548 | 1.7502 |
