| Brand Name: | CHINA wrapped bushing, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance |
| Model Number: | Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 |
| MOQ: | phosphor bronze bush,tin bronze bearings,brass bushes |
| Price: | Precision Tolerance, Factory Price |
| Payment Terms: | TT IN ADVANCE |
| Supply Ability: | Perforated Bronze Bearing，Plain Bronze Wrapped Bearings |

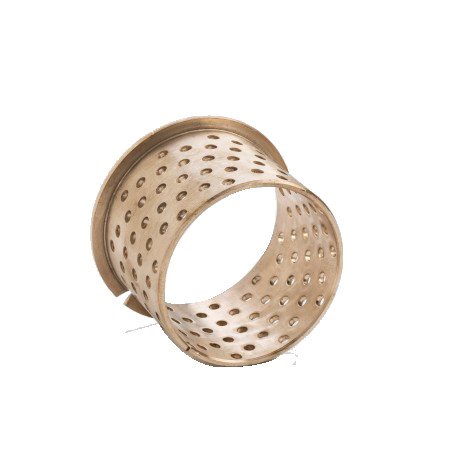

Wrapped flange bronze bushes are precision-engineered components specifically designed for crane and lifting applications. Constructed from high-quality bronze material, these bushes exhibit superior wear resistance, corrosion resistance, and mechanical strength, ensuring reliable and long-lasting performance.
The wrapped flange design offers several advantages in crane and lifting applications. It provides additional support and stability to the bush, enhancing its ability to withstand the high loads and vibrations often encountered in these environments. This design also facilitates easy installation and removal, reducing downtime and maintenance costs.
The bronze material used in these bushes offers excellent self-lubricating properties, reducing friction and wear during operation. This not only extends the bush's lifespan but also ensures smooth and efficient performance, critical in crane and lifting applications where precision and reliability are paramount.
Furthermore, the bronze bushes' corrosion resistance ensures that they can withstand harsh environmental conditions, making them suitable for use in outdoor or industrial settings.
In summary, wrapped flange bronze bushes are an ideal choice for crane and lifting applications, offering superior performance, durability, and ease of maintenance. They are designed to meet the specific demands of these applications, ensuring safe and efficient operation.
Crane and Lifting Equipment glide bearings to handle very high loads in boomfoot pivots, and hinge and brace points in the mast pendant assembly which are inaccessible for grease lubrication.
FB-090 series bronze bushing.pdf
VIIPLUS is a supplier of self-lubricating bearings for export in China, which is specialized in providing you with sales service of bearings for export.At the same time we also provide British system (non-standard) bearing, can be customized according to the actual needs of customers, to solve the urgent needs of customers.
VIIPLUS since its inception, with "integrity, unity, pragmatic, innovation" as enterprise spirit, adhere to the "first-class talents, first-class achievements, first-class quality, first-class management" business goals, with advanced technology, stable product quality, considerate service, main business is committed to development, giving full play to the advantages of its own technical advantages, product and market advantages, to provide users with machinery and equipment supporting bearings and related products, is a professional bearing sales company.
VIIPLUS will adhere to the business philosophy of "today's quality is tomorrow's market, customer satisfaction is our pursuit", in line with the policy of "technology for development, quality brand", to win customers with high quality products, reasonable price, at the same time leave good interests to customers, leave long-term interests to partners.Warmly welcome customers to visit guidance, business negotiations!
Grasp the world business opportunities, and you work tog to create brilliant.We are responsible for each set of self-lubricating bearings and provide service to every customer. Please contact VIIPLUS TEAM.
VIIPLUS bearings can be made in many sizes and forms, including thin-walled, thick-walled, flanged, cylindrical, sintered and oil-impregnated, and more. Some popular bearing materials and their benefits include:Wrapped Bronze Bushing
Wrapped Bronze bearings are made completely of bronze. They are particularly suitable for applications, which must be re-lubricated due to dirty environments. The sliding surface is provided with lubrication pockets, which contribute to the enhanced lubrication performance.
090 CuSn8P is used as the material to roll diamond or spherical oil holes on the surface to store oil.It has good fatigue strength and bearing capacity, corrosion resistance, wear resistance.Widely used in agricultural machinery, construction machinery, construction machinery and other high load low speed occasions.
VIIPLUS offers a broad range of sizes, forms and materials in bronze bearings. Bronze bushings offer excellent corrosion resistance in industrial outdoor applications and in water, marine and offshore environments.
VIIPLIS BRONZE BUSHINGS 090 can offer some advantages including thin wall, lower weight, cheaper cost, high load etc. It is suitable for high load, lower speed application like construction, Transport, and agriculture machinery.bronze wrapped bushings are made of entirely bronze CuSn8. Because of material properties, the working surface rolled with diamond Indentations (standard Indentations) or stamped oil grooves according to detailed application. And it also has good Performance of anti-corrosion caused by chemical and environments. During the operation, the grease & oil will be released from the Indentations, which allow for long-term lubrication. Compare with Machined bronze bearings;
|
Part NO |
Material |
Cu |
Sn |
P |
Pb |
Zn |
|
VIIPLUS-090 |
CuSn8 |
91.3% |
8.5% |
0.2% |
/ |
/ |
Bearing material made of solid bronze strip with indents for lubrication
Good wear resistance, suitable for rough conditions
Optimum performance under relatively high loads and low speeds
Bearing forms available in standard dimensions
Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs
Bronze Bearings made of CuSn8 with Lubrication Indents
Bronze bearings for extra heavy loads.
Characteristics
– Extra high load capacity
– Good lubrication properties
– Wide temperature range
– Easy to assemble
Areas of use e.g.
Forest- and constructional machinery, agricultural machinery, cranes, forklifts, hoisting equipment etc.
Shapes & forms
Plain cylindrical bearings, flanged bearings, thrustwashers, slidingplates.
FB090 bearing is wrapped by bronze strip. The material is made of particular formulation with high specific gravity and on its surface may be incorporated with spherical or diamond shaped indentations or oil grooves as required by customer. It is of high load capacity and long life. It can act as substitution of traditional bronze bushing for low cost and performance of anti higher compact. It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mining industy.
|
Material: |
CuSn8 |
|
Hardness: |
|
|
Temperature limit: |
-80℃~200℃ |
|
Load capacity: |
75N/mm2 |
|
|
|
Wrapped bronze sliding bearing
Low-maintenance
With lubrication pockets
High load capacity and stability at low abrasion, suited for rough operation, corrosion resistant.
CuSn8P
Specific load capacity static≤ 120 [N/mm2]
Specific load capacity dynamic≤ 40 [N/mm2] at max. 2.0 m/s
Sliding speed≤ 2.0 [m/s]
Friction value ***0.08 [µ] to 0.25 [µ] depending on lubrication
Temperature strain– 100 [°C] to + 200 [°C]
Max. PV-value2,8 [N/mm² x m/s]
Housing ØH7
Bushing inner-Ø after mountingH9
Shaft tolerancef7 to h8
is a low-maintenance bronze sliding bearing. Primary lubrication is necessary. Oil or grease lubrication is possible. Due to lubrication pockets, clearances are reduced to a minimum.
Hydraulic cylinders, construction machines, crane construction, agricultural machines (impact loading)
Special dimensions are available on request
