C86300 430B Manganese Cast Bronze Flanged Graphite Bushing Bearing & Plate Oil Grooves
| Place of Origin | Self Lubricating Bearings Manufacturers |
|---|---|
| Brand Name | REPLACE OILLESS BEARINGS |
| Certification | DIN 1494, ISO 3547 STANDARD BUSHING |
| Model Number | BUSHING TYPE FLANGED PLAIN SLEEVE |
| Minimum Order Quantity | NEGOTIABLE |
| Price | Competitively Priced vs POM, Provides Lubricating Bush |
| Packaging Details | WOOD PALLET ,WOODEN CASES,CARTON,BUSHINGS EXPORT STANDARD, CUSTOMER SPECIFIED REQUIREMENTS |
| Delivery Time | 7-20 DAYS,STOCK SIZE BUSHING IMMEDIATE DELIVERY |
| Payment Terms | TT IN ADVANCE WESTERN UNION |
| Supply Ability | Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Self Lubricating Bearings With Built In Graphite Pellets. | Feature | Suitable For Heavy Load Applications,Excellent Corrosion And Chemical Resistance. |
|---|---|---|---|
| Lubrication | Graphite,Self-lubricating,oil Groove, Oil Hole, Non - Standard Size Customized | Areas Of Use | Hardware And Steel Fabrication, Stamping Dies, Tooling Components For The Automotive Industry, Sheet Pressing Etc. |
| Shapes & Type | #500-serie, BWG, BWG-F, OILLESS Bushings, JDB-serie | Characteristics | Maintenance-free (self-lubricating),extreme Temperatures |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Coated Self Lubricating Plain Bearing, Ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing | Characteristic | Втулки скольжения (биметаллические подшипники скольжения) |
| Dry Slide Bearing | Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running. | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
| High Light | self lubricating bearing,sintered self lubricating bushes |
||
Product Description

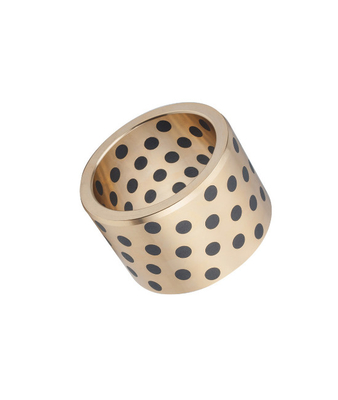

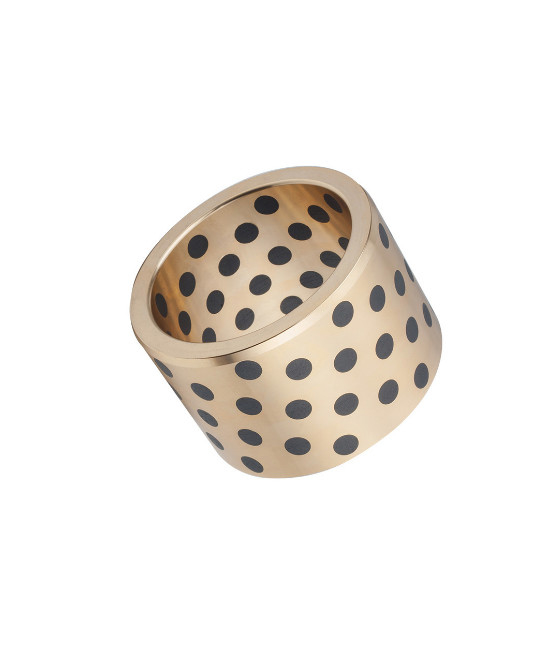

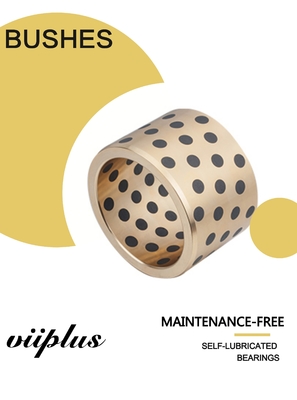

The C86300 430B Manganese Cast Bronze Flanged Graphite Bushing Bearing with Plate Oil Grooves is a high-performance component designed for demanding applications. Made from C86300 manganese cast bronze, it offers excellent wear resistance and durability. The flanged design provides additional stability and support, while the graphite insert further enhances the bearing's lubrication properties and reduces friction. The plate oil grooves effectively distribute lubricant, ensuring consistent and reliable performance. This bushing bearing is suitable for a wide range of industrial applications, including machinery, power transmission, and more.
Self Lubricating Bushing & Oilless Bearings - Excellent Bushings Supplier from China.
Get Top Quality Flange Bushing From Suppliers Without a Premium Price. Customization Bronze Wear Plate Available! Quality Graphite Bronze Bushings Supplier & Manufacturer in China, Contact Now! Wholesale Price. Quality Assurance. Factory Direct. Advanced Oiless Bearings material Technology!
Graphite Bronze Bushings Made To Order From China
casquillos de bronce
VIIPLUS INTERNATIONAL manufacture premium bronze plugged graphite bushings https://viiplus.com to mining operations in china. With quality and precision, you can also find our self-lubricating bearings and sliding bearing,bronze bushings with the same toughness and engineered characteristics you would expect. With exceptional fit and durability on graphite bronze bushings, expect to achieve unprecedented hours on your machine.Bronze bushing manufacturers catalog online
You have access to the latest downloads here. Click on the Solid Bronze Bushing Plugged Graphite Bushings.pdf...catalog symbol to display the file, and download the self-lubricating bushing bearings catalog file.
| Chemical Requirements | ||||||||||||
| Copper Alloy UNS No. |
Composition, % max, except as indicated | |||||||||||
| Nickel | ||||||||||||
| Copper | Tin | Lead | Zinc | Iron | Including | Aluminum | Manganese | Antimony | Sulfur | Phosphorus | Silicon | |
| Cobalt | ||||||||||||
| C86300 | 60.0–66.0 | 0.20 | 0.20 | 22.0–28.0 | 2.0–4.0 | 1.0A | 5.0–7.5 | 2.5–5.0 | ... | ... | ... | ... |
| C90500 | 86.0–89.0 | 9.0–11.0 | 0.30 | 1.0–3.0 | 0.20 | 1.0A | 0.005 | ... | 0.20 | 0.05 | 0.05B | 0.005 |
| C91100 | 82.0–85.0 | 15.0–17.0 | 0.25 | 0.25 | 0.25 | 0.50A | 0.005 | ... | 0.20 | 0.05 | 1.0B | 0.005 |
| C91300 | 79.0–82.0 | 18.0–20.0 | 0.25 | 0.25 | 0.25 | 0.50A | 0.005 | ... | 0.20 | 0.05 | 1.0B | 0.005 |
| C93700 | 78.0–82.0 | 9.0–11.0 | 8.0–11.0 | 0.8 | 0.7C | 0.50A | 0.005 | ... | 0.50 | 0.08 | 0.10B | 0.005 |
| A In determining copper minimum, copper may be calculated as copper plus nickel. | ||||||||||||
| B For continuous castings, phosphorus shall be 1.5 % max. | ||||||||||||
| C Iron shall be 0.35 % max. when used for steel-backed. | ||||||||||||
Cast Bronze Bushings with Solid Lubricant Inserts Manufacture Today

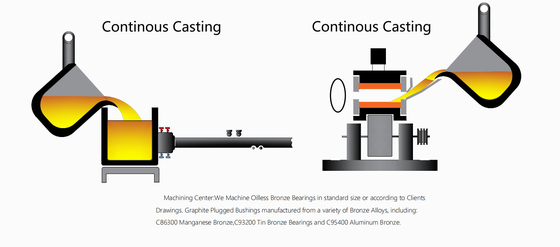

Material Production process
-Continuous Casting
Continuous casting is an advanced method of casting in which molten metal is continuously poured into a special metal mold called a mold. The solidified (encased) casting is continuously pulled out from the other end of the mold.The development of continuous casting is an important means to optimize the structure of China's metallurgical industry, which will fundamentally change the low efficiency and high consumption of China's metal material production, and promote the development of product structure to the direction of specialization.The development of advanced continuous casting technologies, such as near-final continuous casting, single crystal continuous casting, high-efficiency continuous casting and hot charging of continuous casting billet, will be very active, and will promote the development of a series of new materials.
-Centrifugal Casting
Centrifugal casting is a technique and method of pouring liquid metal into a rapidly rotating mold to fill the mold and form a casting.Because of the centrifugal motion, the liquid metal can fill the mold well in the radial direction and form the free surface of the casting.Cylindrical inner hole can be obtained without core.Helps to remove gases and inclusions from liquid metals.Affect the crystallization process of metal, thus improving the mechanical and physical properties of castings.
Characteristics & Advantages
with Solid Graphite Lubrication. Various material specifications, standard and special shapes are also available.
– Maintenance-free (self-lubricating)
– Suitable for heavy load applications
– Withstands extreme temperatures
– Long life span
– May work without any ol for long period
– Extremely high load capacity, good anti-wear and lower friction
– Particularly appropriate for low speed and high load
– Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
– Good chemical resistant and anti-corrosion characteristics
– Can b€ used in wide range of temperature from -40℃-+300℃

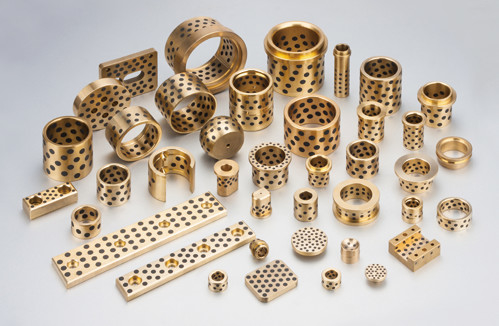

You Can Choose Shapes & Forms
Bearing forms made to order:
Straight Bushings
Flange Bushings
Wear Plates
Thrust Washer
Bronze no Graphite
Bronze w/Graphite
Custom Bushing:Special parts according to
ISO, DIN or customer design, special alloys.
TYPICAL APPLICATIONS
Self lubricating bushings used in die sets, metal stamping dies, molds, special machines and heavy equipment of all types.
Working tog to create solutions for the most demanding bearing applications.
This kind of C86300 sliding bearing & bushings can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...Hydraulic Cylinder Casting Bronze Flange Bearing With Solid Lubricant Products are widely used in continuous casting machines, mining machinery, ships, gas turbines and so on.
Material Compostion and Properties
Professional all type of bronze bushings supplier.trusted plain bearings material company,competitive pricing & delivery.c86300,c93200.
| Material number | VSB-JDB (600#) | VSB-JDB (600#S1) | VSB-JDB (600#S2) | VSB-JDB (600#S3) | VSB-JDB (600#S4) | VSB-JDB (HT250) | VSB-JDB (Gcr15) |
|---|---|---|---|---|---|---|---|
| Chemical composition | CuZn25Al5Mn3Fe3 | CuZn25Al5Mn3Fe3 | CuAl9Fe4Ni4Mn2 | CuSn5Pb5Zn5 | CuSn12 | HT250 | Gcr15 |
| Density (g/cm³) | 8.0 | 8.0 | 8.5 | 8.9 | 9.05 | 7.3 | 7.8 |
| Hardness (HB) | ＞210 | ＞250 | ＞150 | ＞70 | ＞80 | ＞190 | HRC＞58 |
| Tensile strength (N/mm²) | ＞750 | ＞800 | ＞800 | ＞200 | ＞260 | ＞250 | ＞1500 |
|
Elongation (%) |
＞12 | ＞8 | ＞15 | ＞10 | ＞8 | ＞5 | ＞15 |
| Coefficient of linear expansion | 1.9 | 1.9 | 1.9 | 1.8 | 1.8 | 1.0 | 1.1 |
| Operating temperature(℃) | -40~+300 | -40~+150 | -40~+400 | -40~+400 | -40~+400 | -40~+400 | -40~+400 |
| Maximum dynamic load(N/mm²) | 100 | 120 | 150 | 60 | 70 | 80 | 200 |
| Maximum linear velocity (m/min) | 15 | 15 | 20 | 10 | 10 | 8 | 5 |
| Maximum PV value lubrication (N/mm²*m/min) |
200 | 200 | 60 | 60 | 80 | 40 | 150 |
| Amount of permanent compression deformation 300N/mm² |
＜0.01 | ＜0.005 | ＜0.04 | ＜0.05 | ＜0.05 | ＜0.015 | ＜0.002 |
| straight sleeve | ||
| D | d | L |
| 8 | 4 | 12 |
| 10 | 5 | 15 |
| 12 | 6 | 19 |
| 15 | 8S | 17 |
| 15 | 8 | 24 |
| 19 | 10 | 29 |
| 21 | 12 | 30 |
| 23 | 13 | 32 |
| 28 | 16 | 37 |
| 32 | 20 | 42 |
| 40 | 25 | 59 |
| 45 | 30 | 64 |
| 52 | 35 | 70 |
| 60 | 40 | 80 |
| 80 | 50 | 100 |
| 90 | 60 | 110 |
| extended straight sleeve | ||
| D | d | L |
| 8 | 4 | 23 |
| 10 | 5 | 29 |
| 12 | 6 | 35 |
| 15 | 8 | 45 |
| 19 | 10 | 55 |
| 21 | 12 | 57 |
| 23 | 13 | 61 |
| 28 | 16 | 70 |
| 32 | 20 | 80 |
| 40 | 25 | 112 |
| 45 | 30 | 123 |
| 52 | 35 | 135 |
| 60 | 40 | 154 |
| 80 | 50 | 192 |
| 90 | 60 | 211 |
Viiplus Sliding Bearing Made In China Manufacturer
VIIPLUS offers a complete line of cast bronze bearings Oil Grooves & Grease Grooves and slide plates. Cast bronze sleeve bearings, flange bearings, and custom parts are available with oil grooves or grease grooves. Maintenance-free self-lubricating bronze bearings with graphite filled grooves or graphite plugs are available.
C86300 bronze bushings and casting bronze products / manufacturer from china -self lubrication bearings -standard components
Sleeve And Flanged Bronze Bushing For Metallurgical Machinery.Mining Machinery,Injection Mould Machines,Shipbuilding Aerospace,Marine,Turbine,Gas Turbine,Automotive Punch Molding Industries Etc
Standard-Stocked Cast Bronze Bushings
Flanged Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs
Manganese bronze Gtraphite Bronze Bushings, such as C86300 Bronze Bushes STANDARD, Application under very high loads and speeds. However, sliding bearing applications require reliable lubrication. Besides excellent mechanical qualities, these alloys have good corrosion resistance. C86300 is comprised The combination of copper, manganese, aluminum and iron in C86300 raises its tensile strengtht
o over 110,000 KSI.
Graphite Plugged Cast Bronze Self Lubricated For Higher Temperatures And Heavier Loadsgraphite Plugged Cast Bronze Self Lubricated For Higher Temperatures And Heavier Loads
Description:C86300 Bronze Self lubricating bearings with built in graphite plugs High strength brass sliding bearings.A variety of alloys composed of more than two elements is called special brass.Such as by aluminum, lead, tin, manganese, nickel, iron, silicon copper alloy, high strength yellow Copper is one of them.High strength and hardness, high resistance to chemical corrosion.
Manufacturer Of C86300 Oilless Bearing & Guide Components
Our company brief named VIIPLUS and located in Jiashan, Zhejiang, China.As a manufacturer we focusing on supply quality oilless bearing,solid bronze bushing,wear plate and oilless guide
components with our competitive price to whole world.We supply OEM service and accept cumisze order follow your's drwawings or standard.Our oilless guide components can be used in the most popular standards for vehicle mold industrial. We can follow such as, DIN-9834(ISO9448), VDI3357, V/W 39D863, V/W 39D860, NAAMS G61, G71 standard and we also accept customize
products. Pls feel free contact with us,if you have any question of these products.
Aluminum Bronze & Manganese Bronze Bushings/C86300 Manganese Bronze Bushings Solid Bronze Lubrication
VIIPLUS CHINA GRAPHITE BRONZE BEARINGS is a copper-based self-lubricating bearing for heavy load applications into which solid lubricant plugs are embedded.
VIIPLUS provides specialized engineering, design, manufacturing and support services for self lubricating bearings solutions. Our experienced team of engineers and skilled craftsmen consistently deliver superior products, meeting the customer requirements of alii kinds of industry. We strive to meet or exceed our customers schedule expectations by consistently delivering our bushings products and services on time.
Material:CuZn25Al5Mn4Fe3
Cast Bronze Flanged Graphite Bushing Bearing
| Solid bushing, bronze with lubricant plugs embedded, DIN 1850/ISO 4379, Maintenance-free | |||
| TECHNICAL DETAILS | |||
| Specific load capacity static | 150 [N/mm2] | Temperature strain | - 100 [°C] to + 300 [°C] |
| Specific load capacity dynamic | 100 [N/mm2] | ||
| Sliding speed | ≤ 0.3 to 1.0 [m/s] | Max. PV-value | 1.5 [N/mm² x m/s] |
| Friction value | 0.03 [µ] to 0.2 [µ] lubricated/dry | Hardness | 190-220 HB |
| MATERIALS | |||
| Support material | CuZn25Al5 | Other commonly used bronze alloys | CuAl10Ni, CuSn12Pb, CuSn7ZnPb |
| Sliding layer | Solid lubricant surface: app. 25-30% | ||
| TOLERANCE DETAILS | |||
| Housing Ø | H7 | Shaft tolerance | f7 or h6 |
| Bushing inner-Ø after mounting | Pls consult our sales engineers, standard delivered tolerance: r6 or E7 | ||
| SHAFT MATERIAL | |||
| The shaft hardness should be at least 70-100HB harder than the bronze alloy. | |||
| Surface roughness ≤ Ra 0.8 | |||
| PROPERTIES | |||
| It fullfills the highest operational demands and is suitable for shock loads. Depending on the alloy, it is corrosion-resistant and also highly wear-resistant with a long life span. | |||
| RANGE OF APPLICATION | |||
| Cranes, mining machines, construction machinery, off-shore & marine applications, steel plant, hydro power & hydro mechanical | |||
| MAINTENANCE | |||
| It is a maintenance-free bearing material, but an initial greasing is mandatory for the “running-in”process. A lithium aging-resistant grease should be used. | |||
| MOUNTING ADVISE | |||
| Housing | Chamfer min. 1.5 mm x 15-45°, for easy bushing alignment | ||
| Shaft | Chamfer 5 mm x 15°, for easy insertion of the shaft | ||
| For smaller diameters, the OD should be greased before pressing in. | |||
| For larger diameters dry ice for freeze fitting should be used. | |||
Structure
VSB-50 Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion abitity in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.Solid Lubricant Casting Aluminum Bronze Bearings Bushings.
Technical Data
|
Grade |
50# |
50S1 |
50S2 |
50S3 |
650S5 |
|
Material |
CuZn25AI5Mn4Fe3 |
CuSn5Pb5Zn5 |
CuAI10Ni5Fe5 |
CuSn12 |
CuZn25AI5Mn4Fe3 |
|
Density |
8 |
8.9 |
7.8 |
8.9 |
8 |
|
Hardness |
≥210 |
≥70 |
≥150 |
≥75 |
≥235 |
|
Tensile strength |
≥750 |
≥250 |
≥500 |
≥270 |
≥800 |
|
Yield strength |
≥450 |
≥90 |
≥260 |
≥150 |
≥450 |
|
Elongation |
≥12 |
≥13 |
≥10 |
≥5 |
≥8 |
|
Coefficient o linear expansion |
1.9×10-5/℃ |
1.8×10-5/℃ |
1.6×10-5/℃ |
1.8×10-5/℃ |
1.9×10-5/℃ |
|
Max.Temp. |
-40~+300℃ |
-40~+400℃ |
-40~+400℃ |
-40~+400℃ |
-40~+300℃ |
|
Max.dynamic load |
100 |
60 |
50 |
70 |
120 |
|
Max.speed(Dry) |
15 |
10 |
20 |
10 |
15 |
|
N/mm²*m/s(Lubrication) |
200 |
60 |
60 |
80 |
200 |
|
Compression deformation |
< 0.01 mm |
< 0.05mm |
< 0.04mm |
< 0.05mm |
< 0.005mm |
Chemical Compositions
|
Product NO. |
Chemical Compositions |
||||||||
|
VSB-50 |
Cu |
Zn |
Al |
Fe |
Mn |
Si |
Ni |
Sn |
Pb |
|
60~66 |
22~28 |
5.0~8.0 |
2.0~4.0 |
2.5~5.0 |
<0.1 |
<0.5 |
<0.2 |
<0.2 |
|
