Oilless Plate Plugged Graphite Cast Bronze Wear Plate,With Graphite,High Quality

Place of Origin oilless bushing
Brand Name viiplus.com
Certification OILLESS BEARINGS
Model Number glacier standard split gap Bushes MET DU & DX
Minimum Order Quantity 50 Piece/Pieces (Min. Order)
Price Oilless Bushes Factory Price
Packaging Details STANDARD EXPORT PACKING.CARTONS / PALLETS /WOODEN CASE
Delivery Time 2~4 Weeks
Payment Terms L/C, L/C, T/T, D/A, Western Union,
Supply Ability plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, DU Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Aluminum-Bronze With Solid Lubricant Types Silde Wear Plate
Description Solid Lubricating Bearings Application Excavators Bronze Gleitlager
Size Standard,Drawings Shape Plate
Production Feature Casting Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ Oilless Bearing Manufacturer Https://www.bronzelube.com/
Manufacturer Bucha De Bronze Grafitado High Light Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery
Oilless Bushes Oilless Bush. Copper Alloy. Straight Type. SOB. Material Base Copper Alloy (SO-2). Solid Lubricant Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Oilless Bush Supplier Www.VIIPLUS.com Offers Oilless Bushings On Their Website [1]. You Can Visit Their Website To Explore Their Product Range And Make Inquiries.
High Light

oil impregnated bronze bearings

,

oil lite bronze bushing

Leave a Message
Product Description

We Machine Self Lubricating Bronze Bearings & Wear Plate According To Clients’ Drawings.



VIIPLUS Oilless bearings have been developed for high load, low speed applications and are made of rotational cast high-strength bronze using a specially formed graphite plug as lubricant.

Our range of oilless plates are available in metric and imperial sizes.

Oilless Guide Element Washers​ Bronze Wear Plates Graphite Cast Bronze Bearing Solid Bronze Plate C86300 material by Continuous casting or centrifugal casting

The self lubricated bronze bearings and cast oilless bronze wear plate which are maintenance free due to them being manufactured incorporating solid lubricant materials such as graphite inserts.







self lubricating  bronze bearings

Characteristics and advantages

  1. Manual lubrication not required
  2. Maintenance free
  3. Applications where it is difficult to add oil / grease lubricants
  4. Heavy loads and low speed



Applacation:Excavators bronze gleitlager bronze graphite guide bush



we viiplus bronze bearings offers various types of bronze wear plates, ranging from unfinished cast bronze plate to fully finished machined components. Below are descriptions of the various types we offer.Wear Plates guide and control linear motion when there are heavy forces to contend with. These plates act as linear bearings to guide and control movement.

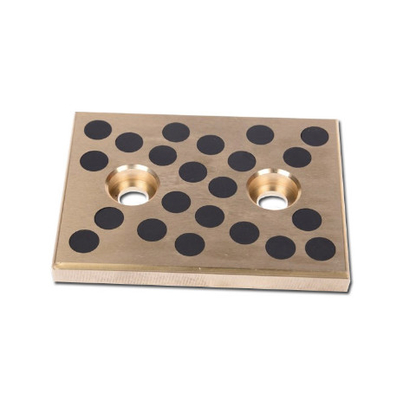

Sliding wear plate

Copper Cast Bronze Bearings Slide wear plate Anti Abrasion For Transportation Machines



1. May work without any ol for long period

2. Extremely high load capacity, good anti-wear and lower friction

3. Particularly appropriate for low speed and high load

4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed

5. Good chemical resistant and anti-corrosion characteristics

6. Can b€ used in wide range of temperature from -40℃-+300℃

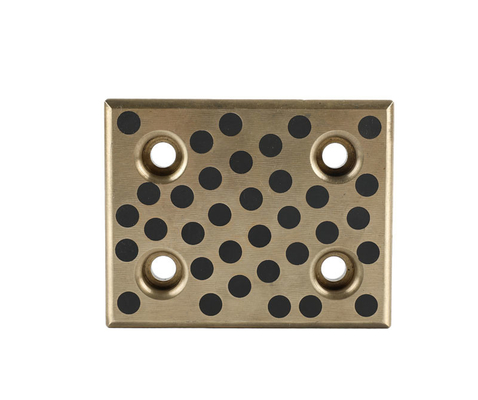

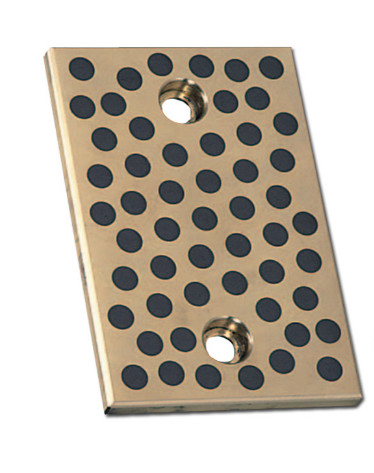

Aluminum-Bronze With Solid Lubricant Casting Bronze Silde wear plate



Aluminum-Bronze Solid Lubricating Silde wear plate is backed with Aluminum-Bronze alloy with good capability of mechanics, castings and anti-erosion. The surface of Aluminum-Bronze Solid Lubricating Silde wear plate is regularly and finely machined with sockets in which particular solid lubricant is filled.



Aluminum-Bronze Solid Lubricating Silde wear plate is widely used conditions with mediate load but higher temperature and condition with mediate running velocity etc.



The surface of Aluminum-Bronze Solid Lubricating Silde wear plate is regularly and finely machined with sockets in which particular solid lubricant is filled.



Strusture



Sliding wear plate material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.





Technical Data



Grade 50# 50S1 50S2 50S3 650S5
Material CuZn25AI5Mn4Fe3 CuSn5Pb5Zn5 CuAI10Ni5Fe5 CuSn12 CuZn25AI5Mn4Fe3
Density 8 8.9 7.8 8.9 8
Hardness ≥210 ≥70 ≥150 ≥75 ≥235
Tensile strength ≥750 ≥250 ≥500 ≥270 ≥800
Yield strength ≥450 ≥90 ≥260 ≥150 ≥450
Elongation ≥12 ≥13 ≥10 ≥5 ≥8
Coefficient o linear expansion 1.9×10-5/℃ 1.8×10-5/℃ 1.6×10-5/℃ 1.8×10-5/℃ 1.9×10-5/℃
Max.Temp. -40~+300℃ -40~+400℃ -40~+400℃ -40~+400℃ -40~+300℃
Max.dynamic load 100 60 50 70 120
Max.speed(Dry) 15 10 20 10 15
N/mm²*m/s(Lubrication) 200 60 60 80 200
Compression deformation < 0.01 mm < 0.05mm < 0.04mm < 0.05mm < 0.005mm




Chemical Compositions



Product NO. Chemical Compositions
    VSB-50 Cu Zn Al Fe Mn Si Ni Sn Pb
60~66 22~28 5.0~8.0 2.0~4.0 2.5~5.0 <0.1 <0.5 <0.2 <0.2



Availability







Bearing forms available in standard dimensions

· Cylindrical bushes

· Flanged bushes

· Sliding plates



Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs



Typical Applications





This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...





Solid Bronze Metallic Self-lubricating CUSTOMER SIZE Dimensions and Tolerances
