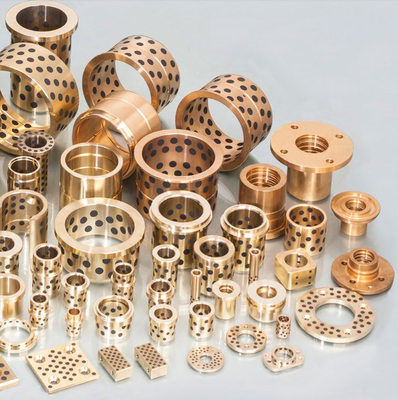

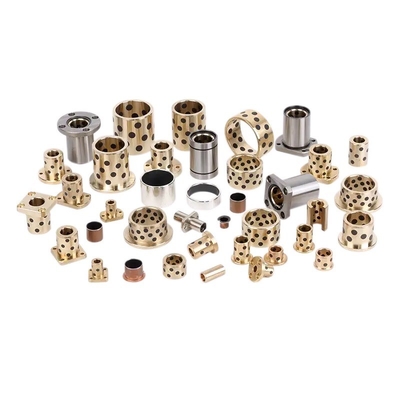

Solid bronze graphite plugged bushings, specifically crafted from C86300 centrifugal casting copper alloy, offer a robust and reliable solution for large-scale applications requiring superior wear resistance and self-lubrication. These bush bearings are designed to meet the demanding requirements of heavy-duty machinery and equipment, ensuring smooth and efficient operation.

The C86300 copper alloy, known for its excellent mechanical properties, provides the bushings with superior strength, hardness, and corrosion resistance. The addition of graphite plugs further enhances the bushings' performance by providing natural lubrication, reducing friction and wear between the bushing and mating surfaces.

One of the key features of these bushings is their large size, which allows them to be used in applications with larger diameters and higher loads. Additionally, the bushings can be customized to meet specific requirements, ensuring precise fitment and optimal performance in various applications.

The centrifugal casting process used to manufacture these bushings ensures a dense and uniform material structure, resulting in bushings with exceptional durability and longevity. This makes them suitable for use in mining, manufacturing, and other industries where equipment is subjected to extreme conditions and heavy loads.

In summary, solid bronze graphite plugged bushings crafted from C86300 centrifugal casting copper alloy are an excellent choice for large-scale applications requiring superior wear resistance and self-lubrication. With their customized options, precise fitment, and excellent material properties, these bush bearings ensure smooth and reliable operation in various heavy-duty applications.

Graphite Plugged Bushings

You can trust our actions to deliver the highest quality of 360° service as Bronze Graphite Bearings/Bushings Specialists!
we can supply large bronze graphite bearing to 1000mm inner diameter .

VIIPLUS CHINA Sliding Bearings is a pioneer in producing high performance, long lasting bearing system designs that require no oil or grease.

Working Area

Our main products contain pipe/ bar/ plate of Tin bronze alloy material, Aluminum bronze alloy material, phosphorus bronze alloy material and also finished machining products as bronze bushing, bronze flange, worm gear and impeller. In order to control the material composition, hardness and various mechanical properties strictly, we have imported spectrometer from Germany, we also have electronic universal testing machine and Brinell hardness tester. Our equipment contain: medium/ large/ super- huge .continuous casting machine, centrifugal casting machine and other casting equipment

Bronze bearing & bushings for agricultural machinery, conveying installations and construction machinery

C86300 Centrifugal Casting Copper Alloy Bronze Bush Bearings Highly Wear Resistance

Solid lubricated bearings (JDB) have at least the following advantages:

These bearings are mainly used in agricultural machinery, conveying installations and construction machinery.
Solid Bronze Tolerances and Comparison Tables Plug Graphite Cast Bronze Bearings Solid Bronze Lubrication | VSB-50

This type of bearing is suitable for middle or low speed with heavy load condition. It is widely used for engineering machinery, vehicle, steel and iron and takeup machinery.

1. Flexible, simple and convenient design, wide range of use:

Fuel supply system in the engineering design is a piece of work, time-consuming setup, using solid lubrication bearings do not need to consider when designing refueling device, save the refueling devices, as well as for a wide variety of special occasions, the solid lubricated bearing design into various shapes, in order to satisfy various occasions, the use of solid lubrication bearing, can greatly reduce the mechanical maintenance, oil and other expenses.

2. Low use cost:

The traditional mechanical design, in a certain operating time, want to often come on maintenance, check the oil, the oil supply device was clear, the body itself and the surrounding environment pollution caused by regular gas, result in an increase in maintenance costs, realize self-lubrication, not only can realize the environment clean and tidy, and greatly reduce the cost of the use of lubricating oil.

3. Oil free:

Due to the linear expansion coefficient of solid lubricant is greater than the metal matrix, so when the solid lubricated bearing, when we started running on the oil film will shift to a grinding and realize self-lubrication, so solid lubrication bearings can be used in the place where is hard to go and can't go or grease, even in the case of low speed and high load, also can have good lubrication effect.

4. Under the condition of high load bearing and low speed, it can give play to superior performance:

Solid lubricated bearing is a centrifugal casting of high strength brass as the matrix, play the role of load bearing, with a good self-lubricating performance of the special formula of graphite as a lubricant, play the role of self-lubricating, so it combines their own advantages, even in the case of high load, low speed, can play a superior performance.

5. Excellent drug resistance and corrosion resistance:

The lubricant of the solid lubrication bearing is made of special formula graphite, PTEE and other wear-resistant materials, it has a stable molecular structure, the metal matrix can be selected according to different metals have different drug resistance and corrosion resistance, so the solid lubrication bearing has excellent drug resistance and corrosion resistance.

6. In places where oil film formation is difficult, such as reciprocating movement, swing movement, frequent starting and stopping, excellent wear resistance can be exerted:

The arrangement principle of the lubricants of the solid lubrication bearing is to ensure that there are lubricants on all parts of the grinding parts in the running process. Therefore, the arrangement position of the lubricants must be determined according to the movement direction of the grinding parts.

7. Long working life, little maintenance, long replacement cycle and good performance.

Due to the requirements of special production process, some key equipment of industrial and mining enterprises operate under extremely bad working conditions.Due to heavy equipment, high ambient temperature, large dust or acid corrosive gas CO, SO2 in the air, the lubrication of the equipment brings a lot of problems, serious friction and wear, in order to produce continuous operation, in addition to the original design requires the installation of multiple equipment wheel repair, also need to invest a lot of maintenance personnel.It seriously restricts the improvement of productivity, and the consumption of spare parts and energy is extremely large, which has become an important obstacle to the development of production.

Many more products for various applications :

Kaplan Blade Bushings

Head Gate Bearing Rollers

Thrust Cap Washers

Butterfly Valve Seals and Trunnion Bearings

Hydraulic Seals

Wicket Gate and Operating Mechanism Seals

Pump Bearings

Control Gate Bearings

Servo-Motor and Servo-Link Bearings

Self-Lubricating Bearings Are Typically Used In The Following Application:

My company's self-lubricating bearing products have been supplied in the chassis walking body, body parts, hydraulic components and other components. Including bimetal boundary lubrication rolling bearings, metal-based self-lubricating bearings and metal-plastic self-lubricating rolling bearings. These bearing materials have excellent wear resistance and dust resistance under high load conditions, and the self-lubricating technology greatly prolongs the maintenance cycle of the bearing, thus improving the utilization ratio of the equipment and reducing the maintenance cost.

Material

CuAI10Ni5Fe4

Typicai applicaton

The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.

Hydraulic Cylinder Casting Bronze Flange Bearing With Solid Lubricant

Structure Characteristics and Applications
VSB-50 Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion abitity in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.

Solid Lubricant Casting Aluminum Bronze Bearings Bushings

VSB-50  Solid lubricating bearings

1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃

VSB-50 material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

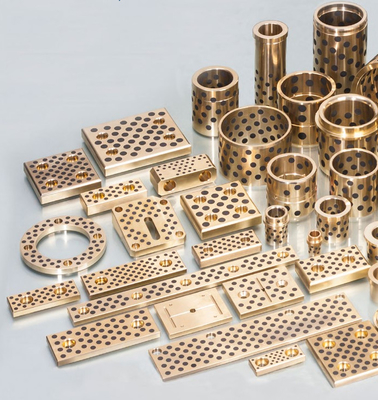

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates

Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs


This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...
