Cast Bronze Solid Lubricant Bearings & Plate Standard Size Chemical Resistant for Railways
Place of Origin | Manufactured in China |
---|---|
Brand Name | BRAND CHINA REPLACMENT OILES 500 GUIDE BUSHINGS |
Certification | SEA430B,C86300,DIN1709,FIBRO |
Model Number | Bronze Graphite plug Bushings met the tolerances |
Minimum Order Quantity | 300 Piece/Pieces (Min. Order) |
Price | $0.10 - $3.00 / Pieces |
Packaging Details | EXPORT CARTONS |
Delivery Time | 2-4 weeks |
Payment Terms | TT IN ADVANCE,L/C,Western Union |
Supply Ability | CNC Bronze Bearings Online • Custom Bushings Manufacturers • Sliding Bearings Suppliers |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Aluminum-Copper With Solid Lubricant Plugs | Quaity | OEM |
---|---|---|---|
Port | Shanghai | Type | Flange Bushings,Cylinder Bearings With Flange |
Delivery | Fast Delivery | Item | Solid Lubricating Bearings |
Market | Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc. | Bearing Bushing Factory Price | Tiffany@viiplus.com |
Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ | High Light | Self-lubricating Bronze Bearings Are Characterized By Being Self-lubricating And Maintenance-free. The Bronze Bearings Are Made Of Tin Bronze Or ... |
High Light | CuSn8P Bronze Perforated Bushings, Self Lubricating Bronze Perforated Bushings, Lifting Machinery Bronze Perforated Bushings | Item | Sliding Bearing Bronze Bushing |
Specialty | Бронзовые втулки | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
High Light | lubricated bronze sleeve bearings,self lubricating bearing |
Bronze Plain Bearings
We supplier Sliding Bearing For Comprehensive Assembly For Railways.
Graphite plugged bushings are a special type of bushing that is used in applications that need continuous lubrication, but don’t offer easy access for the lubrication to be added manually on a regular basis. This type of bushing is made with graphite impregnated into the small holes in the bushing’s surface. When in use, these bushings release the graphite, creating a film of lubricant to keep machinery running smoothly.

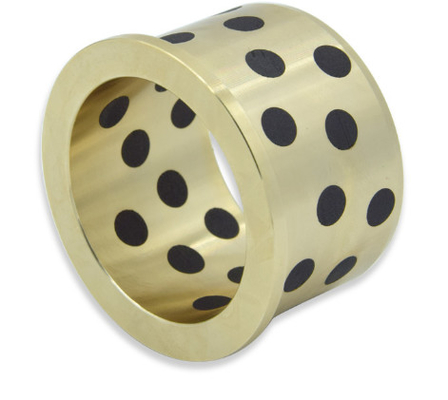

Graphite Filled Bronze Bushes Flange Cast Bronze Solid Lubricant Bearings Standard Size Chemical Resistant
We are offering our clients premium quality Graphite Filled Bronze Bushes, which is self-lubricant and maintenance free. Provided bushes are machined out of continuous cast bronze and plugged with solid lubricant plugs. These bushes are an excellent service and wear resistance. Provided bushes used where normal oil and grease lubricants do not work with corrosive liquids and gases and where contamination by conventional lubricants is undesirable. Our provided Graphite Filled Bronze Bushes exhibits an excellent service and wear resistance.
Description
VSB-50 Flange Solid Bronze Metallic Self-lubricating Bearings
Custom low price cast bronze flange bearing graphite bushing
Copper Cast Bronze Bearings / Flanged Bronze Bearings

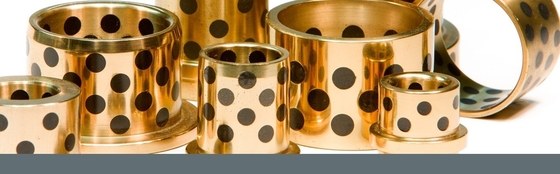

Cast Bronze Bearing with Graphite Plugs
Characteristics
VSB-50 Flange
1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃
Strusture
VSB-50 Flange material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.
Technical Data
Grade |
50# |
50S1 |
50S2 |
50S3 |
650S5 |
Material |
CuZn25AI5Mn4Fe3 |
CuSn5Pb5Zn5 |
CuAI10Ni5Fe5 |
CuSn12 |
CuZn25AI5Mn4Fe3 |
Density |
8 |
8.9 |
7.8 |
8.9 |
8 |
Hardness |
≥210 |
≥70 |
≥150 |
≥75 |
≥235 |
Tensile strength |
≥750 |
≥250 |
≥500 |
≥270 |
≥800 |
Yield strength |
≥450 |
≥90 |
≥260 |
≥150 |
≥450 |
Elongation |
≥12 |
≥13 |
≥10 |
≥5 |
≥8 |
Coefficient o linear expansion |
1.9×10-5/℃ |
1.8×10-5/℃ |
1.6×10-5/℃ |
1.8×10-5/℃ |
1.9×10-5/℃ |
Max.Temp. |
-40~+300℃ |
-40~+400℃ |
-40~+400℃ |
-40~+400℃ |
-40~+300℃ |
Max.dynamic load |
100 |
60 |
50 |
70 |
120 |
Max.speed(Dry) |
15 |
10 |
20 |
10 |
15 |
N/mm²*m/s(Lubrication) |
200 |
60 |
60 |
80 |
200 |
Compression deformation |
< 0.01 mm |
< 0.05mm |
< 0.04mm |
< 0.05mm |
< 0.005mm |
Chemical Compositions
Product NO. |
Chemical Compositions |
||||||||
VSB-50 |
Cu |
Zn |
Al |
Fe |
Mn |
Si |
Ni |
Sn |
Pb |
60~66 |
22~28 |
5.0~8.0 |
2.0~4.0 |
2.5~5.0 |
<0.1 |
<0.5 |
<0.2 |
<0.2 |
Bearing forms available in standard dimensions
-
Cylindrical bushes
-
Flanged bushes
-

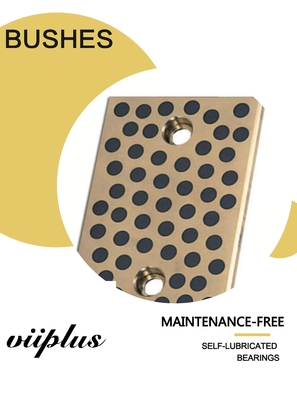

Sliding plates
Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs
Typical Applications
This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...
Construction Machinery Special For Bronze Gleitlager Bearing
Injection Molding Maching For Bearing
AUTO INDUSTRY BRONZE GLEITLAGER BUSHINGS
CUSTOMER SIZE FOR FLANGE BUSHING
