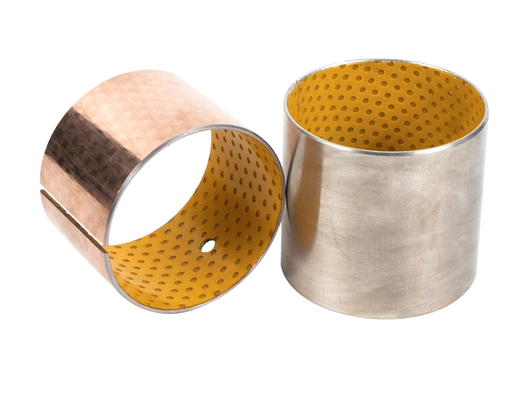

Split Sleeve Steel Bushings with Grease-lubricated Bearings, compliant with DIN 1494 / ISO 3547 standards, are a reliable and efficient choice for Metal Polymer bearing applications. The split sleeve design allows for easy installation and removal, while the bearings provide smooth operation and low friction. The grease lubrication ensures long-lasting performance and reduces wear, making these bushings suitable for various applications that require high-load capacity and durability. Wh used in industrial machinery, automotive components, or any other metal-to-metal contact applications, these Split Sleeve Steel Bushings offer a maintenance-free and cost-effective solution.

Wrapped bushing, stainless steel/, DIN 1494/ISO 3547, Maintenance-free

VIIPLUS METAL SLIDING BUSHING | THE TRIBOLOGY SOLUTION MADE IN CHINA

Company Description :Manufacturer and supplier of self-lubricating bearing material strips and sheets.Bushings, grease-lubricated bearings, oil lubricated applications, metal polymer bearing.Quality Approved according to RoHS Directive,lead free available.Stainles Steel Bearing Reinforced for Longer Wear.Click here to go to our online catalog bushings catalog(plain bearings catalog) contains detailed specifications and bushings data for all of our stainless steel bushing bearings including free sizes downloads.DIMENSIONS DRY BEARINGS & METRIC BUSHINGS HOUSING ...

Cutting Or Sticking Bushings Strips Sheets

Bushing Shapes & Types:Plain cylindrical bearings, flanged bearings, thrustwashers, sliding plates
Always cut or stick the sliding plate (sheets or washers) from the sliding surface towards the steel surface. Bearing are to be cut from the inside towards the outside. This is to prevent the three layers from dividing. Therefore always start from the soft layer towards the harder layer. It also helps you to keep any burrs in the right direction (not towards the sliding surface).

STEEL BACKED LINED BUSHES China Manufacturer Slide Bearings assembly for  Oil and Gas Pipelines, Machinery, Heating Systems, etc.

Slide Bearings /POM Inner Layer Made to Order

Any size or configuration Slide Bearing can be made to order.As well, sleeve bush materials can be varied to suit any application.

Sliding Bearing Application

Widely used in hydraulic pneumatic, forging machine tool industry, plastics machinery, lifting transportation machinery, port machinery, office, gym machinery, textile machinery, food packages, filling machinery, chemical machinery, printing and packaging, paper making machinery, automobile, railway vehicle, shipbuilding industry, machinery, metallurgical machinery, engineering machinery, etc.

Carbon Steel Bushings & Stainless Steel Sliding Bearings (anti corrosive)

If you are not sure about certain parameters of the bushings material and size, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our services are not limited to standardized plain bearing self-lubricating bearings products, but also include design,drawing OEM bushings and manufacturing based on the customer's industry and application scenarios to help customers create more business opportunities.

Our bushings are proven performers in the high-technology engines of today.

self-lubricating stainless steel bearings manufacturing
Upon request, we can offer stainless steel 316 or 304 inch-sizes, special lengths, bushings to drawing and various -layers for different areas of use as well as different backings in steel or stainless steel etc.

Our Sliding Bearing Products Are Engineered To Exacting Standards

VIIPLUS offers a versatile product bushing made from many types of materials for improved performance in each unique applications. Wh you need polymer, bushes,C86300 & C95400 bronze metallic bushes or bimetal bearings, we have the experience you need to specify the right product for superior results.

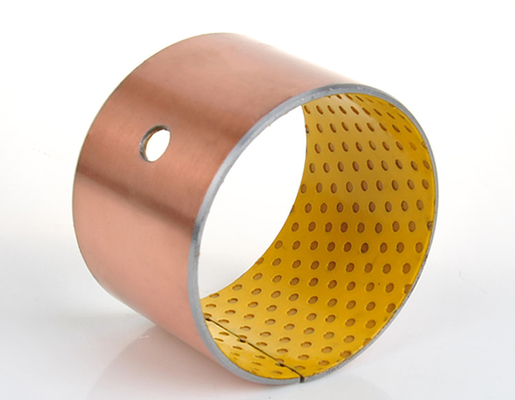

The structure of this prelubricated yellow bushing consists of spherical powdered bronze sintered onto a steel backing and polyacetal resin impregnated into the surface.This sliding bearing is filled with lubricant before installation, to which a small amount of lubricant is added at predetermined intervals to allow it to withstand long-term operation.

Boundary self Lubricating Bearings lead-free SF-2Y yellow POM Bushes   polytetrafluoroethylene steel bushings | VSB-20

Boundary Lubrictaing Bronze Bushing Bearing POM  Bushing Bush OEM china Manufacturer

How to choose the gear pump bushings | shaft sleeve bushes oil-free lubrication bearing.

How to choose the gear pump shaft sleeve bushes?
VIIPLUS Main production gear pumps shaft sleeve bushing sliding bearings.
Gear pumps in operation in the event of unusual noise, it should immediately check stands.
The gear pump sleeve bushings the selection principle is not high demand, for the occasion, but by experience, not to replace gear pump sleeve bushings timely selection.
If the first gear pump operation, or long-term idle after use, preferably in small load or no-load circumstances running One hour.
At the beginning of operation, to gear pump within the shell filled with liquid to be delivered, for safety launch.
The quality and capability of gear pump bushing affect the characteristics of gear pump machines directly.
The pump bushing out of the shackles of traditional design, making gear pump bushings in the design, production and use into a new area.
By using viiplus gear pump bushings, production efficiency and product quality can be improved and production cost can be reduced in the processing and repairing.
viiplus gear pump bushings Oil-free bearing maintenance-free


Detailed Information

Boundary lubrication lead-free bearing is improved on the basis of VSB-20.

It has the same performance as the VSB-20, but the surface does not contain lead, and the field of use can be extended to areas with environmental requirements.

Steel + Bronze Powder + POM

Self Lube Bearings Product Category SF-2 Boundary Lubricating Bearing

VSB-20 Boundary lubrication bearing High Quality  POM Bush China Manufacturer

1.Marginally lubricated bushings for grease or oil lubricated applications

2.Standard parts contain grease indents in the sliding layer; plain sliding layer available by request

3.Optimum performance under relatively high loads and low speeds

4.Suitable for linear, oscillating and rotating movements

5.Wide range of parts available from stock

Suitable for rotating and oscillating movement, less maintenance requirements due to the long re-lubrication intervals, lower wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling, good damping behaviours, good resistance to shock loads.

1. POM thickness 0.30~0.50 mm. It provides high wearresistance and low friction even with only minute volume oflubricant are supplied, this bearing surface carries a pattern of circular indents which should be filled with grease on assembly of the bearing.
2. Sintered bronze powder thickness 0.20-0.35mm. A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the layer and conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel.Setting the foundation of the bushings, the steel back provides exceptional stability,load carrying and heat dissipation characteristics.

• Metal-Polymer Composite Bushing Material
• Steel Back + Porous Bronze Sinter +
• POM with Lubrication Indents

Technical Data

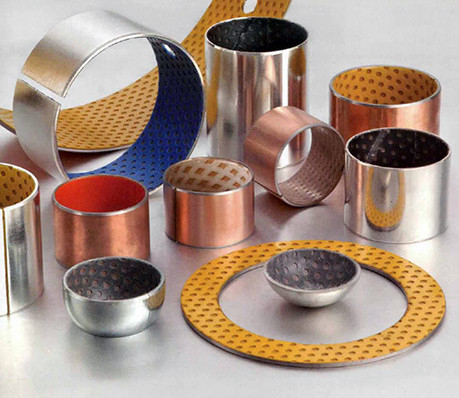

Bearing forms available in standard dimensions

•  Cylindrical bushes
•  Thrust washers
•  Sliding plates

Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bushing designs
