Brand Name: | VIIPLUS BUSHINGS SUPPLIER |
Model Number: | BUSHINGS |
MOQ: | 1000 Piece/Pieces |
Price: | $0.05 - $1.00 / Pieces |
Payment Terms: | TT in advance,Western Union |
Supply Ability: | Special Customized Lubricating Bushings Manufacturing |
In the realm of fitness equipment and industrial machinery, body fitness sleeve bushings and self-lubricating bearings play a crucial role in ensuring smooth and efficient operation. These components are specifically designed to handle the rigorous demands of running machines and belt conveyors, providing long-lasting performance and reliability.
Body fitness sleeve bushings are typically used in the moving parts of running machines, such as the rollers and pulleys. They are designed to withstand the constant friction and impact forces generated during use, while also providing a smooth and quiet operation. The sleeve bushings are made from high-quality materials that offer excellent wear resistance and durability, ensuring that they can last for extended periods of time with minimal maintenance.
Self-lubricating bearings, on the other hand, are an ideal choice for belt conveyor applications. These bearings are engineered with a special self-lubricating material that reduces friction and wear, allowing for effortless movement of the conveyor belt. The self-lubricating material continuously lubricates the bearing surface, eliminating the need for regular lubrication or maintenance. This not only saves time and money but also reduces the risk of downtime due to equipment failure.
Both body fitness sleeve bushings and self-lubricating bearings are precision-engineered components that are designed to fit perfectly into their respective applications. They are manufactured using advanced technologies and quality control measures to ensure that they meet the highest standards of performance and reliability.
In summary, body fitness sleeve bushings and self-lubricating bearings are essential components for running machines and belt conveyors. They provide smooth and efficient operation, while also offering excellent wear resistance and durability. By selecting the right components for your specific application, you can ensure that your equipment performs optimally and lasts for many years to come.
Because of its light weight, low cost and maintenance-free, self-lubricated bearings are widely used in all kinds of fitness and entertainment equipment.Metal-Polymer Anti-Friction Plain Bearings self-lubricating Bearings Cylindrical for belt conveyor.
Interpret the skill transformation of food belt conveyor Bushing & Bearings
China's agricultural products deep processing industry to transport network belt not only expect quantity, stainless steel network belt and more technology water steep dry bearing steep function, quality.This points out a bright way for the development of China's transport network and belt industry.
Plastic bearing seat is indispensable in the transmission of food belt transport machinery and equipment important components, in the production and transport operations can be better forward transport equipment transmission power, and then play a role in reducing energy consumption.In the process of the development of modern sliding bearing technology and skills, in order to make the bearing seat very good forward bearing ability, China has made relatively excellent innovation in terms of the function and material of the bearing seat, and adopted engineering plastics to make the bearing seat.Plastic bearings have been tested to be more rigid and rigid than steel bearings, so they are used in different types of food belt conveyors.
Low power consumption of belt conveyor accessories.As there is no relative movement between the material and the delivery belt, not only the operation resistance is small, but also the wear and breakage of the cargo are small, the yield is high.All these are advantageous to reduce production cost.
Belt conveyor accessories transport line habitual strong and active.The length of line composite bearing depends on the need.It can be as short as a few meters and as long as more than 10km.They can be installed in small tunnels or over ground traffic disturbances and risk areas.
Belt conveyor accessories can be very flexible to receive material from one or more points depending on the skill flow.It can also be discharged to multiple points or sections.Belt conveyor accessories become a primary transport trunk when they are delivered tog at several points to the belt feeder (such as the conveyor accessories under the coal bin of the coal preparation plant) or along the belt conveyor accessories at any point in the length direction of uniform feeding equipment.
Belt conveyor accessories can be used to pick up materials in the roadway below the coal yard pile and, when needed, mix different materials from different piles.Materials can be simply unloaded from the accessories head of the conveyor, or can be unloaded at any point in the length direction of the conveyor belt by the plough type unloading device or by the moving unloading truck.According to the needs of transportation skills, it can be a single unit, or more than one set of transport equipment or other transport equipment to form a horizontal or skew transport system to meet the needs of different types of operation lines.
Food belt delivery machinery traditional plastic bearings are based on a single engineering plastic material.Over the years, the use of habits of a wider range of planning needs, especially food, medicine, drinks and other operations on the production environment, equipment reliability, equipment operation power needs to continue to advance, a variety of composite plastic bearing seats play an increasingly important role.
Plastic bearing base by adding composite fiber filler, can reach high compressive resistance, heat resistance and creep resistance, composite fiber itself has excellent resistance function;Participating in solid grease, the selected constituent material and composite fiber are combined to help reduce resistance.Plastic bearing housing has excellent resistance function, but also has high precision, low thermal expansion rate, low water absorption rate, high compressive stress, creep resistance high-grade characteristics.
Plastic bearing seat production material, as a new type of high molecular material, the resistance coefficient is small, from the wear loss property, plastic bearing seat production material than the usual carbon steel material bearing seat more wear resistant, but also has the characteristics of self-lubrication.
The condition of self-lubricity is that the cohesion between molecules should be small, the atoms in the molecular structure are placed symmetically, other lubrication functions and lubrication conditions.Plastic bearing seat surface strength ratio high and very lubrication, basically do not appear tension, with excellent self-lubrication function and low resistance coefficient, on the basis of adhering to the traditional advantages of plastic bearing seat, can be used in production operations compared to fine or high speed operation of the transport operation.
Plastic bearings can work well in alkaline environments, but not in corrosive environments rich in acid.The rigidity of plastic bearing seat is large, the hardness is high, even in the operating environment with low temperature contrast, the strength of impact force is also high.
The self-lubricating bearings are light, cost-effective and maintanence free, So they are widely used to various kinds of body fit equipment and .

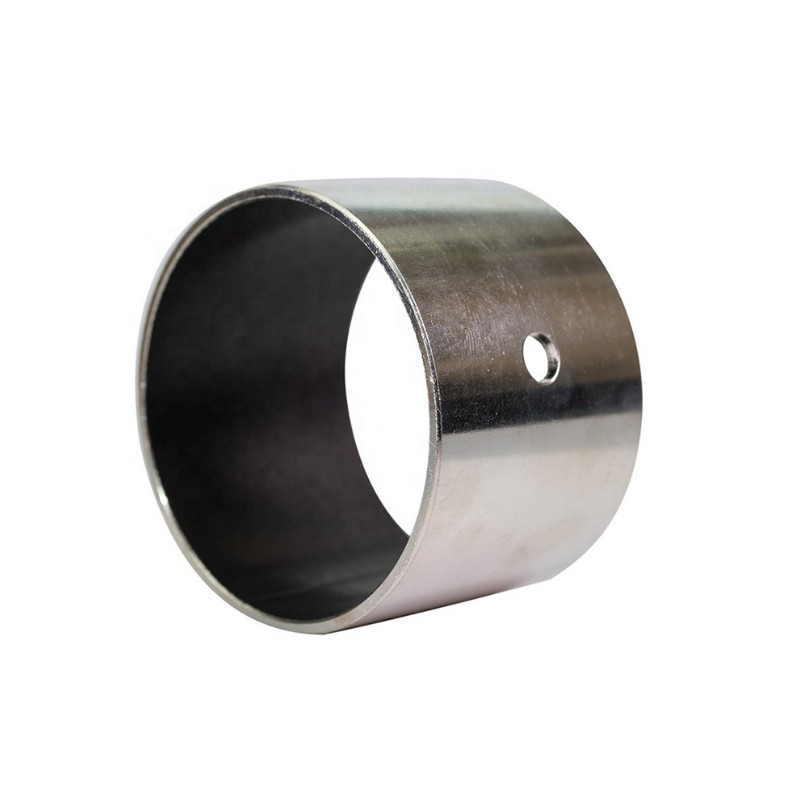

VSB-10 Self-Lubricating Multilayer Composite Bushing
1. /Fibre mixture thickness 0.01~0.03mm. It is the contact surface for the rotating shaft. Minute partides of the layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.
2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the layer and conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.
Technical parameters |
|
|
|
|
|
Maximum load |
Static load |
250N/mm2 |
frictional coefficient |
0.03~0.20 |
|
Low speed |
140N/mm2 |
||||
Rotation, swing motion |
60N/mm2 |
maximum line velocity |
dry friction |
2m/s |
|
fluid lubrication |
>2m/s |
||||
Maximum PV value (dry friction) |
Intermittent operation |
3.6N/mm2*m/3 |
Thermal conductivity |
>2m/s42W(m*K)-1 |
|
Long-term operation |
1.8N/mm2*m/3 |
||||
Operating temperature |
-195℃~+280℃ |
linear expansion coefficient |
11*10-6*K-1 |
Carbon Steel + Copper Powder + ( + Pb + Filler)
STRUCTURE AND COMPOSITION
· Metal-Polymer Composite Self-lubricating Bushing Material
· Steel Back + Porous Bronze Sinter +
· + Lead
OPERATING PERFORMANCE |
|
Dry |
Very Good |
Oil lubricated |
Good |
Grease lubricated |
Fair |
Water lubricated |
Fair |
Process fluid lubricated |
Fair |
AVAILABILITY

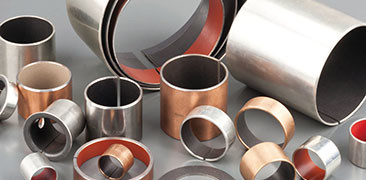

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates
TYPICAL APPLICATIONS
