| Brand Name: | REPLACE BRAND Metal-Polymer Bearings BEARINGS () |
| Model Number: | BUSHING TYPE FLANGED PLAIN SLEEVE |
| MOQ: | NEGOTIABLE |
| Price: | Competitively Priced vs, Provides Lubricating Bush |
| Payment Terms: | TT IN ADVANCE WESTERN UNION |
| Supply Ability: | Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings |
Wind, solar, and hydroelectric power are all forms of renewable energy that are increasingly being utilized to power our world. Steel lubricating plain bearings play a crucial role in the efficient operation of these new energy systems. These bearings are specifically designed to withstand the unique challenges presented by renewable energy applications, such as variable loads, high speeds, and harsh environments.
The lubrication properties of , combined with the strength and durability of steel, create bearings that are ideal for use in wind turbines, solar trackers, and hydroelectric turbines. These bearings provide smooth and reliable operation, ensuring that energy is efficiently converted from natural sources into usable electricity.
As the demand for renewable energy continues to grow, so does the need for high-performance bearings that can keep these systems running smoothly. Steel lubricating plain bearings are a vital component of this effort, helping to power our future with clean and sustainable energy.
The VIIPLUS CHINA produced self-lubricating sleeves are manufactured with new energy sources to support swing areas, so that they can be manufactured easily without the maintenance requirements of environmentally friendly new energy sources (wind, solar, hydro, etc.).
Factory production of self-lubricating bushes applies to the new area of oscillation of the energy support to satisfy long-term use without maintenance requirements for a new ecological energy such as wind, solar, hydroelectric power, etc. To provide convenient use.Wind Power Metal-Polymer Wind Power plain bearings self-lubricating Bearings Cylindrical | VSB-10
Self-lubricating bearing bush produced by VIIPLUS is suitable for support and swing parts of new energy, providing convenient use for environmental new energies, such as wind generator, Solar Generator, hydroelectric generator and so on.
Today’s advanced plain bearings from Self-lubricating Bearing Technology offer a number of significant advantages compared with rolling-element bearings. ... including wind turbines, agricultural equipment, steering systems, air ...
Products Application
Energy facilities:The company's self-lubricating sleeve for the support of the new energy swing parts, to meet the long-term use without maintenance requirements for environmentally friendly new energy such as wind power, solar power, water power and other convenient applications.
The self-lubricating and pre-lubricated bearings of VIIPLUS BRONZE GLEITLAGER are suitable for wind power generation and photovoltaic power generation devices, and are free of maintenance for life.
The self-lubricating and pre-lubricated bearings of VIIPLUS BRONZE GLEITLAGER are suitable for wind power generation and photovoltaic power generation devices, and are free of maintenance for life.

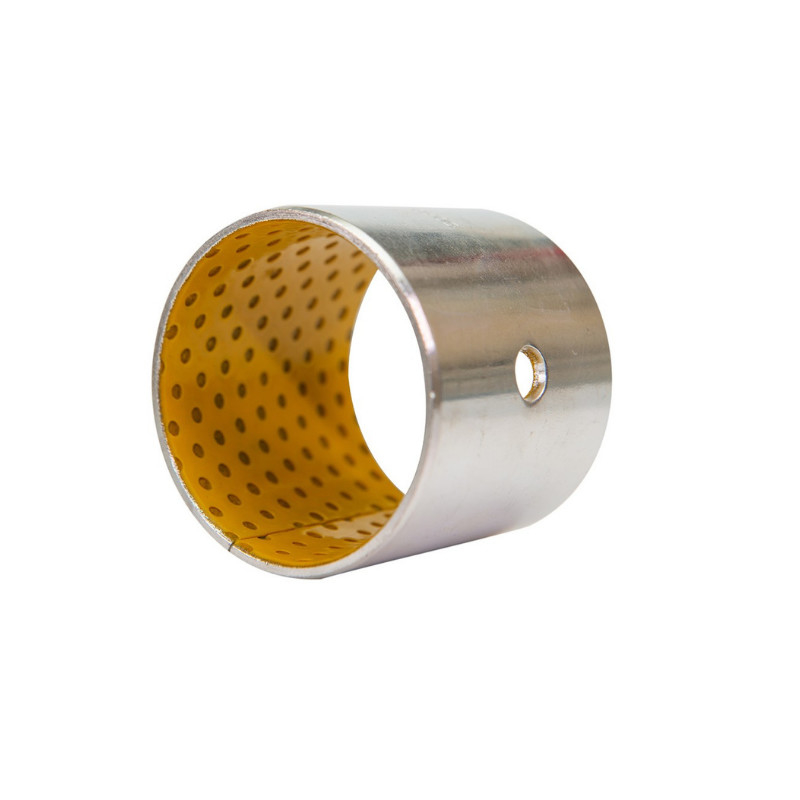

1. /Fibre mixture thickness 0.01~0.03mm. It is the contact surface for the rotating shaft. Minute partides of the layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.
2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the layer and conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.
Carbon Steel + Copper Powder + ( + Pb + Filler)
MICROSECTION
|
|
Sliding layer |
|
OPERATING PERFORMANCE |
|
|
Dry |
Very Good |
|
Oil lubricated |
Good |
|
Grease lubricated |
Fair |
|
Water lubricated |
Fair |
|
Process fluid lubricated |
Fair |
|
Max. load |
Static |
250N/mm2 |
|
Dynamic |
140N/mm2 |
|
|
Max. speed |
Dry |
2m/s |
|
Lubrication |
>2m/s |
|
|
Max. PV (Dry) |
Short-time |
3.6N/mm2*·m/s |
|
Continuous |
1.8N/mm2*·m/s |
|
|
Temp. |
-195℃~+280℃ |
|
|
Friction coefficient |
0.03~0.20 |
|
|
Thermal conductivity |
42W (m·k)-1 |
|
|
Coefficient of thermal expansion |
11*10-6k-1 |
|

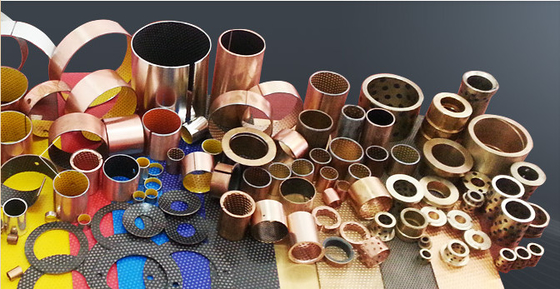

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates
