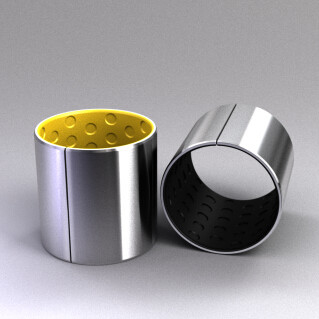

    The wrapped bronze bushings is produced with diamond-shaped lubrication indents on the inner diameter surface which provide lubricant reservoirs that allow for prolonged service.
Contact Person : Tiffany

Metal-Polymer Plain Bearings Grease Lubricated | Self-Lubricating Bearings PAP P10 Elevator Bushings

Place of Origin Composite plain cylindrical bushings manufacturer
Brand Name VIIPLUS BUSHINGS SUPPLIER
Certification ISO 3547 DIN 1494 Assembly Standard Tolerance
Model Number BUSHINGS
Minimum Order Quantity 1000 Piece/Pieces
Price $0.05 - $1.00 / Pieces
Packaging Details Packaging: Export carton; Wooden case ; Wood pallet.
Delivery Time 7~15 work days
Payment Terms TT in advance,Western Union
Supply Ability Special Customized Lubricating Bushings Manufacturing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Carton Steel , Bronze , Plating Tin Or Copper
Characteristic Low-maintenance And Maintenance-free Plain Bearings Shapes &Type Plain Cylindrical Bearings, Flanged Bearings, Thrustwashers, Sliding Plates, Collar Bushes, Washers, Strips Or Special Designs
Size Standard Size Available Quality With Leadfree , With A Variety Of Mixes Specialized For Various Industries
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self Lubricating Bronze POM Bushing, Metal Polymer Bushings POM BUSH Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

flanged plain bearing

,

plain bearing

Leave a Message
Product Description

In the world of industrial applications, metal-polymer plain bearings have become a highly sought-after solution for a wide range of machinery and equipment. These bearings, which combine the durability of metal with the wear-resistant properties of polymers, offer an optimal balance between performance and cost-efficiency.

When it comes to lubrication, grease-lubricated metal-polymer plain bearings provide a reliable and long-lasting solution. The grease acts as a lubricant, reducing friction and wear between the moving parts. This not only extends the lifespan of the bearings but also ensures smooth and efficient operation.

On the other hand, self-lubricating bearings, such as PAP P10 elevator bushings, are designed to operate without the need for external lubrication. These bearings feature a unique polymer composite material that incorporates a solid lubricant into the bearing material itself. As the bearing rotates, the solid lubricant is released, providing continuous lubrication and reducing the risk of wear and failure.

PAP P10 elevator bushings are particularly suited for applications in elevators and other vertical transportation systems. The self-lubricating properties of these bushings ensure reliable operation even under heavy loads and frequent movement. The material's high wear resistance also ensures a long service life, reducing the need for frequent maintenance and replacement.

Overall, metal-polymer plain bearings with grease lubrication and self-lubricating PAP P10 elevator bushings provide optimal solutions for a variety of industrial applications. Wh you're looking for a reliable and long-lasting bearing solution for your elevator or other equipment, these products are sure to meet your needs.

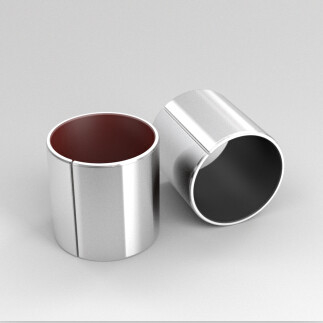

Polymer Plain Bearings



Stainless self lubricating plain bearings.is a self-lubricating triple-layer bearing specifically suited for corrosive environments, and the food industry. Outer mantle is of stainless steel and the self-lubricating slide layer consists of a special polymeric material similar to the but without lead content.

Metal-Polymer Plain Bearings Grease Lubricated | Self-Lubricating Bearings PAP P10 METAL Bushings Cylindrical Elevator Bushing Stainless steel (anti corrosive)



Description



Metal-Polymer Anti-Friction Plain Bearings

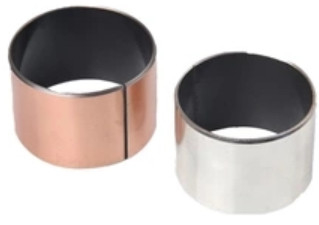

Oil-free lubricated bearing  is a sliding bearing made of three layers of self-lubricated bearing material, which is composed of high quality low-carbon steel plate or copper plate as the matrix, sintered porous spherical bronze powder in the middle, and friction surface rolling modified ( and Pb) and firmly combined by high temperature plasticization.The material can provide better self-lubrication, wear resistance, low friction and other properties, giving full play to the strength of metal and self-lubrication properties of modified plastics.Vsb-10 oil-free lubricated bearings are divided into steel base and copper base.

  • Rolled Dry Sliding Bearings ()
  • Steel + Bronze Powder + /Fibre
  • Wrapped Lined (maintenance-free), self lubricated plain or flanged bearings, thrust washer and strip, Carbon steel shell with sintered bronze layer filled with



Characteristics



VSB-10 Self-Lubricating Multilayer Composite Bushing

Typical features are suitable for use without lubricating oil, low friction resistance, wear resistance, long service life;
Suitable for use in various forms of motion such as rotation, reciprocation and oscillation;
It has stable low friction coefficient and excellent wear resistance under high load and low speed.
Oil lubrication conditions for more effective use, in the middle, high speed field can show a high PV value;
Cardiac use wide temperature range, can be in 200 ℃ ~ + 280 ℃ temperature range;
Dynamic and static friction coefficient is basically close to, can overcome the "crawling" phenomenon, running smoothly;
Excellent corrosion resistance, can be used in a variety of corrosive media (including liquid and gas);
Bearings for thin-wall structure, light weight, occupies a small volume, suitable for compact design;
Good dimensional stability, high mechanical strength, with good thermal conductivity;
Transfer film formed in the process of operation, play a role in protecting the grinding shaft, no shaft bite phenomenon.

 bushings


Typical Applications





  • Hydraulic pump industry: mainly used in medium and high pressure gear pump, vane pump, plunger pump, etc.
  • Automobile industry: shock absorber (guide sleeve), power steering, clutch, gearbox shift lever, wiper, steering machine transposition and hand brake device, ABS system, gasoline engine and diesel engine injection pump, pedal support, trailer coupling head, engine and trunk cover hinge system, etc.
  • Other: metallurgical industry, continuous casting and rolling mill, cement machinery, screw conveyor, hydraulic truck, elevators, micro motor, hydraulic motor, hydraulic equipment, pneumatic (cylinder guide sleeve) equipment guide sleeve (cylinder), electromagnetic valve, medical equipment, fitness equipment, textile machinery, agricultural machinery, scientific instruments, drying furnace, printing machinery, office equipment (printers, photocopiers and fax machines), butterfly-valve, cut-off valve, motorcycle (shock absorber), etc.



Pallet Trucks Plain Bearings & Elevator Bushings

Polymer Plain BearingsPolymer Plain Bearings



Strusture


1. /Fibre mixture thickness 0.01~0.03mm. It is the contact surface for the rotating shaft. Minute partides of the layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.

2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the layer and conducts the thermal build up away from the bearing surfaces.


3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.





Technical Data




Carbon Steel + Copper Powder + ( + Pb + Filler)



STRUCTURE AND COMPOSITION



· Metal-Polymer Composite Self-lubricating Bushing Material
· Steel Back + Porous Bronze Sinter +
· + Lead



Microsection




Metal-Polymer Plain Bearings Grease Lubricated |  Self-Lubricating Bearings PAP P10 Elevator Bushings 3

Sliding layer
+ Lead


Porous Bronze Sinter
Steel Backing




OPERATING PERFORMANCE

Dry

Very Good

Oil lubricated

Good

Grease lubricated

Fair

Water lubricated

Fair

Process fluid lubricated

Fai

Max. load

Static

250N/mm2

Dynamic

140N/mm2

Max. speed

Dry

2m/s

Lubrication

>2m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Continuous

1.8N/mm2*·m/s

Temp.

-195℃~+280℃

Friction coefficient

0.03~0.20

Thermal conductivity

42W (m·k)-1

Coefficient of thermal expansion

11*10-6k-1




Availability




Bearing forms available in standard dimensions


· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates





START YOUR
PROJECTWith an Application Engineer

 Bushing,  Bearing, Line Bearing, Coated Bushing, POM Bush, POM Bearing

Bushings,Lubricated Bearings,Composite Bearings,Metal Bearings,Compressor Bearings,Metal-polymer,Filament Wound,Plain Bearings,Flange Bearings,Polymer Bearings,Flange Bushings,Pump Bearings,Flanged Bushes,Thrust Plates,Industrial Bearings



viiplus products are widely used in all industrial fields



Widely used in hydraulic and pneumatic industries, forging machine tool industry, plastics machinery industry, lifting and handling machinery, port machinery, office, fitness machinery, textile machinery, food packaging, filling machinery, chemical machinery, printing and packaging, paper making machinery, automobiles, railways Steam locomotives, shipbuilding industries, presses, metallurgical machinery, construction machinery, etc.
