Contact Person : Tiffany

Material Handling Equipments Bearings Forklifts Bushing Parts & Self-Lubricating

Place of Origin Composite plain cylindrical bushings manufacturer
Brand Name VIIPLUS BUSHINGS SUPPLIER
Certification ISO 3547 DIN 1494 Assembly Standard Tolerance
Model Number Material Handling Equipments Forklifts Bushing & self-lubricating Bearing
Minimum Order Quantity 1000 Piece/Pieces
Price $0.05 - $1.00 / Pieces
Packaging Details Packaging: Export carton; Wooden case ; Wood pallet.
Delivery Time 7~15 work days
Payment Terms TT in advance,Western Union
Supply Ability Special Customized Lubricating Bushings Manufacturing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Carton Steel , Bronze , Plating Tin Or Copper
Characteristic Low-maintenance And Maintenance-free Plain Bearings Type Bushes, Collar Bushes, Washers, Strips Or Special Designs
Size Standard Size Available Quality OEM
Port Shanghai Application Pallet Truck,fork Lift Trucks, Lifting Platform Trucks Bushing
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self Lubricating Bronze POM Bushing, Metal Polymer Bushings POM BUSH Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

oil impregnated brass sleeve bearing

,

flanged plain bearing

Leave a Message
Product Description

Material Handling Equipment refers to a broad category of machines and tools that are used for moving, lifting, stacking, or transporting materials. Some key components and parts that play crucial roles in the operation of these equipment include bearings, forklifts, bushings, and self-lubricating materials.
Bearings are mechanical components that constrain relative motion and reduce friction between moving parts. They are commonly found in material handling equipment like conveyor systems, cranes, and forklifts. Bearings enable smooth rotation or linear motion of shafts, axles, or other parts. The type and design of bearings vary depending on the application and the loads they need to bear.
Forklifts are a type of material handling equipment used to lift and transport loads. They have forks that can be inserted under pallets or other load-bearing platforms to lift and move materials. Forklifts are widely used in warehouses, distribution centers, and factories to improve efficiency and reduce manual handling.
Bushing parts are cylindrical components that are inserted into a hole or recess to provide a bearing surface. Bushings are often made of softer materials like brass, bronze, or plastics and are used to protect shafts, rods, or other components from wear and tear. Bushings also reduce friction and vibration between moving parts in material handling equipment.
Self-lubricating materials refer to materials that have lubricating properties and do not require the addition of external lubricants. In material handling equipment, self-lubricating bearings, bushings, or other components can reduce maintenance requirements and downtime by eliminating the need for periodic lubrication. These materials are often made of composites or alloys that contain lubricants embedded within their structure.
In summary, bearings, forklifts, bushings, and self-lubricating materials are all crucial components and materials that play important roles in the operation and efficiency of material handling equipment. By understanding the functions and properties of these parts, one can better maintain and optimize the performance of their material handling systems.


FORKLIFT BUSHING PARTS & BEARINGS Specially designed and made for Customized size.Forklifts Bushing&Bearings The Self-Lubricating Bearing Your Business Needs


Material Handling Equipments Forklifts Bushing & self-lubricating Bearing

Polymer Plain Bearings



Overview


VIIPLUS CHINA offers a wide range of forklifts bushings & bearing to suit your diverse load handling requirements.Compared with traditional rolling bearings, self-lubricating bearings developed by the company have the characteristics of maintenance free, low cost and corrosion resistance, so they are widely used in outdoor logistics machinery such as porters, stacking machines, lifting platform vehicles and port machinery.
Sliding Bearing forms available in standard dimensions:Plain cylindrical bearings, flanged bearings, thrustwashers, sliding plates.


Customized bushings manufacturing


Upon request, we can offer inch-sizes, special lengths, bearings to drawing and various -layers for different areas of use as well as different backings in bronze or stainless steel etc.
Self lubricating flange bearing with sliding layer.
Characteristics
– Maintenance-free (self-lubricating)
– Low coefficient of friction
– Universal bearing
– Long lifespan

Areas of use e.g.
Packaging machinery, motors, turbines, pumps, forklifts etc.
Customized for Fork Lifts Metal-Polymer Anti-Friction Plain Bearings
Cylindrical Bushings pallet trucks,forklift trucks, lifting platform trucks
VIIPLUS Fork Truck Service Lifts Bushings designs Loaders, fork lifts and air compressors are heavy construction machinery.


Typical Applications



Logistics, Port machinery

As the self-lubricating bearing developed by the company has the advantages of maintenance-free, low cost and corrosion resistance, it is widely used in outdoor logistics machinery such as pallet trucks, forklift trucks, lifting platform trucks and port machinery.
Self-lubricated bearings are designed to service the most demanding heavy duty applications.VIIPLUS bearings resist impact, operate in dusty dry conditions and reduce costly and time consuming lubrication maintenance. Applications within mining, forestation, earth moving, sewage treatment, cranes, elevators and heavy machinery are suitable candidates for VIIPLUS Bearings.

Fork lifts Plain Bearings


Characteristics


VSB-10 Self-Lubricating Multilayer Composite Bushing


  • Bushing material suitable for lubricated applications
  • self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
  • Anti-friction bearing suitable for linear, oscillating and rotating movements
  • Material is designed to operate without supplemental lubrication and will perform excellent when lubrication is present. Low friction, low wear rate, good sliding characteristics and very low absorption are a few of the features of this material. VSB-10 bushings will support rotary, linear and oscillating motion.



Strusture

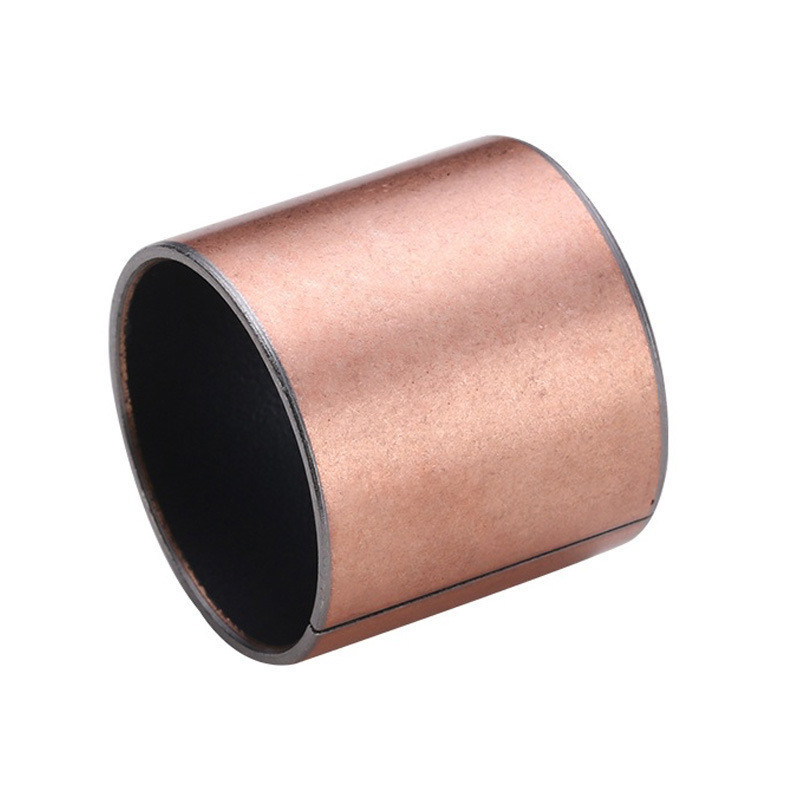

Metal-Polymer Anti-Friction Plain Bearings


  • ROLLED DRY SLIDING BEARINGS ()
  • Steel + Bronze Powder + /Fibre
  • Wrapped Lined (maintenance-free), self lubricated plain or flanged bearings, thrust washer and strip, Carbon steel shell with sintered bronze layer filled with


1. /Fibre mixture thickness 0.01~0.03mm. It is the contact surface for the rotating shaft. Minute partides of the layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.
2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the layer and conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.


TECHNICAL DATA


Carbon Steel + Copper Powder + ( + Pb + Filler)


Polymer Plain Bearings



Structure And Composition



1. Metal-Polymer Composite Self-lubricating Bushing Material
2. Steel Back + Porous Bronze Sinter +
3. + Lead



Microsection



Polymer Plain Bearings

Sliding layer
+ Lead

Porous Bronze Sinter
Steel Backing




OPERATING PERFORMANCE

Dry

Very Good

Oil lubricated

Good

Grease lubricated

Fair

Water lubricated

Fair

Process fluid lubricated

Fair



Technical Data



Max. load

Static

250N/mm2

Dynamic

140N/mm2

Max. speed

Dry

2m/s

Lubrication

>2m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Continuous

1.8N/mm2*·m/s

Temp.

-195℃~+280℃

Friction coefficient

0.03~0.20

Thermal conductivity

42W (m·k)-1

Coefficient of thermal expansion

11*10-6k-1
