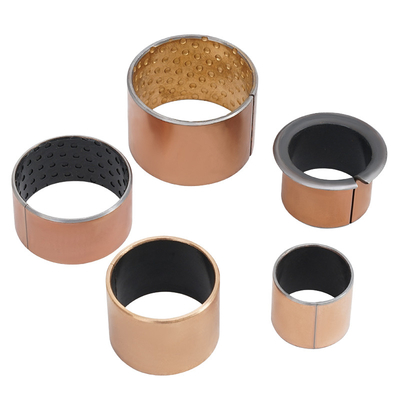

Replace bearing & bushings for office equipment, copier & printer bushing shredder bushing, rotating chair bearings

  • Replace bearing & bushings for office equipment, copier & printer bushing shredder bushing, rotating chair bearings
  • Replace bearing & bushings for office equipment, copier & printer bushing shredder bushing, rotating chair bearings
  • Replace bearing & bushings for office equipment, copier & printer bushing shredder bushing, rotating chair bearings
  • Replace bearing & bushings for office equipment, copier & printer bushing shredder bushing, rotating chair bearings
  • Replace bearing & bushings for office equipment, copier & printer bushing shredder bushing, rotating chair bearings
Place of Origin Composite plain cylindrical bushings manufacturer
Brand Name VIIPLUS BUSHINGS SUPPLIER
Certification ISO 3547 DIN 1494 Assembly Standard Tolerance
Model Number DU DX BUSHINGS
Minimum Order Quantity 1000 Piece/Pieces
Price $0.05 - $1.00 / Pieces
Packaging Details Packaging: Export carton; Wooden case ; Wood pallet.
Delivery Time 7~15 work days
Payment Terms TT in advance,Western Union
Supply Ability Special Customized Lubricating Bushings Manufacturing
Product Details
Meterial Carton Steel , Bronze , PTFE Plating Tin Or Copper
Characteristic Low-maintenance And Maintenance-free Plain Bearings Type Bushes, Collar Bushes, Washers, Strips Or Special Designs
Size Standard Size Available Quality OEM
Port Shanghai Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Self Lubricating Bronze POM Bushing, Metal Polymer Bushings
POM DX BUSH Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ... Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

oil impregnated brass sleeve bearing

,

flanged plain bearing
Leave a Message
Product Description

Polymer Plain Bearings



Office equipment Bushings VIIPLUS SLIDING BEARING Order Online CHINA manufacture self-lubricating bearing has simple structure, light weight, completely without refueling, and low noise and long life and other characteristics of this kind of bearing can be heavily used in office automation equipment, typical use: fax machines, photocopiers, shredders, scanners, printers, and so on various joints and reciprocating motion component.

SLEEVE BUSHINGS PRESS FIT  Journal Bearing Type—Thin Walled Steel Backing Journal bearings.Replace bearing & bushings for office equipment, copier & printer bushing shredder bushing, rotating chair bearings

Thin walled, split seam steel backing, zinc plated

VIIPLUS COMPANY ,the main product is office chair pivot point for the self-lubricating plastic plain bearings.

Replace bearing & bushings  for office equipment, copier bushing, printer bushing, shredder bushing, rotating chair bearing.

Bearing & bushings for office machine — Steel Backing Journal bearings,split bushings

Metal-Polymer Anti-Friction Plain Bearings self-lubricating Bearings Cylindrical PTFE Office Equipment steel coated du sliding bushings|VSB-10
Polymer Plain Bearings

Metal-Polymer Anti-Friction Plain Bearings

  • ROLLED DRY SLIDING BEARINGS (PTFE)

  • Steel + Bronze Powder + PTFE/Fibre(DU)

  • Wrapped PTFE Lined (maintenance-free), self lubricated plain or flanged bearings, thrust washer and strip, Carbon steel shell with sintered bronze layer filled with PTFE

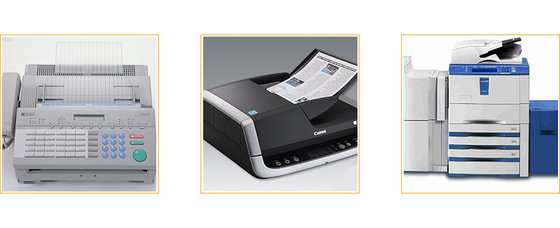

Typical Applications


Office Equipment

The company's self-lubricating bearings have a simple structure, light weight, no refueling and low noise and long life characteristics such as bearings can be used in office automation equipment, a large number of typical use: fax machines, photocopiers, broken Paper machines, scanners, printers and other joints and reciprocating parts.

Our self-lubricating bearings are everywhere. It can help you create a quiet and comfortable working environment. Photocopying, printers, shredders, revolving chairs, etc.



Polymer Plain Bearings

  • Printer shaft sleeve

  • Copier shaft sleeve

  • Fax Machine shaft sleeve

Characteristics




VSB-10 Self-Lubricating Multilayer Composite Bushing

  • Bushing material suitable for lubricated applications

  • self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions

  • Anti-friction bearing suitable for linear, oscillating and rotating movements

  • Material is designed to operate without supplemental lubrication and will perform excellent when lubrication is present. Low friction, low wear rate, good sliding characteristics and very low absorption are a few of the features of this material. VSB-10 bushings will support rotary, linear and oscillating motion.

Strusture


1. PTFE/Fibre mixture thickness 0.01~0.03mm. It is the contact surface for the rotating shaft. Minute partides of the PTFE layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.

2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the PTFE layer and conducts the thermal build up away from the bearing surfaces.


3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.





TECHNICAL DATA

Carbon Steel + Copper Powder + (PTFE + Pb + Filler)

STRUCTURE AND COMPOSITION

· Metal-Polymer Composite Self-lubricating Bushing Material
· Steel Back + Porous Bronze Sinter +
· PTFE + Lead

OPERATING PERFORMANCE

Dry

Very Good

Oil lubricated

Good

Grease lubricated

Fair

Water lubricated

Fair

Process fluid lubricated

Fai

Technical data

Max. load

Static

250N/mm2

Dynamic

140N/mm2

Max. speed

Dry

2m/s

Lubrication

>2m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Continuous

1.8N/mm2*·m/s

Temp.

-195℃~+280℃

Friction coefficient

0.03~0.20

Thermal conductivity

42W (m·k)-1

Coefficient of thermal expansion

11*10-6k-1
AVAILABILITY

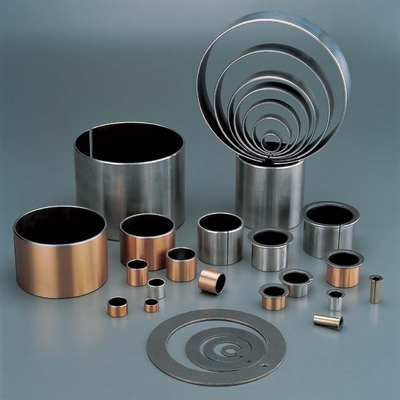

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates

START YOUR PROJECT With an Application Engineer

DU Bushing, DU Bearing, Line Bearing, Ptfe Coated Bushing, DX Bush, DX Bearing

VIIPLUS Provide all types of electronic samples for customers,Metal-Polymer Composite Bearings Catalog!

Bushings,Lubricated Bearings,Composite Bearings,Metal Bearings,Compressor Bearings,Metal-polymer,Filament Wound,Plain Bearings,Flange Bearings,Polymer Bearings,Flange Bushings,Pump Bearings,Flanged Bushes,Thrust Plates,Industrial Bearings.viiplus products are widely used in all industrial fields.Widely used in hydraulic and pneumatic industries, forging machine tool industry, plastics machinery industry, lifting and handling machinery, port machinery, office, fitness machinery, textile machinery, food packaging, filling machinery, chemical machinery, printing and packaging, paper making machinery, automobiles, railways Steam locomotives, shipbuilding industries, presses, metallurgical machinery, construction machinery, etc.
