Product Details
Meterial Carton Steel , Bronze , PEEK Plating Tin Or Copper
Port ShangHai Type Bushes
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Valve Bushings Suppliers Self-lubricating, Metal-polymer Plain Bearing Metal-Polymer Anti-Friction Plain Bearings
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

oil impregnated bushings

,

ptfe sleeve bearing

Leave a Message

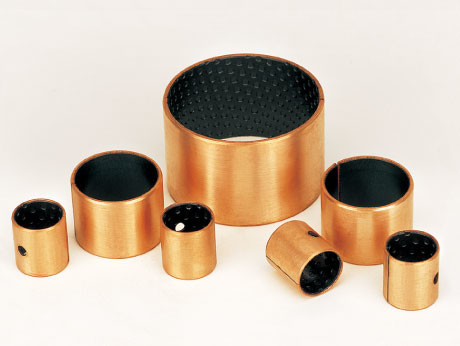

Product Description

Gate, globe, and check valves are critical components in various industrial fluid systems, controlling the flow of liquids and gases. The performance and durability of these valves depend heavily on the quality of their internal components, particularly the steel shaft bushes and plain bearings.

Steel shaft bushes play a vital role in guiding and supporting the movement of the valve stem. They must withstand high loads and frequent operation while maintaining a tight seal to prevent leakage. Metal polymer composites are increasingly being used in the manufacture of these bushes due to their exceptional mechanical properties.

These composites offer a unique combination of strength, stiffness, and wear resistance. They can also be tailored to specific application requirements, providing optimized performance in a range of environments. In ball valve plain bearings, metal polymer composites offer superior durability and reduced friction, enhancing the overall performance of the valve.

Our company specializes in the production of gate, globe, and check valve sleeve steel shaft bushes and ball valve plain bearings using metal polymer composites. We employ advanced manufacturing techniques and rigorous quality control procedures to ensure the highest levels of performance and reliability.

Wh you're upgrading an existing system or designing a new one, we can provide the right solution for your valve bush and bearing needs. Contact us today to learn more about our products and how we can help you achieve superior performance in your fluid system applications.



Gate ,Globe ,Check Valve Sleeve Steel Bushes Ball Valve Washer Butterfly Valve Spilt shaft Bushings supplier China Cheap Wholesale Bushing-There are various self-lubricating bearings available for choice. - POLYMER PLAIN BEARINGS Manufacturer for many years.



Valves bearings are used for trunnion bearings, stem guide bearings and thrust washers.
VIIPLUS VALVE SPLIT SLEEVE BUSHINGS bearings are used extensively by manufacturers due to the material’s ability to maintain low friction under heavy loads. VIIPLUS VALVE SPLIT SLEEVE BUSHINGS bearings have a metal backing and a composite self lubricating liner, which gives the combination of high strength, excellent chemical resistance and a low coefficient of friction.
Slide oilless Boundary-Lubrication bearing Lead free Composite bushings
Self‐lubricated Sliding bearings are exhibiting the ability to transfer a microscopic amount of lubrication film to the mating surface to enhance the machine performance & to reduce friction throughout its operating life, without any added grease or oils and ensuring clean, maintenance free operation in the most challenging environments.
Description

VSB-30  Metal-Polymer Hydrodynamic Composite Bearings

Steel Bronze Powder with PEEK/ Marginal Bearings, provides maintenance-free operating, Temperature be allowance from -150 until +250°C, operate satisfactorily without lubrication under lieght duty and low speed, high static and dynamic load

Steel + Bronze Powder + PEEK/



CHARACTERISTICS


VSB-30 Features

1 . VSB-30 provides maintenance-free operation

2 . Operate satisfectorily without lubrication under light duty and low speed

3 . VSB-30 has a high PV capability under high temperature

4 . Temperature allowance is from -150℃-+250℃

5 . Good chemical resistance

6 . High static and dynamic load capacity

7 . No water absorption

8 . Suitable for rotating , oscillating , reciprocating and sliding movement .



STRUSTURE



1.PEEK/ 0.30~0.50mm. It has high wear resistance and low friction even only minute of lubricant are supplied. The bearing surface carries a pattern of circular indents which will be filled with grease on assembly of the bearing.



2.Bronze layer 0.20~0.35mm. A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the layer and conducts the thermal build up away from the bearing surfaces.



3.Steel backing.Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation  Characteristics.

Gate , Globe , Check Valve Sleeve Steel Shaft Bushes Ball Valve Metal Polymer Composites Plain Bearing 0



TECHNICAL DATA



Max. load

Static

250N/mm2

Dynamic

140N/mm2



Rotaing oscillating

60N/mm2

Max. speed

Dry

5m/s

Lubrication

>5m/s

Max. PV (Dry)

Short-time

4.8N/mm2*·m/s

Continuous

3.6N/mm2*·m/s

Temp.

-150℃~+250℃

Friction coefficient

0.03~0.20

Thermal conductivity

50W (m·k)-1

Coefficient of thermal expansion

11*10-6k-1

AVAILABILITY

Bearing forms available in standard dimensions

· Cylindrical bushes

· Thrust washers

· Sliding plates

TYPICAL APPLICATIONS

VSB-30 bearings application covers gear pump , ABS system , piston pump , gear motor , machine tools , agricultural machinery and so on . The materials is recommended with initial pre-lubrication at assembly .

SIZE
