sliding bushings are suitable for dry running, low friction, less wear, good sliding properties, forming a transmission layer that can protect the mating metal surface, suitable for rotating and oscillating motion. sliding bushings has very high chemical resistance, low water absorption and swelling. It also copes well with lubrication.

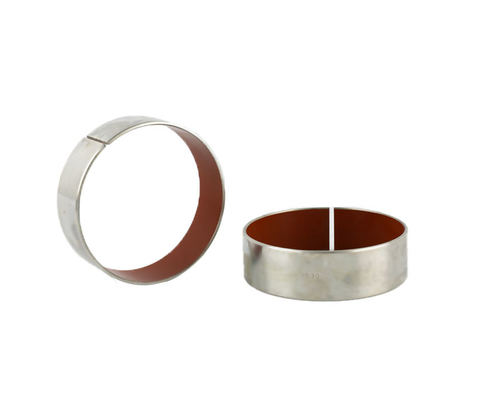

Wrapped composite bearing with sliding layer - Maintenance-free

• Dry slide bearing requires no lubrication
• High static and dynamic load capacity

Steel + Porous Bronze Sinter + + Pb

• 0.01 ~ 0.03mm fiber blend, lead-free, provides an excellent initial transfer film that effectively covers the mating surface of the sleeve assembly to form a solid oxide-type lubricant film.
• Sintered bronze powder 0.20-0.35mm, provides maximum thermal conductivity away from the sleeve surface, also serves as a reservoir for mixture.
• The steel carrier ensures high load-bearing capacity and excellent heat dissipation.
• 0.002 mm tin-copper coating provides good corrosion resistance.

Customized Bushing & Sliding Bearings

Made to order Components - manufactures and designs custom self-lubricating bearings for the most extreme high temperature, high pressure and corrosive conditions.du bushing, du bush, bronze bushing, replacements.Bronze bushings or bushes are necessary components.Bushing & Bearing Manufacturer | =Bushings (Metric) I Bush Alternative

Nominal Diameter Width Wall

Thickness Shaft

Diameter Housing

ID Installed Bushing ID Clearance

Plain Bearings & Self-lubricating Bushings Metal Polymer Bronze Plain Bearing | steel sleeve bushings by size Spare parts and Textile machinery bushings

VIIPLUS Bushing & Bearings is now mainly used in textile machinery bearings components.Composite Bushing: SF-1  PAP PAF PAS P10 P20 SF-2 POM

“Self-lubricating Bearings for Textile Machinery”: VIIPLUS your partner of sliding bearings solutions for textile machinery . VIIPLUC from china have experience in the textile machinery spare bushing parts industry.

Spare Bushings parts of Spinning Textiles Mills Spinning Unit's Machinery self-lubricating bearings Spare Parts.

Viiplus tri-layer maintanence-free bushing have a base of lower carbon steel, onto which a porous bronze layer is sintered. mixtures are impregnated into the intersice of this bronze layer after rolling process completed. VIIPLUS 10 SERIES has good physical & mechanical properties, also has certainly chemical properties. It is suitable for rotary, oscillating movement with performance of self-lub. Anti-wear, lower firction, lower noise.

Self lubricating plain bearings with sliding layer

1. Self-lubricating Layer Mixture 0.01-0.03mm. After rolling process completed, mixtures are filled in intersice of bronze layer. Under normal operation, Part of mixture on top layer will be removed and transferred on the mating surface, forms a physically lubricating film, which will reduced the firction coefficient and protect the mating shaft.
2. Porous Bronze layer; The layer provides bonded strength of Self-Lub. Layer.
3. Steel Backing The layer provides load & thermal conductivity
4. Copper / Tin layer

Steel Backed Lined Bushings

steel-backed, sintered-bronze lined bearing.

used in dry, semi lubricated environment.

It has a wide applicable temperature range from -319 degrees F to 518 degrees F. The thin walls and

Light weight construction enable a compact design of the product.

It can substitute a conventional bearing where saving space is desired.

Steel Backed Bushing provides superior shock and impact load resistance. The Steel Backed Lined bushing maintains a low coefficient of

friction and is usable without lubrication at high load, low speed operations with excellent wear resistance.

VSB-10 Metal-Polymer Anti-Friction Plain Bearings

ROLLED DRY SLIDING BEARINGS ()
Steel + Bronze Powder + /Fibre

Wrapped Lined (maintenance-free), self lubricated plain or flanged bearings, thrust washer and strip, Carbon steel shell with sintered bronze layer filled with

VSB-10 Self-Lubricating Multilayer Composite Bushing
· Bushing material suitable for lubricated applications
· self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
· Anti-friction bearing suitable for linear, oscillating and rotating movements
Material is designed to operate without supplemental lubrication and will perform excellent when lubrication is present. Low friction, low wear rate, good sliding characteristics and very low absorption are a few of the features of this material. VSB-10 bushings will support rotary, linear and oscillating motion.

· Metal-Polymer Composite Self-lubricating Bushing Material
· Steel Back + Porous Bronze Sinter + + Lead

Bearing forms available in standard dimensions

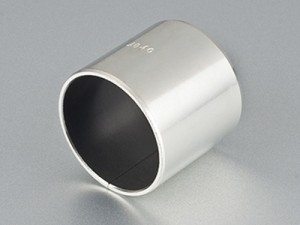

· Cylindrical bushes

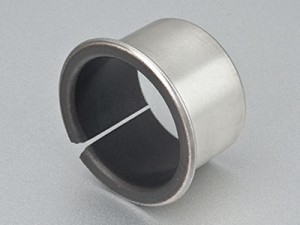

· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates

Plain bearings are available as bushes, collar bushes, washers, strips or special designs.
Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping or deep drawing, customized bushing designs

Lubrication Free with Excellent Wear Resistance

The Steel Backed Bronze Bushing is used in a variety of applications in a number of industries. Below are a few of the more common uses:

Hydraulic Systems: Bushing for Valves and Rotary Actuator, Bushing for Gear Pumps, Bushing for Cylinders, Bushings for Shock absorber, Bushing for Lucas Hydraulic Pump,

Food Processing: Bottling Machine, Bottle Washer, Automatic Bag Maker, Dairy Processors, Meat Choppers, Mixers

Automobiles: Suspension Bushings, Steering, Brake Bushings, Clutch, Transmission Bushings

Railroad Cars: Side Thrust absorber, Automatic Doors Bushings

Ships: Steering Linkages, Hatch Covers, Pulley Blocks Bushings

Aircraft: Control Linkage, Shock absorber bushings, Actuator Valves bushings, winches

Printing: Offset Printer, Gravure Printer, Mail Printer, Automatic Ticket Bender, Automatic Book Binder

Textile Industry: Spinning frame, Yarn Twister, Sheet Roller, Winders
This material meets the demanding criteria for long life and maintenance free performance with or without lubrication.
Automotive: tractors, combines, crop sprayers, earth-movers, graders and other construction, auto machines, specific uses in power steering cylinders, steering gear thrust washers, disc brakes, calipers and pistons, shock absorbers, governor linkage, windshield wiper motor, tilt gear assemblies...
Business machines: photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers and peripheral equipment, automatic printing devices, mail processing machinery...
Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions...
Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines...And materials handling, marine engine, packaging, textile equipment, tools...etc.

viiplus products are widely used in all industrial fields:Widely used in hydraulic and pneumatic industries, forging machine tool industry, plastics machinery industry, lifting and handling machinery, port machinery, office, fitness machinery, textile machinery, food packaging, filling machinery, chemical machinery, printing and packaging, paper making machinery, automobiles, railways Steam locomotives, shipbuilding industries, presses, metallurgical machinery, construction machinery, etc.
