Wrapped Bushing Size, Bronze CuSn8 Material

Place of Origin made in china
Brand Name VIIPLUS
Certification ISO 9001
Model Number GLIDLAGER
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability Perforated Bronze Bearing,Plain Bronze Wrapped Bearings
Product Details
Material Copper CUSN8 Bushing Specification Full Range Of Sizes
Type Split Bronze Bushing Item Wrapped Bronze Bearing
Application Forest Machine,farm Equipment Feature High Load
High Light

Bronze CuSn8 Wrapped Bushing

,

DIN 1494 Wrapped Bushing

,

CuSn8 Wrapped Bronze Bearings

Leave a Message
Product Description

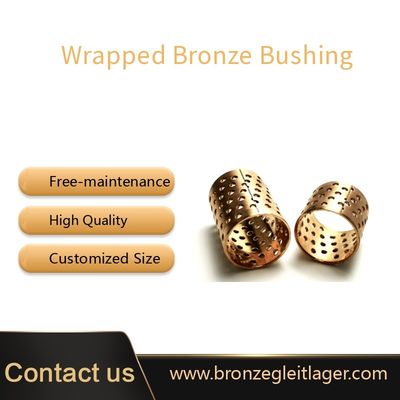

Wrapped bushing, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance, WB902 230/235x60 slide bearing

Material: Homogeneous bronze



wrapped Bushing is a bronze material for the matrix, processing uniform and orderly injection hole, the rolling made of thin-walled bearings, lubricating grease after assembly, and then configure the end face seal and use. The bearing has a large amount of oil, easy installation, the advantages of small size design, and can replace the use of copper sets, can greatly reduce costs.
At present the product has been used in conveyors, lifts, roll field machines, school-level machines, such as medium and low-speed occasions.



092 wrapped bronze bushing



Material



  • Support material CuSn8P (DIN 17662)
  • alternative CuSn6P available



Shaft Material



  • Steel, hardened or untempered, surface roughness < Ra 0.8



Technical Parameters



Data Code FB-092
Material CuSn8P(Qsn8-0.3)
Applications   Products are widely used in agricultural machinery, construction machinery, engineering machinery.
Density g/cm³   8.8
Max Load Capacity N/mm²   120
Max Line Speed V Grease Lubrication m/s 2.5
PV Value Limit Grease Lubrication N/mm²·m/s 2.8
Tensile Strength N/mm²   >460
Yield Strength N/mm²   >280
Hardness HB   90~150
Friction Coefficient u   0.06~0.15
Mating Axis Hardness HRC ≥50
Roughness Ra 0.4~1.0
Working Temperature ℃   -40~+150
Thermal Conductivity W/mk   58
Coefficient Of Linear Xpansion   18.5×10-6/K
In addition to the standard products shown in the catalog, you can also provide non-standard products or order according to customer requirements.





Tolerance Details



  • Housing ØH7
  • Bushing inner-Ø after mountingH9
  • Shaft tolerancef7 to h8



Properties





  • Economic solution for bronze bearing application due to a thin wall thickness. High load capability and good stability with low abrasion. Suitable for rough working conditions, good corrosion resistance. Lubrication holes for maximum grease storage and the lowest maintenance intervals.



Structure Characteristics and Applications:



wrapped bushing application



wrapped bronze bushing is made of tin-bronze CuSn8 that is of high density, its surface is punched with oil apertures by certain angle and density therefore its easier to form an oil film when the bushing works. It has good anti-fatigue and load, anti-erosion anti-abrasion and load capacity. The products are widely applied in conditions of heavy load but low running velocity, such as on agricultural, buiding and engineering machines.



wrapped bronze bushing

Product Benefits:



1.Saving large amount of bronze material and save the working hours normally spent for lathing the bronze bushing.



2.Compared with lathed bushings and roller bearings, it is lights and more cost-effective.



3.Various holes and dents can be made on the friction surface for grease storage, prolonging the lubrication interval to 5 times as long as required by the bronze bushing.



4.Extremely high load sustainability, especially suitable for coarse abrasion surfaces.



Standard products available: straight bushings, thrust plates and pressure bearings.



Non-standard products available: sleeve bushings, thrust plates, flanged bushing, bearing bushings, slide plates and steel bushing combination.



Wrapped bearings standard sizes list for your reference

wrapped bronze bushing



I.D.after fixed O.D f1 f2 10 15 20 25 30 35 40 50 60 70 80 90 100
