Custom Plain Bearings Washer Cusn8 & Cusn6.5 Graphite Standard Size Cylindrical Flanged Sleeve Bushing

Place of Origin	Self Lubricating Bearings Manufacturers
Brand Name	REPLACE BRAND Metal-Polymer Bearings BEARINGS ()
Certification	DIN 1494, ISO 3547 STANDARD BUSHING
Model Number	BUSHING TYPE FLANGED PLAIN SLEEVE
Minimum Order Quantity	NEGOTIABLE
Price	Competitively Priced vs DU DX, Provides Lubricating Bush
Packaging Details	WOOD PALLET ,WOODEN CASES,CARTON,BUSHINGS EXPORT STANDARD, CUSTOMER SPECIFIED REQUIREMENTS
Delivery Time	7-20 DAYS,STOCK SIZE BUSHING IMMEDIATE DELIVERY
Payment Terms	TT IN ADVANCE WESTERN UNION
Supply Ability	Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Meterial	Bronze CuSn8 Graphite 09G	Port	Shanghai
Quality	OEM	Szie	Accordning Customer Drawing Or Samples
Type	Plain Bearings Bushes	Standard Size	FLANGE BUSHES
Bearing Bushing Factory Price	Tiffany@viiplus.com	Self-lubricating Bearing Bushing Manufacturer	Https://www.viiplus.com/
High Light	Coated Self Lubricating Plain Bearing, Ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing	Characteristic	Втулки скольжения (биметаллические подшипники скольжения)
Dry Slide Bearing	Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running.	Bush Bearings Manufacturers Suppliers Exporters	Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Highlight	self lubricating bearing , sintered self lubricating bushes

Leave a Message

Product Description

We specialize in manufacturing custom plain bearings washers made of Cusn8 and Cusn6.5 graphite materials. These washers come in a standard size and feature a cylindrical flanged sleeve bushing design, ensuring optimal performance and durability in various applications.

The Cusn8 and Cusn6.5 graphite materials possess excellent wear resistance and corrosion resistance, making them suitable for use in harsh environments. The cylindrical flanged sleeve bushing design provides excellent support and stability, ensuring smooth operation and reduced friction.

Our custom plain bearings washers are precision-made to meet your specific requirements and can be customized to fit different shaft diameters and housing bore sizes. Wh you need a single washer or a large batch, we can provide you with high-quality products and timely delivery.

If you have any questions or need more information about our custom plain bearings washers, please feel free to contact us. We are committed to providing you with the best products and services.

Plain bearings, flanged bearings and thrust washers

We can supply plain bearings in a wide variety of materials, sizes, tolerances and designs.

09g bronze graphite wrapped bushing bronze sleeve oilles self-lubrication bearing

bronze wrapped bearings cusn8 & cusn6.5p0.1 with graphite

standard size cylindrical flanged sleeve bushing 09g

Description

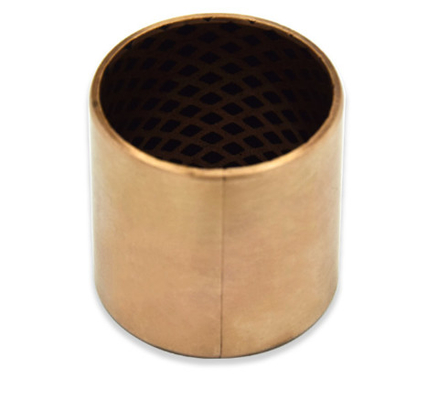

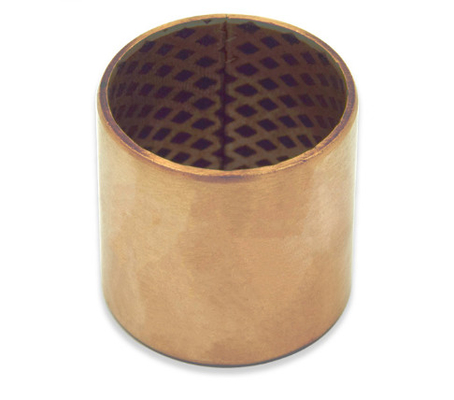

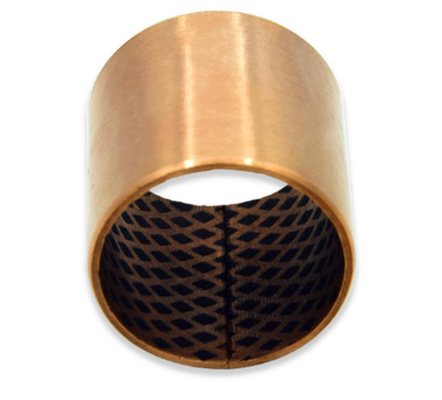

VSB-22 Bronze Wrapped Bearing with Graphite
(09G CYLINDRICAL BUSHES BRONZE FLANGE BUSHES Gleitlager standard size)

Bronze Warpped Bearings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
·Good performance in lubricated applications
·Good performance in greased applications
·Suitable for linear, oscillating and rotating movements

Self Lubricating Plain Bearing

Vsb-22 09g Cylindrical Bushes Flange Bushes

Wrapped Bronze Bearings (low-maintenance), used for heavy load applications, offered with lubrication pockets, grooves or thru holes, plain or flanged bearings and strip

These are similar to the VSB-22 range, except there are solid lubricants embedded into the diamond shaped lubrication indents on the bearing surface, which provide good lubrication conditions at the start up stage, even with a lack of oil. It can be used in construction machinery, gear boxes, automotive clutch parts etc.

Strusture

The bearings are wrapped from a cold formed homogenous bronze (CuSn8) with exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents in the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery applications.

Technical Date

Technical data
Maximum load	Static load	N/mm²	120
Maximum load	Dynamic load	N/mm²	40
Operating temperature	Minimal	℃	-40
Operating temperature	Max greased	℃	150
	Max oil lubricated	℃	250
Grease/Oil lubricated	Maximum sliding speed	m/s	2.5
	Maximum PV factor	N/mm²·m/s	2.8
	Coefficient of friction		0.05-0.15

Availability

Bearing forms available in standard dimensions

· Cylindrical bushes

Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs

Typical Applications

These are similar to the CSB-090 range, except there are solid lubricants embedded into the diamond shaped lubrication indents on the bearing surface, which provide good lubrication conditions at the start up stage, even with a lack of oil. It can be used in construction machinery, gear boxes, automotive clutch parts etc.
