DIN1494 / ISO3547 Sliding Wrapped Flange Sleeve Bushing

Certification
China JIAXING VIIPLUS INTERNATIONAL TRADING CO.,LTD certification
China JIAXING VIIPLUS INTERNATIONAL TRADING CO.,LTD certification
Customer Reviews
Our company import the bronze gleitlager from viiplus china,viiplus professional team makes sure customs clearance is always smooth. They provide an accurate bronze bushing classification, handle all the paperwork,We have received the self-lubricating bronze bushings. They look well done and the high quality.

—— David from Canada

We import the bronze gleitlager from China to under the incoterm FOB shanghai, sometimes by Air. viiplus is a very good bronze gleitlager supplier, they are very professional and patient, after we inform the new order, they will manufacturer bronze gleitlager in time and give us the schedule , and then we just need to receive the bronze parts

—— Valerie from California

Bushes with steel backing,ptfe is good quality,not fall off.

—— Daisy From Germany

“Valve Bushings perfect,Thank you so much for your superior customer service!

—— Beverly from Florida

I'm Online Chat Now

DIN1494 / ISO3547 Sliding Wrapped Flange Sleeve Bushing

DIN1494 / ISO3547 Sliding Wrapped Flange Sleeve Bushing
DIN1494 / ISO3547 Sliding Wrapped Flange Sleeve Bushing DIN1494 / ISO3547 Sliding Wrapped Flange Sleeve Bushing DIN1494 / ISO3547 Sliding Wrapped Flange Sleeve Bushing DIN1494 / ISO3547 Sliding Wrapped Flange Sleeve Bushing DIN1494 / ISO3547 Sliding Wrapped Flange Sleeve Bushing

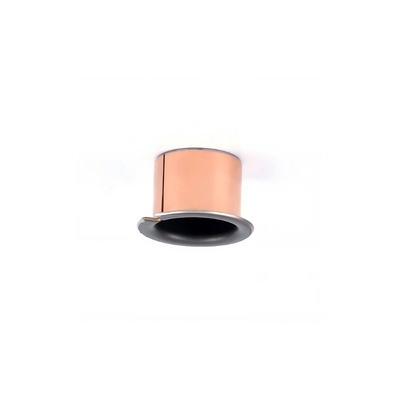

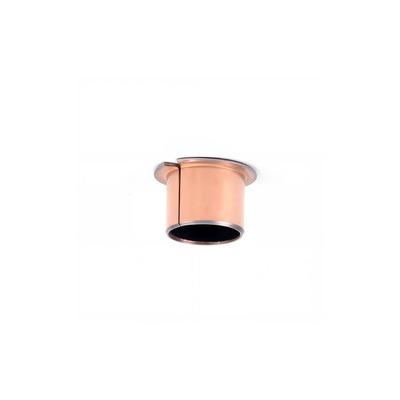

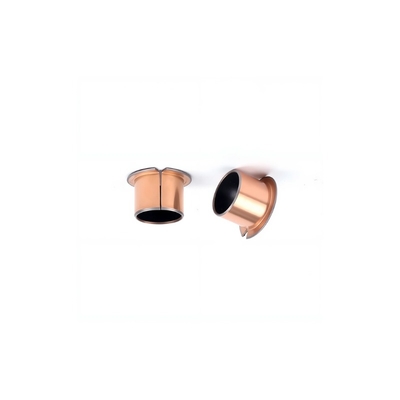

Large Image :  DIN1494 / ISO3547 Sliding Wrapped Flange Sleeve Bushing

Product Details:
Place of Origin: Flanged Bushings Manufacturer
Brand Name: Met Garlock Bearings (GGB) China Bushing
Certification: DIN1709
Model Number: Bushing type: Flanged Bearings, in Flange Width, PTFE Material
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: bearings metric sizes,thrust washers,flanged bearings Suppliers
Packaging Details: packing details for Stable perfomance Flanged bushing
Delivery Time: 7~20 Days
Payment Terms: TT IN ADVANCE
Supply Ability: 100000 Piece/Pieces per Day

DIN1494 / ISO3547 Sliding Wrapped Flange Sleeve Bushing

Description
Meterial: Carton Steel , Bronze , PTFE Plating: Tin Or Copper
Characteristic: Low-maintenance And Maintenance-free Plain Bearings Type: Bushes, Collar Bushes, Washers, Strips Or Special Designs
Size: Standard Size Available Quality: OEM
Port: Shanghai
High Light:

teflon flange bushing

,

metric flanged sleeve bearing

Metal-Polymer Anti-Friction Plain Bearings self-lubricating Bearings Cylindrical PTFE Concrete Pumps|VSB-10


Flange Bushing, PTFE Bush - PTFE Bush Exporter, Manufacturer, Service



Features of oil-free lubrication bearing series

1, no oil lubrication or less oil lubrication, can not be used for refueling or difficult to refuel the place, can be used in the maintenance or less maintenance.
2, wear resistance, friction coefficient, long service life.
3, there is the right amount of elastic-plastic, can stress distribution in a wide contact surface, improve the bearing capacity.
4, static and dynamic friction coefficient is similar to the crawl at low speed to eliminate, so as to ensure the accuracy of mechanical work.
5, can reduce mechanical vibration, reduce noise, prevent pollution, improve working conditions.
6, in the course of operation, can form a transfer film, play a role in protecting the grinding shaft, no bite axis phenomenon.
7, for the grinding shaft hardness requirements, are low, not quenched and tempered shaft can be used, thereby reducing the processing of the relevant parts difficult.







Metal-Polymer Anti-Friction Plain Bearings

  • ROLLED DRY SLIDING BEARINGS (PTFE)
  • Steel + Bronze Powder + PTFE/Fibre(DU)
  • Wrapped PTFE Lined (maintenance-free), self-lubricated plain or flanged bearings, thrust washer and strip, Carbon steel shell with sintered bronze layer filled with PTFE

du bushing size chart



du bushing size chart
  Di (mm) Do (mm) Sfl (mm) Dfl (mm) B (mm) bearing shaft The largest diameter (mm) Minimum diameter (mm) The maximum clearance(mm) The minimum clearance(mm)
BB0304DU 3 4.5 0.75 7 4 H6 h6 3.048 3 0.054 0
BB0404DU 4 5.5 0.75 9 4 H6 h6 4.048 4 0.056 0
BB0505DU 5 7 0.925 10 5 H7 f7 5.055 4.99 0.077 0
BB0604DU 6 8 0.925 12 4 H7 f7 6.055 5.99 0.077 0
BB0608DU 6 8 0.925 12 8 H7 f7 6.055 5.99 0.077 0
BB0806DU 8 10 0.925 15 5.5 H7 f7 8.055 7.99 0.083 0.003
BB0808DU 8 10 0.925 15 7.5 H7 f7 8.055 7.99 0.083 0.003
BB0810DU 8 10 0.925 15 9.5 H7 f7 8.055 7.99 0.083 0.003
BB1007DU 10 12 0.925 18 7 H7 f7 10.058 9.99 0.086 0.003
BB1009DU 10 12 0.925 18 9 H7 f7 10.058 9.99 0.086 0.003
BB1012DU 10 12 0.925 18 12 H7 f7 10.058 9.99 0.086 0.003
BB1017DU 10 12 0.925 18 17 H7 f7 10.058 9.99 0.086 0.003
BB1207DU 12 14 0.925 20 7 H7 f7 12.058 11.99 0.092 0.006
BB1209DU 12 14 0.925 20 9 H7 f7 12.058 11.99 0.092 0.006
BB1212DU 12 14 0.925 20 12 H7 f7 12.058 11.99 0.092 0.006
BB1217DU 12 14 0.925 20 17 H7 f7 12.058 11.99 0.092 0.006
BB1412DU 14 16 0.925 22 12 H7 f7 14.058 13.99 0.092 0.006
BB1417DU 14 16 0.925 22 17 H7 f7 14.058 13.99 0.092 0.006
BB1509DU 15 17 0.925 23 9 H7 f7 15.058 14.99 0.092 0.006
BB1512DU 15 17 0.925 23 12 H7 f7 15.058 14.99 0.092 0.006
BB1517DU 15 17 0.925 23 17 H7 f7 15.058 14.99 0.092 0.006
BB1612DU 16 18 0.925 24 12 H7 f7 16.058 15.99 0.092 0.006
BB1617DU 16 18 0.925 24 17 H7 f7 16.058 15.99 0.092 0.006
BB1812DU 18 20 0.925 26 12 H7 f7 18.061 17.99 0.095 0.006
BB1817DU 18 20 0.925 26 17 H7 f7 18.061 17.99 0.095 0.006
BB1822DU 18 20 0.925 26 22 H7 f7 18.061 17.99 0.095 0.006
BB2012DU 20 23 1.45 30 11.5 H7 f7 20.071 19.99 0.112 0.01
BB2017DU 20 23 1.45 30 16.5 H7 f7 20.071 19.99 0.112 0.01
BB2022DU 20 23 1.45 30 21.5 H7 f7 20.071 19.99 0.112 0.01
BB2512DU 25 28 1.45 35 11.5 H7 f7 25.071 24.99 0.112 0.01
BB2517DU 25 28 1.45 35 16.5 H7 f7 25.071 24.99 0.112 0.01
BB2522DU 25 28 1.45 35 21.5 H7 f7 25.071 24.99 0.112 0.01
BB3016DU 30 34 1.95 42 16 H7 f7 30.085 29.99 0.126 0.01
BB3026DU 30 34 1.95 42 26 H7 f7 30.085 29.99 0.126 0.01
BB3516DU 35 39 1.95 47 16 H7 f7 35.085 34.99 0.135 0.015
BB3526DU 35 39 1.95 47 26 H7 f7 35.085 34.99 0.135 0.015
BB4016DU 40 44 1.95 53 16 H7 f7 40.085 39.99 0.135 0.015
BB4026DU 40 44 1.95 53 26 H7 f7 40.085 39.99 0.135 0.015
BB4516DU 45 50 2.45 58 16 H7 f7 45.105 44.99 0.155 0.015
BB4526DU 45 50 2.45 58 26 H7 f7 45.105 44.99 0.155 0.015

Typical Applications




Flanged Sleeve Bearing


Concrete Pumps Plain Bearings Gleitlager



Flanged Sleeve Bearing









Characteristics



VSB-10 Self-Lubricating Multilayer Composite Bushing

  • Bushing material suitable for lubricated applications
  • self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
  • Anti-friction bearing suitable for linear, oscillating and rotating movements
  • Material is designed to operate without supplemental lubrication and will perform excellently when lubrication is present. Low friction, low wear rate, good sliding characteristics, and very low absorption are a few of the features of this material. VSB-10 bushings will support the rotary, linear, and oscillating motion.



Structure





1. PTFE/Fibre mixture thickness 0.01~0.03mm. It is the contact surface for the rotating shaft. Minute parties of the PTFE layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.

2. Sintered bronze powder thickness 0.20*0.35mm, A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the PTFE layer and conducts the thermal build-up away from the bearing surfaces.


3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.





Technical Data

Carbon Steel + Copper Powder + (PTFE + Pb + Filler)

Structure And Composition

· Metal-Polymer Composite Self-lubricating Bushing Material
· Steel Back + Porous Bronze Sinter +
· PTFE + Lead



Microsection



DIN1494 / ISO3547 Sliding Wrapped Flange Sleeve Bushing 2

Sliding layer
PTFE + Lead

Porous Bronze Sinter
Steel Backing





OPERATING PERFORMANCE
Dry Very Good
Oil-lubricated Good
Grease lubricated Fair
Water lubricated Fair
Process fluid lubricated Fair

Technical data

Max. load Static 250N/mm2
Dynamic 140N/mm2
Max. speed Dry 2m/s
Lubrication >2m/s
Max. PV (Dry) Short-time 3.6N/mm2*·m/s
Continuous 1.8N/mm2*·m/s
Temp. -195℃~+280℃
Friction coefficient 0.03~0.20
Thermal conductivity 42W (m·k)-1
Coefficient of thermal expansion 11*10-6k-1






Availability




Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates



Plastic Plain Bearings







START YOUR
PROJECT With an Application Engineer

DU Bushing, DU Bearing, Line Bearing, Ptfe Coated Bushing, DX Bush, DX Bearing

VIIPLUS Provide all types of electronic samples for customers, Metal-Polymer Composite Bearings Catalog!

Bushings, Lubricated Bearings, Composite Bearings, Metal Bearings, Compressor Bearings, Metal-polymer, Filament Wound, Plain Bearings, Flange Bearings, Polymer Bearings, Flange Bushings, Pump Bearings, Flanged Bushes, Thrust Plates, Industrial Bearings
 self lubricating bronze bushing

Viplus products are widely used in all industrial fields

Widely used in hydraulic and pneumatic industries, forging machine tool industry, plastics machinery industry, lifting and handling machinery, port machinery, office, fitness machinery, textile machinery, food packaging, filling machinery, chemical machinery, printing and packaging, paper making machinery, automobiles, railways Steam locomotives, shipbuilding industries, presses, metallurgical machinery, construction machinery, etc.



self lubricating bronze bushing
