C86300 SAE430B Metallic Cuzn25Al5Mn4fe3 Graphite Plugged Bronze Bushings Customized Centrifugal Casting

Product Details:
Place of Origin: Graphite Bearings Manufacturers
Brand Name: SANKYO,MISUMI,DAIDO,SELF LUBE,GGB,FIBRO STANDARD REPLACEMENT BEARING
Certification: DIN 1850/ISO 4379, UNITED STATES UNS STANDARD,C86300
Model Number: solid bushing, bronze with lubricant plugs embedded Maintenance-free
Payment & Shipping Terms:
Minimum Order Quantity: NEGOTIABLE
Price: Price Graphite Bushing Parts, (SAE 660) Leaded Tin Bronze Bearings,863 (SAE 430B) 862 (SAE 430A)Manganese Bronze
Packaging Details: BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS
Delivery Time: FAST DELIVERY
Payment Terms: TT IN ADVANCE
Supply Ability: Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers
Contact Now

Detail Information

Material: Bronze +Graphite,Aluminum-Bronze With Solid Lubricant,CuZn25AI5Mn4Fe3 Model Number: Cylinder Bearings,Cylinder Bearings With Flange
Feature: Self Lubrication Lubrication: Graphite
Application: Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc. Type: FLANGE/SLEEVE/WASHER

Product Description

C86300 (SAE 430B CuZn25Al5Fe3Mn4) Centrifugal Casting Bronze Bushing Custom Size Sliding Bearing Bush made in china

You can search for C86300 bronze bushings products.CAD data downloading is also available for registered members.

Chemical Composition:

Cu

Sn

Pb

Zn

Fe

Ni

Sb

P

S

Al

Mn

Si

60.00-66.00

0.2

0.2

22.00-28.00

2.0-4.0

1.0

N/A

N/A

N/A

5.0-7.5

2.5-5.0

N/A

Mechanical Properties:

Tensile Strength (min)

Yield Strength (at 0.5% extention under load min)

Elongation (in 2in. or 50mm min, %)

Brinell Hardness (min)

Ksi

MPa

Ksi

MPa





110

758

62

427

14

210

Excvavtor bushes Solid Bronze Metallic CuZn25AI5Mn4Fe3 Plug Graphite Cast Bronze Bearings Solid Bronze Lubrication

with best solutions or any problem in self lubricatng bearings in Excvavtor bushes



Metal base inlaid solid self-lubricating bearing (JDB for short) is a new type of self-lubricating bearing which has the characteristics of both metal bearing and self-lubricating bearing.It has the characteristics of high bearing capacity, impact resistance, high temperature resistance, strong self-lubricating ability and so on, especially suitable for heavy load, low speed, reciprocating or oscillating and so on difficult to lubricate and form oil film occasions, also not afraid of water and other acid corrosion and erosion.It is generally reported by the majority of users that embedded bearings not only save oil and energy, but also have a longer working life than ordinary sliding bearings.At present, the products have been widely used in metallurgical continuous casting machines, steel rolling equipment, mining machinery, ships, steam turbines, water turbines, injection molding machines and equipment production lines.

For all the global industry Provide high-quality self-lubricating products

C86300 (SAE 430B CuZn25Al5Fe3Mn4) is a tough, corrosionresistant alloy with outstanding wear characteristics. Ideal for high load, lowspeed applications including Gears, Valve Stems,Bushings, Cams, Wear Rings for Pressing Dies for Wood Pulp Industry, HighStrength Machine Parts, Hooks, Frames, Shafts, Marine



VSB-50 Solid Bronze Metallic Self-lubricating Bearings

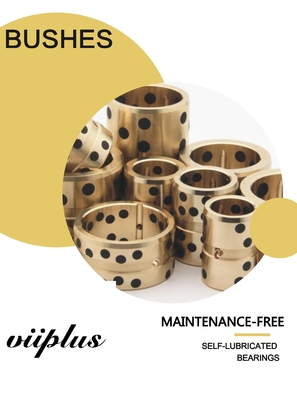

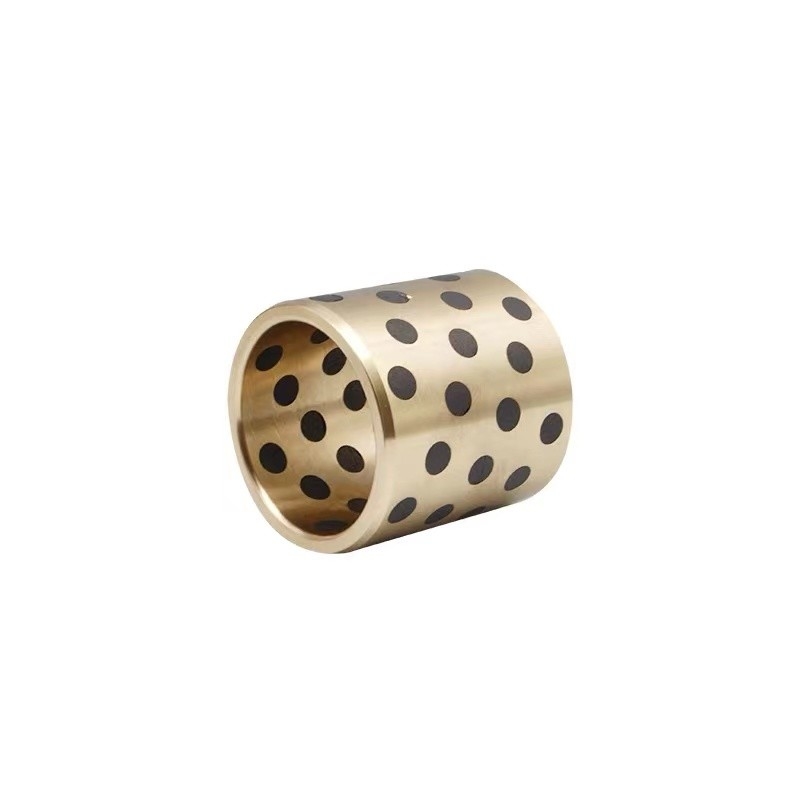

Cast Bronze Bearing with Graphite Plugs

Application:

Excvavtor bushes



C86300 SAE430B Metallic Cuzn25Al5Mn4fe3 Graphite Plugged Bronze Bushings Customized Centrifugal Casting

Material

CuZn25AI5Mn4Fe3





Structure Characteristics and Applications
VSB-50 Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion abitity in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.

Solid Lubricant Casting Aluminum Bronze Bearings Bushings

CHARACTERISTI

with Solid Graphite Lubrication. Various material specifications, standard and special shapes are also available


VSB-50  Solid lubricating bearings

1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃

STRUSTURE



VSB-50 SOLID LUBRICANT SLIDING BEARINGS material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.


TECHNICAL DATA



Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm



AVAILABILITYC86300 SAE430B Metallic Cuzn25Al5Mn4fe3 Graphite Plugged Bronze Bushings Customized Centrifugal Casting

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates

Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs
CUSTOMER SIZE






START YOUR
PROJECTWITH AN APPLICATION ENGINEER
