UCT Dimension Specification Table Of Flanged Sleeve Bearing With Seat , Long Life

Basic Infomation
Place of Origin: Zhejiang, China (Mainland)
Brand Name: VIIPLUS pillow blocks
Certification: ISO 9001
Model Number: FLANGE SLEEVE BRONZE BUSHINGS
Minimum Order Quantity: 10000 Piece/Pieces (Min. Order)
Price: Negotiable
Packaging Details: STANDARD EXPORT PACKING.CARTONS / PALLETS /WOODEN CASE
Delivery Time: 2~4 Weeks
Payment Terms: T/T PREPARD, T/T, L/C, D/A, D/P
Supply Ability: 100000 Piece/Pieces per Month
Detail Infomation
Meterial: Chrome Steel Main Market: Europe America Africa Middle-East
Package: Cartons ,Wooden Pallet,Industrial Package Application: Machinery
Service: OEM Offered Type: Pillow Block Outside The Spherical Bearing With T UCT203 T204/205 / T206 / T207 / T208 / T209 UCT21 UCT206 Diameter 30 】 【

Product Description



Pilllow block Bearing UCT200 & UCT300 Series type seat

Definition of pillow block Bearings: a block or standard to support a journal (as of a shaft) : BEARING



Bearing service life


Sliding bearing, long bearing life, long service life, corrosion resistance, extreme working conditions, abrasive environment



Bearing UELP, UCP, UKP respectively represent what meaning, what is the difference?

Bearing with seat, P stands for vertical seat, UC stands for cylindrical hole with bearing inner ring, with two stop screws
UK indicates that the bearing inner ring is a taper hole and should be used together with the taper sleeve
Cylindrical hole of UEL inner ring, fixed with eccentric sleeve
General can be general, who is convenient to choose who installation







Outside the spherical bearing with T UCT203 T204/205 / T206 / T207 / T208 / T209 UCT21 UCT206 diameter 30

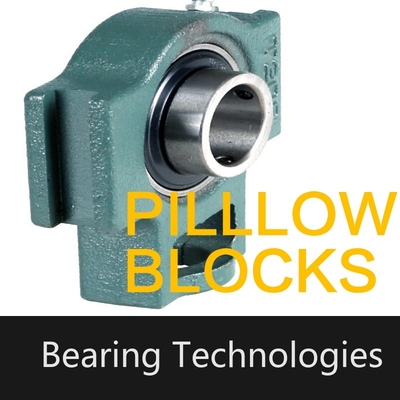

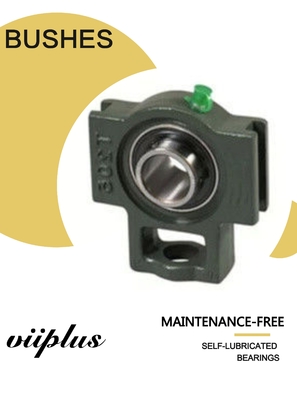

UCT seat bearing formerly known as UCT type seat with slider type wire spherical bearing.Functions: 1. There are two sliders in the upper and lower part of the seat, which can be moved back and forth on the frame. Therefore, it is most suitable for the occasions where the distance between the shafts needs to be adjusted.Used for belt, chain and other transmission shaft.UCT bearing with seat is divided into 200 series and 300 series, UCT300 series bear more load than UCT200 type.

D is the outer diameter of uc spherical bearing, which is not marked in the figure. D is the inner diameter of bearing, which is not listed in the table. The calculation method is the last two digits of the model multiplied by 5, which is the value of D.The fastening screws and bearing seat oil nipple are not shown in the drawing.





UCT300 Pilllow Block Bearing Sizes Table

Dimension specification table of bearing with seat





UCT Dimension Specification Table Of Flanged Sleeve Bearing With Seat , Long Life


TYPE SIZE(mm) Pilllow Block Bearing Weight(kg) Bearing code bearing block code
D B S L L1 L2 H H1 A A1 A2 N N1 N2
UCT305 62 38 15 122 76 12 89 80 36 12 26 26 16 36 1.4 UC305 T305
UCT306 72 43 17 137 85 14 100 90 41 16 28 28 18 41 1.8 UC306 T306
UCT307 80 48 19 150 94 15 110 100 45 16 32 30 20 45 2.4 UC307 T307
UCT308 90 52 19 162 100 17 124 110 50 18 34 32 22 50 3.0 UC308 T308
UCT309 100 57 22 178 110 18 138 120 55 18 38 34 24 55 4.0 UC309 T309
UCT310 110 61 22 191 117 20 151 125 61 20 40 37 27 61 5.0 UC310 T310
UCT311 120 66 25 207 127 21 163 140 66 22 44 39 29 66 6.4 UC311 T311
UCT312 130 71 26 220 135 23 178 150 71 26 46 41 31 71 7.6 UC312 T312
UCT313 140 75 30 238 146 25 190 170 80 26 50 43 32 70 9.7 UC313 T313
UCT314 150 78 33 252 155 25 202 180 90 26 52 46 36 85 11.0 UC314 T314
UCT315 160 82 32 262 160 25 216 192 90 30 55 46 36 85 14.0 UC315 T315
UCT316 170 86 34 282 174 28 230 204 102 32 60 53 42 98 16.0 UC316 T316
UCT317 180 96 40 298 183 30 240 214 102 35 64 53 46 98 20.0 UC317 T317
UCT318 190 96 40 312 192 30 250 228 110 35 66 57 46 106 22.0 UC318 T318
UCT319 200 103 41 322 197 31 270 240 120 35 72 57 48 106 25.0 UC319 T319
UCT320 215 108 42 345 210 32 290 260 120 38 75 59 48 115 32.0 UC320 T320
UCT321 225 112 44 345 210 32 290 260 130 45 75 59 52 115 32.0 UC321 T321
UCT322 240 117 46 385 235 38 320 285 140 50 80 65 60 125 40.0 UC322 T322
UCT324 260 126 51 432 267 42 355 320 150 50 90 70 65 140 55.0 UC324 T324
UCT326 280 135 54 465 285 45 385 350 155 22 100 75 70 150 69.0 UC326 T326
UCT328 300 145 59 515 315 50 415 380 155 24 100 80 75 160 84.0 UC328 T328





Pilllow block Bearings Series

  1. Outer spherical ball Pilllow block bearing with vertical seat
  2. Outer spherical Pilllow block bearing with square seat
  3. Outer spherical ball Pilllow block bearing with diamond seat
  4. Cylindrical spherical ball Pilllow block bearing with boss
  5. Outer spherical ball Pilllow block bearing with annular seat
  6. Outer spherical ball Pilllow block bearing with sliding block seat
  7. External spherical ball Pilllow block bearing with suspension seat
  8. External spherical ball Pilllow block bearing with suspension seat
  9. Outer spherical ball Pilllow block bearing with adjustable diamond seat
  10. Outer spherical ball Pilllow block bearing with punch seat
  11. Outer spherical ball Pilllow block bearing with other seats
