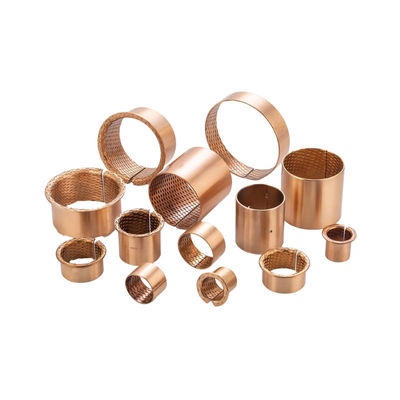

Flange Bronze Bushing Cusn8 Phosphor Bronze Material
Place of Origin | Flanged Bushings Manufacturer |
---|---|
Brand Name | Met Garlock Bearings (GGB) China Bushing |
Certification | DIN1709 |
Model Number | Bushing type: Flanged Bearings, in Flange Width, PTFE Material |
Minimum Order Quantity | Negotiable |
Price | bearings metric sizes,thrust washers,flanged bearings Suppliers |
Packaging Details | packing details for Stable perfomance Flanged bushing |
Delivery Time | 7~20 Days |
Payment Terms | TT IN ADVANCE |
Supply Ability | 100000 Piece/Pieces per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMeterial | Bronze CuSn8 092 Glidlager | Feature | High Load |
---|---|---|---|
Type | Sleeve, Flange, Washer | Lubrication | Oil Lubrication Bushes |
Specification | Std.size In Stock | Bushing Sale | Phosphor Bronze Bushing, Wrapped Bronze Bearing |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Bearing Bushing Factory Price | Tiffany@viiplus.com |
Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ | Item | Bucha Sinterizada Flangeada |
High Light | Flange Self-lubricating Bearings | High Light | Flanged Sleeve Bearing Bushing Manufacturers |
Flange Bearing Bushing | Manufactures Flange Bearing Dry Slide Bushings In Various Designs And From Different Materials. ... And Flanged Bushings Can Accommodate Radial And Axial Loads In One Direction. | Flange Bushes | Flanged Bushings (mounted), Depending On Bore Diameter D: Flange Diameter |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
High Light | flanged sleeve bearing bronze,teflon flange bushing |
Monometallic Material CuSn8 bronze bushing and bearing made to order
Flange Sleeve Bearing, Buying Request of Bronze Wrapped Bearings

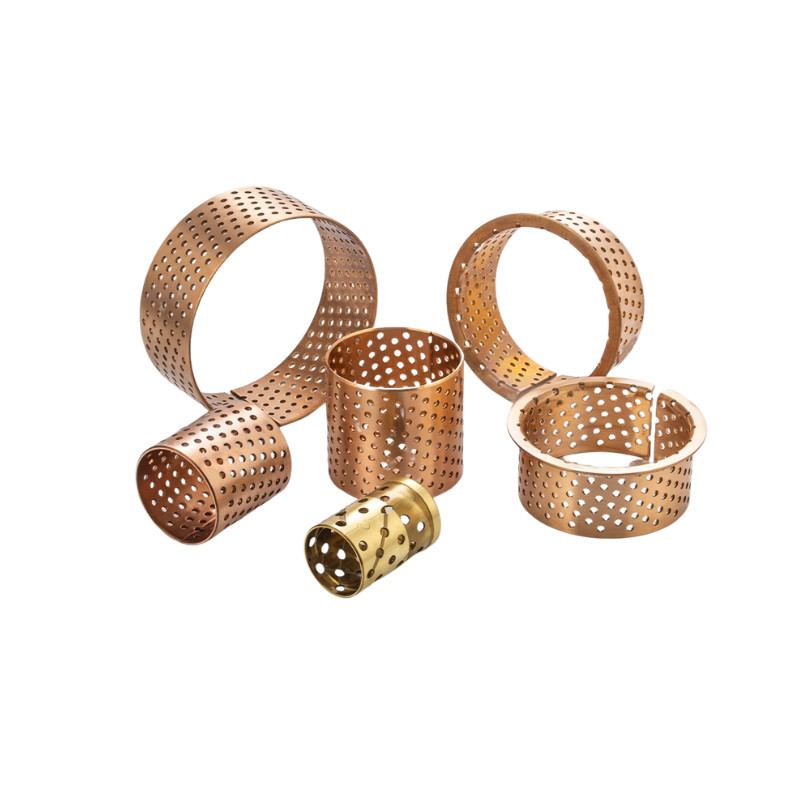

CuSn8 Bronze Bearings Wrapped Bronze Bearings Series phosphor bronze bearing & sleeve bushing made to order from china.
Bronze Wrapped Bearing Strip
Our bronze wrapped bearing strip has been developed for slow speed, high load applications, especially suited for oscillating motion and are perfect for the construction, mining/quarrying, agriculture, and automotive industries.
These Wrapped Bronze Bearings Series bronze bearings have been developed for slow speed, high load applications, especially suited for oscillating motion and are perfect for the construction, mining/quarrying, agriculture, and automotive industries.
Our Wrapped Bronze Bearings Series range of plain bearings are available with lubrication pockets, thru-holes, and grooves. This range is available in metric sizes only.
Our in-house machining service is able to produce non-standard sizes to suit specific customer requirements.
- Wrapped Bronze Bearings Series

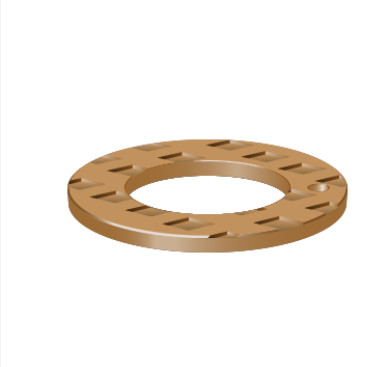

- Bronze Wrapped Washers
- Bronze Wrapped Bearing Strip
- Bronze Wrapped Plain Bearings

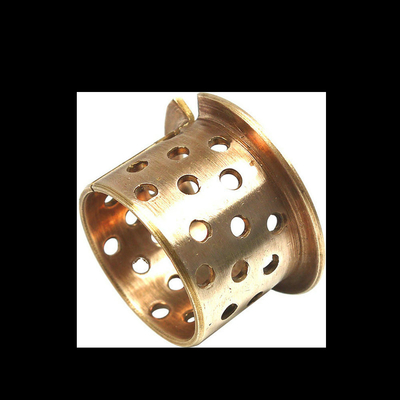

- Bronze Wrapped Flanged Bearings
VSB-22 090 Cylindrical Bushes Flange Bushes
Our range of VIIPLUS bronze bearings manufactured from CuSn8 rolled phosphor bronze alloy material are extremely versatile and well suited for a wide range of applications. These bronze bearings have been developed to for slow speed, high load applications, especially suited for oscillating motion and are perfect for the construction, mining/quarrying, agriculture, and automotive industries.
Bronze Bearing Factory, Bronze Bushing supplier, CuSn8 flange bronze bush

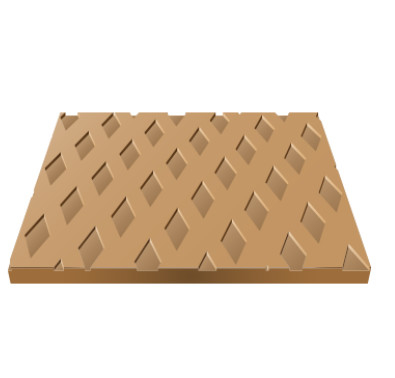

- Bearing material made of the solid bronze strip with indents for lubrication
- Good wear resistance, suitable for rough conditions
- Optimum performance under relatively high loads and low speeds
Strusture

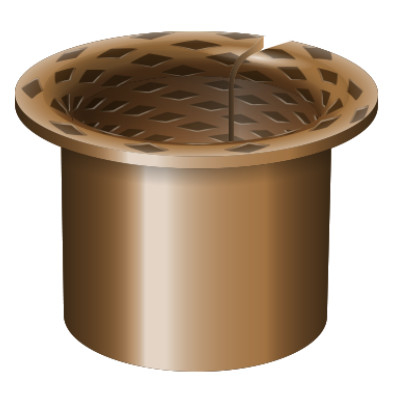

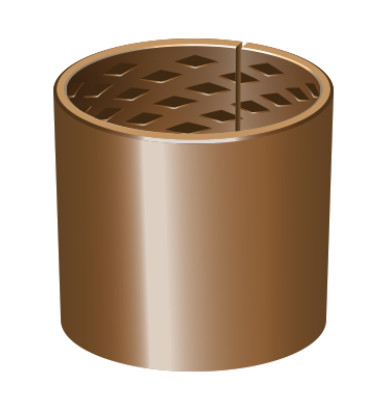

The bearings are wrapped from a cold-formed homogenous bronze (CuSn8) with exceptional material properties. The standard sizes are fitted with diamond-shaped lubrication indents in the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of the movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery applications.
Technical Data
Structure And Composition
Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents
Microsection
CuSn8 with composition Sn 8 % P < 0.05 % Cu Rest |
OPERATING PERFORMANCE | |
Dry | Poor |
Oil lubricated | Good |
Grease lubricated | Good |
Water lubricated | Poor |
Process fluid lubricated | Poor |
Tech. Data
Max.Load | Static | 120N/mm² | Elongation | 40% | ||
Dynamic | 40N/mm² | |||||
Temp | -100℃~+200℃ | |||||
Coefficient of friction | 0.08~0.25 | |||||
Max.speed(Lubrication) | Max.Speed | 2m/s | Thermal conductivity | 58W(m*k)-1 | ||
Max.PV | Max.PV | 2.8N/mm²*m/s | Coef. of thermal expansion | 18.5*10-6K-1 | ||
Tensile strength | Tensile strength | 450N/mm² | ||||
Hardness | Hardness | HB 100-150 |
Availability
Bearing forms available in standard dimensions
· Cylindrical bushes
Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs
Typical Applications
This type of bushing is widely applied in hoisting machines and other construction machines, automobiles, tractors, trucks, machine tools, and some mineral engines. It can be fabricated into bushes, half bearings, flanged bushes, taist washers, spherical bearing, and so on.
Bronze Wrapped Bushings Size
