MISUMI offers high-quality low-friction oil-free bushings made of brass alloy, reinforced with graphite and copper. These bushings are designed to provide exceptional performance in a range of industrial applications.
The brass alloy used in the bushings exhibits excellent strength and corrosion resistance, ensuring long-term durability. The addition of graphite and copper further enhances the bushings' wear resistance and self-lubricating properties.
The oil-free design eliminates the need for regular lubrication, reducing maintenance requirements and operational costs. This also makes the bushings suitable for use in environments where oil contamination is not desirable.
The bushings' low-friction characteristics contribute to smoother and more efficient operation of rotating equipment. They are suitable for use in pumps, motors, compressors, and other mechanical systems where high loads and speeds are common.
MISUMI's brass alloy bushings with graphite and copper reinforcement are precision-manufactured to ensure accurate fit and reliable performance. They are an excellent choice for improving the efficiency and reliability of your industrial systems.

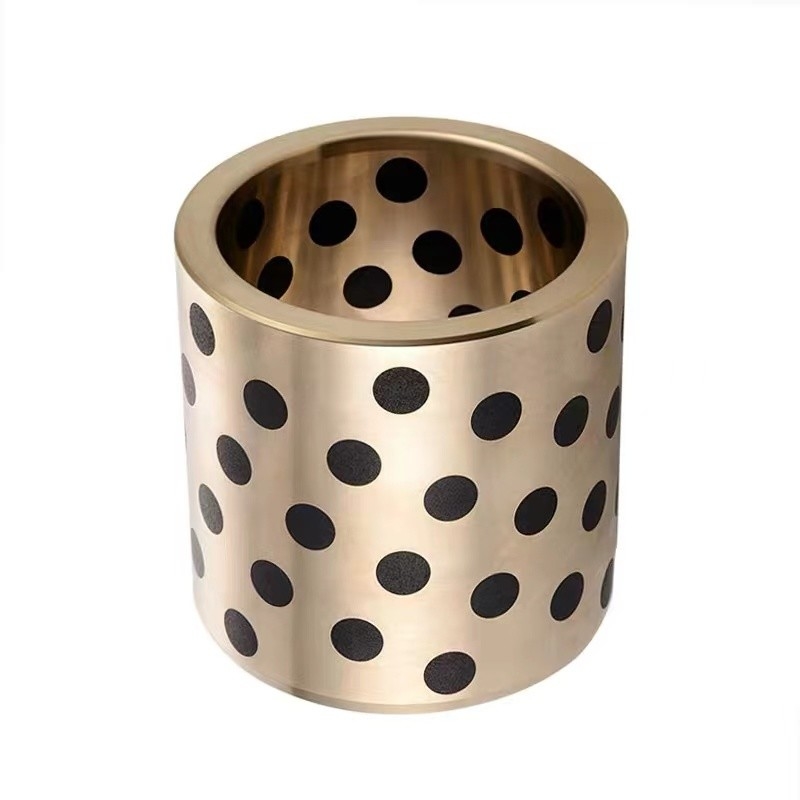

Graphite Impregnated Brass Bushing Oil Free Bushing - Brass Alloy, Straight, I.D. F7 (MISUMI) (MPBZU12-15)
MPBZ MPBZU MPBR MPBRU MPBPU MPBZP series Oil-free Brass guide bush for self-lubricating
| Type | Straight | Bushing Material | Graphite Impregnated Brass | Maximum Allowable PV Value Range(N/mm2•m/s) | 1.1～2.0 |
|---|---|---|---|---|---|
| Maximum Allowable PV Value(N/mm2•m/s) | 1.65 | Maximum Allowable Load(N/mm2) | 29 | Maximum Allowable Velocity(m/s) | 0.5 |
| Mounting Hole Fits | H7 |
Model: Various Material: Copper-based alloy Color
classification: MPBZU 20-10L size (20*24*10) MPBZU 20-15L size (20*24*15) MPBZU 20-20L size (20*24*20) MPBZU 20-25L size (20*24*25 ) MPBZU 20-30L size (20*24*30) MPBZU 20-35L size (20*24*35) MPBZU 20-40L size (20*24*40) MPBZU 20-45L size (20*24*45) MPBZU 20-50L size (20*24*50) MPBZU 20-55L size (20*24*55) JDB 20*25*15 JDB 20*25*20 JDB 20*25*25 JDB 20*25*30 JDB 20* 25*35 JDB 20*25*40
Bearing mechanism: solid friction
Lubricant type: solid lubrication
Additional features: high temperature
Bearing load direction: radial bearing
MISUMI / FIBRO / DANLY standard size, in stock, with the best quality, the best price, bronzegleitlager.com is the best choice!
Product details
| Type | Straight | Bushing Material | Graphite Impregnated Brass |
|---|---|---|---|
| I.D. d(mm) | 12 | O.D. D(mm) | 15 |
| Overall Length L(mm) | 15 | Maximum Allowable PV Value Range(N/mm2•m/s) | 1.1～2.0 |
| Maximum Allowable PV Value(N/mm2•m/s) | 1.65 | Maximum Allowable Load(N/mm2) | 29 |
| Maximum Allowable Velocity(m/s) | 0.5 | Mounting Hole Fits | H7 |
| Operating Temperature Range(℃) | -40～150 | Operating Temperature Range (No Lubrication) Min | -40 |
| Part Number | - | L |
| MPBZ10 MPBZU16 |
- - |
15 20 |
| D | O.D. m6 (*1) | Housing Dia. H7 (*2) |
| 7~10 | +0.015 | + 0.015 |
| +0.006 | 0 | |
| 11~18 | +0.018 | + 0.018 |
| +0.007 | 0 | |
| 19~30 | +0.021 | + 0.021 |
| +0.008 | 0 | |
| 31~50 | +0.025 | + 0.025 |
| +0.009 | 0 | |
| 51~80 | +0.030 | + 0.030 |
| +0.011 | 0 | |
| 81~120 | +0.035 | + 0.035 |
| +0.013 | 0 |
| Part Number | L | MPBZ | MPBZU | |||||||||||||||||||||
| Type | dF7 | Dm6 (*1) |
Thickness (N) | *Rotation Stopper Screw (Reference) | Dm6 (*1) |
Thickness (N) | ||||||||||||||||||
| MPBZ MPBZU *L dimensions in ( ) are available only for MPBZ. |
5 | +0.022 +0.010 |
8 | (9) | 10 | 12 | (15) | 9 | 2 | M4x8 | 7 | 1 | ||||||||||||
| 6 | 8 | (9) | 10 | 12 | 15 | 16 | (19) | (20) | 10 | 8 | ||||||||||||||
| 8 | +0.028 +0.013 |
8 | (9) | 10 | 12 | 15 | 16 | (19) | 20 | (25) | 12 | 10 | ||||||||||||
| 10 | 8 | (9) | 10 | 12 | 15 | 16 | (19) | 20 | 25 | (30) | 14 | 12 | ||||||||||||
| 12 | +0.034 +0.016 |
(8) | (9) | 10 | 12 | 15 | 16 | (19) | 20 | 25 | (30) | (35) | 18 | 3 | 15 | 1.5 | ||||||||
| 13 | (9) | 10 | 12 | 15 | 16 | (19) | 20 | 25 | (30) | (35) | 19 | 16 | ||||||||||||
| 15 | (9) | 10 | 12 | 15 | 16 | (19) | 20 | 25 | 30 | (35) | (40) | 21 | 18 | |||||||||||
| 16 | (9) | 10 | 12 | 15 | 16 | (19) | 20 | 25 | 30 | (35) | (40) | 22 | 20 | 2 | ||||||||||
| 18 | (9) | (10) | 12 | 15 | 16 | (19) | 20 | 25 | 30 | (35) | (40) | 24 | M5x8 | 22 | ||||||||||
| 20 | +0.041 +0.020 |
(9) | (10) | (12) | 15 | 16 | (19) | 20 | 25 | 30 | (35) | 40 | (50) | (60) | 28 | 4 | 24 | |||||||
| 20A | (9) | (10) | (12) | (15) | (16) | (19) | (20) | (25) | (30) | (35) | (40) | (50) | 30 | 5 | - | |||||||||
| 25 | (12) | 15 | 16 | (19) | 20 | 25 | 30 | (35) | 40 | (50) | (60) | 33 | 4 | 29 | ||||||||||
| 25A | (12) | (15) | (16) | (19) | (20) | (25) | (30) | (35) | (40) | (50) | (60) | 35 | 5 | - | ||||||||||
| 30 | (12) | 15 | 16 | (19) | 20 | 25 | 30 | (35) | 40 | (50) | (60) | (70) | 38 | 4 | M6x16 | 34 | ||||||||
| 35 | +0.050 +0.025 |
20 | 25 | 30 | (35) | 40 | (50) | (60) | (70) | 44 | 4.5 | 40 | 2.5 | |||||||||||
| 40 | 20 | 25 | 30 | (35) | 40 | 50 | (60) | (70) | (80) | 50 | 5 | 45 | ||||||||||||
| 50 | 30 | (35) | 40 | 50 | (60) | (70) | (80) | 62 | 6 | M8x16 | 55 | |||||||||||||
| 60 | +0.060 +0.030 |
(50) | (60) | (70) | (80) | 75 | 7.5 | - | - | |||||||||||||||
| 80 | (60) | (70) | (80) | 96 | 8 | - | - | |||||||||||||||||
| 100 | +0.071 +0.036 |
(80) | (100) | 120 | 10 | - | - | |||||||||||||||||
[ ! ]For housing diameter, tolerance H7 (*2) to D dimensions (*1) is recommended. (Refer to Table 1) *Indicated dimensions of Rotation Stopper Screw are recommended dimensions.
