Wrapped Bronze Bearings CuSn8 Material Wieland-B09

Place of Origin CHINA
Brand Name Viiplus Wrapper bronze bearing
Certification ISO 3457
Model Number Wrapper bronze bearing
Minimum Order Quantity negotiate
Price negotiate
Packaging Details Export Carton Wood Pallet Wooden Case
Delivery Time 5-25 works day
Payment Terms L/C, T/T, Western Union
Supply Ability Perforated Bronze Bearing,Plain Bronze Wrapped Bearings
Product Details
MATERIAL CuSn8,Cusn6.5p0.1 Design Criteria ISO 3457 Bushing
Advantage Easy To Install And Lubricate; Strong Carrying Capacity; Bushing Size Metric Size & Inch Size

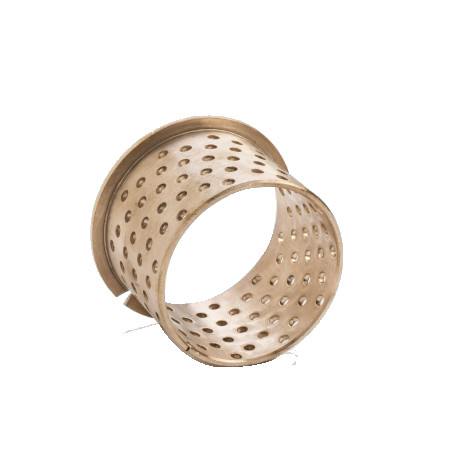

Bushing Type Flange Size & Split Bushing Self Lubricating Bearings Oilless Material
High Light

metric bronze bushings

,

wrapped bronze bushings

Leave a Message
Product Description

Get The CuSn8 Bronze Bushings Products You Need To Maintain Your Equipment At Optimal Performance. Order Wrapped Bronze Bushings Online Today & Save!

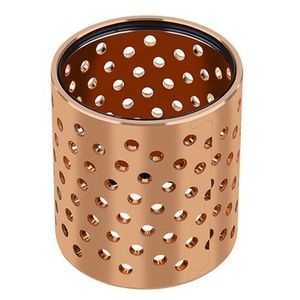

CuSn8 & CuSn6 Wrapped Bronze Bearings Material | B09 Bronze Bushes With Through holes

The wrapped bronze bearings are made entirely of CuSn8 phosphor bronze. CuSn8 is characterized by the purity of the alloy with only a very low level of impurities. Wrapped bronze bearings are produced from tapes which are subsequently wound and calibrated.

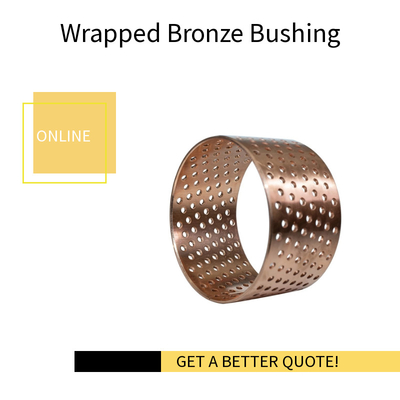

SPLIT WRAPPED BRONZE BUSHINGS

High quality factory price - Wrapped bronze perforated bearings Produce‎

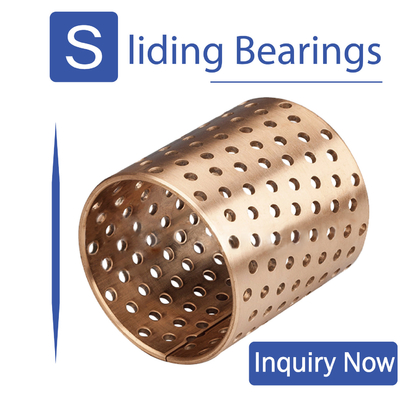

The wrapped bronze perforated bearings is derived from the wrapped bronze bearings and is also wrapped in a homogeneous cold-formable bronze (CuSn8). The main difference is that the wrapped bronze bearings series indentations on the sliding surface are replaced with through holes. This allows the wrapped bronze perforated bearings series to have a greater capacity to collect lubricant compared to indentations. These through holes serve as lubricant reservoirs to quickly form a lubricating film in the starting motion and subsequently reduce starting friction.



  • ·Wrapped bronze perforated bearings have high load capacity
  • ·Wrapped bronze perforated bearings specially intended for use in difficult and dirty circumstances.
  • ·Wrapped bronze perforated bearings have good lubrication properties due to lubrication holes.



Order wrapped bronze perforated bearings online

Check out our online wrapped bronze perforated bearings catalog with more than 10,00 Wrapped bronze perforated bearings with full sizes & models available for download - Get a free quote!



Wrapped bronze perforated bearings

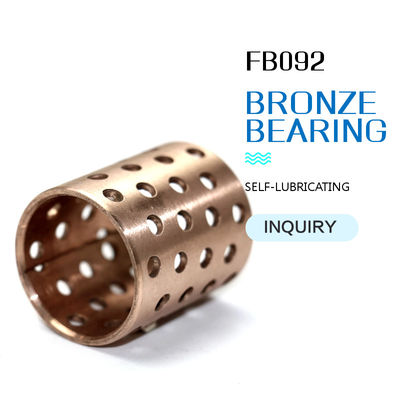

WRAPPED BRONZE SLIDING BEARING, PERFORATIONS, LOW-MAINTENANCE

Wrapped bronze perforated bearings, low cost, large oil storage



Wrapped bronze perforated bearings are thin - walled bearings made of bronze materials, which are processed evenly and orderly through oil injection holes and rolled up.The bearing has the advantages of large oil storage, convenient installation and small design volume, and can replace the use of copper sleeve, which can greatly reduce the cost.At present, the product has been used in conveyors, elevators, rolling machine, leveling machine, such as medium load, low speed occasions.



You can choose the Wrapped bronze perforated bearings material CuSn8



CuSn8/DIN 17662-1983
Ni(%) Fe(%) Sn(%) Sn(%) Cu(%)
≦0.3 ≦0.1 7.5~8.5 7.5~8.5 rest




You can choose the Wrapped bronze perforated bearings material CuSn6.5P0.1(Lead-free, environmentally friendly)





CuSn6.5P0.1
Cu Sn P other
rest 6.0-7.0 0.1-0.25 ≤ 0.5





Wrapped bronze perforated bearings microsection



Wrapped bronze perforated bearings  microsection Cusn8     Wrapped bronze perforated bearings  microsection Cusn6.5



Wrapped bronze perforated bearings characteristics



Performance indicators Data
Maximum load Static load 120N/mm²
Dynamic load 40N/mm²
Maximum linear velocity 2.5m/s
High PV value 2.8N/mm²・m/s
Coefficient of friction 0.08~0.25
The use of temperature -100℃~+200℃
Coefficient of thermal conductivity 60W/m・K
Coefficient of thermal expansion 15×-6/K





You can choose the wrapped bronze perforated bearings size of the oil hole



wrapped bronze bearing size of oil holes





Rhomboid oil groove, wrapped bronze perforated bearings, because the groove has a certain depth, so it has a certain ability to store oil, in the closed use space, can play a very good self-lubricating effect, oil and grease can be stored in the bronze bearing sleeve for a long time.



Factory production wrapped bronze perforated bearings production indication



bronze bearing production

Wrapped bronze perforated bearings production process



wrapped bronze bearing production process





Wrapped bronze perforated bearings refer to ISO 3547, you can click here for more technical requirements ISO 3547 part .pdf



Wrapped bronze perforated bearings Drawings



You can customize the wrapped bronze perforated bearings from us or let us draw machining drawings

wrapped bronze bearing drawing

wrapped bronze bearing drawing



Therefore, you can customize the types of wrapped bronze bearings oil slot holes from us, such as round through hole or type diamond oil slot, flange structure or type straight barrel structure, and more special materials. For example, you can customize cusn8 material from us, which is environmentally friendly and lead-free, suitable for medical treatment, food and other machinery.



wrapped bronze bearing types



Wrapped bronze perforated bearings dimension



Here you can choose the wrapped bronze perforated bearings size of the type part, more sizes you can refer to PDF.



wrapped bronze bearing size chart
h8 H7 d D T h- 10 12 15 20 25 30
10 0
-0.022
12 +0.018
0
10 12 0.980
0.955
4 1010 1012 1015 1020
12 0
-0.027
14 " 12 14 " " 1210 1212 1215 1220 1225
14 " 16 " 14 16 " "     1415 1420 1425
15 " 17 " 15 17 " " 1510 1512 1515   1525
16 " 18 " 16 18 " "     1615 1620 1625
18 " 20 +0.021
0
18 20 " "     1815 1820 1825
20 0
-0.033
23 " 20 23 1.475
1.445
"     2015 2020 2025 2030
22 " 25 " 22 25 " 6     2215 2220 2225 2230
24 " 27 " 24 27 " "     2415 2420 2425 2430
25 " 28 " 25 28 " "     2515 2520 2525 2530
28 " 32 +0.025
0
28 32 1.970
1.935
"       2820 2825 2830
30 " 34 " 30 34 "         3020   3030
32 0
-0.039
36 " 32 36 " "       3220   3230
35 " 39 " 35 39 " "       3520   3530
36 " 40 " 36 40 " "
37 " 41 " 37 41 " "       3720
40 " 44 " 40 44 " 8       4020   4030
45 " 50 " 45 50 2.460
2.415
"       4520   4530
50 " 55 +0.030
0
50 55 " "
55 0
-0.046
60 " 55 60 " "       5520
60 " 65 " 60 65 " "





Click here for PDF for more wrapped bronze perforated bearings information Wrapped Bronze Bushings.pdf





You can refer to this table to select the suitable wrapped bronze perforated bearings.



wrapped bronze bearing shaft tolerance chart

Standard Dia.

O.D.Size

Housing Bore

I.D.Size

Matching Shaft Diameter
10~18 +0.065
+0.030
+0.018
0
+0.046
0
- 0.016
- 0.043
18~30 +0.075
+0.035
+0.021
0
+0.052
0
- 0.020
- 0.020
30~50 +0.085
+0.045
+0.025
0
+0.062
0
- 0.025
- 0.064
50~80 +0.100
+0.055
+0.030
0
+0.074
0
- 0.030
- 0.076
80~120 +0.120
+0.070
+0.035
0
+0.087
0
- 0.036
- 0.090
120~180 +0.170
+0.100
+0.400
0
+0.100
0
- 0.043
- 0.106
180~250 +0.210
+0.130
+0.046
0
+0.115
0
- 0.050
- 0.122
250~315 +0.260
+0.170
+0.052
0
+0.130
0
- 0.056
- 0.137





Wrapped bronze perforated bearings application



You can choose to be used in lifting machinery, construction machinery, automobile tractor chassis, machine tool industry and mining machinery, but also can be made into bearing bush, flanged bushing, thrust gasket and ball bowl and other forms.



Crane bronze bearing Tractor bronze bearing
