Standard Flange Size Teflon PTFE Dry Sliding Bearing Bushes In Air Compressor

Product Details:
Place of Origin: Valve Bushing Manufacturer
Brand Name: Straight Sleeve Bore Bushings
Certification: wrapped bushing, Bronze Steel self-lubricatging bushing, DIN 1494 / ISO 3547, Low-maintenance
Model Number: sleeve Bushing Applications include valves, commercial fire sprinkler systems, mixers, blenders, swivels, and extruders.
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces (Min. Order)
Price: Negotiable
Packaging Details: Export standard packing
Delivery Time: 1~2 WEEKS
Payment Terms: TT IN ADVANCE
Supply Ability: Valve Split Steel Bushings Shaft Bearings Suppliers
Contact Now

Detail Information

Meterial: Carton Steel , Bronze , PTFE Plating: Tin Or Copper
Characteristic: Low-maintenance And Maintenance-free Plain Bearings Type: Bushes, Collar Bushes, Washers, Strips Or Special Designs
Size: Standard Size Available Quality: OEM
Port: Shanghai Application: Air Compressor

Product Description



Tuleje suche LBM SANKYOBushes Steel Backed Bronze Dimensions,LBM dry bushing ( bushing) material: teflon steel backed (PTFE) bearing with improved self-lubrication due to the addition of low friction coefficient polytetrafluoroethylene (PTFE), LBM bearing has wear resistance.

Advantages:

lead-free bearing, no lubrication can be used;

Excellent wear resistance;

Long service life;Suitable for sliding;

Quiet operation during the journey;

A large number of available dimensions.

Instructions: do not grind the inside or outside of the sleeve to adjust its size;Move the sleeve connection away from the maximum load point as far as possible;To install the sleeve, slide it vertically into the housing;No special locks required;Prelubrication can extend product life.Standard Flange Size Teflon PTFE Dry Sliding Bearing Bushes In Air Compressor

The basic characteristics of
The product is made of high quality low carbon steel with a sintered spherical bronze layer and a mixture of polytetrafluoroethylene (PTFE) rolled on the surface.It has good self-lubrication, wear resistance, low friction coefficient, good performance, low noise and other properties, products are widely used in a variety of mechanical sliding parts.
Material organization
PTFE/Pb mixture 0.01~0.03mm, a wear-resistant material that forms a transfer film to protect the shaft during operation.
Copper powder layer 0.2~0.35mm improves the bonding strength of PTFE and steel plate, with good bearing capacity and wear resistance.At the same time copper is a good thermal material, can quickly transfer the heat generated in the process of bearing operation.
Low carbon steel, improve bearing capacity and heat transfer.
Copper/tin plating of about 0.002mm, so that the bearing has good corrosion resistance.
To form

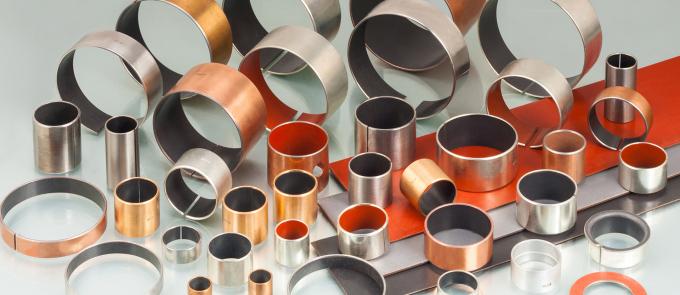

Straight sleeve, flanging sleeve, WC thrust gasket, slide plate and other non-standard parts, etc.



Application characteristics
No oil lubrication or less oil lubrication, suitable for oil can not be refueling or more difficult to refueling occasions, can be used without maintenance or less maintenance;
Good wear resistance, small friction coefficient, long service life;
Can be used in the range of -190℃ ~ +280℃;
Good running performance, low noise, no pollution;
Thin-walled structure, light weight, can reduce the mechanical volume;
During operation, it can form transfer film, which can protect the grinding shaft without biting the shaft.
The hardness of the grinding shaft is low, and the shaft can be used without tempering treatment, thus reducing the processing difficulty of related parts;
No water absorption, oil absorption, small thermal expansion coefficient, good heat dissipation, size stability;
The back of the steel can be plated with a variety of metals, so it can be used in corrosive media, no rust;
Currently has been widely applied to various mechanical sliding parts, such as automatic mechanical equipment (scale, swing, slide, bending, cyclotron, turning parts) hydraulic cylinder guide sleeve, gear pump pu, textile machinery, vending machines, plastic molding machine, die-casting machine, rubber machinery, tobacco machines, fitness equipment, office machinery, hydraulic truck, automobile, motorcycle, agriculture and forestry
