CuPb24Sn4 Bimetallic Bearings Alloy Tin Coating Metric Flanged Oilite Bushes SAE 49

  • CuPb24Sn4 Bimetallic Bearings Alloy Tin Coating Metric Flanged Oilite Bushes SAE 49
  • CuPb24Sn4 Bimetallic Bearings Alloy Tin Coating Metric Flanged Oilite Bushes SAE 49
  • CuPb24Sn4 Bimetallic Bearings Alloy Tin Coating Metric Flanged Oilite Bushes SAE 49
Place of Origin Bimetal Bearing Manufacturers
Brand Name Bimetal Bearings
Certification SAE 49
Model Number Bimetallic Bearings Alloy Tin Coating
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details export & import bimetal bushings International carton standard
Delivery Time Manufacture Bimetal Bushing In Stock, Delivered Within Days.
Payment Terms Western Union, T/T, MoneyGram
Supply Ability casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
STRUCTURE AND COMPOSITION Steel+CuPb24Sn Market Application: High Speed, Heavy Load Engine Main Shaft And Air Compressor, Cooling Machine.etc
BiMetal Bushing Size METRIC SIZE - IMPERIAL SIZE Material Sliding Layer CuPb24Sn4
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Steel Backed Bronze Bushing, Bimetallic Bushes Bimetallic Bearing Bushing Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

bimetal bush

,

bimetal bearings
Leave a Message
Product Description

Bimetal Bearings Material information

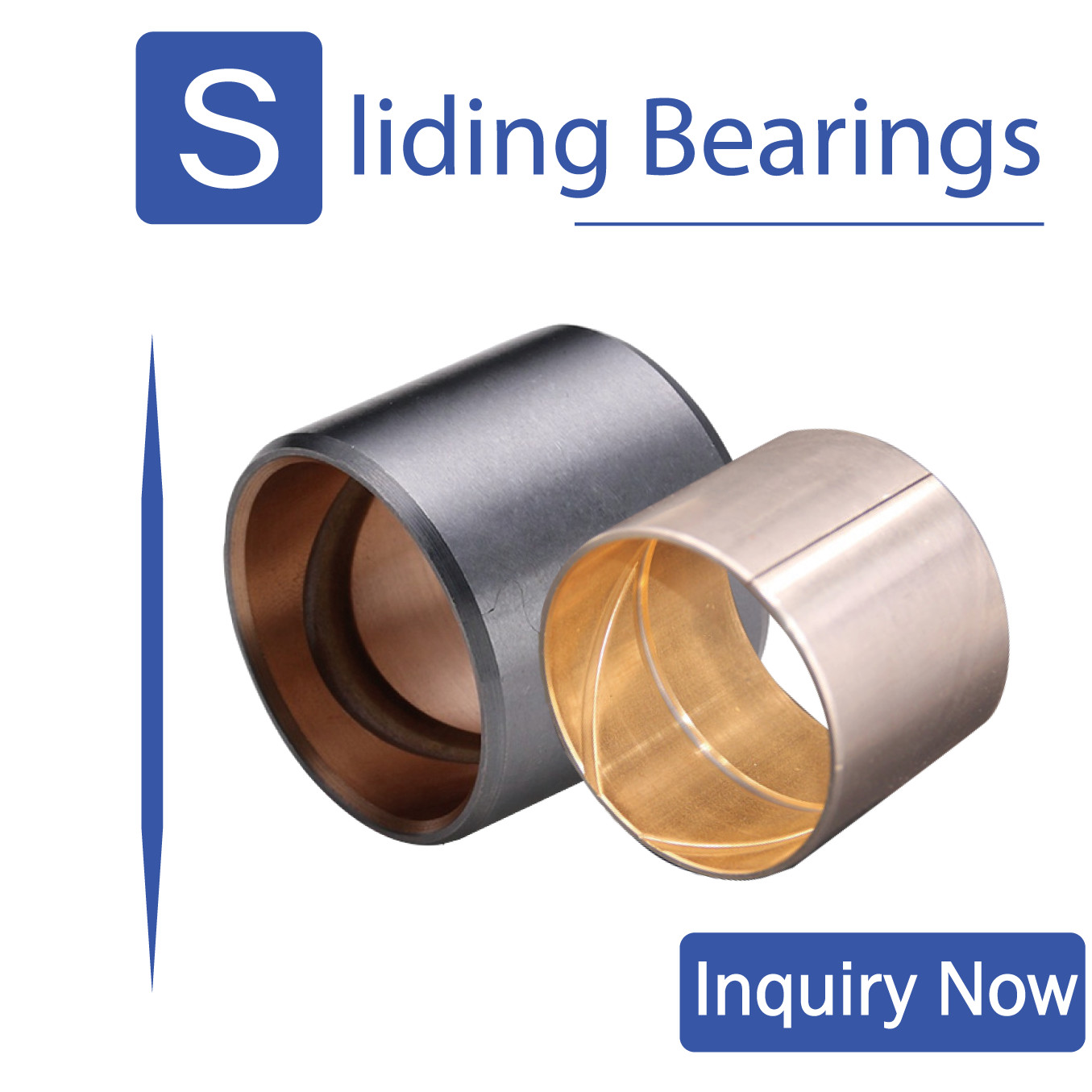

  CuPb24Sn4 Bimetallic Bearings Alloy Tin Coating Metric Flanged Oilite Bushes SAE 49(SAE-49) Material:Steel+CuPb24Sn Bimetallic Bearings Alloy Tin Coating Angineering machine: underpan, thrust wheel, Towing wheel, Steering knuckle,tension pulley.Automotive:trunnion shaft, connecting rod, valve rocker, camshaft, gear box, internal-combustion engine.And Plunger pump friction plate, gear pump friction plate.Other bronze alloy CuPb24Sn(SAE49),CuPb24Sn4(SAE794),CuPb10Sn10(SAE792),CuPb30(SAE48) etc.High load capacitySliding layer can be machined with lubricating grooves and/or with grease indentsSteel backing can be copper plated





Technical Parameters
Data Grade Bimetallic Bearings
Material Steel+CuPb24Sn
Applications   Application: High speed, heavy load engine main shaft and con rod
Max Dynamic Load P N/mm²   120
Max Line Speed V Greaes Lubrication m/s 2.5
Oil Lubrication m/s >10
Max PV Value Greaes Lubrication m/s N/mm²·m/s 2.8
Oil Lubrication m/s N/mm²·m/s 10
Friction Coef u Greaes Lubrication 0.05~0.15
Oil Lubrication 0.04~0.12
Mating Axis Hardness HRC ≥45
Roughness Ra 0.16~0.63
Working Temperature ℃ Greaes Lubrication 150
Oil Lubrication 250
Alloy Layer Hardness HB   40~60
Thermal Conductivity W/mk   47
Coefficient Of Linear Expansion   19×10-6/K
In addition to the standard products shown in the catalog, you can also provide non-standard products or order according to customer requirements.



Bimetallic Bearing

Bimetallic Bearingsis based on steel substrate CuPb24Sn4 surface of the sintered alloy products. The product has good fatigue strength and load capacity. For medium-speed contained. Oil slide occasions.When plated soft alloy, it can be used for high-speed internal combustion engine bearings, connecting rod bushing, achieve good wear resistance, fatigue effect.



SIZE mm
ID OD SHAFT Jousing H7 Thinkness f1 f2
    6 8 10 12 15 20 25 30 40 50 60
6 8 6 -0.013 8 0.015 0.98 1.005 0.5 0.3 606 608 610       Ø
-0.028 0
8 10 8 -0.013 10 0.015 806 808 810 812 815
-0.028 0
10 12 10 -0.016 12 0.018 1006 1008 1010 1012 1015 1020
-0.034 0
14 16 14 -0.016 16 0.048     1410 1412 1415 1420 1425
-0.034 0
16 18 16 -0.016 18 0.018     1610 1612 1615 1620 1625
-0.034 0
17 19 17 -0.016 19 0.021     1710 1712   1720
-0.034 0
18 20 18 -0.016 20 0.021     1810 1812 1815 1820 1825
-0.034 0
20 23 20 -0.02 23 0.021 1.475 1.505 0.8 0.4     2010 2012 2015 2020 2025 2030
-0.041 0
22 25 22 -0.02 25 0.021     2210 2212 2215 2220 2225 2230
-0.041 0
24 27 24 -0.02 27 0.021         2415 2420 2425 2430
-0.041 0
25 28 25 -0.02 28 0.021     2510 2512 2515 2520 2525 2530 2540 2550
-0.041 0
28 32 28 -0.02 32 0.025 1.97 2.005 1 0.6         2815 2820 2825 2830 2840
-0.041 0
30 34 30 -0.02 34 0.025       3012 3015 3020 3025 3030 3040
-0.041 0
32 36 32 -0.025 36 0.025           3220   3230 3240
-0.05 0
35 39 35 -0.025 39 0.025       3512 3515 3520 3525 3530 3540 3550
-0.05 0
38 42 38 -0.025 42 0.025         3815     3830 3840
-0.05 0
40 44 40 -0.025 44 0.025       4012   4020 4025 4030 4040 4050
-0.05 0
Note:Bearing size besides above mentioned size.can be customized and produced.Customer please offer us to dimensions
ID OD SHAFT Jousing H7 Thinkness f1 f2
    20 25 30 40 50 60 70 80 100 115
45 50 45 -0.025 50 0.025 2.46 2.505 1.2 0.8 4520 4525 4525 4540 4550
-0.05 0
50 55 50 -0.025 55 0.03 5020   5030 5040 5050 5060
-0.05 0
55 60 55 -0.03 60 0.03     5530 5540 5550 5560
-0.06 0
60 65 60 -0.03 65 0.03       6040 6050 6060 6070
-0.06 0
65 70 65 -0.03 70 0.03     6530 6540 6550 6560 6570
-0.06 0
70 75 70 -0.03 75 0.03       7040 7050 7060 7070 7080
-0.06 0
75 80 75 -0.03 80 0.03     7530 7540 7550 7560 7570 7580
-0.06 0
80 85 80 0 85 0.035 2.44 2.49 1.4 0.8       8040 8050 8060 8070 8080 80100
-0.03 0
85 90 85 0 90 0.035       8540   8560   8580 85100
-0.035 0
90 95 90 0 95 0.035       9040 9050 9060   9080 90100
-0.035 0
95 100 95 0 100 0.035         9550 9560   9580 95100
-0.035 0
100 105 100 0 105 0.035         10050 10060   10080   100115
-0.035 0
105 110 105 0 110 0.035           10560   10580   105115
-0.035 0
110 115 110 0 115 0.035           11060   11080   110115
-0.035 0
120 125 120 0 125 0.04 2.415 2.465 1.4 0.8           12060   12080 120100
-0.035 0
125 130 125 0 130 0.04           12560     125100 125115
-0.04 0
130 135 130 0 135 0.04           13060   13080 130100
-0.04 0
140 145 140 0 145 0.04           14060   14080 140100
-0.04 0
150 155 150 0 155 0.04           15060   15080 150100
-0.04 0
160 165 160 0 165 0.04           16060   16080 160100 160115
-0.04 0
180 185 180 0 185 0.046 2.415 2.465 1.4 0.8               18080 180100
-0.04 0
190 195 190 0 195 0.046               19080 190100
-0.046 0
200 205 200 0 205 0.046           20060   20080 200100
-0.046 0
220 225 220 0 225 0.046               22080 220100
-0.046 0
250 255 250 0 255 0.052 2.415 2.465 1.4 0.8               15080 250100
-0.046 0
260 265 260 0 265 0.052               26080 260100
-0.052 0
280 285 280 0 285 0.052               28080 280100
-0.052 0
300 305 300 0 305 0.052               30080 300100



APPLICATION



Angineering machine: underpan, thrust wheel, Towing wheel, Steering knuckle,tension pulley.
Automotive:trunnion shaft, connecting rod, valve rocker, camshaft, gear box, internal-combustion engine.
And Plunger pump friction plate, gear pump friction plate.





You can choose CuPb10Sn bimetal bearing ptional Oil Groove And Optional Buckle



Bimetal bearing groove type Bimetal bushings tank buckle form



You can choose CuPb10Sn bimetal bearing ptional Selected mode of transport

CuPb24Sn4 Bimetallic Bearings Alloy Tin Coating Metric Flanged Oilite Bushes SAE 49 2







FOLLOW US ON



Viiplus professional bearing supplier

HTTP://WWW.BRONZEGLEITLAGER.COM

Tags:

bimetal bearings

bimetal bush

Bimetal Bearing Bushing
