Straight Oilless Sliding Bearings & Flange Stamping Die Components DIN
| Place of Origin | Self Lubricating Bearings Manufacturers |
|---|---|
| Brand Name | Oilless Sliding Materials |
| Certification | ISO 9001 |
| Model Number | Straight type bushing,flange |
| Minimum Order Quantity | negotiable |
| Price | Competitively Priced vs , Provides Lubricating Bush |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 4 - 20 BUSINESS DAYS |
| Payment Terms | T/T |
| Supply Ability | Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Bushing Type | Sleeve,Flange,Washer | Feature | Type Straight Bush Lubrication Oil-Free Material Copper Alloy |
|---|---|---|---|
| Size | JDB BUSH (OILLESS) 50 X 62 X 50 Mm Long | Bearing Bushing Factory Price | Tiffany@viiplus.com |
| Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ | High Light | Coated Self Lubricating Plain Bearing, Ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing |
| Characteristic | Втулки скольжения (биметаллические подшипники скольжения) | Dry Slide Bearing | Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running. |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | self lubricating bearing,self lubricating bronze bushings |
||
Product Description
Straight Oilless Sliding Bearings and Flange Stamping Die Components are designed and manufactured according to DIN (Deutsches Institut für Normung e.V.) standards. DIN is the German Institute for Standardization and its standards are widely recognized and adopted in various industries worldwide.
The straight oilless sliding bearings, also known as plain bearings or sliding bushings, are designed to operate without the need for lubrication oil or grease. They rely on the inherent friction-reducing properties of the bearing material and the mating surface to provide smooth and reliable motion. These bearings are commonly used in applications where lubrication is difficult or undesirable, such as in food processing or cleanroom environments.
The flange stamping die components are precision-engineered parts used in stamping dies. They are manufactured to exacting DIN standards to ensure consistent quality and reliability in the stamping process. These components play a crucial role in the production of stamped metal parts, ensuring precise shaping and dimensional accuracy.
By adhering to DIN standards, manufacturers of straight oilless sliding bearings and flange stamping die components can ensure that their products meet the highest industry standards for quality, performance, and safety. This allows them to provide customers with reliable and dependable components that are suitable for a wide range of applications.
JDB BUSH (OILLESS) 50 X 62 X 50 mm long Type Straight Bush Lubrication Oil-Free Material Copper Alloy
Injection Guide Bushs
Injection Guide Bushs for plastic injection mol
Bronze bearings are also ideal in applications where they are exposed to damp conditions, including marine environments, thanks to their high resistance to corrosion. The bearings, bronze graphite bearings, and self-lubricating bronze bushings with solid lubricate manufactured by VIIPLUS are used in applications with heavy loads and low speeds. It is an ideal material in applications where there is friction between two metals due to its low friction coefficient, thermal transmission …etc.
Online China source for custom machining bronze bearing & bushings as well as standard bronze bearings metal parts. solid bushing, bronze with lubricant plugs embedded, DIN /ISO International Standard Code, Maintenance-free we are specialized in the development and production of inlaid solid lubrication bearing, slide plate, slide unit, and slide block. Excellent manufacturing equipment. The main processes are all processed by high-precision CNC machine tools.
Straight Oilless Sliding Bearings & Flange Stamping Die Components
Stamping Die Components Sliding bearing, Self-lubricating bearing, Guide bushes, bronze, maintenance-free with collar Standard, Solid lubricants embedded bearing, Porous bearing, Standard Components for Sliding Material, Standard Components for Sliding Material, made to order from china. Tolerances: The bore for the bearings should correspond to ISO tolerance H7.The tolerance h6 to h7 is recommended for the shaft. Sliding Resin Bearing Bronze Bushing Materials｜Standard Components for Sliding Material｜Products｜VIIPLUS INTERNATIONAL Supplier.
Customized Size Stamping Die Components Similar Oilless Misumi Standard.

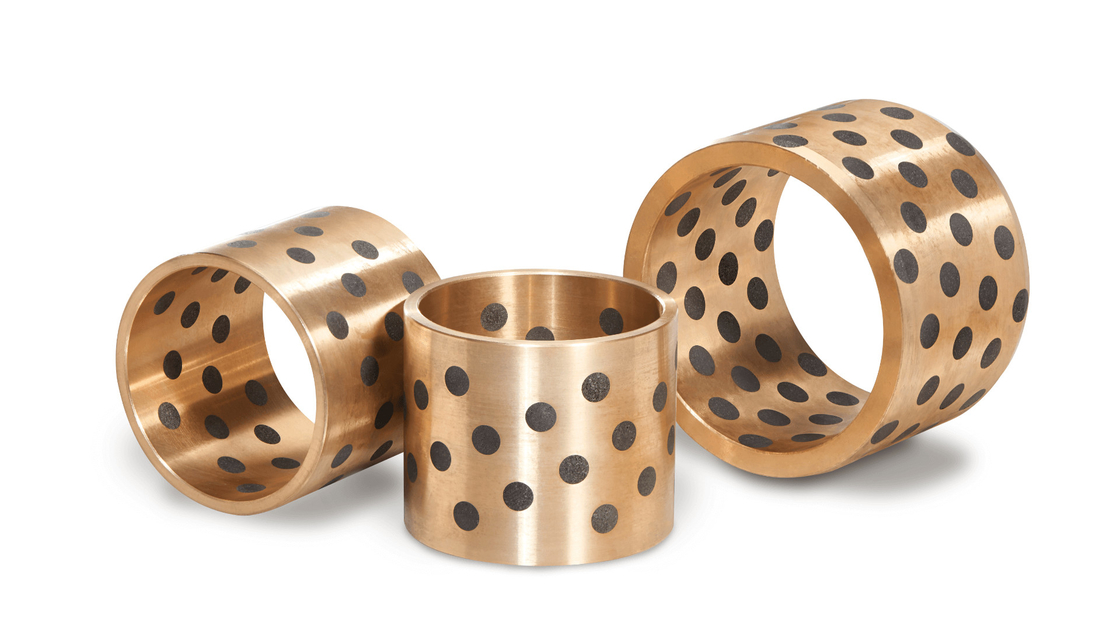

Material: Bronze with graphite inserts.
Material category: Metallic matrix
Chinese Code | International counterparts |
| |||
International | Japan | (USA) | Geman DIN | ||
CuZn25Al6FeMn3 | CuZn25Al6FeMn3 | H5102 | B30-92 | DIN1709 |
|
CuZn25Al6FeMn3 | CuZn25Al6FeMn3 | H3102 | B30-92 | DIN1709 |
|
CuAl10Fe3 | CuAl10Fe3 | H5114 | B30-92 | DIN1714 |
|
CuSn5b5Zn5 | QSn5-5-5 | H5111 | B30-92 | DIN1705 |
|
| Solid Lubricant | Features | Typical application |
Graphite+add | Excellent resistance against chenical attacks andlowfriction .Temp limit 400 °C | Suite for general machines and under an atmosphere |
Graphite +add | Lowest in friction and googd of water lubrication,Temp.limit 300 °C | The ship, hydraulic turbine, gas turbine etc. |
Serving a Wide Range of Industries
We have extensive experience serving the needs of a wide range of industries across the country:
Hydraulics (sleeves, shoes/slippers)
Mining (bearings, gears, engine components)
Construction (bearings, gears, engine components)
Marine (motor and stern drive components, bearings)
Power Transmission (gears, bearings)
Rail (brake and engine components)
Oil & gas
Agricultural
Boat docks
Pumps
Industrial equipment
Cylinders
Forestry
Paving
Technical data:
Material properties:
Base alloy: CuZn25Al6FeMn3
Density: 8.0 g/cm3
Tensile strength Rm: 750 N/mm2
Yield point: 450 N/mm2
Ductile fracture A5: 5-8%
Friction coefficient: 0.05 - 0.12
Maximum speed: 15 m/min
Thermal conductivity: 50 W/m x k
Thermal expansion coefficient: 18 x 10-6
Electrical conductivity: 7-8 m/(Ω x mm2)
Solid lubricant content: 25-30 %
