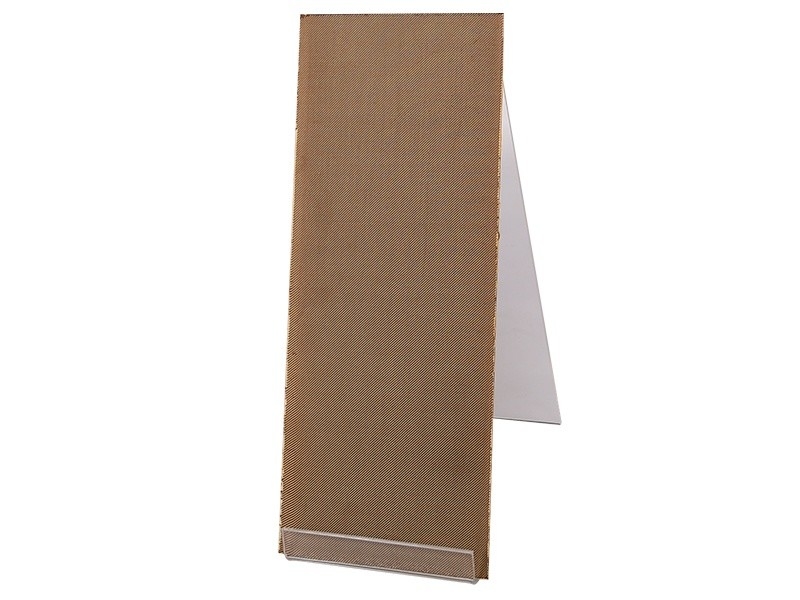

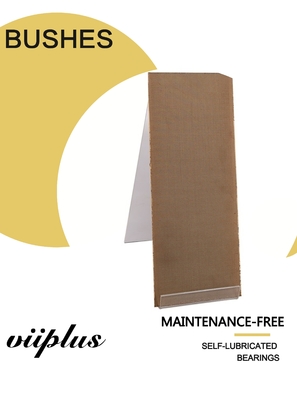

ISO TEX Metal Matrix Fabric Composite Kevlar Strips Stainless Steel 316

Place of Origin	Plain Bearing Material
Brand Name	METAL-POLYMER BEARINGS
Certification	DIN 1494/ISO 3547
Model Number	Wrapped composite sliding bearing
Minimum Order Quantity	500 Piece/Pieces
Price	flat strip material inch sizes Manufacturers,Factory Price
Packaging Details	Shipment Bushing Packing: Cartons per Wooden Case or Pallet.
Delivery Time	15~20 Days
Payment Terms	TT IN ADVANCE
Supply Ability	1000000 Piece/Pieces per Month Plain-Bearing Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Meterial	Metal Matrix Fabric Composite	Type	Guide Bearing Bushings
PACKAGE	Carton With Pallet Or As Your Requirement	CATALOGUE	Available
Self-lubricating Metal-polymer	Steel Backing METAL-POLYMER BEARINGS	Size	Metric Sizes,inch Size
Bearing Bushing Factory Price	Tiffany@viiplus.com	Self-lubricating Bearing Bushing Manufacturer	Https://www.viiplus.com/
Bush Bearings Manufacturers Suppliers Exporters	Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light	du strip , plain sleeve bearing strips

Leave a Message

Product Description

Self-Lubricating Bronze Bushings

VIIPLUS China composite dry sliding strips are designed for applications where axial space is limited.Made to order The stainless-steel 316 fabric weave of PTFE/ Glass fibers backing provides extreme load-bearing capabilities beyond the range of solid PTFE and any other solid-lubricant bearing.ISO TEX Metal Matrix Fabric Composite Kevlar Strips Stainless Steel 316

Metal Stainless Steel 316 Bearing matrix fabric composite bushing Fiberglass Lined Stainless Steel Bushings The inner layer is a sliding layer containing a special type of fibre in an epoxy resin matrix with structurally embedded solid lubricants, designed to ensure good allows maintenance-free operation.

Our Plain Bearing Strips Products Are Engineered To Exacting Standards

The stainless TEX fabric bearings sintered bronze plate and strip shall be manufactured through sintering process. If you need help in selecting the best sliding bearing material and strips for your particular application,and the bushings specifier thickness of the different layers of plates and strips,Click here to go to our online catalog(plain bearings catalog) SELF-LUBRICATION BEARINGS PTFE STEEL SLEEVE BUSHES...contains detailed sleeve bushing types specifications.

Sliding bearings Maintenance-free, self-lubricating with layers of fabric

Steel 316 Bearing Metal with Kevlar Liner Material Plate & Strip

Click here to go to our online catalog and bushings specifier for all of our metal bushing bearings including size model downloads. Bushings Online Catalog STELL BRONZE SLEEVE BUSHES LUBRICATING INDENTS MET...

The material is made of various high quality metals and coated with low friction and friction resistant braided materials mainly made of PTFE and other additives.This material structure has a higher carrying capacity and longer service life than half of the three-layer composite.The base material is low carbon steel, stainless steel 316, etc.Mainly used in agricultural machinery, construction machinery, automobile chassis parts, ball valve, butterfly valve, water pump and chemical industry, etc.

Metal matrix fabric composite sheet strip has more flexibility than general rigid bearings due to the 0.25mm thickness of fiber cloth lubrication layer. It has flexible bearings, no maintenance, low installation accuracy, good shock absorption and impact resistance. Low noise characteristics, and due to the high strength of the fiber material and the support of the steel back, it has the unique advantage of high load capacity. In general sports, it is advisable to maintain proper clearance between the inner hole and the shaft. The size of the gap can be referred to the DU type product. The outer diameter of the bearing and the seat hole are generally interference fit. The interference can also be referred to the DU type product. In some low-speed rocking motions, the bearing inner hole and the pin shaft can be used without gaps or even interference. Cooperate, this can better exert its shock absorption and low noise performance; such bearings are mainly used in low-speed, heavy-duty oil and grease lubrication, and can also be used in oil-free lubrication.

The Bearings Tolerance

It is generally recommended that the tolerance of seat hole is H7 and axle diameter is H8

Availability

Bearing forms available in standard dimensions
· Cylindrical bushes

· Flanged bushes

· Sliding plates

· Thrust washers

· Flanged washers

· Strips

Technical Data

Max. load	Static	350N/mm2
	Dynamic	180N/mm2
Max. speed	Dry	0.5m/s
	Lubrication	>1m/s
Max. PV (Dry)	Short-time	3.6N/mm2*·m/s
	Continuous	1.8N/mm2*·m/s
Temp.		-50℃~+250℃
Friction coefficient		0.03~0.20
Thermal conductivity		42W (m·k)-1
Coefficient of thermal expansion		11*10-6k-1

Metal matrix fabric composite bearings Polytetrafluoroethylene fiber PTFE/Kevlar

Typical Applications

Committed to the production and development of hydraulic components, hydraulic systems and hydraulic machinery shaft sleeve, constantly improve the quality of sliding bearings, improve the performance of products.For metallurgical machinery, engineering machinery and coal machinery and other industries to provide hydraulic system and hydraulic components of self-lubrication bearing solutions.
Mainly used in agricultural machinery, construction machinery, automobile chassis parts, oil platform,ball valve, butterfly valve, water pump and chemical industry, etc.
Hydraulic components
The company has developed metal and plastic self-lubricating rolling bearings suitable for high load and high speed under the condition of fluid lubrication, which are widely used in gear pump, plunger pump, vane pump, compressor, cylinder and other industries.

Strusture

This new material use the PTFE fibres fabric overlay on metal backings.
The fabric has very high load capacity and much longer operating life compared with conventional 3-layer bushes.
The metal can be Carbon steel , Stainless steel, Bronze etc.

Typical Characteristics

TEX Bushing,Customized Bushing,Fiber Bush & Low Friction Woven Fabric Oilless TEX Bearing

Plain Bearings and Sleeve Bearings Self-Lubricating Bearings, Liner Type Non-Metallic woven Stainless Steel 316 with PTFE fabric

Stainless steel 316 and steel-base polytetrafluoroethylene aramid fiber braid bearings are self-lubricating materials with wear-resistant fibers as the main surface material.The product has low friction coefficient, good bearing capacity, abrasion resistance and self-lubrication performance, mainly used in various high-grade valves and go-kart.

Metal composite bearing base fabric is based on steel substrate, the surface adhesion of ptfe ethylene fiber and aramid fiber woven fabric, after rolling processing into a collar or stamping processing into a variety of forms such as gasket. The product has the characteristics of high precision, high load bearing pressure and excellent low speed and heavy friction performance. It can be widely used in heavy load equipment such as engineering machinery and agriculture and forestry machinery.

What is "self-lubricating bearing"

The so-called no-feed self-lubrication means that there is no need for or little refueling. The objective of our research is to ensure the good performance of the bearing under various working conditions and extend its service life as far as possible.Is the basic working principle of self-lubricating bearing, in the early stage, the bearing surface of the solid lubricant formed due to the friction between transfer membrane and covered with to grind on, eventually forming solid lubricating film in order to achieve the purpose of self lubrication, which partition the direct contact between the workpiece, thus good protection for grinding a prolong the service life of the bearing and artifacts.

Preparation and Properties of ptfe fiber braided Self-lubricating Composites

Polytetrafluoroethylene (PTFE) fiber fabric self-lubricating composite material is a new kind of solid self-lubricating material,PTFE fiber fabric retains the low friction coefficient of PTFE material at the same time, and has a high mechanical strength.Therefore, as the lubrication layer between the inner and outer rings of joint bearing, it is widely used in aerospace, automobile, large machinery and other fields.In this paper, PTFE fiber and Kevlar fiber were used as raw materials to weave PTFE fiber fabric by weaving machine. After the surface treatment of sodium naphthalene complexate solution, the self-lubricating composite material of PTFE fiber fabric was prepared by phenol-epoxy adhesive and bonding curing treatment of 45# steel.The friction coefficient and wear amount of PTFE fiber and the effect of surface treatment on the friction properties of composites were measured by friction and wear testing machine.The friction surface was characterized by scanning electron microscopy and the friction mechanism was analyzed.The interlining materials of woven fabric and finished fabric are compared and analyzed.The results show that the surface treatment with sodium naphthalene complex solution can strip the F element from the surface of PTFE fiber fabric, enhance its bonding strength with metal, but also reduce the wear resistance of PTFE fiber fabric to a certain extent.And the shorter the surface treatment time is, the smaller the reduction of wear resistance will be.In addition, the surface treatment of sodium naphthalene complex solution has little effect on aramid fiber and Kevlar fiber.After surface treatment for 5min, the friction surface of the sample produced more debris and abrasive wear.The higher the content of PTFE fiber in the self-woven fabric, the better the anti-wear performance of the fabric. For the fabric with 30% fiber content, the higher the friction speed is, the higher the friction coefficient is.On the contrary, for fabrics with 80% PTFE fiber content, the higher the friction speed, the lower the friction coefficient.

VSB-36 Bushing slide bearing bushings, oilless plain bearing

Stainless Steel316+PTFE/FABRIC

Apply to the oil or fuel work harder parts,wear resistance,low coefficient of ftiction,long life:good overall performance.Apply to the oil or fuel work harder parts,wear resistance,low coefficient of friction,long life;good iverall perfotmance.

It is of oil resistant, acid resistant, alkali resistant and seawater resistant, more over, there is no lead in the PTFE surface layer and so is particularly fit for application in food machinery, alkali flow meters, pumps motion elements in pharmaceutical machines, printing machines chemical engineering machines and other ocean industry. The bushing is a triple layers composites one, the base material is stainless steel back and a film of heat resistant power filled PTFE being calendered onto the sintered spherical bronze interlayer.
