Introducing our Cusn8 and Cusn6.5 self-lubricating plain bearing bronze wrapped bearings with holes and strips - an innovative solution for enhancing the performance and durability of mechanical systems.

These bearings are made from high-quality bronze alloys, specifically Cusn8 and Cusn6.5, which are known for their excellent wear resistance, corrosion resistance, and self-lubricating properties. The self-lubricating nature of these bearings means they require minimal lubrication, reducing maintenance costs and downtime.

The bronze wrapped design provides additional strength and stability, ensuring smooth and reliable operation. The bearings also feature holes and strips, which allow for easy installation and adjustment, providing flexibility in various applications.

Wh you're looking to replace worn-out bearings or upgrade your existing mechanical system, our Cusn8 and Cusn6.5 self-lubricating plain bearing bronze wrapped bearings with holes and strips are the perfect choice. They offer superior performance, durability, and ease of installation, making them ideal for a wide range of industrial and mechanical applications.

TITLE: CuSn8P (DIN 17662) alternative CuSn6P made to order from china available wrapped bushing, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance

Offering Superior Performance In Hundreds Of Applications Replacing bronze bushings. Increased productivity. Highlights: Offering Custom Designed Products, Chat Support Available!

tuleja z brązu typ E92F lub E90F

BUSHING APPLICATION: Agriculture machinery, truck cranes & construction machinery, suitable for impact loads Bronze Plain Bearings with Grease Reservoirs

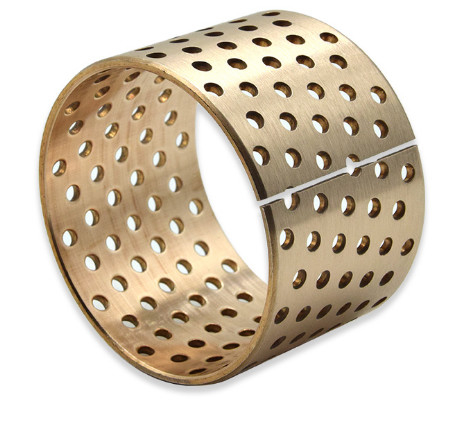

Cusn8 & Cusn6.5 Material Bronze Wrapped Bearings With holes Bronze

Bushing Materials

• Support materialCuSn8P (DIN 17662)
• alternative CuSn6P available

Bushings Tolerance

• Housing ØH7
• Bushing inner-Ø after mounting:H9
• Shaft tolerancef7 to h8

Bushings Mounting Advise

Housing: Chamfer min. 1.5 mm x 15-45°, for easy bushing alignment
Shaft: Chamfer 5 mm x 15°, for easy insertion of the shaft

Properties

Economic solution for bronze bearing application due to a thin wall thickness. High load capability and good stability with low abrasion. Suitable for rough working conditions, good corrosion resistance. Lubrication holes for maximum grease storage and the lowest maintenance intervals.

Caption

* For higher requirements – e.g. higher temperature ranges – different materials are available in this category.

** The listed values in the material properties are valid for optimal operating conditions. By changing the conditions of application, e.g. an increase in the sliding speed or strain, these values could shift.

Special dimensions and imperial sizes are available on request.

Wrapped Bearing Strips Made in china Feature

• Easy fitting and lubrication
• High load capacity
• Excellent wear resistance with lower friction
• High level of thermal conductivity
• Minimum overall dimensions
• Chemical resistance
• Extended service life and lubrication intervals compared to the 090 Series Bushings
• Free choice of lubricant
• Collection of dust and rub off particles in the holes

​

Overview

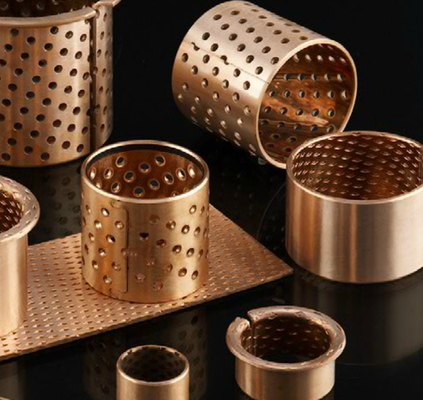

CuSn8 & Cusn6.5 bronze with either grease pockets or holes

Bronze Plain Bearings with Grease Reservoirs Bronze Wrapped Bearing with Oil Pockets(092 CYLINDRICAL BUSHES)

• Bronze Wrapped Washers
• Bronze Wrapped Bearing Strip
• Bronze Wrapped Plain Bearings

Cylindrical Bushes

· 1. Easy for fitting and lubricating
· 2. High load capacity
· 3. Inner Diameter machineable parts are available against order
· 4.High level thermal conductivity
· 5.Minimum overall dimensions
· 6.Chemical resistance.
· Initial pre-lubrication at assembly required...

Discover More

How To Place An Order

• Step1 Choose the Bushing & Self-lubricating Bearings you need. Do you need different type bearings.
• Step2 Choose the standard self-lubricating bearings & bushings size you need.
• Step3 Confirm the material and bushings size you need.
• Step4 Select the shipment terms.
• Step5 Contact our salesperson to get the latest quote.
• Step6 Ask for a FREE sample to check the quality of the products.
• Step7 Confirm the sample quality and the quantity & price of the bulk order. Place the order with the salesperson.
• Step8 Arrange a 30% deposit prior to production.
• Step9 Electronic photos or shipping samples will be sent before shipment in accordance with your request.
• Step10 Settle the 70% balance before the bulk order is finished.
• Step11 Shipment will be arranged upon receipt of the balance and completion of the order.
• Step12 CI, PL, BL and CO (if necessary) are sent for custom clearance on your end.
• Step13 End of the order.

Shipping Information

Our service:

Fast delivery by air with our own account (DHL, UPS, FedEx, TNT) or customers' account, save your time.

1)by express to door(DHL/FEDEX/UPS/TNT)

2)by air to airport

3)by sea to port

PRODUCTS PACKAGING

STANDARD EXPORT PACKING:CARTONS / PALLETS /WOODE CASES

Choose Bushing Type & Size

Customers Also Viewed

Bronze Bushings Size

These bronze bearings have been developed for slow speed, high load applications, especially suited for oscillating motion and are perfect for the construction, mining/quarrying, agriculture, and automotive industries. Our VIIPLUS BRONZE 090 SERIES range of plain bearings are available with lubrication pockets, thru-holes, and grooves. This range is available in metric sizes only. Our in-house machining service is able to produce non-standard sizes to suit specific customer requirements.

Find a bearing

Bushings, Lubricated Bearings, Composite Bearings, Metal Bearings, Compressor Bearings, Metal-polymer, Filament Wound,Plain Bearings,Flange Bearings, Polymer Bearings, Flange Bushings, Pump Bearings, Flanged Bushes, Thrust Plates, Industrial Bearings

Bronze Bearings and Bronze Sleeve Bushings made of CuSn8

with Lubrication Indents

Availability

Bearing forms available in standard dimensions
· Cylindrical bushes
Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs
