Custom Designed & Manufactured Bearings and Bushings Steel Journal Valve Split Bushes Fiber Glide

Place of Origin Valve Bushing Manufacturer
Brand Name Straight Sleeve Bore Bushings
Certification wrapped bushing, Bronze Steel self-lubricatging bushing, DIN 1494 / ISO 3547, Low-maintenance
Model Number sleeve Bushing Applications include valves, commercial fire sprinkler systems, mixers, blenders, swivels, and extruders.
Minimum Order Quantity 100 Piece/Pieces (Min. Order)
Price Negotiable
Packaging Details Export standard packing
Delivery Time 1~2 WEEKS
Payment Terms TT IN ADVANCE
Supply Ability Valve Split Steel Bushings Shaft Bearings Suppliers

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Carton Steel , Bronze , Plating Tin Or Copper
Characteristic Low-maintenance And Maintenance-free Plain Bearings Type Bushes, Collar Bushes, Washers, Strips Or Special Designs
Size Standard Size Available Quality OEM
Port Shanghai Bushings Application AIR COMPRESSOR,SHOCK ABSORBER, DOOR HINGES HYDRAULIC CYLINDER GEAR PUMP OIL PUMP SLEEVE
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Valve Bushings Suppliers Self-lubricating, Metal-polymer Plain Bearing Metal-Polymer Anti-Friction Plain Bearings
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

oil impregnated bushings

,

ptfe sleeve bearing

Leave a Message
Product Description

We specialize in the custom design and manufacturing of bearings and bushings to meet the unique needs of our clients. Among our range of products, the steel journal valve split bushes with fiber glide stand out as a reliable and high-performance solution.

These split bushes are precision-engineered from high-quality steel, ensuring durability and strength. The fiber glide material provides excellent lubrication and reduces friction, ensuring smooth and efficient operation.

The split design allows for easy installation and disassembly, reducing maintenance time and effort. This feature also makes it possible to replace worn-out bushings without removing the entire valve assembly.

Our custom design approach ensures that each bearing and bushing is tailored to fit the specific requirements of your application. Wh you need a bearing for a high-pressure system or a bushing for a low-friction environment, we have the expertise and capabilities to deliver a solution that meets your needs.

Contact us today to discuss your bearing and bushing requirements. Our team of engineers will work with you to develop a custom solution that exceeds your expectations in terms of performance, durability, and reliability.



VALUE BUSHING |STEEL BACKED BEARING- Professional Manufacturer‎

Gate ,Globe ,Check Valve Sleeve Steel Bushes Ball Valve Washer Butterfly Valve Spilt shaft Bushings supplier & provider from VIIPLUS China factory with different size and material for choice | bronzegleitlager.com

-Our self-lubricating bearings & bushings manufacturer for many years.



We designed and manufactured Bushing for a variety of valves:Customized bushings for Valves,butterfly, ball, gate, globe, check, control, and pressure relief. Custom Designed and Manufactured Bearings and Bushings Very Low Friction Valve Bushing & Sliding bearings made to order from china are used extensively by valve manufacturers as the bearings carry high load whilst maintaining low friction. glide bearings have a metal backing and a composite self lubricating surface. This gives a combination of high strength, excellent chemical resistance, and low coefficient of friction which means that glide bushings is the material of choice for oil and gas valves in sub-sea and platform applications.



VIIPLUS SLIDING BEARINGS and solutions help clients achieve long-term value through extended wear, improved performance and operating range, greater reliability, and engineering assistance to improve manufacturability.

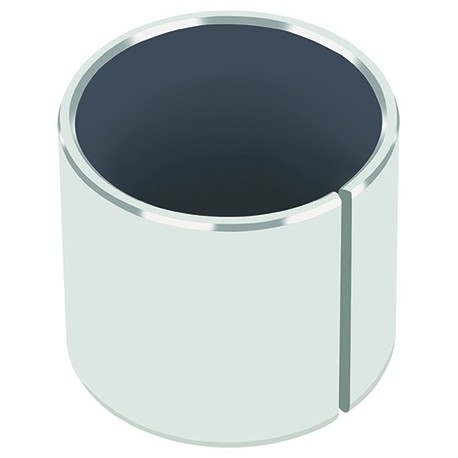

Custom Designed & Manufactured Bearings and Bushings Steel Journal Valve Split Bushes Fiber  Glide 0



We manufacture a variety of valve sleeve bushings including:





  • ·Valve stems bushes

  • · spilt bushing

  • · thrust washers

  • ·Valve bearings

  • ·Bearings and thrust washers

  • ·Fabric bearings



Reducing valve friction was the objective. To achieve the customer’s buying request, VIIPLUS CHINA recommended an alternative stem sleeve bushing material, and our TEX fabric bearings and thrust washers. The friction reduction was so great that the customer was able to use a smaller actuator, saving them money and making the valve more competitive in the market.



Gliding bearings are used in ball valves and butterfly valves for the trunion guide bushes and stem bearings. Standard and special size sliding bearings are supplied in stainless steel 316 and 304 steel. glide bearings are used in applications for clean and waste water. This is due to glide bushings low friction performance and almost no stick slip.





METAL PLASTIC SLEEVE BUSHING FOR VALVE ,SHOCK ABSORBER,DOOR HINGES,HYDRAULIC CYLINDER,GEAR PUMP,OIL PUMP



Coiled Steel Backing journal bearings Self-Lubricating Bearings - Fiber glide bushings







PRODUCT PROFILE



VIIPLUS is one of valve bushings & bearing manufactures with the advanced valve plant in China who can cover a complete bushings production in order to satisfy the demand and requirements of our clients.

 coated bushings

All the valve's internal self-lubricating bearings are sliding bearings, the whole material the use of carbon steel liner.Our bushings & bearing product range is covering many valve types like: gate, globe, check, ball, butterfly, nuclear, subsea, control, safety valve & wellhead equipment. All the indicated valve bushings range is being operated within different industries. The bushings majority is being used in the oil & gas, offshore, chemical, power, nuclear, mining and air separation industry.



VIIPLUS is able to provide a complete solution of industrial valves bushings with a fully traceable and in-house quality control system. VIIPLUS proven stable quality, reliability and performance.

Metric Sized Journal Bearings & Bushing Model :VIIPLUS coiled steel journal bearings are designed to meet industry standards for self-lubricating bushings. They provide all of the advantages of bushings at minimum cost. Carbon steel is normaly used as a backing material, with the external surface plated to resist corrosion. Other metals can be supplied upon special order. Typical applications include automotive vehicles, farm equipment, contruction and material handling equipment. VIIPLUS BUSHINGS can also be supplied for special applications-consult Transport Dynamics Engineering Department.



Description



VIIPLUS bushes are produced in a lightweight, compact material with minimum bulk, simplifying shaft assembly. Featuring high-level chemical resistance, shafts can be covered or plated with materials resistant against chemically aggressive liquids, gas or solids, through the application of an additional galvanic layer. This type of bush does not require lubrication and its operating temperature is between -195°C and +280°C.

ROLLED DRY SLIDING BEARINGS () Steel + Bronze Powder + /Fibre



Characteristics

Main function:

Absorbing and transferring radical forces



Fixing moving components to each other



Ensuring guidance accuracy with radial and axial



movements over the entire service life



Material is designed to operate without supplemental lubrication and will perform excellent when lubrication is present.



Low friction, low wear rate, good sliding characteristics and very low absorption are a few of the features of this material.



VSB-10 bushings will support rotary, linear and oscillating motion.



STRUSTURE


1. /Fibre mixture thickness 0.01~0.03mm. It is the contact surface for the rotating shaft. Minute partides of the layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.


2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the layer and conducts the thermal build up away from the bearing surfaces.


3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.



TECHNICAL DATA



Carbon Steel + Copper Powder + ( + Pb + Filler)



STRUCTURE AND COMPOSITION



  • Metal-Polymer Composite Self-lubricating Bushing Material

  • Steel Back + Porous Bronze Sinter +

  • + Lead



MICROSECTION

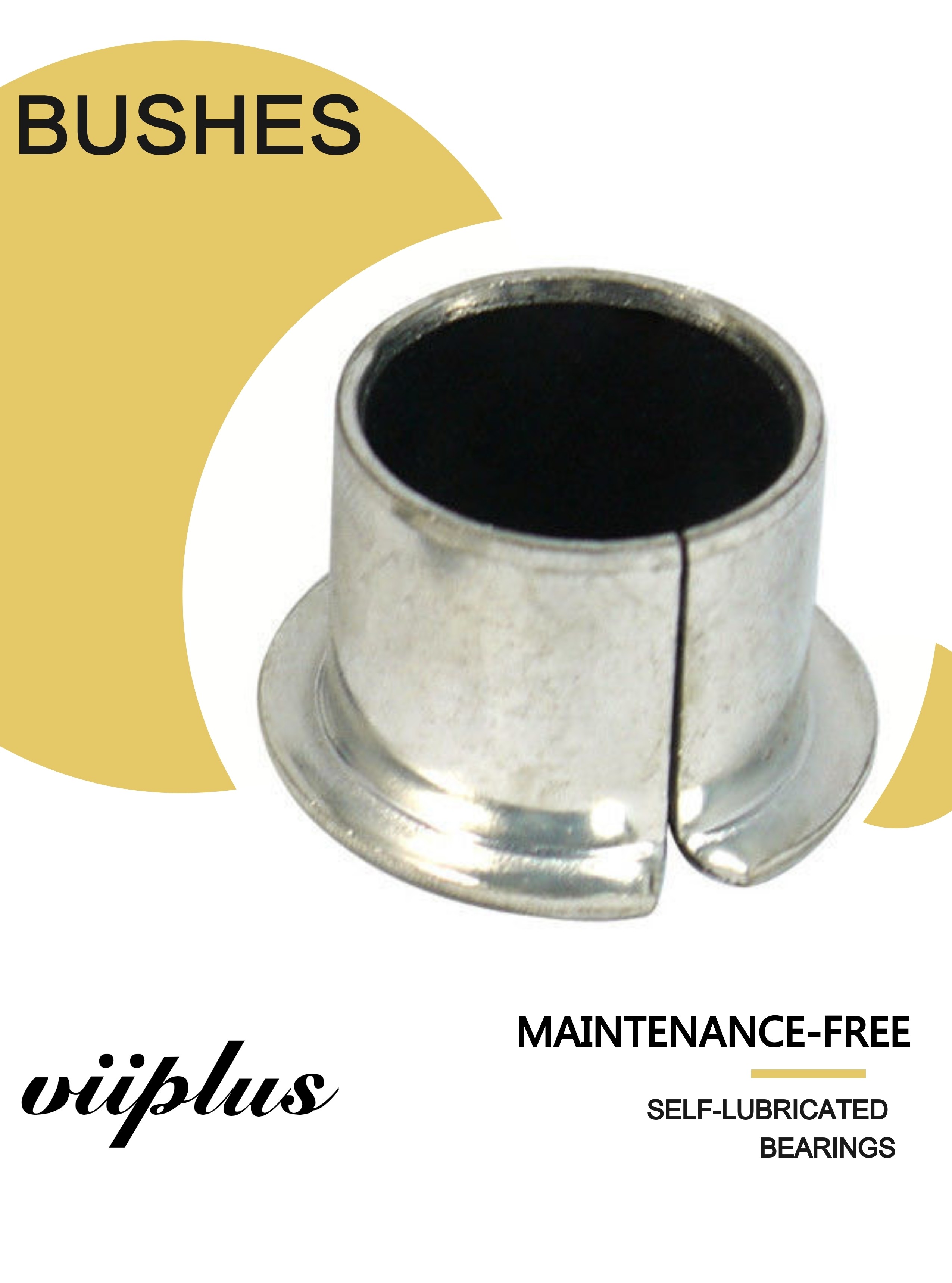

Custom Designed & Manufactured Bearings and Bushings Steel Journal Valve Split Bushes Fiber  Glide 2

Sliding layer
+ Lead

Porous Bronze Sinter
Steel Backing





OPERATING PERFORMANCE

Dry

Very Good

Oil lubricated

Good

Grease lubricated

Fair

Water lubricated

Fair

Process fluid lubricated

Fair



* Depending on Operating Conditions



Max. load

Static

250N/mm2

Dynamic

140N/mm2

Max. speed

Dry

2m/s

Lubrication

>2m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Continuous

1.8N/mm2*·m/s

Temp.

-195℃~+280℃

Friction coefficient

0.03~0.20

Thermal conductivity

42W (m·k)-1

Coefficient of thermal expansion

11*10-6k-1




AVAILABILITY



Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates

Plain bearings are available as bushes, collar bushes, washers, strips or special designs.


Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping or deep drawing, customized bushing designs
