Pneumatic Valves Sleeve Bushing | Pneumatic Valve Steel Bronze Bearing & Thrust Washer

Place of Origin Valve Bushing Manufacturer
Brand Name Straight Sleeve Bore Bushings
Certification wrapped bushing, Bronze Steel self-lubricatging bushing, DIN 1494 / ISO 3547, Low-maintenance
Model Number sleeve Bushing Applications include valves, commercial fire sprinkler systems, mixers, blenders, swivels, and extruders.
Minimum Order Quantity 100 Piece/Pieces (Min. Order)
Price Negotiable
Packaging Details Export standard packing
Delivery Time 1~2 WEEKS
Payment Terms TT IN ADVANCE
Supply Ability Valve Split Steel Bushings Shaft Bearings Suppliers

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Good Fatigue Strength Meterial Carton Steel , Bronze , ,stainless Steel 304 Or 316
Plating Tin Or Copper Characteristic Low-maintenance And Maintenance-free Plain Bearings
Type Flanged, Half Bushing, Sleeve & Bushings, Washer, Stainless Steel Plug Valve, Sliding Size Standard DIN 1494 Standard Size Available,Customized Size
Quality OEM,valve Seat Valve Sleeve Bushing Sample Availabe, Free Of Standard Size Valve Rocker Bushing, Free Samples Of Standard Size Sample Bush
Application Valve,oil Pump Etc. Used For Water Pump, Engine, Accessories For Electric Submersible Pump, PNEUMATIC Product Name Custom Precision Stellite Thin Small Bushing For Valve,SANY S Valve Bushing,Tungsten Carbide Sleeve,Tungsten Carbide Bushing
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Valve Bushings Suppliers Self-lubricating, Metal-polymer Plain Bearing Metal-Polymer Anti-Friction Plain Bearings
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

oil impregnated bushings

,

valve bearing

Leave a Message
Product Description

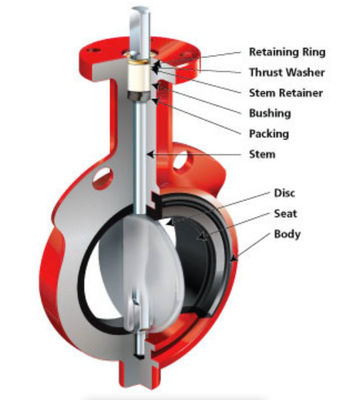

For pneumatic valve applications, we offer a comprehensive range of sleeve bushings, steel bronze bearings, and thrust washers. These precision-engineered components are designed to ensure smooth operation and extended service life in pneumatic systems.

Our steel bronze bearings exhibit excellent corrosion resistance and wear properties, making them ideal for high-pressure and high-temperature pneumatic valve applications. The material's durability ensures reliable performance even under demanding conditions.

The thrust washers we provide are specifically designed to withstand the axial loads generated by pneumatic valves. They are manufactured from high-strength materials that can effectively distribute and absorb these loads, preventing premature wear and failure.

Our sleeve bushings are custom-made to fit various pneumatic valve designs. They feature a tight fit and smooth operation, reducing friction and wear while enhancing the overall performance of the valve.

We understand that each pneumatic application has its unique requirements, and we are committed to providing customized solutions that meet your specific needs. Our team of experts will work with you to identify the best materials and designs for your pneumatic valves, ensuring optimal performance and reliability.

Contact us today to learn more about our pneumatic valves sleeve bushing, steel bronze bearing, and thrust washer solutions. We look forward to helping you achieve success in your pneumatic applications.



Pneumatic Valves Sleeve Bushing | Pneumatic Valve Steel Bronze Bearing & Thrust Washer Manufacturer in China



Pneumatic Valve Spilt bearings – china Manufacturer and Exporter of Pneumatic Valve Bearings, Pneumatic Cylinder Sleeve Bushing, Pneumatic Solenoid Valve Thrust Washer in china. We have wide range in Pneumatic Cylinders bushes and Pneumatic Valves bearings in Ready Stock also we provide fast Delivery as per Customer Demands.



VIIPLUS made to order from china designs and manufactures corrosion resistant bearings and bushings suitable for severe service control valve applications in corrosive chemical environments. lined perforated metal backed bearings, corrosion resistant bearings and bushings, machined metal backed lined bearings



Pneumatic Valves Sleeve Bushing | Pneumatic Valve Steel Bronze Bearing & Thrust Washer 0



Control Valve Stem Bushing Steel Sleeve high temperature valve rocker bushing  Coated Bushes



VIIPLUS is one of valve bushings & bearing manufactures with the advanced valve plant in China who can cover a complete bushings production in order to satisfy the demand and requirements of our clients.We are leading exporters of Valve sleeve stainless steel 316 bushing and Dry Bearing, sliding bearing, boundary lubrication Bearing,Dry Bearing,Bronze Bearing,Bimetal Bearing, Bearing.

DIN1494 Standard composite bushing tolerances and mold requirements

Bushing & Bearings Services. Description: sliding bearings. These are the wrapped cylindrical bushings ( DIN 1494 ). From a technical point of view, the product is already widely known and new applications are constantly being identified to take advantage of the high load capacity, the self-lubricated feature and the excellent ratio.



Applications include valves, commercial fire sprinkler systems, mixers, blenders, swivels, and extruders.



All the valve's internal self-lubricating bearings are sliding bearings, the whole material the use of carbon steel liner.



Because of its superior performance, the friction in friction application fields become best material, such as sleeve bearing, sliding bearing, the valve seat, seals, pump wear ring, etc.
Our bushings & bearing product range is covering many valve types like: gate, globe, check, ball, butterfly, nuclear, subsea, control, safety valve & wellhead equipment. All the indicated valve bushings range is being operated within different industries. The bushings majority is being used in the oil & gas, offshore, chemical, power, nuclear, mining and air separation industry.



VIIPLUS is able to provide a complete solution of industrial valves bushings with a fully traceable and in-house quality control system. VIIPLUS proven stable quality, reliability and performance.



The valve mainly by the valve main body, the transmission system, the hydraulic pressure stands, the electrically controlled box and so on four parts is composed.



Benefits



Pneumatic Valves Sleeve Bushing | Pneumatic Valve Steel Bronze Bearing & Thrust Washer 1

• High-impact strength

• High-resistance to wear

• High load-carrying capacity at low speeds

• Dimensionally stable

• Custom sizes for your application

• No lubrication required

• Low coefficient of friction



Guide bushing Control Valve Bushing Series Bushings ISO Guide Bushing Control Valve Stem Bushing


The non-corrosive,non-metallic bushing are strategically located,providing maximum shaft
support, centralized alignment for a thru-shaft journal corrosion and minimize bushing and frictional torque.



Bushing (DN 50-300), bronze (DN 350-600)

High Performance, Low Wear Solutions

SELF-LUBRICATING BEARINGS SOLUTIONS



A self-lubricating bearing is a metallic component permeated in a lubricant oil. The oil provides a constant lubrication between bearing and shaft, so the system does not need any additional external lubricant. VIIPLUS Specialty Bearings features high performance, low wear self-lubricating bearing solutions.



METAL POLYMER COMPOSITE BEARINGS
Metal-polymer composite plain bearings enable economical solutions in many industrial and automotive applications. They are particularly effective with oscillating movements and achieve a rating life several times higher than that of bearings with conventional materials. In addition, all our new plain bearings are lead-free and, therefore, environmentally friendly.



Pneumatic Valves Sleeve Bushing | Pneumatic Valve Steel Bronze Bearing & Thrust Washer 2 Fabric Liners for Bearings
self-lubricating bearing materials are based on specially engineered liner fabrics with a tight woven fabric of synthetic fibers coated / saturated with a unique matrix of powder, high strength resin, and special fillers. This design provides high load rating, uniform wear behavior, low friction and extended service life.



ROLLED DRY SLIDING BEARINGS ()



Steel + Bronze Powder + /Fibre
Wrapped Lined (maintenance-free), self lubricated plain or flanged bearings, thrust washer and strip, Carbon steel shell with sintered bronze layer filled with




CHARACTERISTICS


VSB-10 Self-Lubricating Multilayer Composite Bushing
· Bushing material suitable for lubricated applications
· self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
· Anti-friction bearing suitable for linear, oscillating and rotating movements
Material is designed to operate without supplemental lubrication and will perform excellent when lubrication is present. Low friction, low wear rate, good sliding characteristics and very low absorption are a few of the features of this material. VSB-10 bushings will support rotary, linear and oscillating motion.



STRUSTURE


1. /Fibre mixture thickness 0.01~0.03mm. It is the contact surface for the rotating shaft. Minute partides of the layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.
2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the layer and conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.



TECHNICAL DATA



Carbon Steel + Copper Powder + ( + Pb + Filler)



STRUCTURE AND COMPOSITION



· Metal-Polymer Composite Self-lubricating Bushing Material
· Steel Back + Porous Bronze Sinter +
· + Lead



MICROSECTION



Pneumatic Valves Sleeve Bushing | Pneumatic Valve Steel Bronze Bearing & Thrust Washer 3

Pneumatic Valves Sleeve Bushing | Pneumatic Valve Steel Bronze Bearing & Thrust Washer 4

Sliding layer
+ Lead

Porous Bronze Sinter
Steel Backing





OPERATING PERFORMANCE

Dry

Very Good

Oil lubricated

Good

Grease lubricated

Fair

Water lubricated

Fair

Process fluid lubricated

Fair


BEARING PROPERTIES

Max. load

Static

250N/mm2

Dynamic

140N/mm2

Max. speed

Dry

2m/s

Lubrication

>2m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Continuous

1.8N/mm2*·m/s

Temp.

-195℃~+280℃

Friction coefficient

0.03~0.20

Thermal conductivity

42W (m·k)-1

Coefficient of thermal expansion

11*10-6k-1



AVAILABILITY



Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates



Plain bearings are available as bushes, collar bushes, washers, strips or special designs.
Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping or deep drawing, customized bushing designs



TYPICAL APPLICATIONS



This material meets the demanding criteria for long life and maintenance free performance with or without lubrication.
Automotive: tractors, combines, crop sprayers, earth-movers, graders and other construction, auto machines, specific uses in power steering cylinders, steering gear thrust washers, disc brakes, calipers and pistons, shock absorbers, governor linkage, windshield wiper motor, tilt gear assemblies...
Business machines: photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers and peripheral equipment, automatic printing devices, mail processing machinery...
Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions...
Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines...And materials handling, marine engine, packaging, textile equipment, tools...etc.
