Complete Solutions For Wear Parts & Bushes Stem Bearings Metal Backed Self Lubricating POM /

Place of Origin Valve Bushing Manufacturer
Brand Name Straight Sleeve Bore Bushings
Certification wrapped bushing, Bronze Steel self-lubricatging bushing, DIN 1494 / ISO 3547, Low-maintenance
Model Number sleeve Bushing Applications include valves, commercial fire sprinkler systems, mixers, blenders, swivels, and extruders.
Minimum Order Quantity 100 Piece/Pieces (Min. Order)
Price Negotiable
Packaging Details Export standard packing
Delivery Time 1~2 WEEKS
Payment Terms TT IN ADVANCE
Supply Ability THRUST WASHERS & THRUST BEARINGS CUSTOMIZED SIZE SUPPLY

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Metal-polymer Or Fiber Reinforced Composite Material. Plating Tin Or Copper
Types THRUST WASHERS & THRUST BEARINGS Application Ball Valves ,Butterfly Valves
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Valve Bushings Suppliers Self-lubricating, Metal-polymer Plain Bearing Metal-Polymer Anti-Friction Plain Bearings
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

oil impregnated bushings

,

valve bearing

Leave a Message
Product Description

We offer comprehensive solutions for wear parts and bushes, specializing in stem bearings that feature metal-backed self-lubricating POM/ materials. These bearings are designed to provide exceptional durability and performance in various industrial applications.

Our metal-backed POM/ stem bearings combine the strength and rigidity of metal with the lubrication and wear-resistance properties of POM (polyoxymethylene) and (polytetrafluoroethylene). This unique combination ensures smooth operation, reduced friction, and extended service life.

Our wear parts and bushes are precision-manufactured to meet the specific requirements of each application. We use high-quality materials and advanced manufacturing techniques to ensure the highest standards of performance and reliability.

Wh you need replacement bushings for pumps, valves, or other industrial equipment, we have the right solutions for you. Our team of experts will work with you to identify the best materials and designs for your specific application, ensuring optimal performance and cost-effectiveness.

Contact us today to learn more about our complete solutions for wear parts and bushes, including stem bearings with metal-backed self-lubricating POM/. We are committed to providing you with the best possible solutions for your industrial needs.



Gleitlagerbuchsen Thrust Bearings | Thrust washer



This means that they share many of the same properties as our cylindrical plain bearings such as excellent wear resistance and low coefficients of friction. Thrust washers are designed to support heavy axial loads and are used in applications where axial loads are expected.

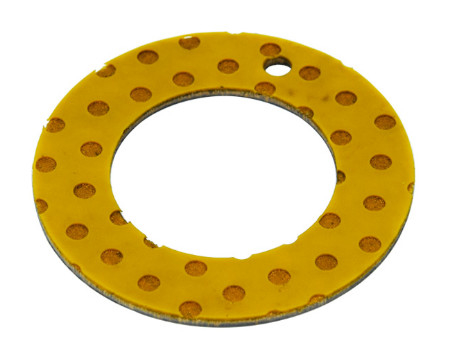

POM MARGINAL LUBRICATING BEARINGS & THRUST WASHER



Thrust washers, also called thrust bearings or thrust plates, are flat disc-shaped bearings made of polymer-metal composite material /POM or reinforced with fibers.Discover thrust washers benefits.Thrust Bearing For Sale.Get a free quote today! Thrust washers are designed to support heavy axial loads and are used in applications where axial loads are expected.



  • Size: Metric sizes & inch size
  • Material: carbon steel+bronze powder+POM

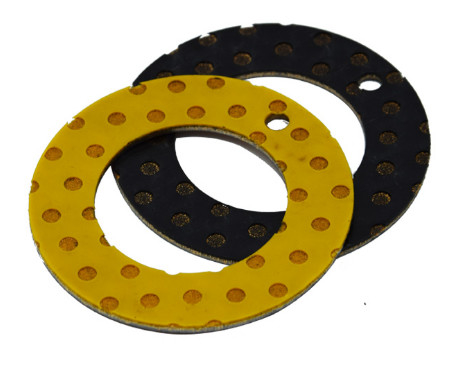

  • POM Color: yellow,black,blue,red. With hole or without holes
  • Plating: Copper-plating or Tin-plating

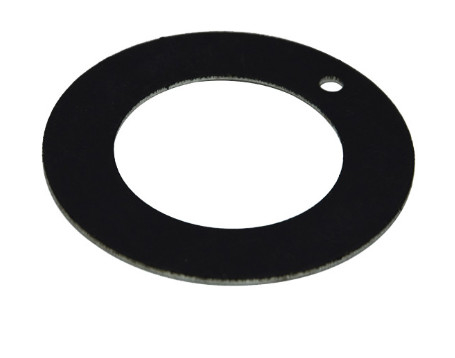

  • Product description: Bearing Black Color POM Slide Bushing

gleitlagerbuchsen



MATERIAL



and fiber reinforced composite bearing material.thrust bearings helps reduce vehicle weight, improving fuel efficiency.


WEAR PARTS & BEARINGS METAL BACKED SELF LUBRICATING BEARINGS.

Complete Solutions for Industrial Sleeve  bearings are used for trunnion bearings, stem guide bearings and thrust washers.



Applications



Ball valves Butterfly Valves for the Trunnion Guide Bearings Stem Bearings





Company profile


VIIPLUS is one of valve bushings & wahser manufactures with the advanced valve plant in China who can cover a complete bushings production in order to satisfy the demand and requirements of our clients.high performance bearing solutions High quality Thrust slide washer , from VIIPLUS, premium brand.

All the valve's internal self-lubricating bearings are sliding bearings, the whole material the use of carbon steel liner.
Our bushings & washer product range is covering many valve types like: gate, globe, check, ball, butterfly, nuclear, subsea, control, safety valve & wellhead equipment. All the indicated valve bushings range is being operated within different industries. The bushings majority is being used in the oil & gas, offshore, chemical, power, nuclear, mining and air separation industry.
VIIPLUS is able to provide a complete solution of industrial valves bushings with a fully traceable and in-house quality control system. VIIPLUS proven stable quality, reliability and performance.



bushing-online


With our professional support, we can ensure the prolonged service life of your valve bushing products.

Customized various carbon steel Washer

All size Steel composite material Sliding Washer WASHER


viiplus provides a complete set of sliding bearing solutions for hydraulic system users. The supplied products include: gear pump aluminum seat assembly, axle sleeve, side plate; Blade pump and plunger pump with oil plate, return disk, axle sleeve; Cylinder liner and so on.





TYPICAL APPLICATIONS


Plain Bearings hydraulic system plunger pumpbushing gleitlager




CHARACTERISTICS



Metal-Polymer Low Friction Plain Bearings
Steel + Bronze Powder + /Fibre(Metal-Polymer Low Friction Plain Bearings)
Self Lubricating Bearings Low-Carbon Steel + Porous Bronze + Red


VSB-40 low friction bushings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions


· Very good performance in lubricated applications
· Good performance in greased applications
· Suitable for linear, oscillating and rotating movements


Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surfaces, suitable for rotating and oscillating movement, high chemical resistance, low absorption of water and swelling. The VSV-40 improved the friction and much good wear resistance over the common CSB-10 range under lubricated operation.




STRUSTURE



1. /Polymer fibres mixture thickness 0.01~0.03mm. Lead-free bearing layer provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.


2. Sintered bronze powder thickness 0.20-0.35mm, provides max. thermal conductivity away from the bearing surface, also serves as a reservoir for the mixture.


3. Steel backing, provides high load carrying capacity, excellent heat dissipation.


4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance.



COMPOSITION



  •  Metal-Polymer Composite Bushing Material
  •  Steel back + Porous Bronze Sinter +
  •   + Fillers



MATERIAL



Complete Solutions For Wear Parts & Bushes Stem Bearings Metal Backed Self Lubricating POM /  2

Sliding layer
+ Fillers
Porous Bronze Sinter
Steel Backing




Tech. Data

Max. load

Static

250N/mm2

Max.speed

Dry running

0.08~0.20

Very low speed

140N/mm2

Hydrodynamicoperation

0.02~0.08

Rotatingoscillating

60N/mm2

Frictioncoefficient

Dry

2m/s



Hydrodynamic

>2m/s



Max. PVdryrunning)

Short-termoperation

3.6N/mm2*m/3

Thermal conductivity

42W(m*K)-1



Continuousoperation

1.8N/mm2*m/3



PV max. hydrodynamic

-195℃~+280℃

Coefficient of thermalexpansion

11*10-6*K-1



OPERATING PERFORMANCE

Dry

Good

Oil lubricated

Very Good

Grease lubricated

Good

Water lubricated

Fair

Process fluid lubricated

Good



AVAILABILITY



Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers

Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes, half-bushings, stamped/deep drawn shapes, bearings with locating notches, lubricant holes and grooves, customized designs
