Metric Plastic Flanged Sleeve Bearings，High-Performance Engineering Plastics,High Quality,Customized
| Place of Origin | MADE IN CHINA |
|---|---|
| Brand Name | VIIPLUS PLAIN BEARINGS |
| Certification | CUSN8,CUSN6.5 Bronze |
| Model Number | PTFE PLAIN BEARINGS |
| Minimum Order Quantity | 1000 Piece/Pieces (Min. Order) |
| Price | $0.20 - $10.00 / Pieces |
| Packaging Details | Wooden pallets for standard export packing cartons |
| Delivery Time | 10~15 work days |
| Payment Terms | T/T PREPARD, T/T, L/C, D/A, D/P |
| Supply Ability | 2000000 Piece/Pieces |
Product Details
| Material | EPB A Thermal Mould Character Plastic | Application | Packaging Machinery |
|---|---|---|---|
| Size | Customized | Type | Metric Plastic Flanged Sleeve Bearings |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | plastic flanged sleeve bearings,igus plastic bushings |
||
Product Description

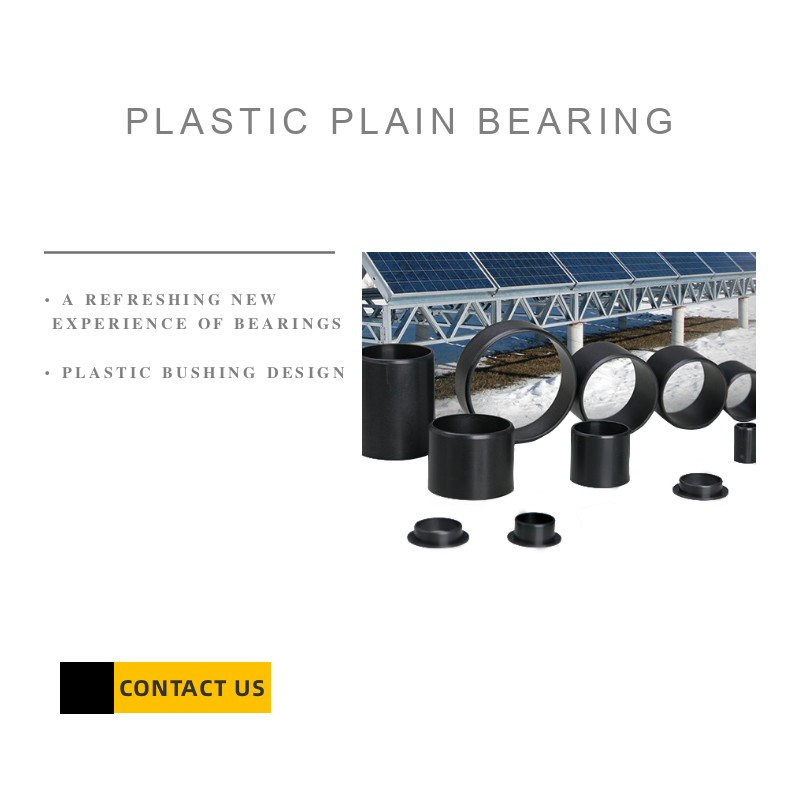

Metric Plastic Flanged Sleeve Bearings
Plastic Compound Bearings Plain Bearings Metric Cylindrical Bushes EPB Sliding Bearings Black Lubricating Bushes
Plastic Bushings diffrent with Bronze Bushing
Engineered composite plastic bushings have been proven to offer a longer service life than oil-impregnated sintered bronze bearings and can save up to 40% on maintenance costs.
Plastic bushings have already replaced bronze in thousands of applications from a variety of industries, including agricultural machinery, lawn mowers, medical equipment, food processing machines, fitness equipment, pumps and valves.
The low water absorption of this plastic bushings material makes its suitable for use in wet environments, and moisture has relatively little effect on the wear resistance of plastic plain bearings made from these materials.
Plastic Bushings Properties
● Wear resistance material with high strength and low water absorbtion feature. The dimensions will be remain stable even in humidity environment
● Continuous working temperature: -40℃/+130℃
● Higher load capacity
● Maintenance-free dry operation
● Low water absorption
● Good performance cost ratio under high load
Plastic Bushings Construction
Bronze bearings impregnated with oil have a capillary action to create a film of lubricating oil. High speed and rotational motion are required to extract the oil and maintain a film filled with lubricant. Shaft oscillation, slow speed and intermittent use can inhibit this process.
Plastic Bushings Characteristics
EP series of materials has excellent self-lubricating and wear resistance is mainly engineers take full advantage of the self-lubricating material modification technology, high-performance engineering plastics used in high-strength fiber to improve the material load and special grease reduced The friction coefficient of the material (Figure 1), thereby enhancing the comprehensive wear resistance of the material to extend the service life of the bearing. High-performance engineering plastics as the base material mainly as wear-resistant carrier; Reinforced fiber to improve the bearing in the bearing and impact resistance; Special grease reduces the coefficient of friction of the bearing from the role of lubrication.
Plastic Bushings Typical Applications
·Office Machinery
·Electronic Products
·Textile Machinery
·Fitness Machinery
·Agricultural Machinery
·Packaging Machinery
·Automotive Industry
Solid-lubricating and Maintenancefree Sliding Bearings
Plastic bearing has longe service vs Metal bearing lubricating oil is life easy to be failed
Engineers are dedicated on the performance improvement on the self- lubricating materials derives the result that EP Series Materials are with excellent self- lubricating features and wear resistance Features. High- strength fibers used in the engineering plastics fantastically improve the material load (Graphl). Special grease immersion in the plastic can decrease the friction coefficient of the material therefore to proiong the bearing sevice life. High-performance engineering plastics body material mainly service as wear- resistant vector. The reinfoced fiber improves the load and impact resistant capacity of the beaing. Special grease decreases the fiction coefficient for a better selflubricating performance.
Plastic Bushings Material property sheet
| Common Capability | Unit | EPT | EPG | EPH | EPX | EPJ | EPS |
| Density | g/cm³ | 1.46 | 1.46 | 1.65 | 1.49 | 1.24 | |
| Color | Black gray | Dark grey | Grey | Black | Yellow | Beige | |
| Max.water absorption,23℃/ 50% | [% weight] | 0.2 | 0.7 | 0.1 | 0.3 | 2.02 | |
| Max.water absorption | [% weight] | ＜1.2 | ＜4 | ＜0.3 | ＜0.5 | ＜1.3 | ＜0.1 |
| Dynamic friction /steel | μ | 0.05-0.15 | 0.08-0.18 | 0.07-0.20 | 0.09-0.27 | 0.06-0.18 | 0.05-0.15 |
| Max.PV(dry) | MPa•m/s | 0.4 | 0.5 | 1.37 | 1.32 | 0.34 | 0.4 |
| Mechanical behavior | |||||||
| E-module | MPa | 2,300 | 7,800 | 12,500 | 8,100 | 2,400 | 830 |
| Tensile strength,20℃ | MPa | 80 | 200 | 175 | 170 | 73 | 18 |
| Compressive strength | MPa | 65 | 80 | 90 | 150 | 35 | 10 |
| Max.static pressure of the surface,20℃ | MPa | 35 | 80 | 150 | 90 | 20 | 10 |
| Shore D hardness | 70 | 112 | 87 | 85 | 74 | 73 | |
| Physical and thermal properties | |||||||
| Continuous work tempreature | ℃ | +80 | +130 | +200 | +250 | +90 | +260 |
| short-time work tempreature | ℃ | +120 | +220 | +240 | +315 | +120 | +310 |
| Minimum operating temperature | ℃ | -40 | -40 | -40 | -100 | -50 | -200 |
| Thermal conductivity | W/m•K | 0.2 | 0.25 | 0.60 | 0.60 | 0.25 | 0.24 |
| Max.water absorption,23℃ | K-1•10-5 | 7 | 9 | 4 | 5 | 10 | 12 |
| Conductivity | |||||||
| Volume resisticity | Ωcm | ＞1012 | ＞1013 | ＜104 | ＜105 | ＞1013 | ＞1015 |
| Surface resisticity | Ω | ＞1015 | ＞1011 | ＜105 | ＜103 | ＞1012 | ＞1015 |
Metric Flange Bushes, Plastic Bushings Dimensions
| Size and Specification table of straight sleeve series (for all sizes of different materials) | ||||||
| SIZE | id | tolerance | od | Flange od | L | Thickness |
| EPF FLANGE PLASTIC BUSHING-030403 | 3 | +0.014/+0.054 | 4.5 | 7.5 | 3 | 0.75 |
| EPF FLANGE PLASTIC BUSHING-0304-05 | 3 | +0.014/+0.054 | 4.5 | 7.5 | 5 | 0.75 |
| EPF FLANGE PLASTIC BUSHING-0507-04 | 5 | +0.020/+0.068 | 7 | 11 | 4 | 1 |
| EPF FLANGE PLASTIC BUSHING-0507-05 | 5 | +0.020/+0.068 | 7 | 11 | 5 | 1 |
| EPF FLANGE PLASTIC BUSHING-0608-04 | 6 | +0.020/+0.068 | 8 | 12 | 4 | 1 |
| EPF FLANGE PLASTIC BUSHING-0608-06 | 6 | +0.020/+0.068 | 8 | 12 | 6 | 1 |
| EPF FLANGE PLASTIC BUSHING-0608-08 | 6 | +0.020/+0.068 | 8 | 12 | 8 | 1 |
| EPF FLANGE PLASTIC BUSHING-0608-10 | 6 | +0.020/+0.068 | 8 | 12 | 10 | 1 |
| EPF FLANGE PLASTIC BUSHING-08KW5 | 8 | +0.025/+0.083 | 10 | 15 | 5 | 1 |
| EPF FLANGE PLASTIC BUSHING-0810-07 | 8 | +0.025/+0.083 | 10 | 15 | 7 | 1 |
| EPF FLANGE PLASTIC BUSHING-0810-09 | 8 | +0.025/+0.083 | 10 | 15 | 9 | 1 |
| EPF FLANGE PLASTIC BUSHING-0810-10 | 8 | +0.025/+0.083 | 10 | 15 | 10 | 1 |
| EPF FLANGE PLASTIC BUSHING-081014-12 | 8 | +0.025/+0.083 | 10 | 14 | 12 | 1 |
| EPF FLANGE PLASTIC BUSHING-0810-12 | 8 | +0.025/+0.083 | 10 | 15 | 12 | 1 |
| EPF FLANGE PLASTIC BUSHING-0810-13 | 8 | +0.025/+0.083 | 10 | 18 | 13 | 1 |
| EPF FLANGE PLASTIC BUSHING-081017-13 | 8 | +0.025/+0.083 | 10 | 17 | 15 | 1 |
| EPF FLANGE PLASTIC BUSHING-081216-10 | 8 | +0.013/+0.071 | 12 | 16 | 10 | 2 |
| EPF FLANGE PLASTIC BUSHING-1012-05 | 10 | +0.025/+0.083 | 12 | 18 | 5 | 1 |
| EPF FLANGE PLASTIC BUSHING-1012-06 | 10 | +0.025/+0.083 | 12 | 18 | 6 | 1 |
| EPF FLANGE PLASTIC BUSHING-1012-07 | 10 | +0.025/+0.083 | 12 | 18 | 7 | 1 |
| EPF FLANGE PLASTIC BUSHING-1012-08 | 10 | +0.025/+0.083 | 12 | 18 | 8 | 1 |
| EPF FLANGE PLASTIC BUSHING 1O12-O9 | 10 | +0.025/+0.083 | 12 | 18 | 9 | 1 |
| Size and Specification table of straight sleeve series (for all sizes of different materials) | ||||||
| SIZE | id | tolerance | od | Flange od | L | Thickness |
| EPF FLANGE PLASTIC BUSHING-1517-17 | 15 | +0.032/+0.102 | 17 | 23 | 17 | 1 |
| EPF FLANGE PLASTIC BUSHING-1517-20 | 15 | +0.032/+0.102 | 17 | 23 | 20 | 1 |
| EPF FLANGE PLASTIC BUSHING-1518-12 | 15 | +0.032/+0.102 | 18 | 23 | 12 | 1 |
| EPF FLANGE PLASTIC BUSHING-1517-25 | 15 | +0.032/+0.102 | 1 | 23 | 25 | 1 |
| EPF FLANGE PLASTIC BUSHING-1618-12 | 16 | +0.032/+0.102 | 18 | 24 | 12 | 1 |
| EPF FLANGE PLASTIC BUSHING-1618-17 | 16 | +0.032/+0.102 | 18 | 24 | 17 | 1 |
| EPF FLANGE PLASTIC BUSHING-161822-22 | 16 | +0.016/+0.086 | 18 | 22 | 22 | 2 |
| EPF FLANGE PLASTIC BUSHING-162024-16 | 16 | +0.016/+0.086 | 20 | 24 | 16 | 2 |
| EPF FLANGE PLASTIC BUSHING-162024-22 | 16 | +0.016/+0.086 | 20 | 24 | 22 | 2 |
| EPF FLANGE PLASTIC BUSHING-1820-12 | 18 | +0.032/+0.102 | 20 | 26 | 12 | 1 |
| EPF FLANGE PLASTIC BUSHING-1820-17 | 18 | +0.032/+0.102 | 20 | 26 | 17 | 1 |
| EPF FLANGE PLASTIC BUSHING-1820-20 | 18 | +0.032/+0.102 | 20 | 26 | 20 | 1 |
| EPF FLANGE PLASTIC BUSHING-182024-22 | 18 | +0.016/+0.086 | 20 | 24 | 22 | 2 |
| EPF FLANGE PLASTIC BUSHING-2022-15 | 20 | +0.040/+0.124 | 23 | 25 | 15 | 1 |
| EPF FLANGE PLASTIC BUSHING-2023-11 | 20 | +0.040/+0.124 | 23 | 30 | 11 | 1.5 |
| EPF FLANGE PLASTIC BUSHING-2023-11.5 | 20 | +0.040/+0.124 | 23 | 30 | 11.5 | 1.5 |
| EPF FLANGE PLASTIC BUSHING-2023-16 | 20 | +0.040/+0.124 | 23 | 30 | 16 | 1.5 |
| EPF FLANGE PLASTIC BUSHING-2023-16.5 | 20 | +0.040/+0.124 | 23 | 30 | 16.5 | 1.5 |
| EPF FLANGE PLASTIC BUSHING-2023-21.5 | 20 | +0.040/+0.124 | 23 | 30 | 21.5 | 1.5 |
| EPF FLANGE PLASTIC BUSHING-2023-25 | 20 | +0.040/+0.124 | 23 | 30 | 25 | 1.5 |
| EPF FLANGE PLASTIC BUSHING-202330-15 | 20 | +0.040/+0.124 | 23 | 30 | 15 | 2 |
| EPF FLANGE PLASTIC BUSHING-202330-22 | 20 | +0.040/+0.124 | 23 | 30 | 22 | 2 |
Recommend fitting tolerance
Housing: H7
Shaft: H9
