| Brand Name: | Brand Cast Bronze Plain Sleeve Bearing |
| Model Number: | Sleeve bearing type: |
| MOQ: | 50 Piece/Pieces (Min. Order) |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Cast Bronze Customized Bearings Manufacturing |
When it comes to high-precision machinery and equipment, having reliable and durable bearings is crucial. For applications requiring spherical bearings with exceptional accuracy and durability, sintered bronze bushings are an excellent choice. These bushings are manufactured using a sintering process that results in a uniform and dense material, ensuring optimal performance.
Sintered bronze bushings are made from a combination of copper and tin, which gives them superior strength, wear resistance, and corrosion resistance. The spherical design of these bearings allows for multi-directional movement, making them suitable for a wide range of applications.
One of the key features of sintered bronze bushings is their high accuracy. The sintering process ensures that the bushings are manufactured to precise dimensions, resulting in a tight and reliable fit. This precision is crucial for ensuring smooth and efficient operation of the machinery or equipment.
In addition to their high accuracy, sintered bronze bushings are also ISO 9001 approved. This international standard ensures that the manufacturing process meets strict quality control requirements, guaranteeing the consistency and reliability of the bushings.
The spherical design of sintered bronze bushings also makes them ideal for applications where misalignment or vibration is a concern. The ability to accommodate multi-directional movement helps to reduce wear and tear on the bearing, extending its lifespan.
Overall, sintered bronze bushings offer a combination of high accuracy, durability, and corrosion resistance that is unmatched by other bearing materials. With ISO 9001 approval, you can trust that these bushings will provide reliable performance for your critical machinery and equipment.

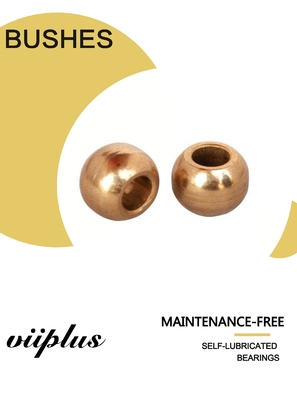

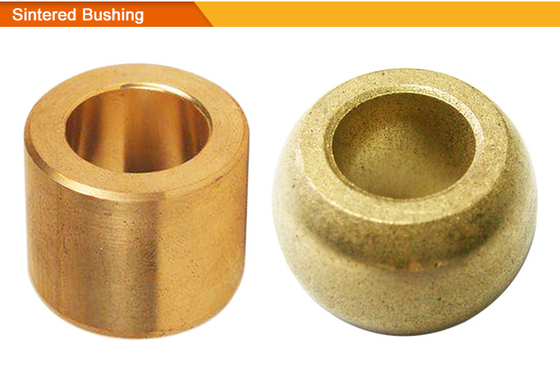

Bronze Spherical Bearing For Fan Powder Metal Sintered BRONZE METAL POWDER Spherical Bushing Slide Sintered Ring metal sintered fan bushing
Industrial Axial Fans bushings
Gravity Shatter Damper bushings
Alkatel Fans bushings
Duct Fans bushings
Avicuture Fans bushings
Centrifugal Fans bushings
Roof Fans bushings
Natural bushings
|

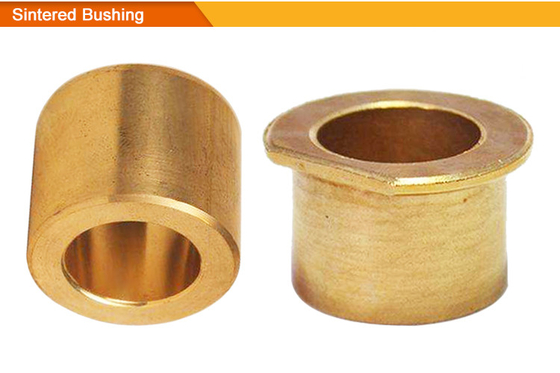

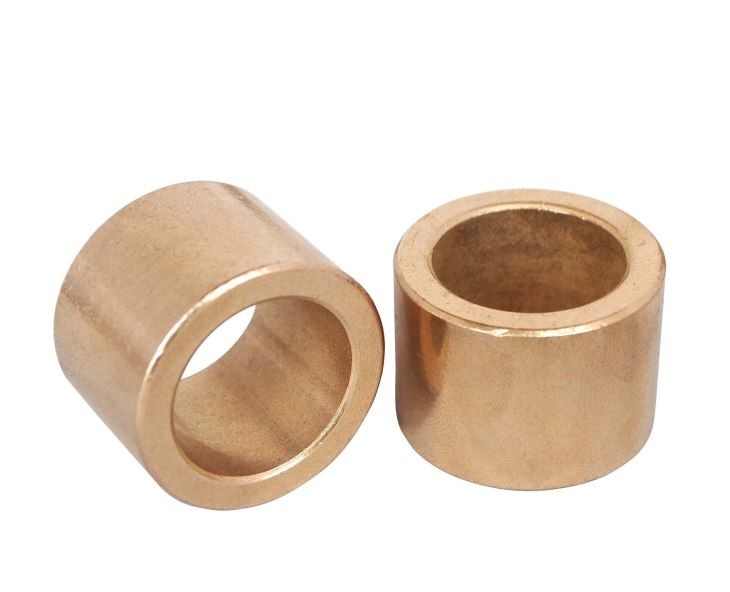

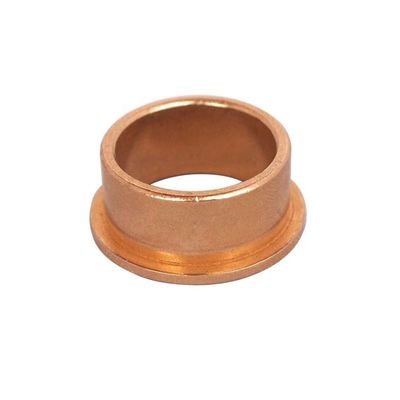

SAE 841 Powdered Metal Bronze, Sleeve Bearing |
|||||||||
|
Specifications SAE841 SLEEVE Bearing Oil Impregnated Bronze |
|||||||||
|
Material Powdered Metal / Oil Impregnated Bronze |
|||||||||
|
Material Standard SAE 841 |
|||||||||
|
Tolerances |
|||||||||
|
Inner Diameter Tolerance +.000 -.001 in |
|||||||||
|
Outside Diameter Tolerance+.000 -.001 in |
|||||||||
|
Overall Length Tolerance .005 in |
|||||||||
|
Chemical Composition- Copper (87-90%), Tin (8-9), Iron (1.0% Max) Carbon (0.1%), other elements less than 0.1% |
|||||||||
|
MPIF: CT-1000-K26 |
|||||||||
|
ASTM: B438 Grade 1, Type 2 Class A |
|||||||||
|
SAE 841 - Bronze Mil-B-5687 Type 1, Grade 1 |
|||||||||
|
Ideal for heavy loads at moderate speeds or light loads at high speeds - max Pv 50,000, P-Load 2,000, V-SFM-1,200 |
|||||||||
|
Self-lubricating - when in motion oil rises to the surface for lubrication and restores itself when at rest. |
|||||||||
|
After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation. |
|||||||||
|
Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10F to 220F. |
|||||||||
|
RoHS, REACH, DFARS compliant |
|
· Do not need or only very little machining |
|
· High usage rate of material(more than 95%) |
|
· Parts size consistency is good and stable. The precision can reach 0.01mm. |
|
· The material composition can be adjusted according to the customers’requirement of the parts performance. |
|
· Do the treatment on the surface of the parts according to customers’ requirement to improve the strength and hardness. |
|
· Due to the die forming, we can customize the complex shape or special profiled parts which other machining can not do. |
|
· Because suitable for mass production, the production efficiency is high and the cost is lower than machining. |
Hot Tags: sae841 bushing, China, suppliers, manufacturers, factory, wholesale, customized
|
Product Type:
|
High Accuracy Sintered Bronze Bush Bronze Spherical Bearing
|
|
Application :
|
Domestic electric and electronic machines,electric tools,textile machines,chemical engineering machines,automobiles and official business machines , fan parts,etc.
|
|
Material:
|
Bronze powder
|
|
Density:
|
6.4~6.8g/cm3
|
|
Static Load :
|
200N/mm²
|
|
Dynamic Load :
|
18N/mm²
|
|
Max line speed :
|
7m/s
|
|
Volume of oil impregnation:
|
22%
|
|
Hardness:
|
25HB
|
|
Friction coefficient:
|
0.03μ
|
|
Traction resistance:
|
10~20N
|
|
Elongation:
|
1~2.5%
|
|
Max thermal temperature:
|
-20~+120℃
|
