Product Details
Meterial Ow-Carbon Steel + Porous Bronze + Yellow POM Plating Tin Or Copper
Type Wrapped Bushes, Thrust Washer Lubricating Boundary Lubricating
Customized Based On Drawing Or Sample Color Black,red,yellow,blue POM
Application Automotive Chassis, Forging Machines, Mine Quarrying Machines, Metal Melting And Casing Machines And In Water Irrigating And Steel Rolling Industries, Etc. Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Valve Bushings Suppliers
Self-lubricating, Metal-polymer Plain Bearing Metal-Polymer Anti-Friction Plain Bearings Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

ptfe sleeve bearing

,

valve bearing

Leave a Message
Product Description

Our company specializes in the production of POM (Polyoxymethylene) bushings and plain bearings with precise internal clearances specifically designed for valve bushing applications. These bushings and bearings are engineered to provide superior wear resistance, durability, and smooth operation.
POM, a high-performance engineering plastic, offers excellent mechanical properties, including high stiffness, strength, and low friction. Combined with the precision internal clearances, our POM bushings and plain bearings ensure a tight and reliable fit in valve assemblies.
The internal clearances are carefully controlled to allow for thermal expansion and contraction, ensuring a consistent and reliable seal throughout the operating range of the valve. This helps to prevent leakage and maintains the integrity of the valve system.
Our POM bushings and plain bearings are suitable for a wide range of valve bushing applications, including high-pressure and high-temperature environments. They are also resistant to corrosion and chemicals, making them ideal for use in demanding industrial settings.
We pride ourselves on our commitment to quality and customer satisfaction. Our products are manufactured using the latest technologies and rigorous quality control procedures to ensure consistent performance and reliability.
Contact us today to learn more about our POM bushings and plain bearings with internal clearances for valve bushing applications and how they can improve the performance of your valve systems.


Valve Bushings and Plain Bearings - Clearances.Typically valve bearing & bushes internal clearance is defined as the total distance through which one ring can be moved radially (radial internal clearance) or axially (axial internal clearance) in relation to the other ring under a defined measuring load.

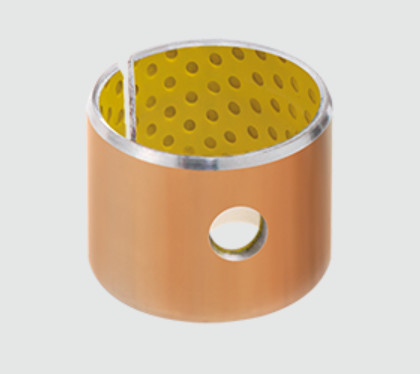

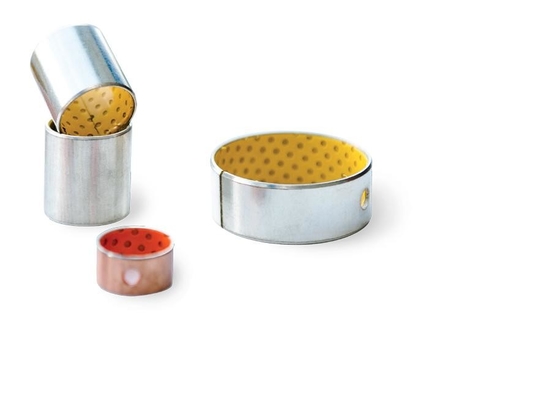

POM Bushing Wrapped Acetal Lined (low-maintenance), oil or grease lubricated bearings, carbon steel shell with sintered bronze layer with a co-acetal polymer layer, plain bearings, thrust washer and strip.Modified the boundary lubricating miniatur gleitlager POM bearings Lubricated YELLOW copper PLATING Bushes
Steel + Bronze Powder + POM(similar DX)


Self Lube Bearings Product Category SF-2 Boundary Lubricating Bearing/ lined steel tube plain submersible pump bushing



CHARACTERISTICS


VSB-20 Boundary lubrication bearing High Quality DX Bushing POM Bush China Manufacturer
· marginally lubricated bushings for grease or oil lubricated applications
· Standard parts contain grease indents in the sliding layer; plain sliding layer available by request
· Optimum performance under relatively high loads and low speeds
· Suitable for linear, oscillating and rotating movements
· Wide range of parts available from stock

Suitable for rotating and oscillating movement, less maintenance requirements due to the long re-lubrication intervals, lower wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling, good damping behaviours, good resistance to shock loads.


Strusture



1. POM thickness 0.30~0.50 mm. It provides high wear resistance and low friction even with only minute volume oflubricant are supplied, this bearing surface carries a pattern of circular indents which should be filled with grease on assembly of the bearing.
2. Sintered bronze powder thickness 0.20-0.35mm. A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the layer and conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel.Setting the foundation of the bushings, the steel back provides exceptional stability,load carrying and heat dissipation characteristics.


Structure And Composition



· Metal-Polymer Composite Bushing Material
· Steel Back + Porous Bronze Sinter +POM with Lubrication Indents



Pom Bushings & Plain Bearings - Internal Clearances | Valve Bushing 0

Sliding layer POM
with or without
lubricant indents
for machining
Porous Bronze
Sinter
Steel Back





OPERATING PERFORMANCE

Dry

Poor

Oil lubricated

Good

Grease lubricated

Very Good

Water lubricated

Poor

Process fluid lubricated

Poor




Avaibearing Properties



GENERAL



Unit

Value

Maximum load, p

Static
Dynamic

N/mm2
N/mm2

250
140

Operating temperature

Min
Max

°C
°C

- 40
110



GREASE LUBRICATED







Maximum sliding speed, U



m/s

>2.0









Coefficient of friction





0.05 – 0.20




Technical Data



Max. load

Static

250N/mm2

Dynamic

140N/mm2



Rotaing oscillating

60N/mm2

Max. speed

Dry

2m/s

Lubrication

>2m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Continuous

1.8N/mm2*·m/s

Temp.

-195℃~+280℃

Friction coefficient                         Dry

0.03~0.20

                                                      Lubrication

>2m/s

Thermal conductivity

42W (m·k)-1

Coefficient of thermal expansion

11*10-6k-1





Availability



Bearing forms available in standard dimensions
· Cylindrical bushes
· Thrust washers
· Sliding plates

Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bushing designs
Valve Bushing


Typical Applications


Recommended for applications involving intermittent operation or boundary lubrication... Automotive: suspension joints, kingpin assemblies and stub axles of trucks, automobile driving joint hinges, steering and other linkages, articulation joints, rear chassis hinges, fair leader rollers... Machine tool building industry: spindles in drill, grinding, and milling machines, ram guide plates in multi-ram presses... Agricultural equipment: gearbox, clutch, bale trips and wheel caster swivels for bale accumulators, front axle pivot bearings, steering idler box bearings and kingpin bearings for harvesters... It is especially well-suited for applications where lubricant can not be supplied continuously or repeatedly.
