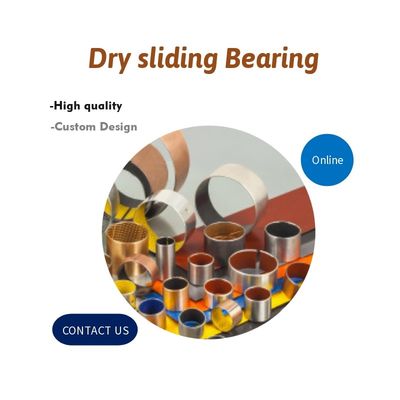

Engeneering in Motion Dry Sliding Bearing Grease Lubricated POM Bushing

  • Engeneering in Motion Dry Sliding Bearing Grease Lubricated POM Bushing
  • Engeneering in Motion Dry Sliding Bearing Grease Lubricated POM Bushing
  • Engeneering in Motion Dry Sliding Bearing Grease Lubricated POM Bushing
  • Engeneering in Motion Dry Sliding Bearing Grease Lubricated POM Bushing
  • Engeneering in Motion Dry Sliding Bearing Grease Lubricated POM Bushing
  • Engeneering in Motion Dry Sliding Bearing Grease Lubricated POM Bushing
Place of Origin MADE-TO-ORDER FROM CHINA
Brand Name REPLACEMENT GARLOCK BEARINGS (GGB)
Certification STANDARD DIN 1494, ISO 3547 BUSHING
Model Number METAL/POLYMER COMPOSITE PLAIN BEARINGS FLANGED PLAIN SLEEVE
Minimum Order Quantity ORDER BUSHING ONLINE,STOCK SIZE NO MOQ QUANTITY
Price NEGOTIABLE,CHEAP PRICES
Packaging Details CARTONS,WOODEN CASE,SPECIFY REQUIREMENTS
Delivery Time 3-20 DAYS
Payment Terms TT IN ADVANCE,L/C,WESTERN UNION
Supply Ability Self-lubricating Dimensions Tolerance • Custom Bushings Assembly • Sliding Bearings Suppliers

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Carbon Steel + Copper Powder + Bule POM Plating Tin Or Copper
Type Wrapped Bushes, Thrust Washer Lubricating Boundary Lubricating
Customized Based On Drawing Or Sample Color Black,red,yellow,blue POM
Application Automotive Chassis, Forging Machines, Mine Quarrying Machines, Metal Melting And Casing Machines And In Water Irrigating And Steel Rolling Industries, Etc. Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Self Lubricating Bronze Bushings, Dry Bearing
Dry Slide Bushings Bearing The Dry Slide Bushings Trademark Identifies A Whole Range Of Self-lubricated Dry Sliding Bushings And Bearings. Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

oilite bronze bushings

,

plain bearing bush
Leave a Message
Product Description

The dry sliding bearings are encapsulated sliding bearings made of a three-layer composite produced from a steel strip.

Self-lubricating bearings Engeneering in Motion.High-quality steel sleeve bushing or stainless steel Food-friendly design Plain Bearings and Sleeve Bearings Metal-Polymer Grease Lubricated POM Bushes | Special sleeve bushings lead free requirements in the Beverage technology General packaging Food industry in high temperatures availabe

ROLLED DRY SLIDING BEARINGS (POM)

Materiai:Carbon Steel + Copper Powder + POM (without lead



Typicai applicaton



It's used in vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry, etc.



Wrapped Acetal Lined (low-maintenance), oil or grease lubricated bearings, carbon steel shell with sintered bronze layer with a co-acetal polymer layer, plain bearings, thrust washer and strip



Steel + Bronze Powder + POM(DX)

Self Lube Bearings Product Category SF-2 Boundary Lubricating Bearing


Characteristics




VSB-20 Boundary lubrication bearing High Quality DX Bushing POM Bush China Manufacturer
· marginally lubricated bushings for grease or oil lubricated applications
· Standard parts contain grease indents in the sliding layer; plain sliding layer available by request
· Optimum performance under relatively high loads and low speeds
· Suitable for linear, oscillating and rotating movements
· Wide range of parts available from stock


 Product Range


The products and their competitive pricing

  • Bush Bearing

  • Sintered Bearings

  • Self Lubricated Bush Bearings

  • Sintered Bronze / Iron Sintered Self Lubricated Bushes

  • Dry Bushes & Washers

  • Graphite Filled Bronze Bushes

Suitable for rotating and oscillating movement, less maintenance requirements due to the long re-lubrication intervals, lower wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling, good damping behaviours, good resistance to shock loads.


Strusture



1. POM thickness 0.30~0.50 mm. It provides high wearresistance and low friction even with only minute volume oflubricant are supplied, this bearing surface carries a pattern of circular indents which should be filled with grease on assembly of the bearing.
2. Sintered bronze powder thickness 0.20-0.35mm. A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the PTFE layer and conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel.Setting the foundation of the bushings, the steel back provides exceptional stability,load carrying and heat dissipation characteristics.



Technical Data

Structure And Composition

· Metal-Polymer Composite Bushing Material
· Steel Back + Porous Bronze Sinter +
POM with Lubrication Indents



Engeneering in Motion Dry Sliding Bearing Grease Lubricated POM Bushing 0

Sliding layer POM
with or without
lubricant indents
for machining
Porous Bronze
Sinter
Steel Back



Engeneering in Motion Dry Sliding Bearing Grease Lubricated POM Bushing 1


OPERATING PERFORMANCE

Dry

Poor

Oil lubricated

Good

Grease lubricated

Very Good

Water lubricated

Poor

Process fluid lubricated

Poor



Avaibearing Properties

GENERAL



Unit

Value

Maximum load, p

Static
Dynamic

N/mm2
N/mm2

250
140

Operating temperature

Min
Max

°C
°C

- 40
110



GREASE LUBRICATED







Maximum sliding speed, U



m/s

＞2.0









Coefficient of friction





0.05 – 0.20


















Technical data

Max. load

Static

250N/mm2

Dynamic

140N/mm2



Rotaing oscillating

60N/mm2

Max. speed

Dry

2m/s

Lubrication

>2m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Continuous

1.8N/mm2*·m/s

Temp.

-195℃~+280℃

Friction coefficient                         Dry

0.03~0.20

                                                      Lubrication

>2m/s

Thermal conductivity

42W (m·k)-1

Coefficient of thermal expansion

11*10-6k-1





Availability





Bearing forms available in standard dimensions
· Cylindrical bushes
· Thrust washers
· Sliding plates

Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bushing designs


Typical Applications


Recommended for applications involving intermittent operation or boundary lubrication... Automotive: suspension joints, kingpin assemblies and stub axles of trucks, automobile driving joint hinges, steering and other linkages, articulation joints, rear chassis hinges, fair leader rollers... Machine tool building industry: spindles in drill, grinding, and milling machines, ram guide plates in multi-ram presses... Agricultural equipment: gearbox, clutch, bale trips and wheel caster swivels for bale accumulators, front axle pivot bearings, steering idler box bearings and kingpin bearings for harvesters... It is especially well-suited for applications where lubricant can not be supplied continuously or repeatedly.


STOCK SIZE for Self Lubricating Bearings
